Spec Sheet

FlexWave™ Millimeter Wave (MMW) is a point-to-point millimeter wave transmission system that

operates in the licensed 71 GHz to 86 GHz spectrum and provides fiber-speed wireless Line of

Sight (LOS) communication links within a 1 - 6 km range.

FlexWave MMW addresses the increasing shortage in metro access capacity by taking advantage

of the recently allocated licensed 71-86 GHz spectrum. By using the unique propagation

characteristics and the wide bandwidth of that spectrum, FlexWave MMW can support extremely

high speed data transmission for short communication links.

FlexWave MMW provides fiber equivalent performance, 99.999% reliability and security, without

the high installation costs and delays associated with inter-building fiber installations. FlexWave

MMW can be engineered to operate in close proximity to other FlexWave systems so that many

links can co-exist in the same vicinity without causing interference to one another. FlexWave MMW

is driving Ethernet beyond the office and into the metro enabling the move towards a single,

scalable, end-to-end communications technology.

Features:

• Highavailability(upto99.999%)

• Best-in-classlinkperformance

• Highcapacity(fullduplexgigEperformance)

• Reducedcostperbitduetotheinherentcost-anddata-efficiencyofnativeEthernet

• Samecostasmicrowavewith10timeshigherbandwidth

• Simpleandquicktoinstall

FlexWave™ MMW 125 – Europe, Middle East, Africa

Millimeter Wave Transmission System

5/08•104680AEFlexWaveMillimeterWave125-EMEA

FlexWave™ MMW 125 – Europe, Middle East, Africa

Millimeter Wave Transmission System

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Applications

The FlexWave family of millimeter wave products addresses a wide variety of deployment requirements

of carriers, enterprises, businesses, government, and educational institutions for high availability, cost

efficient bandwidth services.

Applications

Enterprise/Business Carriers Government/Educational

Campus connectivity Cellular/mobile backhaul Secure networks

Storage access networks Wi-Fi backhaul Emergency services

LANandWANextension WiMAXbackhaul Disaster recovery

HDTV transmission First/last mile access Distance learning

Redundantlinks Metropolitan area network

Wide area network access

Disaster/emergency recovery

services

Fiber extension or bridge

Availabilitybyrainzone

While previous wireless backhaul solutions were hampered by fog, dust, snow and even light rain, and

as a result have not been able to attain the high availability required by carriers, equipment operating in

the70/80GHzspectrumtodayisonlyaffectedbyextremeheavyrainfall(i.e.>100mm/hr(4in/hr).

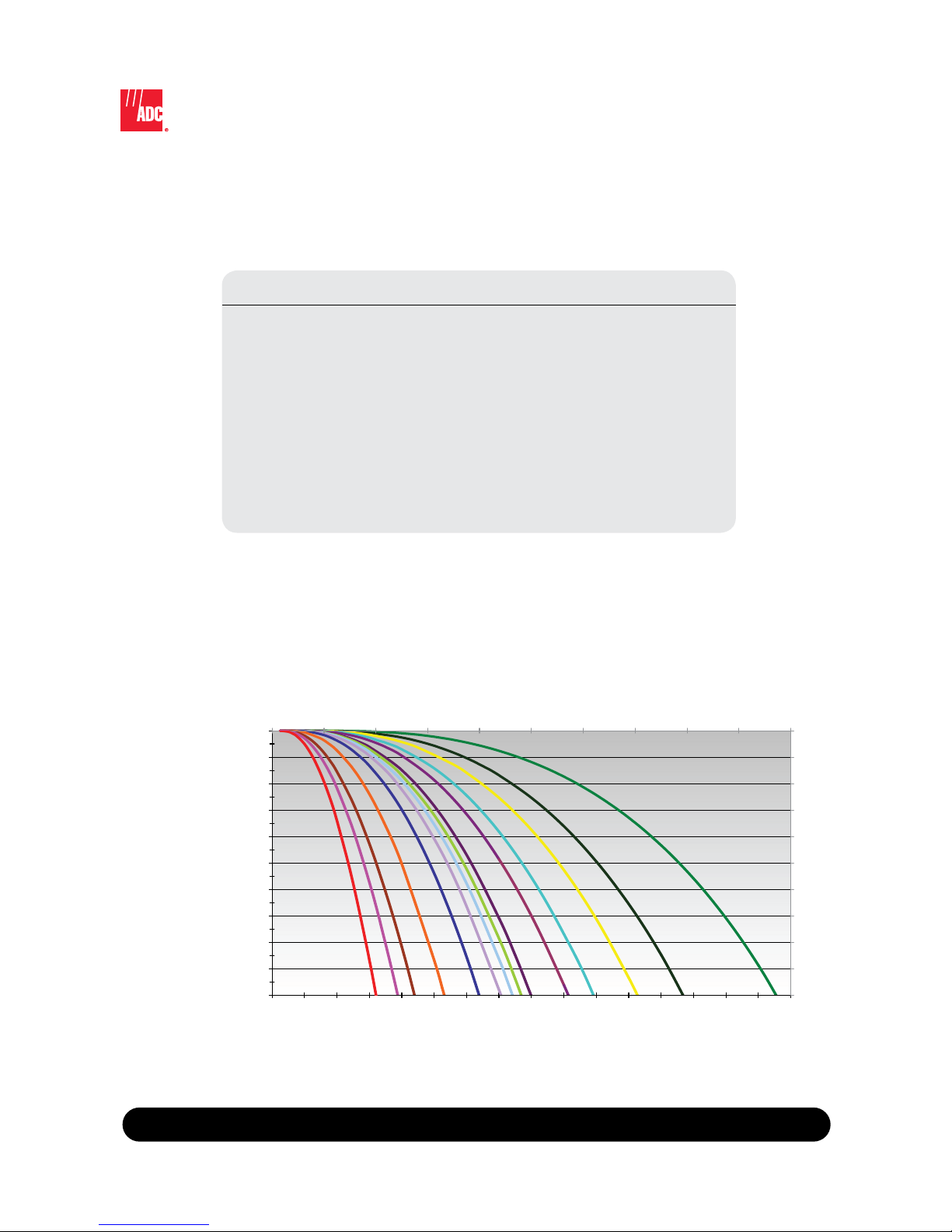

The chart below shows the approximate link distance for the FlexWave MMW for each of the rain zones

at various levels of availability.

99.900

99.910

99.920

99.930

99.940

99.950

99.960

99.970

99.980

99.990

100.000

012345678910 11 12 13 14 15 16

Distance (km)

Availability %

99.900

99.910

99.920

99.930

99.940

99.950

99.960

99.970

99.980

99.990

100.000

012345678910

Distance (Miles)

AED CBFHJP

KQN

5/08•104680AEFlexWaveMillimeterWave125-EMEA

FlexWave™ MMW 125 – Europe, Middle East, Africa

Millimeter Wave Transmission System

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Europe,MiddleEastandAfricarainzones

Description Catalog Number

MMW System consisting of two radios providing full rate Gigabit Ethernet

 850nmMMopticalinterfaceforbothradios MMW-125-MM-SYS

 1310nmSMopticalinterfaceforbothradios MMW-125-SM-SYS

 CopperGBIC,RJ-45Connectorsforbothradios MMW-125-CU-SYS

Antennas

 One1ft(0.3m)ParabolicAntennawithpolemountkit MMW-ANT-1

 One2ft(0.6m)ParabolicAntennawithpolemountkit MMW-ANT-2

Ordering Information

Note:AcompleteMMWlinkconsistsofoneMMWsystemplustwoAntennas;MMWsystemscanbe

ordered with different network interfaces and different antennas sizes. For example one could

order a MMW system with a single mode fiber interface and a 2 ft antenna on one end and a

multimode interface and a 1 ft antenna on the other end.

Web Site: www.adc.com

FromNorthAmerica,CallTollFree:1-800-366-3891•OutsideofNorthAmerica:+1-952-938-8080

Fax:+1-952-917-3237•ForalistingofADC’sglobalsalesofficelocations,pleaserefertoourWebsite.

ADCTelecommunications,Inc.,P.O.Box1101,Minneapolis,MinnesotaUSA55440-1101

Specifications published here are current as of the date of publication of this document. Because we are continuously

improvingourproducts,ADCreservestherighttochangespecificationswithoutpriornotice.Atanytime,youmay

verify product specifications by contacting our headquarters office in Minneapolis. ADC Telecommunications, Inc.

viewsits patentportfolio asanimportant corporateassetandvigorouslyenforces itspatents.Productsorfeatures

containedhereinmaybecoveredbyoneormoreU.S.orforeignpatents.AnEqualOpportunityEmployer

Spec Sheet

Specifications

Frequency Band:  71-76GHz;81-86GHz

RF Interface: FDD

Modulation: DBPSK

Frequency Source: Synthesizer

Configurations: Non-Protected

Hot Standby

 Repeater

Mesh

Latency:  <10usec

Forward Error Correction: ReedSolomon

PHYSICAL (Including radio, antenna & mount)

0.3m/1ft  0.6m/2ft

Weight:  11.79kg(26.0lbs) 15.42kg(34lbs)

Dimensions (WxHxD):  30x53x35.5cm 40.6x68.5x66cm

  (12"x21"x14") (16"x27"x26")

TRIBUTARY

Data Rate: 1250Mbpsfullduplex(GigabitEthernet)

Standards Compliance: IEEE802.3z

Interface Options: Fiber850nmMultiMode,LCconnector

 Fiber1310nm,SingleMode,LCconnector

1000Base-SXto1000BaseT

ELECTRICAL

Input Voltage: -48VDC(-40.5to-57VDC)

ENVIRONMENTAL

Operating Temperature Range: -27°to+131°F(-33°to+55°C)

Altitude: 15,000ft(4500m)

MANAGEMENT

Craft Interface Embedded web based (HTML) server

 EMSSNMP

 VoltmetertestpointsforReceivedSignalStrength

REGULATORY

FCC: 1.1310RFMPElimits

Part101

ANTENNA

 0.3m/1ft   0.6m/2ft

 43.8dBi   51dBi

 <0.9°BW   <0.4°BW

Fineadjustpolemountfitting6.35cm(2.5")to11.43cm(4.5")OD
