ADC High Density Position Panel LSX 288 Manual de usuario

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Spec Sheet

High Density LSX 288-Position Panel

Termination and Termination/Splice Configurations

ADC introduces the new high-density LSX 288-position panel available preterminated

with intrafacility (IFC) or outside plant (OSP) cables or in termination and splice configurations.

ADC’s 288-position LSX panel (with either SC or LC) offers integrated vertical cable guides

(VCG’s) within the panel, as well as on each side of the panel. VCG’s effectively segregate cables,

aiding in easy-to-follow routing paths. The angled bulkhead style panel offers additional protection

from bends that can increase attenuation and loss.

Features and Benefits:

Integrated cable management•

Angled bulkhead panel•

Vertical cable guides•

Available in SC and LC connector styles and multiple fiber cable styles•

288 terminations using either SC or LC connectors•

LSX 288-Position Preterminated Panel

8/08•106370AE High Density LSX 288 – Position Panel

www.adc.com • +1-952-938-8080 • 1-800-366-3891

High Density LSX 288-Position Panel

Preterminated Panels

Ordering Information

Connector style Cable Type Cable Length Catalog Number

SC/APC Ribbon-Indoor 16m(50')  LSX-LL/0WA016

SC/UPC Ribbon-Indoor 16m(50')  LSX-L7/0WA016

LC/APC Ribbon-Indoor 16m(50')  LSX-LM/0WA016

LC/UPC Ribbon-Indoor 16m(50')  LSX-LK/0WA016

SC/APC Stranded-Indoor 16m(50')  LSX-LL/0WB016

SC/UPC Stranded-Indoor 16m(50')  LSX-L7/0WB016

LC/APC Stranded-Indoor 16m(50')  LSX-LM/0WB016

LC/UPC Stranded-Indoor 16m(50')  LSX-LK/0WB016

Preterminated Panels

Ordering Information

Connector style Cable Type Cable Length Catalog Number

SC/APC Ribbon Diel- OSP 16m(50')  LSX-LL/0WC016

SC/UPC Ribbon Diel- OSP 16m(50')  LSX-L7/0WC016

LC/APC Ribbon Diel- OSP 16m(50')  LSX-LM/0WC016

LC/UPC Ribbon Diel- OSP 16m(50')  LSX-LK/0WC016

SC/APC Stranded Diel- OSP 16m(50')  LSX-LL/0WD016

SC/UPC Stranded Diel- OSP 16m(50')  LSX-L7/0WD016

LC/APC Stranded Diel- OSP 16m(50')  LSX-LM/0WD016

LC/UPC Stranded Diel- OSP 16m(50')  LSX-LK/0WD016

PreterminatedPanelsforCEV/CustomerPremiseLocations

Other conﬁgurations are available upon request. Please contact ADC Technical Assistance Center.

Specifications

Port Count: 288

Rack Units: 6

DIMENSIONS (H X W X D)

Preterminated: 279mmx584mmx305mm(11"x23"x12")

Termination/Splice: 279mmx584mmx381mm(11"x23"x15")

CABLE LENGTH

Preterminated: 16m(50')Standardconfigurationistwo-144-fibercables

Termination/Splice: 12-fiberpigtails

8/08•106370AE High Density LSX 288 – Position Panel

www.adc.com • +1-952-938-8080 • 1-800-366-3891

High Density LSX 288-Position Panel

Termination/Splice Panel

ADC’s 288-positon LSX panel is also available in a termination and splice configuration. While ADC

recommends off-frame splicing in high-density applications, often floor-space is limited and on-frame

splicingisrequiredinahighdensityenvironment.Ina18-inchdeepframe*,thispanelsolutionsaves

thevaluablerackspaceoftenrequiredforadedicatedsplicepanel.Panelscanbeorderedwith12-fiber

ribbonor12-fiberstrandedpigtails.Splicetraysandcableclampsareincludedwithinthepanel.

LSX 288-Termination and Splice Panel—Splicing in the rear eliminates rack space for a

dedicated splice point. Panel is shown here from front vantage (left) and back vantage (right)

Ordering Information

Connector style Pigtail Type Splice Type Catalog Number

SC/APC Ribbon-Indoor Mass Fusion  LSX-LL5243-A-SPL

SC/UPC Ribbon-Indoor Mass Fusion  LSX-L75243-A-SPL

LC/APC Ribbon-Indoor Mass Fusion  LSX-LM5243-A-SPL

LC/UPC Ribbon-Indoor Mass Fusion  LSX-LK5243-A-SPL

SC/APC Stranded-Indoor Heatshrink Fusion  LSX-LL1242-A-SPL

SC/UPC Stranded-Indoor Heatshrink Fusion  LSX-L71242-A-SPL

LC/APC Stranded-Indoor Heatshrink Fusion  LSX-LM1242-A-SPL

LC/UPC Stranded-Indoor Heatshrink Fusion  LSX-LK1242-A-SPL

Termination/Splice Panels

Other conﬁgurations are available upon request. Please contact ADC Technical Assistance Center.

*Seepage5foradditionalaccessoriesthataccommodatethedeeperpanel.

8/08•106370AE High Density LSX 288 – Position Panel

www.adc.com • +1-952-938-8080 • 1-800-366-3891

ADC’s recommended fiber frame lineup uses four frames with 2 mm fiber

jumpers to maintain the industry standard 2-inch patch cord pile-up

CABLE TIE

BRACKETS

660 mm

(26")

2.1 m (7')

203 mm

(8")

381 mm

(15")

3.4 m (11')

2" BUMPER GB

Panels/Frame Terminations/Frame Recommended Maximum Frame Lineup

51,440 4frames(5,760terminations)

Ordering Information

Description Dimensions (H x W x D) Catalog Number

High-DensityFrame(includes8"deepfronttroughs) 2.1mx660mmx381mm

(7'x26"x15")

 E-501-LGX-HD

InterbayManagementPanel(includes8"deep

troughs and spools)

2.1mx127mmx381mm

(7'x5"x15")

 E-501-L139-HD

288-Termination-Only Distribution Panel 279mmx584mmx305mm

(11"x23"x12")

Refer to previous

pages for catalog

numbers

EndGuard 2.1mx64mmx381mm

(7'x2.5"x15")

 RAC-7B0162

Recommended Patch Cord Lengths

The preterminated LSX-288 solution utilizes a traditional frame designed to fit a variety of termination,

splice and storage applications. This front load frame is built to ensure commonality with patch cord

routing, slack storage and fiber protection. It is shipped complete with top and bottom troughs.

Available accessories include interbay management panels (IMPs).

Density Recommendations

Number of Frames Approximate Patch Cord Length

15m(16.4')

26m(19.7')

36m(19.7')

47m(23')

High Density LSX 288-Position Panel

High-Density Distribution Solution (using 288-Termination-Only panel)

8/08•106370AE High Density LSX 288 – Position Panel

www.adc.com • +1-952-938-8080 • 1-800-366-3891

High Density LSX 288-Position Panel

High-Density Distribution Solution (using 288-Termination/Splice panel)

ADC’s recommended fiber frame lineup uses four frames with 2 mm fiber

jumpers to maintain the industry standard 2-inch patch cord pile-up

Ordering Information

Description Dimensions (H x W x D) Catalog Number

High-DensityFrame(includes8"deepfronttroughs) 2.1mx660mmx381mm

(7'x26"x15")

 E-501-LGX-HD

FrameRearGuardBox

(rear 2-inch bumper should be

removed and replaced with this item)

660mmx127mm

(26"x5")

 RAC-0X0439

InterbayManagementPanel(includes8"deep

troughs and spools)

2.1mx127mmx381mm

(7'x5"x15")

 E-501-L139-HD

InterbayManagementPanelRearGuardBox

(rear 2-inch bumper should be

removed and replaced with this item)

127mmx127mm

(5"x5")

 RAC-0X0440

288-Termination/Splice Distribution Panel 279mmx584mmx381mm

(11"x23"x15")

Refer to previous

pages for catalog

numbers

EndGuard 2.1mx64mmx381mm

(7'x2.5"x15")

 RAC-7B0162

UniversalEndGuardExtender 2.1mx64mmx76mm

(7'x2.5"x3")

 E-501-12002

The termination and splice LSX-288 solution utilizes a traditional frame designed to fit a variety of

termination, splice and storage applications. This front load frame is built to ensure commonality with

patch cord routing, slack storage and fiber protection. It is shipped complete with top and bottom

troughs. Available accessories include interbay management panels (IMPs).

660 mm

(26")

2.1 m (7')

203 mm (8")

3.4 m (11' )

CABLE TIE

BRACKETS

457 mm (18")

5" GUARD BOX

8/08•106370AE High Density LSX 288 – Position Panel

www.adc.com • +1-952-938-8080 • 1-800-366-3891

High Density LSX 288-Position Panel

Homerun Splitter Solution

Ordering Information

Description Dimensions (H x W x D) Catalog Number

NetworkRackwith2"WECOmountingspaces

(shippedwith8-inchfrontguardbox)

2.14mx660mmx381mm

(7'x26"x15")

RAC-7A0501

FrameRearGuardBox*;(rear2-inchbumpershould

be removed and replaced with this item)

660mmx127mm

(26"x5")

RAC-0X0439

Interbay Management Panel 2.1mx127mmx381mm

(7'x5"x15")

E-501-L139-HD

InterbayManagementPanelRearGuardBox*

(rear 2-inch bumper should be removed and replaced

with this item)

127mmx127mm

(5"x5")

RAC-0X0440

EndGuard 2.1mx64mmx381mm

(7'x2.5"x15")

RAC-7B0162

UniversalEndGuardExtender* 2.1mx64mmx76mm

(7'x2.5"x3")

E-501-12002

288-Termination Distribution Panel 279mmx584mmx305/381mm

(11"x23"x12/15")

Refer to previous pages

for catalog numbers

Rack Mount Splitter Chassis – accommodates

upto24plugandplaysplitters

176mmx483/584mm

(7"x19/23")

FPS-MPPRACKMT24

Cable Management for Rack Mount Splitter Chassis 127mmx483/584mm

(5"x19/23")

FPS-MPPRACKMTCM

Parking Lot Panel for Rack Mounts

(accommodatesthree1x32splitteroutputs)

89mmx483/584mm

(3.5"x19/23")

ACE-ACC200-PKLT3

1x32PlugandPlaySplitterModulePlug-in FPS-MPP1AJJ

*usedonlywhentermination/splicepanelisloadedintoframe.

Other conﬁgurations are available upon request. Please contact ADC Technical Assistance Center.

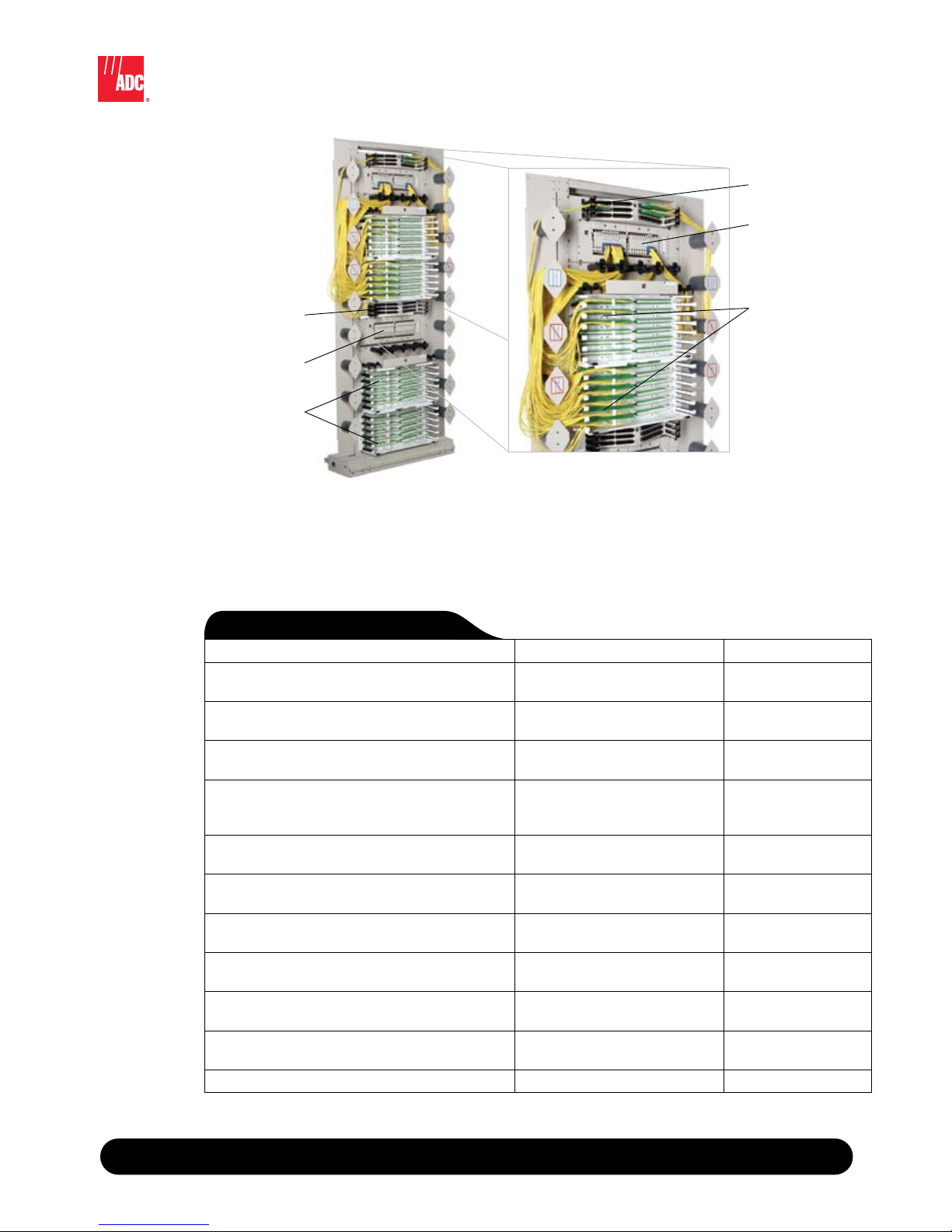

ADC’s homerun splitter solution incorporates the LSX 288-position distribution panel along with plug

andplaysplittermodulesforcentralofficesplitting.Abletoeffectivelymanage1,152homeswithin

aseven-footframe,thissolutionoffersexcellentdensitywithADC’sbuilt-incablemanagement.In

addition, these same plug and play splitter modules are commonly used within ADC’s outdoor Fiber

Distribution Hubs (FDHs), allowing for easy-to-manage inventory with one splitter type versatile enough

for both inside and outside environments.

Parking Lot

Plug and Play

Splitters

Parking Lot

288-Termination

Panels

Plug and Play

Splitters

288-Termination

Panels

8/08•106370AE High Density LSX 288 – Position Panel

www.adc.com • +1-952-938-8080 • 1-800-366-3891

High Density LSX 288-Position Panel

OutsidePlantControlledEnvironmentActiveCabinetSolution

Ordering Information

Description Dimensions (H x W x D) Catalog Number

288-Termination or Termination/Splice

Distribution Panel

279mmx584mmx305/381mm

(11"x23"x12/15")

Refer to previous pages for

catalog numbers

FMT Bulk Storage Drawer 44mmx584mmx305mm

(1.75"x23"x12")

FMT-DBS000000-A00P2

ADC’s LSX-288 panels are also well suited to a controlled environment cabinet where limited rack space

and high termination counts are necessary. Used in conjunction with ADC’s Fiber Management Tray and

RiserGuide1on-demand cable management, this solution can meet both the termination demands, and

cable management requirement for a future-proofed network.

1FormoreinformationonRiserGuideon-demandcablemanagement,seeADCliterature#101573AE.

2FormoreinformationonFiberManagementTrays(FMTs),seeADCliterature#103743AE.

Fiber Management

Tray (FMT)

Active shelf

(not included)

LSX 288-panel

Website: www.adc.com

FromNorthAmerica,CallTollFree:1-800-366-3891•OutsideofNorthAmerica:+1-952-938-8080

Fax:+1-952-917-3237•ForalistingofADC’sglobalsalesofficelocations,pleaserefertoourwebsite.

ADCTelecommunications,Inc.,P.O.Box1101,Minneapolis,MinnesotaUSA55440-1101

Specifications published here are current as of the date of publication of this document. Because we are continuously

improving our products, ADC reserves the right to change specifications without prior notice. At any time, you may

verify product specifications by contacting our headquarters office in Minneapolis. ADC Telecommunications, Inc.

views its patent portfolio as an important corporate asset and vigorously enforces its patents. Products or features

containedhereinmaybecoveredbyoneormoreU.S.orforeignpatents.AnEqualOpportunityEmployer

Spec Sheet

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Hardware de red de ADC

ADC

ADC PG-PLUS PLL-724 Manual de usuario

ADC

ADC HiGain HLU-200 Manual de usuario

ADC

ADC Digivance Manual de usuario

ADC

ADC HiGain H2TU-C-319 List 4E Instrucciones de funcionamiento originales

ADC

ADC PG-PLUS PLL-733 Manual de usuario

ADC

ADC HiGain HDSL2 Manual de usuario

ADC

ADC HiGain H2TU-C-319 List 4E Manual de usuario

ADC

ADC PG-PLUS PLL-722 Manual de usuario

ADC

ADC Migration Modules DSX-3 Manual de usuario

ADC

ADC H2TU-C-388 HiGain Manual de usuario

ADC

ADC HiGain H2TU-C-231 Instrucciones de funcionamiento originales

ADC

ADC Active Digital Signal Cross-Connect ASX Manual de usuario

ADC

ADC HiGain H2TU-C-319 List 4E Instrucciones de funcionamiento originales

ADC

ADC OmniReach OFDT-24 Manual de usuario

ADC

ADC InterReach Fusion Manual de usuario

ADC

ADC HiGain HXU-358 Manual de usuario

ADC

ADC LSA-PLUS NT Manual de usuario

ADC

ADC H2TU-C-388 HiGain Instrucciones de funcionamiento originales

ADC

ADC HiGain HMS-318 List 3 Manual de usuario

ADC

ADC Soneplex P-61-743 Manual de usuario

ADC

ADC LoopStar 780 Manual de usuario

ADC

ADC HiGain HMS-317 List 2 Manual de usuario

ADC

ADC H2TU-C-388 HiGain Manual de usuario

ADC

ADC Fiber Optic Panel FL2000 Series Manual de usuario

Manuales populares de Hardware de red de otras marcas

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manual de usuario

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manual de usuario

Yudor

Yudor YDS-16 Manual de usuario

D-Link

D-Link ShareCenter DNS-320L Manual de usuario

Samsung

Samsung ES1642dc Instrucciones de uso

Honeywell Home

Honeywell Home LTEM-PV Instrucciones de montaje

evertz

evertz 7700 Series Manual de usuario

D-Link

D-Link ShareCenter DNS-343 Manual de usuario

Asante

Asante AsanteBridge 1012 Manual de usuario

FireBrick

FireBrick FB2700 Manual de usuario

Audiovox Electronics

Audiovox Electronics ARWH2T Manual de usuario

NetComm

NetComm NF2 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 5620 Manual de usuario

Dell EMC

Dell EMC XC6420 Series Manual de usuario

Lanner

Lanner NCA-1020A Manual de usuario

Allied Telesis

Allied Telesis AT-TN121-A Manual de usuario

Arista

Arista CCA-ETM-Q12 Manual de usuario

Lanner

Lanner NCA-1525 Manual de usuario
