ADA INSTRUMENTS CUBE 2-360 Manual de usuario

MEASUREMENT FOUNDATION

Operating manual

Laser level

Model: CUBE 2-360

Manufacturer: ADAINSTRUMENTS Address: WWW.ADAINSTRUMENTS.COM

CUBE 2-360

1. Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2. Technical requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

3. Safety requirements and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

4. Order working . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

5. Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

6. Safety precaution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

7. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

8. Exceptions from responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Appendix 1- “Certificate of acceptance and sale”

Appendix 2- “Warranty card”

Table of contents

CUBE 2-360

1. CAUTIONS

Laser level ADA CUBE 2-360 model - is an up-to-date functional and multi-prism device designed for indoor and

outdoor performance. The device emits:

one horizontal laser line (beam scan angle of 360°)

one vertical laser line (beam scan angle of 360°);

down point laser.

Do not look at the laser beam!

Do not install the device on the eye level!

Before using the device, do read this operating manual!

2. TECHNICAL REQUIREMENTS

2.1. FUNCTIONAL DESCRIPTION

Emitting a horizontal and vertical laser line.

Quick self-leveling: when line accuracy is out of the range the laser line

flashes and the warning sound is produced. Compensator locking system

for safe transportation. Intermediate compensator locking system for slope operation.

Indoor and outdoor performance function.

CUBE 2-360

1. Laser lines on/off

2. Indoor/outdoor operating mode

3. Battery compartment

4. Tripod mount 1/4’’

5. Compensator switch

(ON/X/OFF)

6. Vertical laser window

7. Horizontal laser window

2.2. FEATURES 12

CUBE 2-360

2.3. SPECIFICATIONS

Laser Horizontal line 360°/vertical line 360°

Light sources 2 laser diodes with laser emission wave length of 635 nm

Laser safety class Class 2, <1mW

Accuracy ±3 mm/10 m

Self-leveling range ±4°

Operating range with/without receiver 70/20 m

Power source 3 alkaline batteries, AA type

Operation time Approx. 15 hours, if everything is on

Tripod thread 2х1/4”

Operating temperature -5°C +45°C

Weight 390 g

CUBE 2-360

3. SAFETY REQUIREMENTS AND CARE

Follow safety requirements! Don’t face and stare at laser beam!

Laser level is an accurate Instrument, which should be stored and used with care.

Avoid shaking and vibrations! Store the Instrument and It’s accessories only In the carrying case.

In case of high humidity and low temperature, dry out the Instrument and clean It after the usage.

Do not store the Instrument at a temperature below -20°C and above 50°C, otherwise the Instrument can be

out of action.

Don’t put the Instrument Into the carrying case If the Instrument or case are wet. To avoid moisture condensa-

tion Inside the Instrument- dry out the case and laser Instrument!

Check regularly Instrument adjustment!

Keep the lens clean and dry. To clean the Instrument use a soft cotton napkin!

4. ORDER WORKING

Cube 360 is a reliable and convenient instrument. It will be irreplaceable instrument for many years.

1. Before use, remove battery compartment cover. Insert three batteries into battery compartment with proper

CUBE 2-360

polarity, the put the cover back.

2. Set the compensator locking grip 5 into ON position, two laser beams will be on.

If the switch is ON,that means the power is on and the compensator is working.

If the switch 5 is in intermediate position, that means the power is opened,the compensation is still locked, but it

will not warn if you issue the slope. It’s the hand-mode.

If the switch 5 is OFF, that means that the instrument is off, the compensator is also locked.

3. Press button 1 only once- horizontal beam will turn on. Press the button 1 one more time - vertical laser beam

will turn on. Again press the button 1 - horizontal and vertical beams will turn on.

4. Press button 2 once. Otdoor mode is activated. Press button 2 one more time. The instrument begins to work

in indoor mode.

CUBE 2-360

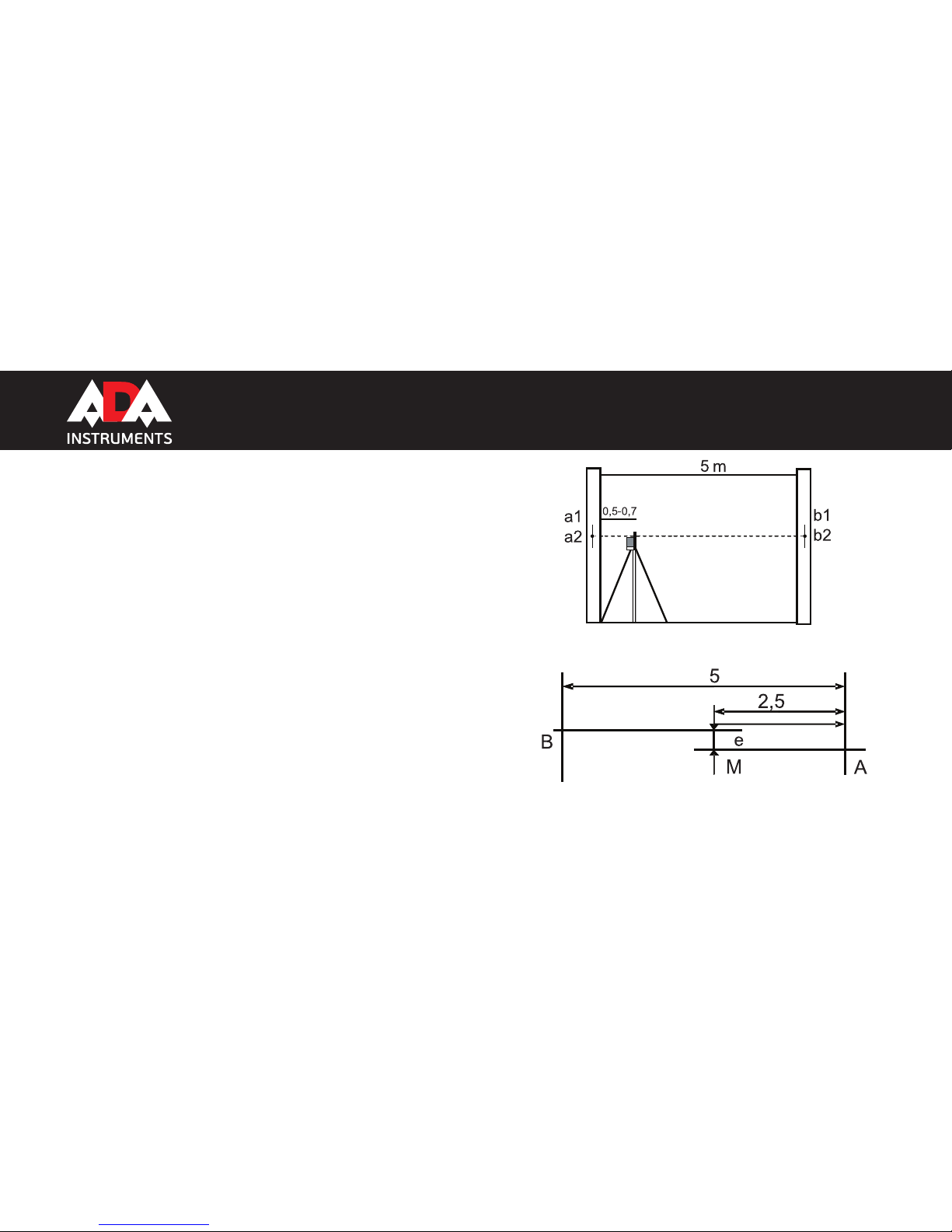

To check the accuracy of line laser level

To check the accuracy of line laser level (slope of plane)

Set up the instrument between two walls, the distance is 5m.Turn on the Line Laser, and mark the

point of cross laser line on the wall. Rotate the instrument by 180° and mark the

point of cross laser line on the wall again.

Set up the instrument 0,5-0,7m away from the wall and make, as

described above, the same masrks. If the difference {a1-b2} and

{b1-b2} is less then the value of “accuracy” (see spesiﬁcations),

there is no need in calibration.

Example: when you check the accuracy of Cross Line Laser the

difference is {a1-a2}=5 mm and {b1-b2}=7 mm. The

instrument’s error: {b1-b2}-{a1-a2}=7-5=2 mm. Now you can

compare this error with standard error.

If the accuracy of Laser level isn’t corresponding with

claimed accuracy, contact the authorized service center.

CUBE 2-360

To check level

Choose a wall and set laser 5m away from the wall. Turn

on the laser and cross laser line is marked A on the wall.

Find another point M on the horizontal line, the distance is

around 2.5m. Swivel the laser, and another cross point of

cross laser line is marked B. Please note the distance of

B to A should be 5m.

Measure the distance between M to cross laser line.

To check plumb

Choose a wall and set laser 5m away from the wall. Hang a

plumb with the length 2.5 m on the wall. Turn on the laser

and make the vertical laser line meet the point of the plumb.

The accuracy of the line is in the range if the vertical line doesn’t

exceed (up or down) the accuracy that is shown in the

spesifications (e.g. ±3mm/10m). If the accuracy isn’t

corresponding with claimed accuracy, contact the authorized service center.

CUBE 2-360

5. APPLICATION

6. SAFETY PRECAUTION
