Encoder Firmware V4.06.09 User’s Manual

4”Outdoor Dome Series

Hardware Manual

D71, D72, D81, D82, E71, E72, E73,

E74, E81, E82, E83, E84, E85, E86,

E87

2013/06/20

www.acti.com

Hardware Manual

Table of Contents

Precautions.............................................................3

Introduction.............................................................5

The List of Models ..................................................................................... 5

Package Contents...................................................................................... 6

Safety Instructions .................................................................................... 7

Physical Description ................................................................................. 8

Installation and Access........................................10

Basic Connections .................................................................................. 10

1) Remove the cover ....................................................................... 10

2) Insert the cable............................................................................ 10

3) Adjust viewing angle and focus................................................... 10

Camera Installation.................................................................................. 12

Mount the IP Outdoor Dome (Surface).................................................. 13

Mount the IP Outdoor Dome (Flush)..................................................... 14

Mount the IP Indoor Dome (Wall).......................................................... 15

How to Do the Waterproof with Conduit Installation.............................. 16

Accessing Camera................................................................................... 19

www.acti.com

Hardware Manual

Precautions

Read these instructions

You should read all the safety and operating instructions before using this product.

Heed all warnings

You must adhere to all the warnings on the product and in the instruction manual. Failure to follow

the safety instruction given may directly endanger people, cause damage to the system or to

other equipment.

Servicing

Do not attempt to service this video device yourself as opening or removing covers may expose

you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Trademarks

All names used in this manual are probably registered trademarks of respective companies.

Liability

Every reasonable care has been taken during the writing of this manual. Please inform your local

office if you find any inaccuracies or omissions. We cannot be held responsible for any

typographical or technical errors and reserve the right to make changes to the product and

manuals without prior notice.

www.acti.com

Hardware Manual

Federal Communications Commission Statement

This equipment has been tested and found to comply with the limits for a class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modifications to the equipment that are not expressly approved by the

responsible party for compliance could void the user’s authority to operate the equipment.

European Community Compliance Statement

This product has been tested and found to comply with the limits for Class B

Information Technology Equipment according to European Standard EN 55022

and EN 55024. In a domestic environment, this product may cause radio interference in which

cause the user may be required to take adequate measures.

www.acti.com

Hardware Manual

Introduction

The List of Models

This hardware manual contains the following models:

D71

1MP Outdoor Dome with D/N, IR, Fixed lens

D72

3MP Outdoor Dome with D/N, IR, Fixed lens

D81

1MP Outdoor Dome with D/N, IR, Vari-focal lens

D82

3MP Outdoor Dome with D/N, IR, Vari-focal lens

E71

1MP Outdoor Dome with D/N, IR, Basic WDR, Fixed lens

E72

3MP Outdoor Dome with D/N, IR, Basic WDR, Fixed lens

E73

5MP Outdoor Dome with D/N, IR, Basic WDR, Fixed lens

E74

3MP Outdoor Dome with D/N, IR, Superior WDR, Fixed lens

E81

1MP Outdoor Dome with D/N, IR, Basic WDR, Vari-focal lens

E82

3MP Outdoor Dome with D/N, IR, Basic WDR, Vari-focal lens

E83

5MP Outdoor Dome with D/N, IR, Basic WDR, Vari-focal lens

E84

2MP Outdoor Dome with D/N, IR, Basic WDR, SLLS, Vari-focal lens

E85

1MP Outdoor Dome with D/N, IR, Superior WDR, Vari-focal lens

E86

3MP Outdoor Dome with D/N, IR, Superior WDR, Vari-focal lens

E87

1.3MP Outdoor Dome with D/N, IR, Extreme WDR, SLLS, Vari-focal lens

From the installation perspective these models are very similar; therefore you can use one

manual for all of them.

www.acti.com

Hardware Manual

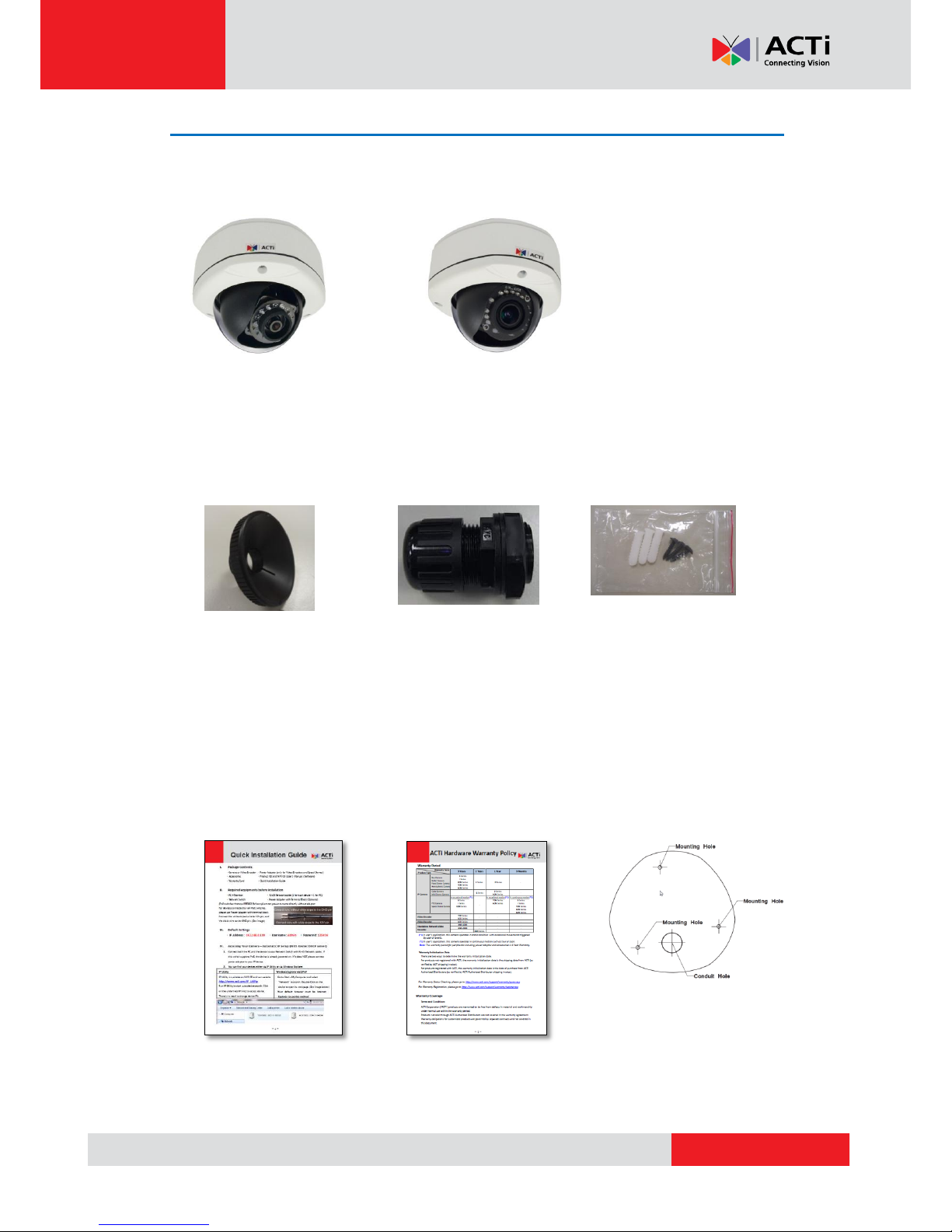

Package Contents

1. Camera

D71, D72, E71, E72, E73,

E74

D81, D82, E81, E82, E83,

E84, E85, E86, E87

2. Lens Focus Tuner

Only provided with following

models: D71, D72, E71,

E72, E73,E74

3. Conduit Gland

(Watertight Fitting)

4. Screw Pack

These screws are for surface

mounting. If you need to use

specific mounting accessories,

the screws are included in the

package of mounting accessories

5. Quick Installation Guide

6. Warranty Policy

7. Drill Template

www.acti.com

Hardware Manual

Safety Instructions

Cleaning

Disconnect this video product from the power supply before cleaning.

Attachments

Do not use attachments not recommended by the video product manufacturer as they may cause

hazards.

Do not use accessories not recommended by the manufacturer

Only install this device in a dry place protected from weather

Servicing

Do not attempt to service this video product yourself. Refer all servicing to qualified service

personnel.

Damage Requiring service

Disconnect this video product from the power supply immediately and refer servicing to qualified

service personnel under the following conditions.

1) When the power-supply cord or plug is damaged

2) If liquid has been spilled, or objects have fallen into the video product.

3) If the inner parts of video product have been directly exposed to rain or water.

4) If the video product does not operate normally by following the operating Instructions in this

manual. Adjust only those controls that are covered by the instruction manual, as an improper

adjustment of other controls may result in damage, and will often require extensive work by a

qualified technician to restore the video product to its normal operation.

Safety Check

Upon completion of any service or repairs to this video product, ask the service technician to

perform safety checks to determine if the video product is in proper operating condition.

www.acti.com

Hardware Manual

Physical Description

1) Reset Button

The purpose of reset button is to restore the factory default settings of the camera, including THE

administrator’s password.

The reset button can be used for following purposes:

1. The administrator’s password has been forgotten and therefore the camera cannot be

accessed.

2. In case of IP address, mask, or allow/deny filter related issues, resulting with inability to

modify these settings.

3. In case of connectivity issues or abnormal video quality.

How to do the reset properly?

Press and hold the reset button for 5 seconds.

2) Micro SDHC Card Slot

This slot only supports MicroSDHC standard. Do not use the MicroSD standard card. The card is

not included. For more information about how to operate with MicroSDHC card, please refer to

the Firmware User Manual.

3) Ethernet Port

The IP device connects to the Ethernet via a standard RJ45 connector.

www.acti.com

Hardware Manual

4) Conduit Hole

Conduit holes are openings where cables pass through. There are two conduit holes on this

device, used for different mounting angles.

www.acti.com

Hardware Manual

Installation and Access

Basic Connections

1) Remove the cover

Remove the dome cover with Phillips screwdriver.

2) Insert the cable

There are two conduit holes on the outdoor dome. One is at the bottom, while the other is at the

side and covered with a plug. Remove the plug if your cable will go through the one at the side of

the outdoor dome

3) Adjust viewing angle and focus

The illustration shows where to adjust each axis.

D71, D72, E71, E72, E73, E74

D81, D82, E81, E82, E83, E84,

E85, E86, E87
