Quick Installation Guide

IP D/N CCD PoE Outdoor Rugged Dome

ACM-7511 series

Ver. 120312

Quick Installation Guide

0-1

0Getting Started

1.1 PACKAGE CONTENTS

ACM-7511

Product CD Terminal Blocks for Power, DI/O & Audio

Warranty Card Drill Template

Mount Screws BNC Cable

1

0-2

1.2 PHYSICAL DESCRIPTION

0-3

1. Reset Button

Step 1: Switch off IP device by disconnecting the power cable

Step 2: Press and continue to hold the Reset Button with a

pointed object. Reconnect the power cable while still holding the

reset button.

Step 3: Keep the reset button depressed for at least 16 seconds

before releasing it. The unit will then start up with factory default

settings.

2. Ethernet Port

The IP D/N CCD PoE Outdoor Rugged Dome connects to the

Ethernet via a standard RJ45 connector. This camera can

automatically detect the best network speed when connected to

other auto-negotiation(NWAY) supported devices.

(10Base-T/100Base-TX Ethernet).

3. Analog Video Output

The IP D/N CCD PoE Outdoor Rugged Dome supports one

channel analog video output via a special BNC cable that came

with the accessory pac

4. Power Input Audio & Digital input/output

PIN

NAME

DESCRIPTION

1

DIO PW

DC12VIN

2

DIO GND

DGND

3

DO

DO1_TO_OUTSIDE

4

DI

DI1_FROM_OUTSIDE

5

AO_GND

DGND

6

A_OUT

Audio_OUT_LR

7

AI_GND

DGND

8

A_IN

Audio_IN

0-4

5. Power Input

Connect the power adaptor here if your power input is DC12V.

Please follow the description on the connector to connect to

power.

6. Conduit Hole

These conduit holes provide alternative cable routing choices for

different mounting scenarios.

PIN

NAME

DESCRIPTION

1

12V

DC Power Input

2

GND

Ground Pin

0-1

1.3 BASIC CONNECTIONS

Follow the procedures below to connect the IP device to the respective

apparatuses.

1. Connect an analog monitor to IP device video out via special BNC Cable

that came with the accessory pack.

2. Connect the power adaptor to IP device

3. Connect IP rugged dome’s ethernet port to an Ethernet (RJ45 connectors).

If your IP rugged dome supports Power Over Ethernet (PoE), you may

connect it directly to a PoE supported switch, a PoE injector connected to a

switch or other Power Source Equipments(PSE)

4. Connect a PC to the Ethernet hub (RJ45 connectors)

NOTE: For more detailed explanations, we provide a support

package that clarifies PoE related concepts for you. Please visit our

web site and download the support document TS-00040.

1-2

1Quick Tour

This section guides you with a quick tour on this IP device.

2.1 Configure this IP Device

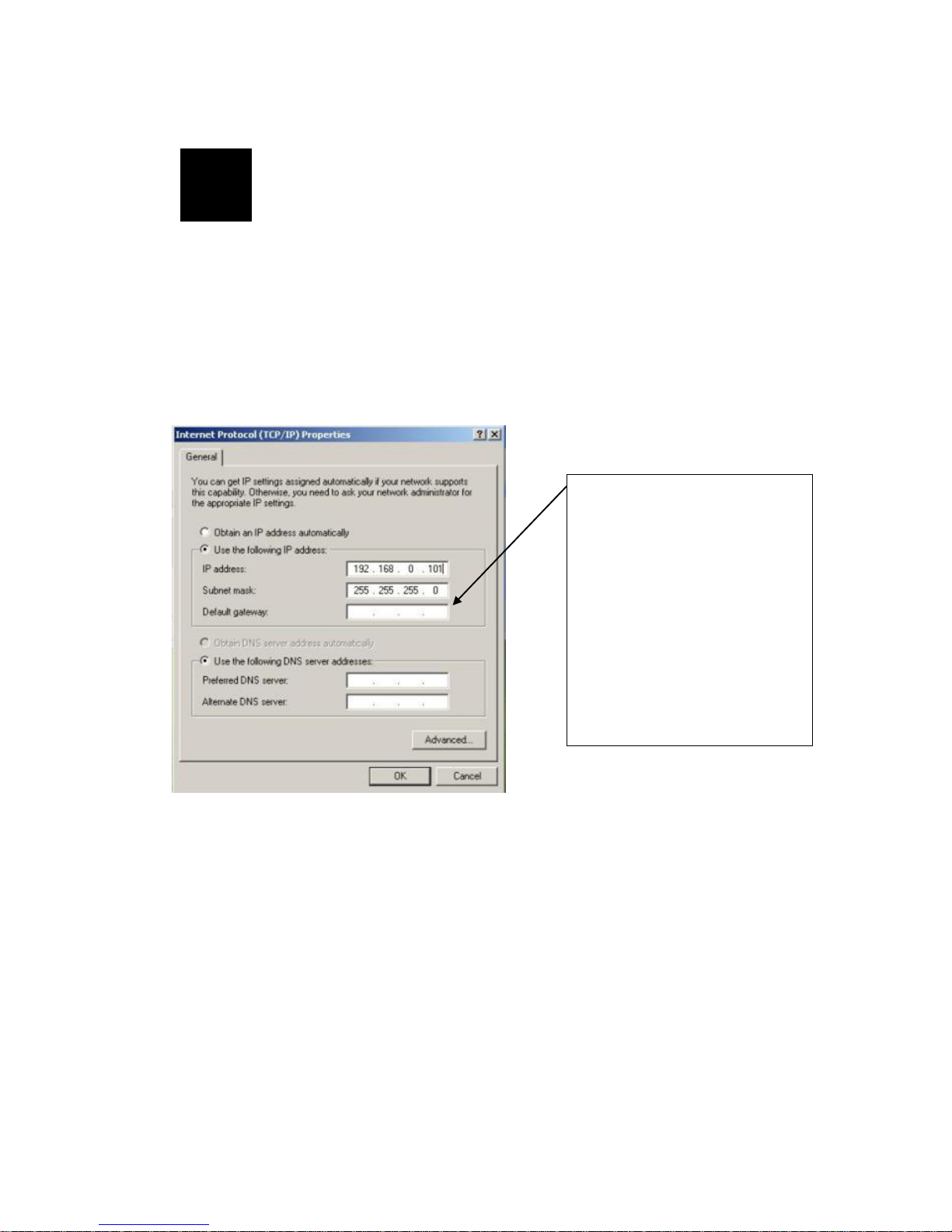

2.1.1 Make sure network environment

Default IP of this IP device is 192.168.0.100. Please make sure this IP device and

your PC are on the same network segment before running the installation.

2

Please set the settings as below.

IP address: 192.168. 0.xxx

Subnet mask: 255.255.255. 0

(NOTE: xxx should be a number

from 1 to 254 except 100, which

is used by the IP device. Please

also make sure that no two

equipments use the same IP

address in the same network..)

1-3

2.1.2 Open Internal Explorer with IP address

2.1.3 Login with default administrator’s account & password

NOTE: Default administrator account is set to Admin, password is set to

123456, and click button.

NOTE: Internet Explorer 6.0 or above is highly recommended. You

may download it from

http://www.microsoft.com/windows/ie/downloads/default.mspx

The default IP address for this device is 192.168.0.100

1-4

2.1.4 Preview the video

2.1.5 Set the new IP address
