ABB M2302 Manual de usuario

VER:1.1 │ │ 25.09.2015

ABB-Welcome

Pos: 2/Di nA4 - Anleitung enO nline/Inhalt/KNX/D oorEntry/832 20-AP-xxx/Tit elblatt - 83220-AP-xxx - ABB @ 19\mod_1 323249806476_15. docx@ 11 1084@ @ 1

M2302

Gateway

=== Ende der List ef ür Textmar keCo ver ===

ABB-Welcome

—2 —

Pos: 4 /Busch-Ja eger( Neustruktur)/M odul-Stru ktur/Online-Dokumen tation/Inhalts verzeichnis (--> Für alleD okumente <--)/I nhaltsverzeichnis @ 19\ mod_1320649044386_1 5.docx@ 1 09653 @ @ 1

1Safety............................................................................................................3

2Intended use..................................................................................................3

3Environment ..................................................................................................3

3.1 ABB devices.................................................................................3

4Operation.......................................................................................................5

4.1 Control elements ..........................................................................5

4.2 Operating modes..........................................................................6

4.2.1 Building gateway ..........................................................................6

4.2.2 Floor gateway...............................................................................8

4.2.3 Apartment gateway.....................................................................12

4.2.4 Additional power supply mode....................................................15

4.2.5 Line amplifier ..............................................................................18

5Technical data.............................................................................................20

6Mounting/Installation....................................................................................21

6.1 Requirements for the electrician.................................................21

6.2 General installation instructions..................................................22

6.3 Mounting.....................................................................................22

=== Ende der Liste fürT extmarke TOC ===

ABB-Welcome

Safety

—3 —

Pos: 6 /Busch-Ja eger( Neustruktur)/M odul-Stru ktur/Online-Dokum entation/Überschrift en( --> Füralle Do kumente <--)/1. Ebene/S - T/Sicherheit @ 1 8\mod_1302612791 790_15.docx @ 103357 @ 1 @ 1

1 Safety

Pos: 7/ Busch-Jaeger (Neus truktur)/Modul-Str uktur/Online-Dokum entation/Sicherheit (--> Für alle Doku mente< --)/Warnhin weise/Sicherheit - 230 V @ 18\mod_1302606 816750_15.docx @ 103308 @ @ 1

Warning

Electric voltage!

Risk of death and fire due to electrical voltage of 100-240 V.

–Work on the 100-240V supply system may only be performed by

authorized electricians!

–Disconnect the main power supply prior to installation and/or

disassembly!

Pos: 8 /Busch-Ja eger( Neustruktur)/M odul-Stru ktur/Online-Dokum entation/Überschrift en( --> Füralle Do kumente <--)/1. Ebene/A - F/Besti mmungsgemäßer Gebrauch @ 18\mod_ 1302763321316_1 5.docx@ 1 03483 @ 1 @ 1

2 Intended use

Pos: 9/Di nA4 - Anleitung enO nline/Inhalt/KNX/D oorEntry/832 20-AP-xxx/B estimmungsg emaesser Gebra uch- 8 3220-AP-xxx-500 @ 20\mod_1 324561168699_15.d ocx@ 1 12728 @ @ 1

This device is an integral part of the ABB-Welcome door communication system and

operates exclusively with components from this system. The device must only be

installed on mounting rails according to DIN EN 500022.

Pos: 10 /Busch-Jaeg er( Neustruktur)/Mo dul-Struktur/Onlin e-Dokumentation/Üb erschriften (--> Für alleD okument e<--) /1. Ebene/U -Z/U mwelt @ 18\mod_1302 614158967_15.docx @ 10 3383@ 1 @ 1

3 Environment

Pos: 11 /Busc h-Jaeg er (Neustr uktur)/Modul- Struktur/O nline-Doku mentation/U mwelt (--> Für alleD okum ente<--)/Hi nweise/Hin weis- U mwelt- Hinweis Ele ktrogeräte@ 18\m od_130276397343 4_15.docx @ 103500 @ @1

Consider the protection of the environment!

Used electric and electronic devices must not be disposed of with

domestic waste.

–The device contains valuable raw materials that can be recycled.

Therefore, dispose of the device at the appropriate recycling

facility.

Pos: 12 /DinA4 - Anleitunge n Online/Ueberschrif ten/2./ABB Gera ete@ 1 9\mod_132 3162843832_15.doc x@ 1 10875 @ 2 @ 1

3.1 ABB devices

Pos: 13 /Busc h-Jaeg er (Neustr uktur)/Modul- Struktur/O nline-Doku mentation/U mwelt (--> Für alleD okum ente<--)/Hi nweise/Hin weis- U mwelt- ABB Ele ktrogeräte@ 19\m od_1323162745839_1 5.docx @ 110867 @ @1

All packaging materials and devices from ABB bear the markings and test seals for

proper disposal. Always dispose of the packaging material and electric devices and their

components via an authorized recycling facilities or disposal companies.

ABB-Welcome

Environment

—4 —

ABB products meet the legal requirements, in particular the laws governing electronic

and electrical devices and the REACH ordinance.

(EU-Directive 2002/96/EG WEEE and 2002/95/EG RoHS)

(EU-REACH ordinance and law for the implementation of the ordinance (EG)

No.1907/2006)

ABB-Welcome

Operation

—5 —

Pos: 18 /DinA4 - Anleitungen Online/Ue berschriften/1./Bedi enung @ 18\mod_1302613 924165_15.docx @ 103365 @ 1 @ 1

4 Operation

Pos: 19 /DinA4 - Anleitunge n Online/Ueberschrif ten/2./Norm aler Betrieb @ 18\mod_ 1302768820965_ 15.docx @ 103540 @ 2 @ 1

4.1 Control elements

Pos: 20 /DinA4 - Anleitunge n Online/Ueberschrif ten/3./Bedienel emente @ 20\mod_ 132326022055 9_15.docx @ 111647 @ 3 @ 1

Pos: 21 /DinA4 - Anleitunge n Online/Inhalt/KN X/DoorEntry/83 220-AP-xxx/Bedieneleme nte- 83220-AP- xxx @ 18\mod_13032 12853605_15.doc x@ 103673 @ @ 1

Fig.

: Overview of control buttons

No.

Functions

Bus in/out

Operating mode settings: See chapter “Operating modes”for details.

Terminal resistor ON/OFF.

In video installations or audio- and video-combined installations, the switch

must be set as “RC on”on the last device of the line.

Rotary switches for addressing (01-99).

Connection with outdoor stations, or connection with bus in, in "line

amplifier" mode.

Operating status indicating LED

Pos: 22 /Busch-J aeger (Neustru ktur)/Modul-Struktur /Online-Doku mentation/Steu ermodule - Onli ne-Dokumentation (--> F üralle Do kumente <--)/+++++ +++++++ Seitenumbruch +++++++ +++++ @ 9\mod_1268 898668093_0.doc x@ 52149 @ @ 1

ABB-Welcome

Operation

—6 —

Pos: 26 /DinA4 - Anleitunge n Online/Ueberschrif ten/2./Bediena ktionen @ 20\mod_1 323262294281_1 5.docx @ 111911 @ 2 @ 1

4.2 Operating modes

Pos: 71 /DinA4 - Anleitunge n Online/Ueberschrif ten/3./Abschlus swiderstand @ 19\m od_132195807 9906_15.docx @ 1100 83@ 3 @ 1

Pos: 72 /DinA4 - Anleitunge n Online/Inhalt/KN X/DoorEntry/Be dienung/Abschl usswiderstand setzen 8 3220-AP-xxx @ 19\m od_1310723392369 _15.docx @ 107841 @ @1

4.2.1 Building gateway

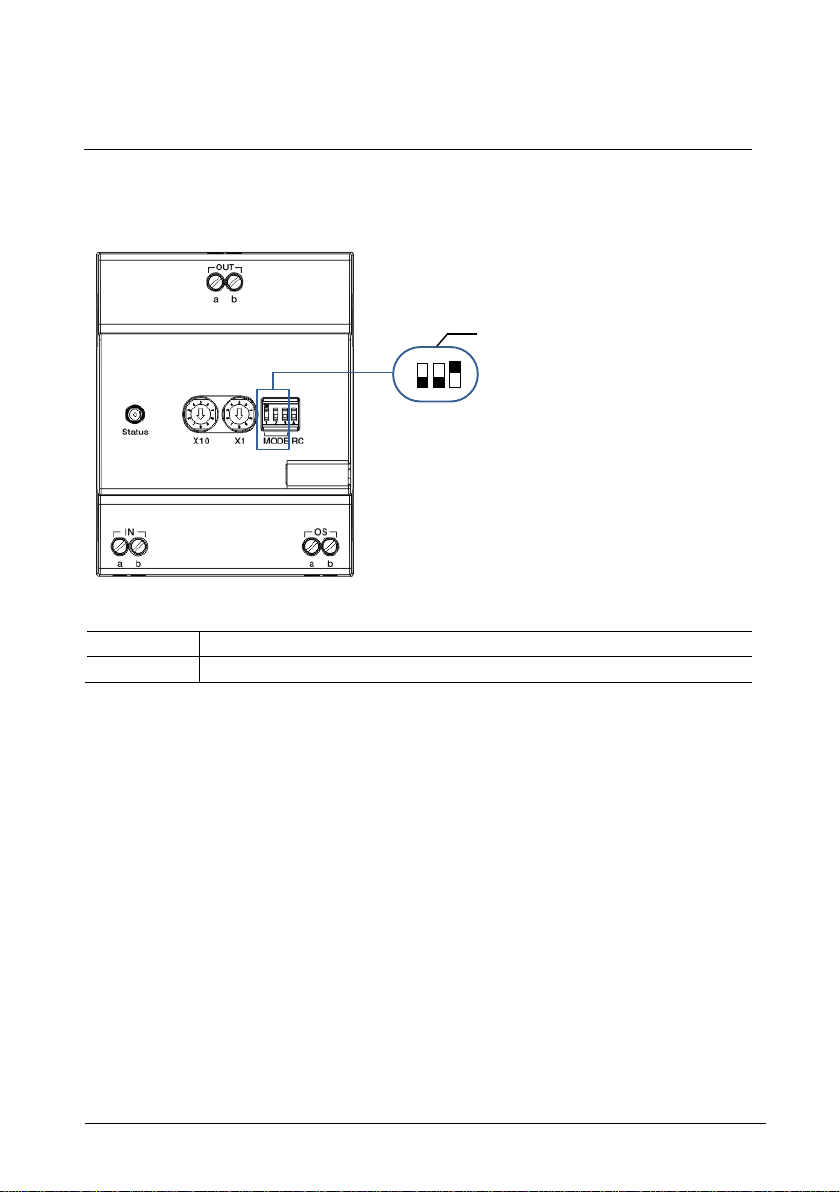

Fig.

: Building gateway

No.

Functions

1->OFF, 2->OFF, 3->OFF

Pos: 74 /DinA4 - Anleitunge n Online/Inhalt/KN X/DoorEntry/Be dienung/Master/Sl aveS chalter setzen 83 220-AP-xxx @ 19\mod_1310723 320966_15.docx @ 107833 @ @

ABB-Welcome

Operation

—7 —

Enable one building as an independent sub-system (outdoor station(s)/guard unit(s) can

be connected). Up to 60 such systems are supported within the whole system.

The gateway address is equal to the riser number.

Fig.

: Building gateway

Wiring diagram:

Fig.

: Building gateway

ABB-Welcome

Operation

—8 —

4.2.2 Floor gateway

Fig.

: Floor gateway

No.

Functions

1->OFF, 2->OFF, 3->ON

ABB-Welcome

Operation

—9 —

Enable a multi-apartment as an independent sub-system (another outdoor station can

be connected, for example in front of the door of the floor with the multi-apartment).

The gateway address is equal to the minimum address of the indoor station inside the

sub-system.

Fig.

: Floor gateway

ABB-Welcome

Operation

—10 —

Wiring diagram:

Fig.

: Floor gateway

If using pushbutton outdoor station as a gate station, floor gateway is available for this

kind of use case.

In following example, an outdoor station is mounted at the gate entrance with which all

six apartments can be called. One outdoor station is on the left building with apartments

01 and 03 and a further outdoor station on the right building with apartments 04 and 05.

This means that only three apartments can be called from these two outdoor stations.

Using floor gateway for each building, and outdoor station 1 can manage these two

buildings, while outdoor station 2 manage the left building and outdoor station 3 manage

the right one.
