Zte Falcon Z-917 Guía

TCS530100.1

2.875”

4.875”

2.875”

GETTING TO KNOW YOUR

MOBILE HOTSPOT

LED

indicators

Charging & USB port

ON/OFF switch WPS key

micro-SIM card slot

Part Description

ON/OFF

switch Slide it to turn on/off the

Hotspot.

micro-SIM

card slot Install the micro-SIM card

(included).

WPS key

When the Wi-Fi function is

enabled, hold it for more than

3 seconds to activate the

WPS function.

1

LED

indicators It shows the signal strength,

battery, Wi-Fi and message.

Charging/

USB port

Charge your device.

Connect the client to your

device via USB cable.

Reset point

Insert a pin and hold it for 3 seconds to reset

your device.

2

INDICATORS

When the Hotspot is powered on, the following

icons will light up. For a description of the

icons, refer to the following table.

Indicator Status Description

Network

Red solid

Limited or no service,

no SIM card or SIM

card error, registered

to the LTE/UMTS/

HSPA network.

Green

solid

Registered to the

UMTS or HSPA

network and

connected to UMTS

or HSPA network.

Blue solid

Registered to

LTE network and

connected to LTE

network.

3

SMS

Blue solid You have unread

messages or FOTA

(new software).

Blue

blinking Your inbox is full or

FOTA upgrading.

LED light

off No unread messages

or no new messages.

Wi-Fi

Blue solid Wi-Fi is on.

Blue

blinking WPS is active.

LED light

off Wi-Fi is off.

Battery

Red solid

The battery is low.

(From 10% to dead)

Please charge the

battery.

Green

blinking The battery is being

charged.

Green

solid

The battery level is

middle or high. (From

100% to 11%)

LED light

off The battery is not

inserted.

4

SET UP YOUR MOBILE

HOTSPOT

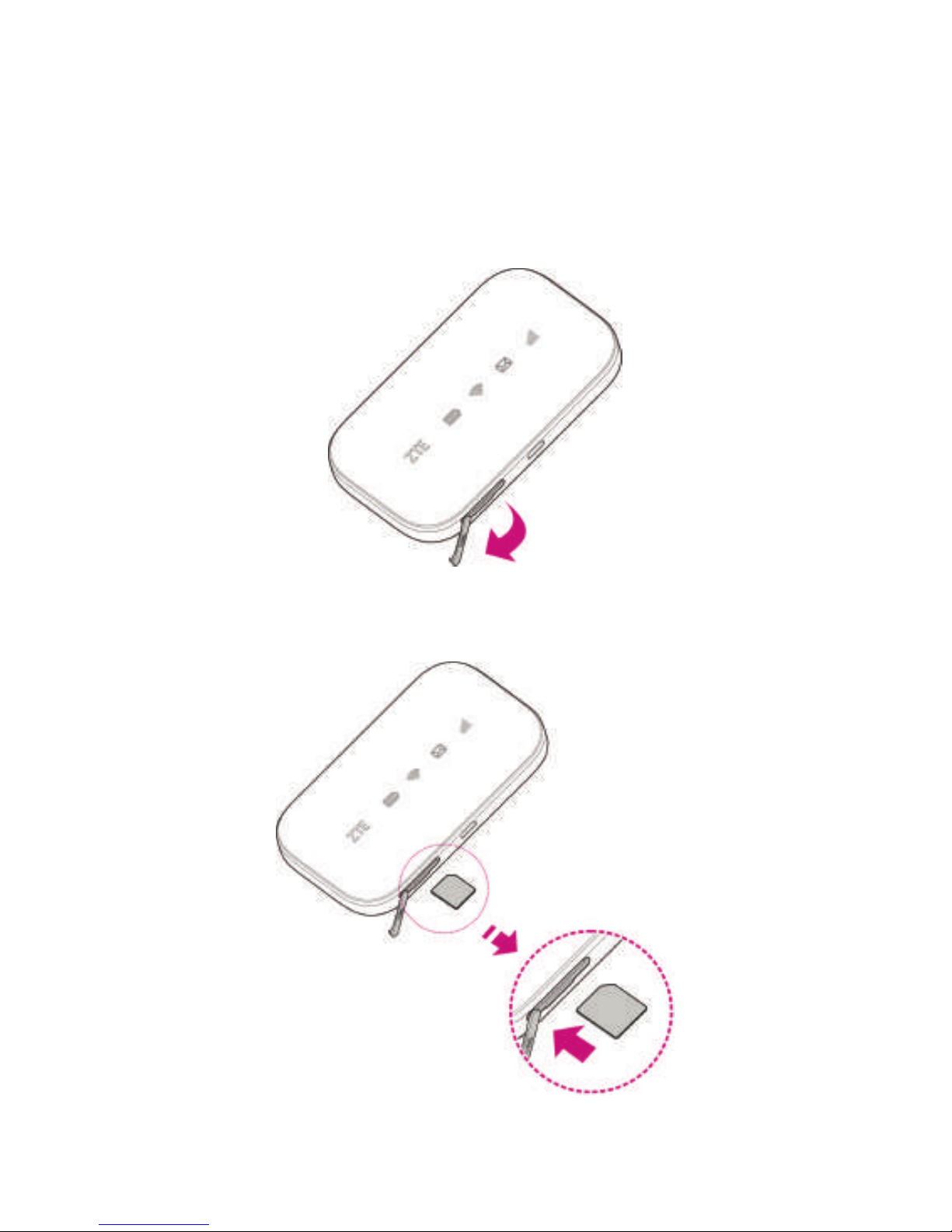

1. Lift SIM card cover.

2. Install SIM card.

5

3. Power on.

Slide to turn on

Charge your Mobile Hotspot

You can charge your Mobile Hotspot by using

the charger included in the box or by plugging

it into your computer using the USB cable.

6

Install the battery

1. Remove the cover.

2. Install the battery.

7

CONNECT & GO

Connect your Wi-Fi device to your

Mobile Hotspot

1. Power on your Mobile Hotspot.

2. On your computer or other Wi-Fi enabled

device, search for available Wi-Fi Networks

and select the default Network Name

(SSID) for your Mobile Hotspot.

Note:

You can view the label on the device to get the

default Wi-Fi SSID and password.

3. Enter the default password and click OK.

4. Open a web browser and go to

www.T-Mobile.com/ConnectMe

Simply follow the on-screen instructions

to set up your No Annual Contract data

service.

Note: Service or use is your agreement to

T-Mobile’s Terms and Conditions. T-Mobile

requires ARBITRATION of disputes

UNLESS YOU OPT-OUT WITHIN 30 DAYS

OF ACTIVATION. See T-Mobile’s Terms and

Conditions for details at www.T-Mobile.com/

terms-conditions.

8
