LEGAL INFORMATION

No part of this publication may be excerpted,

reproduced, translated or utilized in any form or

by any means, electronic or mechanical, including

photocopying and microfilm, without the prior

written permission of ZTE Corporation.

The manual is published by ZTE Corporation. We

reserve the right to make modifications on print

errors or update specifications without prior

notice.

Version No. : 1.0

Edition Time : 03-2012

CONTENTS

Welcome....................................................................4

Thank You for Choosing Verizon Wireless......... 4

Getting Started.......................................................5

Screen Indicators ....................................................... 6

Hardware Installation...........................................8

Installing the 4G SIM Card ...................................... 8

Inserting and Charging the Battery...................... 9

Removing the 4G SIM Card...................................11

Connecting to the Internet .............................. 12

Connecting Wi-Fi Enabled Devices To Your

Jetpack .........................................................................12

Follow these Steps...................................................13

Accessing the Internet............................................13

Advanced Conﬁguration................................... 14

PIN Code Veriﬁcation..............................................15

Basic Setup.................................................................16

WAN Settings.............................................................17

Router...........................................................................20

Wi-Fi Settings............................................................21

Firewall.........................................................................26

SMS ...............................................................................31

Navigating the Device ....................................... 32

WAN Info......................................................................33

WLAN Info...................................................................33

Settings........................................................................34

Message.......................................................................36

Usage of WPS....................................................... 36

Glossary.................................................................. 37

How to Get Help................................................... 41

Health and Safety Information ...................... 41

General Guidelines...................................................41

Aircraft Safety ..........................................................46

Hospital Safety .........................................................47

Road Safety................................................................47

Vehicles Equipped with an Airbag ......................48

Third Party Equipment............................................48

Efﬁcient Use...............................................................49

CTIA Requirements..................................................49

Radio Frequency (RF) Exposure .........................50

FCC Compliance........................................................52

Consumer Limited Warranty........................... 55

Welcome

Thank You for Choosing Verizon Wireless

You’re now connected to the blazingly fast,

powerfully brilliant Verizon 4G LTE Network. This

guide will help you understand your new mobile

hotspot and all the things you can do with it at

home or abroad. So let’s get started.

This guide will show you how to unleash the

potential of your new Verizon Jetpack™. Assistance

is at your fingertips at verizonwireless.com/

support. Customer Service is at your disposal

at 1-800-922-0204 or in any Verizon Wireless

Communications Store.

Device Introduction

The Verizon Jetpack™ - 890L is a newly developed

4G LTE Mobile Hotspot. It is Global Ready™

providing flexible access for users to enjoy

high-speed internet applications around the

globe. When connected to the Verizon 4G LTE

Network, the Jetpack can support simultaneous

connections to up to 10 Wi-Fi enabled devices.

When connected in 2G or 3G mode the Jetpack

can support simultaneous connections to 5 Wi-Fi

enabled devices.

Getting Started

BUTTONS AND

INTERFACE DESCRIPTION

1. SCREEN Displays the menus and the

status of your Jetpack.

2. UP BUTTON Scroll up to select the

options.

3. DOWN BUTTON Scroll down to select the

options.

5 6

4. OK BUTTON



Conﬁrm highlighted

selection.



When the Jetpack button

is locked, press once to

light up the screen, and

press again to unlock.

5. POWER SWITCH Power on/off your Jetpack.

6. MICRO USB PORT Charge your Jetpack.

7. RESET BUTTON

Press and hold to restore

your Jetpack to the factory

default settings.

Screen Indicators

Icon Description

Battery Status

4G Network

3G Network

2G Network

Data Connected

Icon Description

Signal Strength

and No Network Service

Roaming Signal Strength

Roaming

SMS

New SMS

SMS Full

Number of current Wi-Fi

connections

Settings

Hardware Installation

Installing the 4G SIM Card

If you have not already done so, please follow

these instructions for the installation of your new

4G SIM Card:

1. Remove 4G SIM Card from the outer card,

being careful not to touch the gold contacts.

CAUTION: Do not bend or scratch your 4G SIM

Card. Avoid exposing your 4G SIM Card to static

electricity, water or dirt.

2. Turn the power off. Remove the battery cover

and take the battery out. Locate the 4G

SIM card slot. Hold the card so the Verizon

Wireless logo on the card is facing you and the

gold contact points are properly aligned with

the 4G SIM Card slot.

3. Insert 4G SIM Card with the Verizon Wireless

logo facing you into the slot until it is fully

inserted.

NOTE: Your 4G SIM (Subscriber Identity Module)

Card is a small rectangular plastic card that stores

your phone number and important information

about your wireless service.

The 4G SIM Card MUST remain in the Jetpack

when in use.

Inserting and Charging the Battery

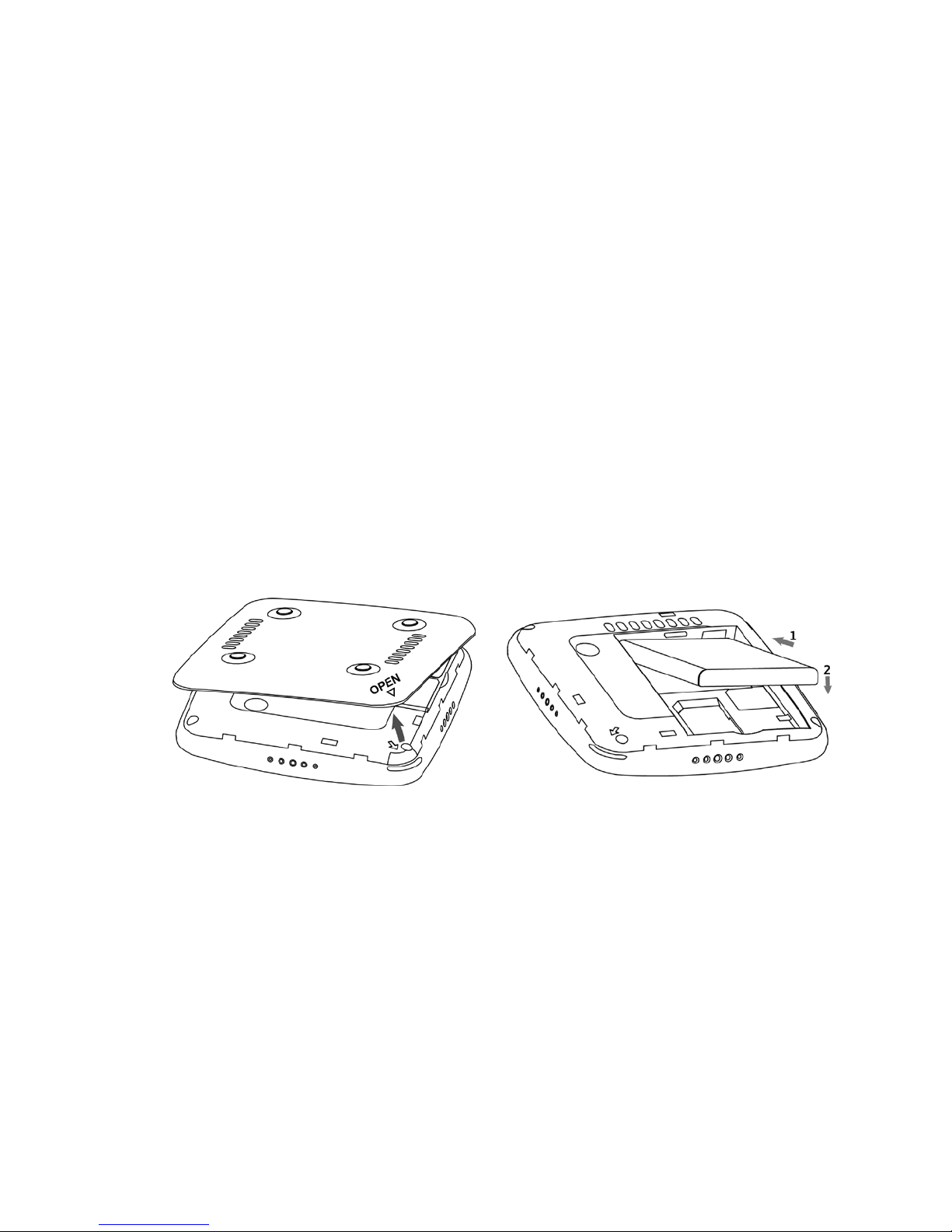

1. Use the thumb catch at the bottom of the

device to open the battery cover and align

the battery contacts with the terminals in

the battery compartment as shown. Push the

battery down until it clicks into place.

2. Place the battery cover over the battery

compartment ensuring that the arrow on

the device and the arrow on battery cover

are aligned. Then press the battery cover

downward until it clicks into place.
