Zavio D7111 Manual de usuario

D7111

86085F6000010

Zavio D7111 Quick Installation Guide

Please follow the installation steps below to set up your F7210 Box IP Camera.

Check the package contents against the list below. See P.1

Physical overview. See P.1

LED Indicator Definition. See P.2

I/O Terminal Block Circuit. See P.2

Install the hardware and connect all cables. See P.3

Microsoft OS: Use the software CD to install Intelligent IP Installer.See P.6

Access the IP Camera using Intelligent IP Installer. P.6

Mac OS using Safari Browser. P.8

Change light environment setting. P.8

Change the Web Interface into your preferred language. P.9

Wireless Setting P.9

Application of IP Camera P.10

For more information, please check the User Manual available in the Software CD or you can download the latest

software from http://www.zavio.com

Package Contents

Camera

D7111 IP Camera

Quick Installation Guide

Brief product information and quick installation

Software CD

IP Surveillance Software

Intelligent IP Installer

User Manual

Language Packs

Accessory

Three plastic anchors and screws

Alignment sticker

4pin, 2pin I/O terminal block

Adaptor

12V DC, max 7.2W

Physical overview

LED Indicator Definition

DI/DO Diagram

c. Connect all cables

c1. Without Power over Ethernet (PoE) connection

1. Connect the power adaptor to the IP Camera.

2. Using a standard RJ-45 network cable, connect the IP Camera

to a normal Hub / Switch / Router.

c2. Power over Ethernet (PoE)

1. Using a standard RJ-45 network cable, connect the IP Camera

to a PoE-enabled Hub / Switch / Router.

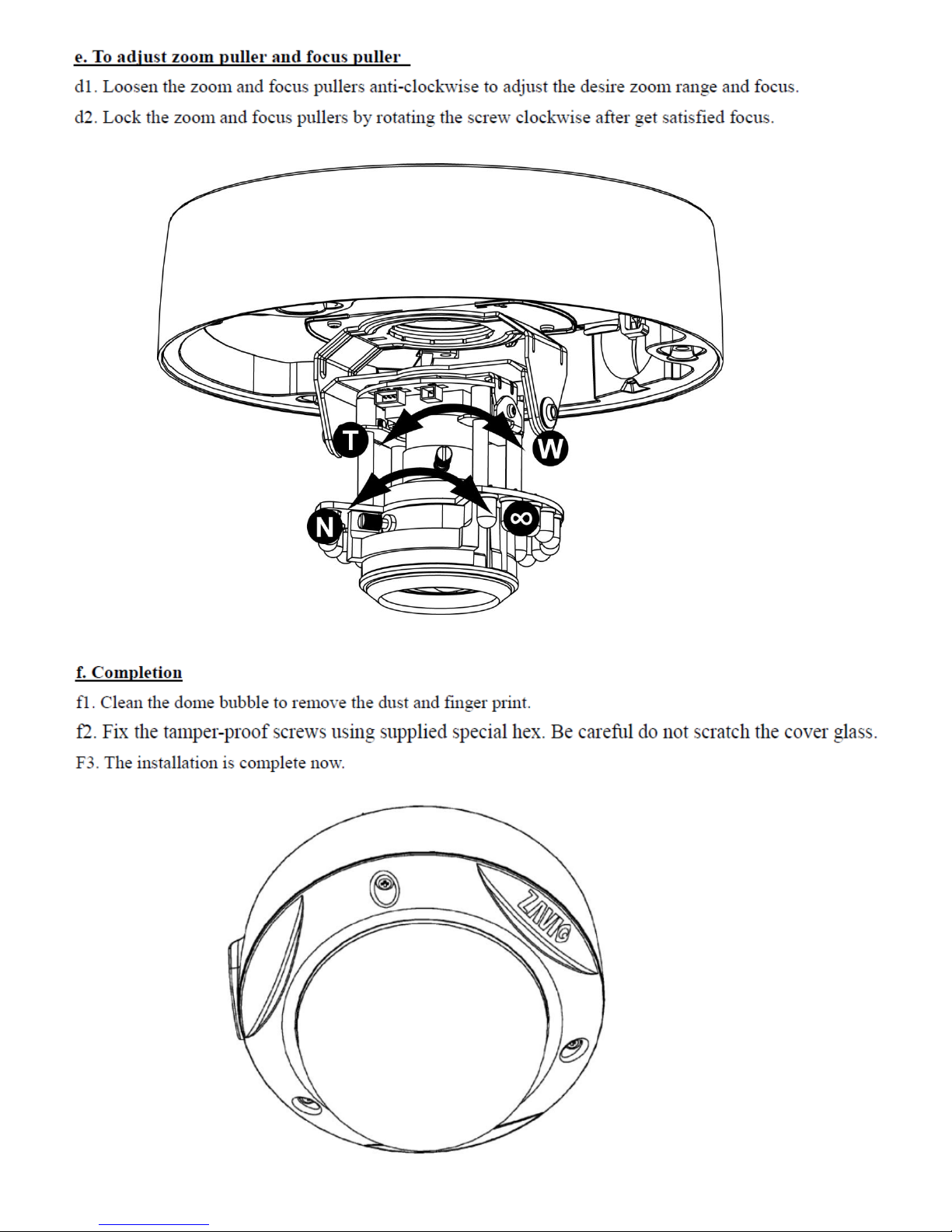

Microsoft OS:Use the software CD to install Intelligent IP Installer

Power on your PC and insert the CD-ROM. The setup page will show up automatically. Please follow these steps to

install the firmware.

Access the IP Camera using Intelligent IP Installer

1. Please check two settings before using Intelligent IP Installer .

Select “Intelligent IPInstaller”and follow the installation process to complete the installation.

b. Browser’s Internet Properties →Privacy

→Uncheck Pop-up Blocker

a. Browser’s Internet Properties →Security

→Default Level

2. Click the Intelligent IP Installer Icon on your desktop. The main page will show up listing all active

camera and video server devices. Select the relevant IP camera from the list and click Link to IE.

3. Enter your Username and Password

to login to the IP Camera.

(Default is admin / admin)

4. When accessing the IP Camera for the first time, a yellow information bar appears below the address bar:

This website wants to install the following add-on: ‘AxvideoView.cab from ‘Zavio Inc’.

5. Click the information bar, and select Install ActiveX control.

6. Click Install.

7. Live video displays in the centre of your web browser.

Mac OS using Safari Browser

Lighting environment setting

The default setting of lighting environment is Auto. However, you may also select 50 or 60 Hz upon the lighting

environment of your country.

Go to “Setting > Live View > Camera Setting > Image Setting”, select the environment setting you wish.

1. Select Safari icon

2. Click Bonjour function and select the camera

you wish to access.

3. Enter name and password to login to the IP

camera. (Default is admin / admin)

4. The monitor image will be displayed in your browser.

Change the Web Interface into your preferred language

Use the settings screen to set the language of the Web Interface.

Go to “Setting > System > Maintenance ”.

1. Insert Software CD into your CD-ROM.

2. Browse and select the preferred language from language pack in the Software CD and then click OK.

3. The web interface will change into your preferred language.

Wireless Setting

Power the IP Camera and connect an Ethernet network cable to the IP Camera’s LAN port, then insert the USB

Wi-Fi dongle at the rear. Using Intelligent IP Installer and entering the camera’s setting page.

Please go to “Setting > Basic Setup > Network > WLAN”, set the wireless option to “Enable”

1. Click Refresh and choose theAP you wish to connect and click Connect.

2. Enter the password within the Active transmit key field if required.

3. Choose the option of Obtain an IP address automatically (DHCP) and Obtain DNS server address automatically.

4. Click “Save”to apply settings. The Wireless IP address appears in the IP address field.

Note: The wireless private IPaddress can be found in Intelligent IP Installer
