Zavio D510E Quick Installation Guide
Please follow the installation steps below to set up your D510E IP Camera.
Check the package contents against the list below. See P.1
Physical o er iew. See P.1
Install the hardware and connect all cables. See P.2
Use the software CD to install Intelligent IP Installer. See P.3
Access the IP Camera using Intelligent IP Installer. See P.3
Change the Web Interface into your preferred language. See P.5
Use IP Camera ia Mobile Phone. (3GPP, 2.5G WAP, 2.5G browse iewing) See P.5
Microsoft Li e Messenger Setting. See P.6
Access to Internet ia Static IP, Dynamic IP or both. See P.7
For more information, please check the User Manual a ailable in the Software CD or you can download the latest
software from http://www.za io.com
Package Contents
Camera D510E Dome IP Camera
Quick Installation Guide Brief product information and quick installation
Software CD
IP Sur eillance Software
IP Sur eillance Software Pro Trial
Intelligent IP Installer
User Manuals
Language Packs
Screw Pack Two screws
daptor 12V DC, max 6W
Physical overview
Focus djustment Ring: Adjust the focus ring to get a clear image.
Pan and Tilt Screw: Loosen the pan and tilt screws to adjust angle.
Reset: When the de ice is powered, press the Reset Button to reboot the de ice, or hold the Reset Button for 10
seconds to set the settings back to factory default
3
Install the hardware and connect all cables
a. Wall mounting and Ceiling mounting
1. Unfasten the co er of the Dome IP Camera
2. Use the 2 supplied screws to fix the base of the
IP Camera to a flat surface. ( ertical or horizontal)
3. Unscrew the pan screw; adjust the mini-case to
your desired pan angle and then screw tight the pan screw.
4. Unscrew the tilt screws; adjust the mini-case to
your desired tilt angle and then screw tight the tilt screw.
5. Fasten the co er.
b. Connect all cables
b1. Power o er Ethernet (PoE)
1. Using a standard RJ-45 network cable, connect the IP Camera
to a PoE-enabled Hub / Switch / Router
b2. Without Power o er Ethernet (PoE) connection
1. Connect the power adaptor to the IP Camera.
2. Using a standard RJ-45 network cable, connect the IP Camera
to a normal Hub / Switch / Router.
b2
b1
4
Use the software CD to install Intelligent IP Installer
Power on your PC and insert the CD-ROM. The setup page will show up automatically. Please follow those
steps to install the firmware.
ccess the IP Camera using Intelligent IP Installer
1. Before using Intelligent IP Installer, please check two setting.
Select “Intelligent IP Installer” and follow the installation process to complete the installation.
a. Browser’s Internet Properties → Security
→ Default Level
b. Browser’s Internet Properties → Pri acy
→ Uncheck Pop-up Blocker
2. Click the Intelligent IP Installer Icon on your desktop. The main page will show up listing all acti e
camera and ideo ser er de ices. Select the rele ant IP camera from the list and click Link to IE.
5
6. Click Install.
D510E IP Camera
D510E IP Camera
D510E IP Camera
3. Enter your Username and Password
to login to the IP Camera.
(Default is admin / admin)
4. When accessing the IP Camera for the first time, a yellow information bar appears below the address bar:
This website wants to install the following add-on: ‘ xvideoView.cab from ‘Zavio Inc’.
5. Click the information bar, and select Install ctiveX control.
6
Change the Web Interface into your preferred language
Use the settings screen to set the language of the Web Interface.
Go to “Setting → Basic → System → Initialize”.
1. Insert Software CD into your CD-ROM.
2. Browse and select the preferred language from language pack in the Software CD and then click OK.
3. The web interface will change into your preferred language.
Use IP Camera via Mobile Phone (3GPP, 2.5G W P, 2.5G browser viewing)
a. 3G Mobile Phone Streaming Viewing
For 3G mobile phone iewing, please type “ rtsp://<IP>:<PORT>/video.3gp ” into your 3G web browser.
<IP> is the IP address of your IP camera;
<PORT> is the RTSP port of your IP camera (Default alue is 554.)
Example: rtsp://100.10.10.1:554/video.3gp
b. 2.5G Mobile Phone Viewing
b1. WAP iewing
For 2.5G WAP mobile phone iewing, type “ <IP>/mobile.wml ” into your 2.5G web browser.
b1. Browser iewing
For 2.5G mobile phone browser iewing, type “ <IP>/mobile.htm ” into your 2.5G web browser.
D510E IP Camera
7. Li e ideo displays in the centre of your web browser.
7
Microsoft Live Messenger Setting
Li e ideo of the IP Camera can be displayed using Microsoft Li e Messenger, whilst pro iding its public IP
address to users for access ia the web browser. This feature is useful especially when the IP address of the
camera is dynamically assigned.

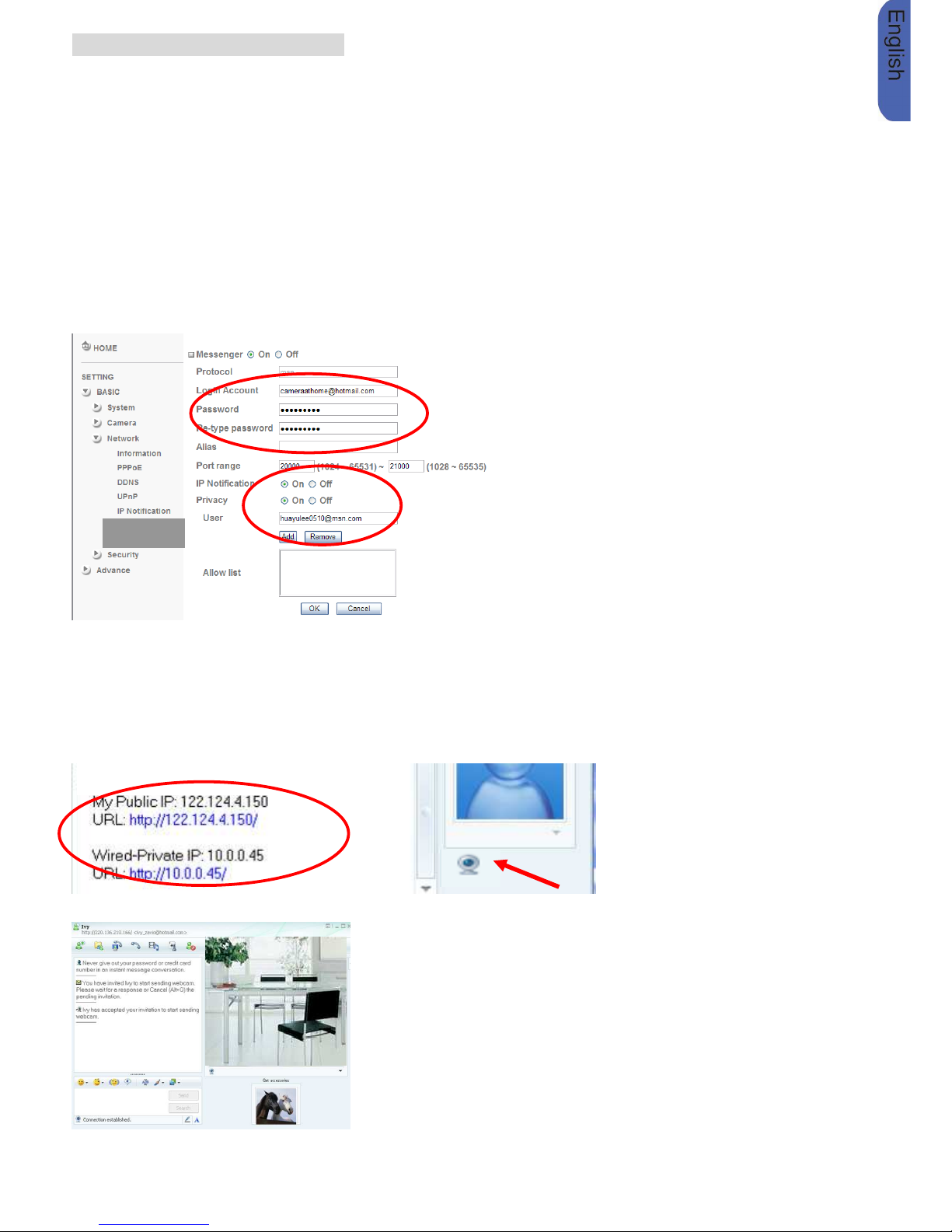

If you wish to set up MSN Messenger, enter the camera’s setting page.
Go to “Setting → Basic → System → Network → Messenger”, set the Messenger option “On”
1. Create a new MSN Messenger account (e.g.: Camera at home) for the IP Camera
2. Enter the new MSN Messenger Login account and password within the designated boxes
3. Under the IP Notification Option, Click “On” to enable IP notification to the users.
4. Under the Privacy Option, Click “On” to create an allow list.
5. Use your existing account to login to MSN Messenger..
6. Add the new MSN Messenger account (e.g.: Camera at home) to your contact list.
7. The IP Camera will send you a message with its Public IP and Pri ate IP if the IP Notification Option is
enabled.
8. Click on the small camera icon. Then, choose “View a new contact's webcam”.
9. The IP Camera accepts your in itation and its li e ideo is displayed on the right screen.
Camera at home says:
Messenger
8
ccess to the Internet
a. Internet connecti ity of the IP camera can be established by inputting the cameras IP information within the
Information section.
(Please go to Setting →
→→
→ Basic →
→→
→ Network→
→→
→ Information)
b.
Internet Connecti ity of the IP Camera can be established through PPPoE (Point-to-Point Protocol o er the
Ethernet) by inputting the username and password from your Internet Ser ice Pro ider (ISP) within the PPPoE
section
.
(Please go to Setting →
→→
→ Basic →
→→
→ Network→
→→
→ PPPoE)
Note 1: Please reboot the IP Camera, after changing the PPPoE settings.
Note 2: Please turn on the DDNS and IP Notification function when using PPPoE.
9
c. Internet Connecti ity of the IP Camera can be established if your router is UPnP (Uni ersal Plug and Play)
enabled. The IP camera is automatically detected and added to “My Network Places” on your computer. Please
note that only Home Routers manufactured after 2006 support the UPnP function.
c1. If your router is a UPnP Internet Gateway De ice (IGD), turn on the UPnP function within the UPnP
section. (Please go Setting →
→→
→ Basic →
→→
→ Network→
→→
→ UPnP)

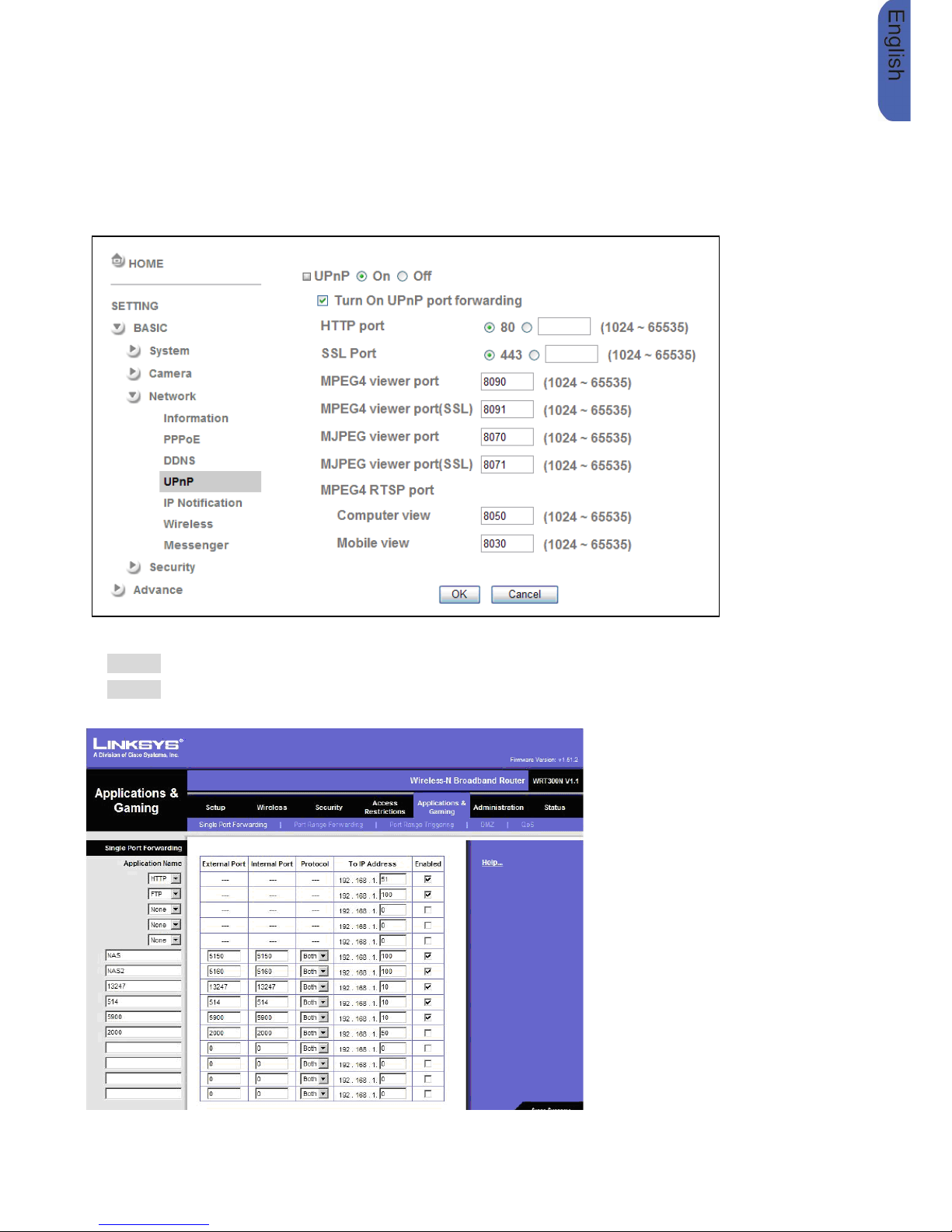

Note: If you turn on the UPnP Port Forwarding function, RTSP (Real Time Streaming Protocol) Port
information will change to the illustrated value below.
c2. If your router is not a UPnP Internet Gateway De ice, please setup Port Forwarding or Port Mapping
Note 1: Home Routers manufactured before 2006 do not support UPnP IGD function.
Note 2: Enterprise Routers do not support UPnP IGD function.
10
