F721A User Manual

F721A Outdoor 35M IR IP Camera

Hardware User Manual

-Contents-

CHAPTER 1 SAFETY INSTRUCTION 2

CHAPTER 2 INTRODUCTION 4

CHAPTER 3 PACKAGE CONTENTS 5

CHAPTER 4 PHYSICAL DESCRIPTION 6

CHAPTER 5 BASIC CONNECTION 8

5 1

OWER OVER

THERNET

ONNECTION

...................................................................................................... 8

5 2

ITHOUT

ONNECTION

................................................................................................................................. 8

CHAPTER 6 APPLICATION 9

F721A User Manual

Hardware User Manual

Chapter 1 Safety Instruction

 Before you use this product

This product has been designed with safety in ind. However, the electrical products can cause

fires which ay lead to serious body injury if not used properly. To avoid such accidents, be sure to

heed the following.

 Legal Caution

Video and audio surveillance can be forbidden by laws that vary fro country to country. Check the

laws in your local region before using this product for surveillance purposes.

 Don't open the housing of the product

Don't try to open the housing or re ove the covers which ay expose yourself to dangerous voltage

or other hazards.

 Don't use the accessories not recommend by the manufacturer

 Heed the safety precautions

Be sure to follow the general safety precautions and the “Operation Notice.”

 Operation Notice - Operating or storage location

Avoid operating or storing the ca era in the following locations:

•

Extre ely hot or cold places (Operating te perature: -20 °C to + 50 °C [32 °F to 122°F] )

•

Close to sources of strong agnetis

•

Close to sources of powerful electro agnetic radiation, such as radios or TV trans itters

•

Locations subject to strong vibration or shock

F721A User Manual

 In case of a breakdown

In case of syste breakdown, discontinue use and contact your authorized dealer.

 In case of abnormal operation

•

If the unit e its s oke or an unusual s ell,

•

If water or other foreign objects enter the cabinet, or

•

If you drop the unit or da age the cabinet:1 Disconnect the cable and the connecting cables. 2

Contact your authorized dealer or the store where you purchased the product.

 Transportation

When transporting the ca era, repack it as originally packed at the factory or in aterials of equal

quality.

 Ventilation

To prevent heat buildup, do not block air circulation around the device.

 Cleaning

•

Use a soft, dry cloth to clean the external surfaces of the device. Stubborn stains can be

re oved using a soft cloth da pened with a s all quantity of detergent solution, then wipe dry.

•

Do not use volatile solvents such as alcohol, benzene or thinners as they ay da age the

surface.

F721A User Manual

Chapter 2 Introduction

The Zavio F721A is an IP66 rated weather-proof IP ca era designed for 24hr outdoor surveillance

even in the harshest conditions. It is equipped with a Sony high-resolution CCD sensor and high

power Infrared LEDs with up to 35 (110 feet) working distance

Key Features:

•

1/3” Sony Super HAD High Resolution CCD Sensor

•

I prove Quality with De-interlace Filter

•

Si ultaneous MPEG-4 and Motion JPEG video strea

•

Excellent I age Quality with up to flexible 30 fps in Full D1 Resolution

•

Synchronized Two-way Audio

•

IR working distance up to 35M

•

IP67 Waterproof Resistance

•

Opti al Synchronization of Audio and Video

•

Support Mac OS with Safari Browser

•

Support iPhone through Safari Browser

•

Mobile Phone Strea ing Live Video through 3GPP / ISMA / RTSP

•

Mobile Phone Live I age through 2.5 WAP

•

Multi-level Password Protection for Restricting Ca era Access

•

Built-In Multi-Window Motion Detection (3 detection areas)

•

Video Buffer akes the Strea ing S oother

•

UPnP and Bonjour for Fast and Easy Installation

•

DDNS Supported

•

Bundled 16 Channel Surveillance Software

•

User-friendly & Multi-lingual UI

F721A User Manual

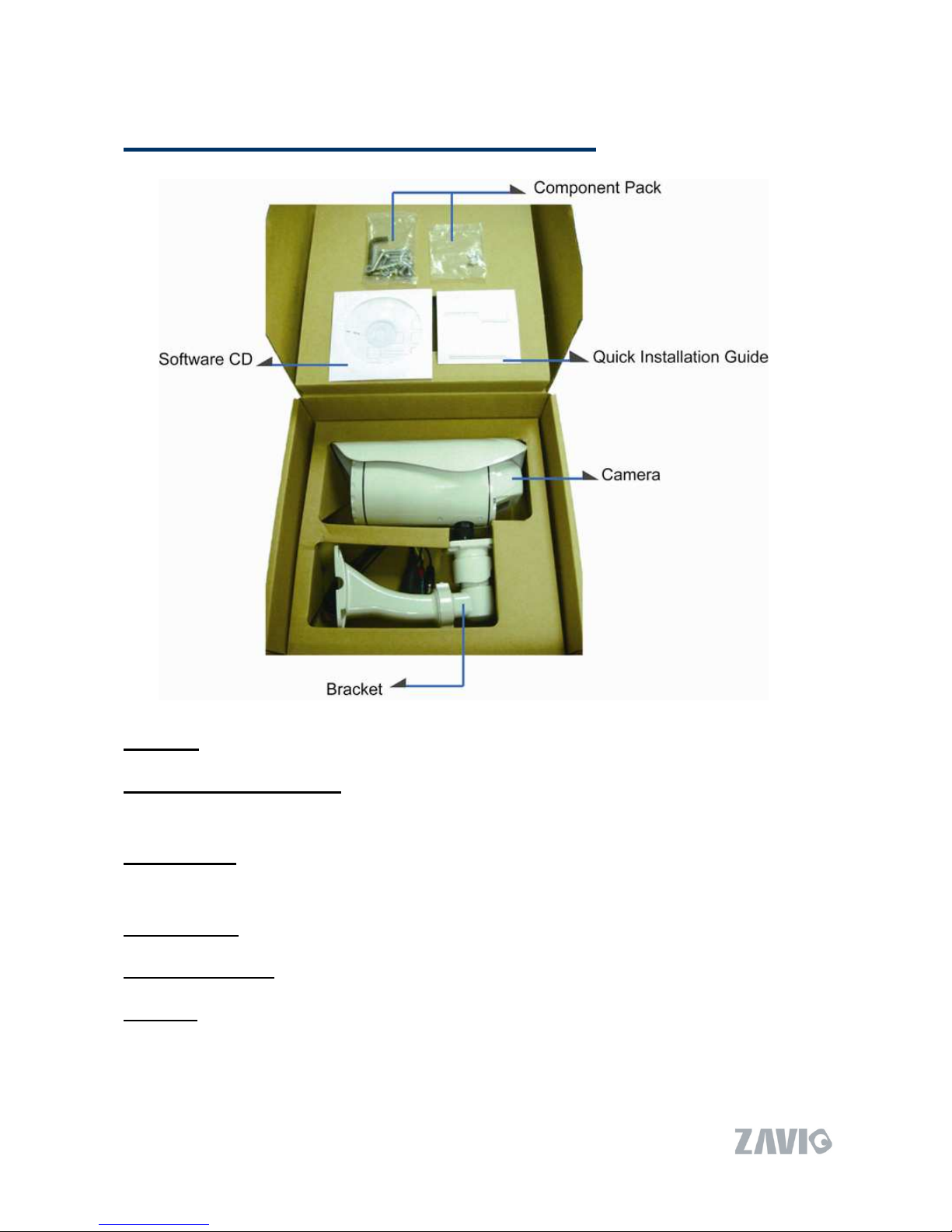

Chapter 3 Package Contents

Camera

– F721A Outdoor IR Network Ca era

Quick Installation Guide

- To provide brief product infor ation and quick installation and

wireless setting

Software CD

- To provide IP Surveillance Software, Intelligence IP Installer, User Manuals, and

Language Packs

Wall Bracket –

Wall bracket to joint housing to the wall

Component Pack -

Applied screws and Hex Wrench

Adaptor

- 12V DC, ax 6W

F721A User Manual

Chapter 4 Physical Description

Overview



Housing-

IP66 related protection against dust and heavy rain

 Reset - When the device is e powered, press the Reset Button to reboot the device, or

hold the Reset Button for 10 seconds to set the device settings back to factory default.



Infrared LEDs- Infrared LEDs for night use up to 35 working distance

 Video out (BNC) -To support analog out for easy use

 Audio In (Red Line) -To support audio in with Microphone for two way audio

 Audio Out (Green Line) - To support audio out with earphones or speakers for two way

audio

 Network Connector - For connection to the Ethernet via RJ-45 standard with PoE

F721A User Manual



Network Indicator (Green Light) - Green light will light up after the IP Ca era

connected with network and IP Ca era co pleted the boot process.



Network Transmit Indicator (Yellow Light) - Yellow light will light up while

trans itting data via internet

 Power Connector - For connection of 12V DC input

F721A User Manual

Chapter 5 Basic Connection

F721A offers Power over Ethernet (PoE) connection. However, you still can use F721A with PoE

or without PoE connection. You can follow the procedure below to connect the IP Ca era for both

applications.

5 1 Power over Ethernet (PoE) Connection

1. Connect IP Ca era’ Ethernet port to your Hub / Switch / Rout supporting PoE

5 2 Without PoE Connection

1. Connect the power adaptor to IP Ca era.

2. Connect IP Ca era’ Ethernet port to your Hub/ Switch / Router

F721A User Manual

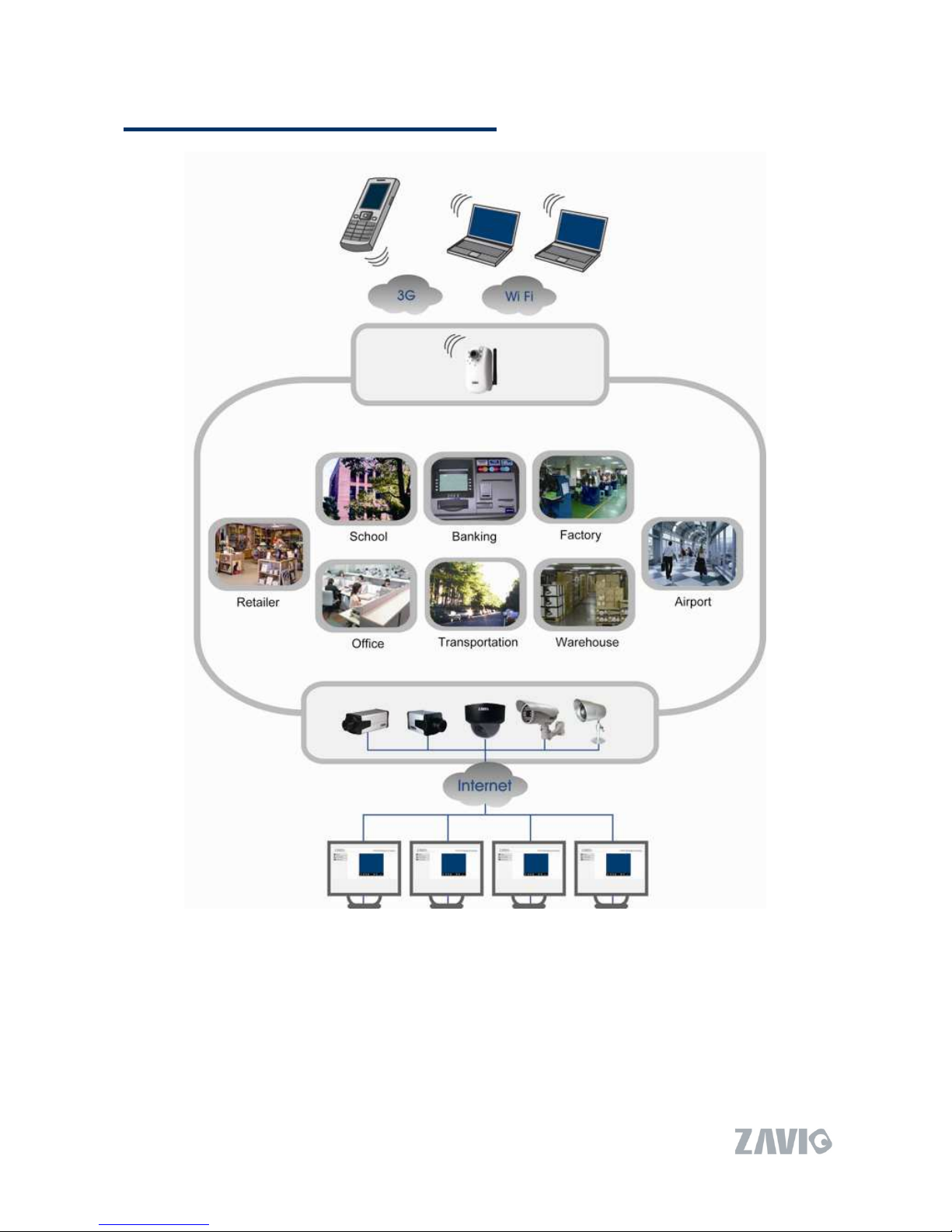

Chapter 6 Application
