ZAVIO Motorized Outdoor IR Bullet

Quick Installation Guide

/ B5210

Quick Installation Guide

Please follow the installation steps below to set up your IP camera.

Check the package contents with the list below. See P.2

Physical overview. See P.3

I/O Terminal Block Circuit. See P.4

I/O Terminal Block Pin Definition. See P.4

LED Indicator Definition. See P.5

Power Mode. See P.5

Installation of hardware and connection of all cables. See P.5

Windows: Go to Zavio website and download Camera Installation Tool. See P.9

Access the IP Camera using Camera Installation Tool. See P.10

MAC OS: using Safari Browser. See P.12

Lighting environment. See P.14

Change language of the web interface. See P.14

Application of IP Camera. See P.15

Package contents

Camera

IP camera

Quick Installation Guide

Brief product information and quick installation

Accessory

Sun shield and screws, Wall mount bracket,

Metal plate for wall mount bracket, Screw pack for wall

and ceiling mounting, Alignment sticker, Wrench for

front & back cover, Waterproof Connector, Desiccant

bag, Foam tape, 2 pin terminal blocks for power

Software

The following software and information are available online:

-Video Management Software

-Camera Installation Tool

-User manuals

-Camera Language Packs

Download the above at http://www.zavio.com/downloads.php or scan QR-Code.

To activate Video Management Software, please enter the license key below.

Physical overview

－Front －

Warning:

The IR LED is classified as class 3B laser IR. Avoid looking at the IR LEDs during

operation as direct and long term exposure might be harmful to the eye.

－Rear －

Light Sensor

Lens

IR LED

SD card/ Network Link

status indicator

Video out

Reset

I/O Terminal Block:

1: Ground,

2: +12VDC,

3: Audio in,

4: Audio out,

5: Digital Output 1,

6: Digital Output 2,

7: Digital Input 1,

8: Digital Input 2,

9: RS-485+,

10: RS-485-

Power status indicator

NTSC/ PAL switch

SD card slot

DC 12V Power

Smart Focus control

I/O Terminal Block Circuit

I/O Terminal Block Pin Definition

Definition

Description

Max. V/A

Ground

+ 12VDC

12V DC

1.2 W

Audio In

Unbalanced, 1.4Vp-p, 1Vrms, terminal block

Audio Out

Unbalanced, 1.4Vp-p, 1Vrms, terminal block

Digital

Output 1

Uses an NPN transistor with the emitter connected

to the GND pin. If used with an external relay, a

diode must be connected in parallel with the load for

protection against voltage transients.

100 mA

24V

Digital

Output 2

Uses an NPN transistor with the emitter connected

to the GND pin. If used with an external relay, a

diode must be connected in parallel with the load for

protection against voltage transients.

100 mA

24V

Digital Input

Connected to GND to activate, or leave floating (or

unconnected) to deactivate.

30V DC

Digital Input

Connected to GND to activate, or leave floating (or

unconnected) to deactivate.

30V DC

RS-485 +

RS-485 -

LED Indicator

LED

Color

Indication

Network

Blue

Solid blue when network is established.

Blink blue when there is network activity.

Power

Red

Solid red for booting up process

Blue

Solid blue for booting up completion

Unlit

When reset button pressed for at least 5 sec.

to factory default

SD Card

Yellow

Solid yellow means SD card ready

Blink yellow while accessing SD card

Power Mode

PoE

Mode

Power

Requirement

PoE (IEEE802.3at) with Class 4

Power

Consumption

15.9 W, with max. IR/ Heater/ Fan

Power

Requirement

PoE (IEEE802.3af) with Class 3

Note: While IR on, Heater and Fan will be disabled.

Power

Consumption

11.7 W, with max. IR on

Adaptor

Mode

Power

Requirement

12V/1.5A Adaptor

Power

Consumption

15.9 W, with max. IR/ Heater/ Fan

Note:

*Heater will activate when temparature drops below 5ºC and turn off when above 10ºC.

*Fan will activate when temparature is above 50ºC and turn off when drops under 45ºC.

Install the hardware and connect all cables

A. Hardware installation

a) Assembe sun shield and camera with the two supplied screws (M5*6L).

Note: Please move the sun shield to secure the first screw on the fourth scale.

b) Loosen back cover with supplied T25 wrench.

c) Unplug the seal at the bottom of the camera and plug the M12 waterproof

connector. Insert all cables (power cord/ DIDO/ video out) into the connector.

d) Connect the cables to the specific sockets on the back manual plate and tightly

secure waterproof connector.

e) Attach the desiccant bag to the back cover with the supplied foam tape, then

fasten the back cover accordingly. Recommend change desiccant bag everytime

the front/back cover is open.

f) Fix U-shape bracket to the bottom of camera with supplied screws.

g) Feed all cables through the front opening of the wall mount bracket.

h) Push the spring mortise of the wall mount bracket. Then hook the U-shape bracket

onto the groove of the former.

i) Secure the two screws of wall mont bracket on the other side.

B. Wall mounting and Ceiling mounting

a) Attached the alignment sticker to the wall. Drill four holes into the wall, three for

screws and one for cable. Then hammer the supplied plastic anchors into the screw

holes and secure the plate with supplied screws (T 1/4”*32).

b) Hang the wall mount bracket on the plate and fix it with the supplied screw.

c) Adjust the angle of the wall mount bracket to aim the desired area.

C. Connect all cables

E1. Without Power over Ethernet (PoE) connection

1. Connect the power adaptor to the IP Camera.

2. Use a standard RJ-45 network cable and connect the IP Camera to a

hub/switch/router.

E2. Power over Ethernet (PoE)

1. Use a standard RJ-45 network cable and connect the IP Camera to a PoE-enabled

hub/switch/router.

E3. RJ45 waterproof connector

1. Make sure all components are assembled as shown on the below graph.

2. Check that the Ethernet Port and the Waterproof main body are tightly fasten.

Windows: Go to Zavio Website and download Camera Installation Tool

Please go http://www.zavio.com/softwaredownloads.php download “Camera

Installation Tool”. And follow the installation process to complete the installation.

Access the IP Camera using Camera Installation Tool

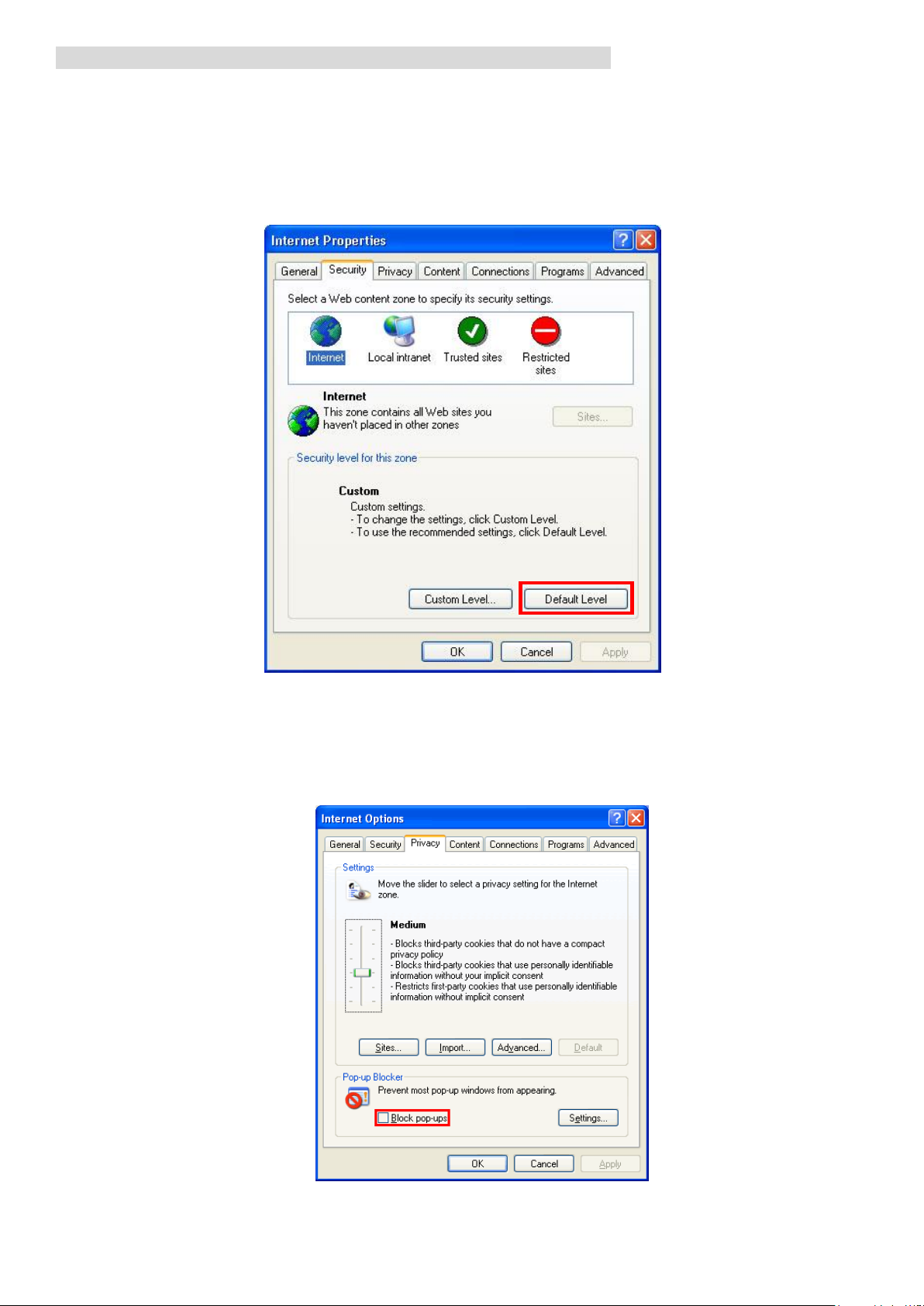

1. Please check two settings before using Camera Installation Tool.

a. Browser’s Internet Properties →Security→Default Level

b. Browser’s Internet Properties →Privacy →Uncheck Pop-up Blocker
