Winmate W15IB3S-PTA3 Manual de usuario

Please read these instructions carefully before using this product, and save this manual for future use

PT Series Multi-Touch

Chassis HMI

Intel® Celeron® Bay Trail-M N2930, 1.83 GHz

Model No. R15IB3S-PTC3

W15IB3S-PTA3

User Guide

Part No. 91521110101T

Document Version 1.2

2 PT Series Windows HMI User Guide

Contents

Preface 3

Chapter 1: Introduction 7

1.1 Features 7

1.2 Package Contents 7

1.3 Mechanical Dimensions 8

1.4 Connector Description 9

1.5 Physical Buttons and LED Indicators 9

Chapter 2: Installation 10

2.1 Wiring Requirements 10

2.2 VESA Mounting 11

2.3 Turning On 12

2.4 Connecting Peripherals 13

2.4.1 Power Connector 13

2.4.2 Ethernet Connector 13

2.4.3 Serial Port Connector 14

2.4.4 USB Connector 14

2.5 Speaker 15

Chapter 3: Operating the Device 16

3.1 Introduction 16

3.2 How to Enable Watchdog 17

3.3 Using Recovery Wizard to Restore Computer 18

Chapter 4: BIOS Setup 19

4.1 How and When to Use BIOS Setup 19

4.2 BIOS Functions 21

4.2.1 Main Menu 21

4.2.2 Advanced Settings 22

4.2.3 Chipset Menu 32

4.2.4 Security Menu 36

4.2.5 Boot Menu 38

4.2.6 Exit Menu 39

Appendix 40

Appendix A: Product Specifications 40

Appendix B: Cleaning the LCD Monitor 41

Appendix C: Technical Support 41

Chapter 1: Introduction

Preface

FCC Statement

This device complies with part 15 FCC rules.

Operation is subject to the following two

conditions:

This device may not cause harmful

interference.

This device must accept any interference

received including interference that may

cause undesired operation.

This equipment has been tested and found to comply with the limits for a class "A"

digital device, pursuant to part 15 of the FCC rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at him

own expense.

European Union

Electromagnetic Compatibility Directive (2014/30/EU)

•EN55024: 2010/ A1: 2015

oIEC61000-4-2: 2009

oIEC61000-4-3: 2006+A1: 2007+A2: 2010

oIEC61000-4-4: 2012

oIEC61000-4-5: 2014

oIEC61000-4-6: 2014

oIEC61000-4-8: 2010

oIEC61000-4-11: 2004

•EN55032: 2012/AC:2013

•EN61000-3-2:2014

•EN61000-3-3:2013

Low Voltage Directive (2014/35/EU)

•EN 60950-1:2006/A11:2009/A1:2010/A12:2011/ A2:2013

This equipment is in conformity with the requirement of the following EU

legislations and harmonized standards. Product also complies with the Council

directions.

4 PT Series Windows HMI User Guide

No part of this document may be reproduced, copied, translated, or transmitted in

any form or by any means, electronic or mechanical, for any purpose, without the

prior written permission of the original manufacturer.

Trademark Acknowledgement

Brand and product names are trademarks or registered trademarks of their

respective owners.

Disclaimer

We reserve the right to make changes, without notice, to any product, including

circuits and/or software described or contained in this manual in order to improve

design and/or performance. We assume no responsibility or liability for the use of

the described product(s) conveys no license or title under any patent, copyright, or

masks work rights to these products, and make no representations or warranties

that these products are free from patent, copyright, or mask work right infringement,

unless otherwise specified. Applications that are described in this manual are for

illustration purposes only. We make no representation or guarantee that such

application will be suitable for the specified use without further testing or

modification.

Warranty

Our warranty guarantees that each of its products will be free from material and

workmanship defects for a period of one year from the invoice date. If the customer

discovers a defect, we will, at his/her option, repair or replace the defective product

at no charge to the customer, provide it is returned during the warranty period of one

year, with transportation charges prepaid. The returned product must be properly

packaged in its original packaging to obtain warranty service. If the serial number

and the product shipping data differ by over 30 days, the in-warranty service will be

made according to the shipping date. In the serial numbers the third and fourth two

digits give the year of manufacture, and the fifth digit means the month (e. g., with A

for October, B for November and C for December).

For example, the serial number 1W16Axxxxxxxx means October of year 2016.

Customer Service

We provide a service guide for any problem by the following steps: First, visit the

website of our distributor to find the update information about the product. Second,

contact with your distributor, sales representative, or our customer service center for

technical support if you need additional assistance.

Chapter 1: Introduction

Advisory Conventions

Four types of advisories are used throughout the user manual to provide helpful

information or to alert you to the potential for hardware damage or personal injury.

These are Notes, Important, Cautions, and Warnings. The following is an example

of each type of advisory.

Note:

A note is used to emphasize helpful information

Important:

An important note indicates information that is important for you

to know.

Caution/ Attention

A Caution alert indicates potential damage to hardware and

explains how to avoid the potential problem.

Unealerted’ attention indique un dommage possible à

l’équipement et explique comment éviter le problem potentiel.

Warning!/ Avertissement!

An Electrical Shock Warning indicates the potential harm from

electrical hazards and how to avoid the potential problem.

Un Avertissement de Choc Électriqueindique le potentiel de

chocssur des emplacements électriques et comment éviterces

problèmes.

6 PT Series Windows HMI User Guide

Safety Information

Warning!/ Avertissement!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not make

connections while the power is on. Sensitive electronic

components can be damaged by sudden power surges. Only

experienced electronics personnel should open the PC

chassis.

Toujours débrancher le cordon d’alimentation du chassis

lorsque vous travaillez sur celui-ci. Ne pas brancher de

connections lorsque l’alimentation est présente. Des

composantes électroniques sensibles peuvent être

endommagées par des sauts d’alimentation. Seulement du

personnel expérimenté devrait ouvrir ces chassis.

Caution/ Attention

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

Toujours verifier votre mise à la terre afin d’éliminer toute

charge statique avant de toucher la carte CPU. Les

équipements électroniques moderns sont très sensibles aux

décharges d’électricité statique. Toujours utiliser un bracelet

de mise à la terre comme précaution. Placer toutes les

composantes électroniques sur une surface conçue pour

dissiper les charge, ou dans un sac anti-statique lorsqu’elles

ne sont pas dans le chassis.

RoHS Declaration

According to the European Union issued Directive 2011/65/EU on the restriction of

the use of certain hazardous substances in electrical and electronic equipment

(RoHS 2.0). Winmate Inc.’s guaranty is able to meet the current regulations and

customer requirements in respect of the application of cadium, lead, mercury,

hexavalent chromium, PBBs, PBDEs in its product.

Chapter 1: Introduction

The PT Series HMI runs on low power consuming Intel® Celeron® N2930

processor. Multiple I/O interface includes USB 2.0, one LAN port, serial interface

RS-232/422/485 for machine-to-machine communications, USB 2.0 and USB 3.0

for data transfer. Chassis housing is protected with IP65 standard against water

and dust from the front. The PT Series HMI is an ultimate solution for Point-of-

Sale (POS) applications.

1.1 Features

•15/ 15.6” screen with P-Cap touch

•Low power consumption with Intel® Celeron® N2930 1.83 GHz

•Fanless cooling system and ultra-low power consumption

•Front IP65 for protection against water and dust

•A true flat, easy-to-clean front surface with edge-to-edge design

•Designed for Point-of-Sale (POS) applications

1.2 Package Contents

Carefully remove the box and unpack your device. Please check if all the items

listed below are inside your package. If any of these items are missing or

damaged contact us immediately.

Standard factory shipment list:

•HMI Device

•Quick Start Guide

(Hardcopy)

•Driver CD

Varies by product

specifications Part No. 91521110101U Part No.: 9171111I103M

•

AC Adapter

(12V/ 50W)

•Power Cord

Part No. 922D050W12VA Varies by country

8 PT Series Windows HMI User Guide

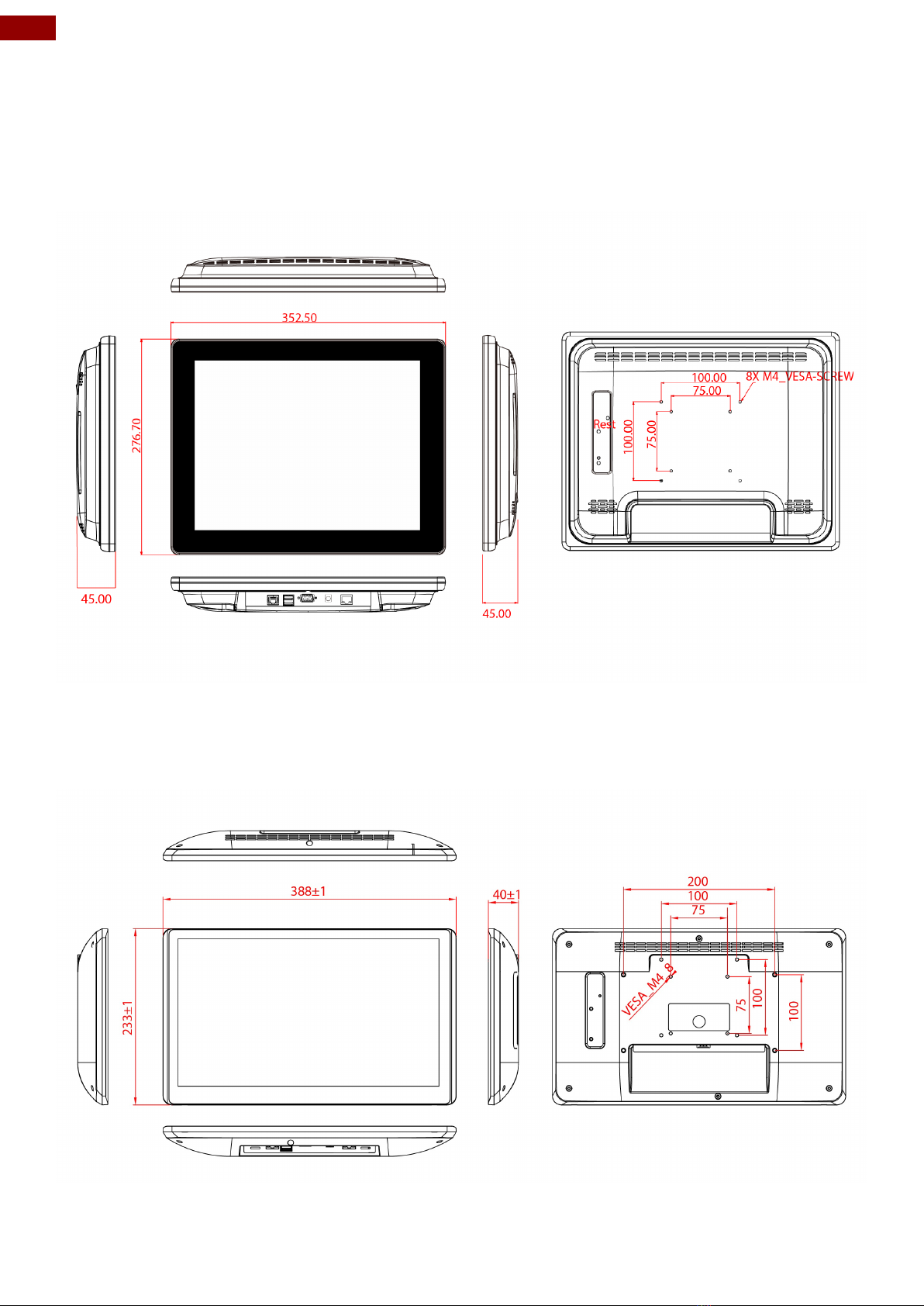

1.3 Mechanical Dimensions

15-inch, R15IB3S-PTC3

Unit: mm

Dimensions:352.50 x 276.70 x 45

15.6-inch, W15IB3S-PTC3

Unit: mm

Dimensions:388 x 233 x 40

Chapter 1: Introduction

1.4 Connector Description

Terminal interfaces are located on the bottom side of the HMI device.

Note:

Notice that input and output connectors vary by product size and specifications.

Terminal interfaces description:

Item Description

RJ45 – Connects HMI device to Ethernet network. Supports PoE for

power transmission in network equipment, via network UTP cable,

together with data.

USB 2.0, USB 3.0- Connects USB2.0 and USB 3.0 compatible

devices to HMI device.

Example: A printer to HMI device.

RS-232/422/485 – Connects external devices to HMI device.

Example: A barcode reader or scanner to HMI device.

Power Jack – Provides power to the HMI device, accepts 12V DC.

Example: AC cord or DC power supply. If both are provided, choose

only one.

RJ45 – Connects HMI device to Ethernet network. Supports PoE for

power transmission in network equipment, via network UTP cable,

together with data.

1.5 Physical Buttons and LED Indicators

PT Series HMI has Power and Reset physical buttons located on the back side.

Item Description

Power Button – Press to turn on/ off the device.

Reset Button – Press to forcible shut down and reset the device.

PT Series HMI has Power LED indicator located on the back side.

Item Description

Power LED Indicator –Lights up when HMI device is powered on.

10 PT Series Windows HMI User Guide

Chapter 2: Installation

2.1 Wiring Requirements

The following common safety precautions should be observed before installing any

electronic device:

•Strive to use separate, non-intersecting paths to route power and networking

wires. If power wiring and device wiring paths must cross make sure the wires

are perpendicular at the intersection point.

•Keep the wires separated according to interface. The rule of thumb is that

wiring that shares similar electrical characteristics may be bundled together.

•Do not bundle input wiring with output wiring. Keep them separate.

•When necessary, it is strongly advised that you label wiring to all devices in

the system.

Caution

•Do not run signal or communication wiring and power wiring in the same

conduit. To avoid interference, wires with different signal characteristics (i.e.,

different interfaces) should be routed separately.

•Be sure to disconnect the power cord before installing and/or wiring your

device.

•Verify the maximum possible current for each wire gauge, especially for the

power cords. Observe all electrical codes dictating the maximum current

allowable for each wire gauge.

•If the current goes above the maximum ratings, the wiring could overheat,

causing serious damage to your equipment.

•Be careful when handling the unit. When the unit is plugged in, the internal

components generate a lot of heat which may leave the outer casing too hot to

touch.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Panel táctil de Winmate

Winmate

Winmate W07FA3S-GSO1 Manual de usuario

Winmate

Winmate W10IB3S-PCH2AC-PoE S-Series Manual de usuario

Winmate

Winmate W10IB3S-EHH2 Manual de usuario

Winmate

Winmate R05FA3S-IPD1HMHB Manual de usuario

Winmate

Winmate GC Series Manual de usuario

Winmate

Winmate R15IK3S-SPC3 Manual de usuario

Winmate

Winmate 7'' S-Series Manual de usuario

Winmate

Winmate R17IB3S-RKA1ML Manual de usuario

Winmate

Winmate W07FA3S-PCO1AC-POE Guía de solución de problemas

Winmate

Winmate R19IHAT-66EX Manual de usuario

Winmate

Winmate W22IK3S-SPA369 Manual de usuario

Winmate

Winmate R15IK3S-POC3 Manual de usuario

Winmate

Winmate R10IB3S-67T2 Instrucciones de funcionamiento y mantenimiento

Winmate

Winmate W07FA3S-GSM1 Manual de usuario

Winmate

Winmate EL Series Manual de usuario

Winmate

Winmate W10RK3S-PCH2LB Manual de usuario

Winmate

Winmate R15IK3S-65C3 Manual de usuario

Winmate

Winmate R15IB3S-PCC3-PoE Manual de usuario

Winmate

Winmate R15ID3S-65A1FTE Manual de usuario

Winmate

Winmate G-WIN Slim IP65 Manual de usuario

Winmate

Winmate R19IHAT-66EX Manual de usuario

Winmate

Winmate W07IB3S-POM1 Manual de usuario

Winmate

Winmate E-Series Manual de usuario

Winmate

Winmate W07RK3S-PCO1-POE Manual de usuario

Manuales populares de Panel táctil de otras marcas

FlowLine

FlowLine Data loop Manual de usuario

ALPEX

ALPEX AEx-8 P Series Manual de usuario

Ltech

Ltech E5S Manual de usuario

Harman

Harman AMX MODERO S MSD-701-L2 Manual de usuario

Acnodes

Acnodes PC 1150 Manual de usuario

AIS

AIS IP10IA99 series Manual de usuario

IBASE Technology

IBASE Technology ASTUT-152-RE1S Manual de usuario

YASKAWA

YASKAWA TP 610C Manual de usuario

B&R

B&R Power Panel C Series Manual de usuario

Beijer Electronics

Beijer Electronics X2 control Manual de usuario

AXIOMTEK

AXIOMTEK GOT321W-521 Manual de usuario

TRIDONIC.ATCO

TRIDONIC.ATCO x-touchBOX Manual de usuario

Qomo

Qomo QIT1386 Manual de usuario

DFI

DFI KS104-CD Manual de usuario

AMX

AMX AXP-PPC Guía

Sartorius

Sartorius X3 PR 5410 Manual de usuario

AMX

AMX Modero X Series Manual de usuario

Advantech

Advantech TPC-30 Series Manual de usuario
