Winmate W07L100-GCO1 Manual de usuario

Please read these instructions carefully before using this product, and save this manual for future use.

G-WIN Front IP65

P-Cap Display

W07L100-GCO1

W10L100-GCH1(HB)

R10L100-GCT2(HB)

R12L100-GCM2(HB)

R15L100-GCC3(HB)

Quick Start Guide

V1.1

For more information on this and

other Winmate products, please

visit our website at:

www.winmate.com

Document Part Number: 91521110101B

- 2 -

Contents

Introduction - 8 -

Features - 8 -

Package Content - 9 -

Product Overview - 10 -

Physical Buttons and LED Indicators - 15 -

Getting Started - 17 -

Turning On Your Device - 17 -

OSD Menu Navigation - 18 -

Turning Off Your Device - 19 -

Installation - 20 -

Wiring Requirements - 20 -

Connecting to Other Devices - 21 -

Mounting - 23 -

RAM Mounting - 23 -

VESA Mounting - 24 -

Panel Mounting - 25 -

Troubleshooting - 26 -

Specifications - 27 -

Appendix - 29 -

Appendix A: Cleaning the Monitor - 29 -

Appendix B: Frequency Table - 30 -

- 3 -

FCC Statement

This device complies with part 15 FCC rules.

Operation is subject to the following two

conditions:

This device may not cause harmful

interference.

This device must accept any interference

received including interference that may

cause undesired operation.

This equipment has been tested and found to comply with the

limits for a class "B" digital device, pursuant to part 15 of the FCC

rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment

in a residential area is likely to cause harmful interference in which

case the user will be required to correct the interference at him

own expense.

- 4 -

European Union

Electromagnetic Compatibility Directive

(2014/30/EU)

EN55024: 2010/ A1: 2015

oIEC61000-4-2: 2009

oIEC61000-4-3: 2006+A1: 2007+A2: 2010

oIEC61000-4-4: 2012

oIEC61000-4-5: 2014

oIEC61000-4-6: 2014

oIEC61000-4-8: 2010

oIEC61000-4-11: 2004

EN55032: 2012/AC:2013

EN61000-3-2:2014

EN61000-3-3:2013

Low Voltage Directive (2014/35/EU)

EN 60950-

1:2006/A11:2009/A1:2010/A12:2011/ A2:2013

This equipment is in conformity with the requirement of the

following EU legislations and harmonized standards. Product also

complies with the Council directions.

- 5 -

No part of this document may be reproduced, copied, translated, or

transmitted in any form or by any means, electronic or mechanical, for

any purpose, without the prior written permission of the original

manufacturer.

Trademark Acknowledgement

Brand and product names are trademarks or registered trademarks of

their respective owners.

Disclaimer

Winmate Inc. reserve the right to make changes, without notice, to

any product, including circuits and/or software described or contained

in this manual in order to improve design and/or performance. We

assume no responsibility or liability for the use of the described

product(s) conveys no license or title under any patent, copyright, or

masks work rights to these products, and make no representations or

warranties that these products are free from patent, copyright, or

mask work right infringement, unless otherwise specified. Applications

that are described in this manual are for illustration purposes only. We

make no representation or guarantee that such application will be

suitable for the specified use without further testing or modification.

Warranty

Winmate Inc. warranty guarantees that each of its products will be

free from material and workmanship defects for a period of one year

from the invoice date. If the customer discovers a defect, we will, at

his/her option, repair or replace the defective product at no charge to

the customer, provide it is returned during the warranty period of one

year, with transportation charges prepaid. The returned product must

be properly packaged in its original packaging to obtain warranty

service. If the serial number and the product shipping data differ by

over 30 days, the in-warranty service will be made according to the

shipping date. In the serial numbers the third and fourth two digits

give the year of manufacture, and the fifth digit means the month (e.

g., with A for October, B for November and C for December).

For example, the serial number 1W16Axxxxxxxx means October of

year 2016.

- 6 -

Customer Service

We provide a service guide for any problem by the following steps:

First, visit the website of our distributor to find the update information

about the product. Second, contact with your distributor, sales

representative, or our customer service center for technical support if

you need additional assistance.

You may need the following information ready before you call:

Product serial number

Software (OS, version, application software, etc.)

Description of complete problem

The exact wording of any error messages

In addition, free technical support is available from our engineers

every business day. We are always ready to give advice on

application requirements or specific information on the installation and

operation of any of our products.

- 7 -

Safety Information

WARNING! / AVERTISSEMENT!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden

power surges. Only experienced electronics personnel

should open the PC chassis.

Toujours débrancher le cordon d’alimentation du chassis

lorsque vous travaillez sur celui-ci. Ne pas brancher de

connections lorsque l’alimentation est présente. Des

composantes électroniques sensibles peuvent être

endommagées par des sauts d’alimentation. Seulement

du personnel expérimenté devrait ouvrir ces chassis.

CAUTION/ATTENTION

Always ground yourself to remove any static charge

before touching the CPU card. Modern electronic

devices are very sensitive to static electric charges. As a

safety precaution, use a grounding wrist strap at all

times. Place all electronic components in a static-

dissipative surface or static-shielded bag when they are

not in the chassis.

Toujours verifier votre mise à la terre afin d’éliminer toute

charge statique avant de toucher la carte CPU. Les

équipements électroniques moderns sont très sensibles

aux décharges d’électricité statique. Toujours utiliser un

bracelet de mise à la terre comme précaution. Placer

toutes les composantes électroniques sur une surface

conçue pour dissiper les charge, ou dans un sac anti-

statique lorsqu’elles ne sont pas dans le chassis.

- 8 -

Introduction

Congratulations on purchasing Winmate® GC65 Display. The

elegantly designed, yet rugged, industrial grade G-WIN GC series is

designed heavy duty applications.

With rugged construction, ultimate computing power, GC65 series are

guaranteed to meet "heavy duty" needs. This series feature high

computing power and user-friendly interface with projected capacitive

multi-touch (P-CAP) technology and support Android, Linux Kernel

and Ubuntu operating systems. Rugged housing provides front IP65

protection against outer dust and water splash.

Features

Winmate® GC65 Display features:

7”, 10.1'', 10.4”, 12.1” and 15” P-Cap touchscreen

Front IP65 for protection against water and dust

A true flat, easy-to-clean front surface with edge-to-edge design

VGA input and variety of optional connectors

USB port for touch

Stylish and elegant design

- 9 -

Package Content

Carefully remove the box and unpack your device. Please check if all

the items listed below are inside your package. If any of these items

are missing or damaged contact us immediately.

Standard factory shipment list:

Display

Quick Start Guide

(Hardcopy)

USB Cable for

Touch (Optional)

Varies by product

specifications

91521110101B

948018102100

AC Adapter

(12V/ 50W)

Power Cable

VGA Cable

922D050W12VA

Varies by country

9441151150P3

HDMI Cable

(Optional)

94E0190190P3

- 10 -

Product Overview

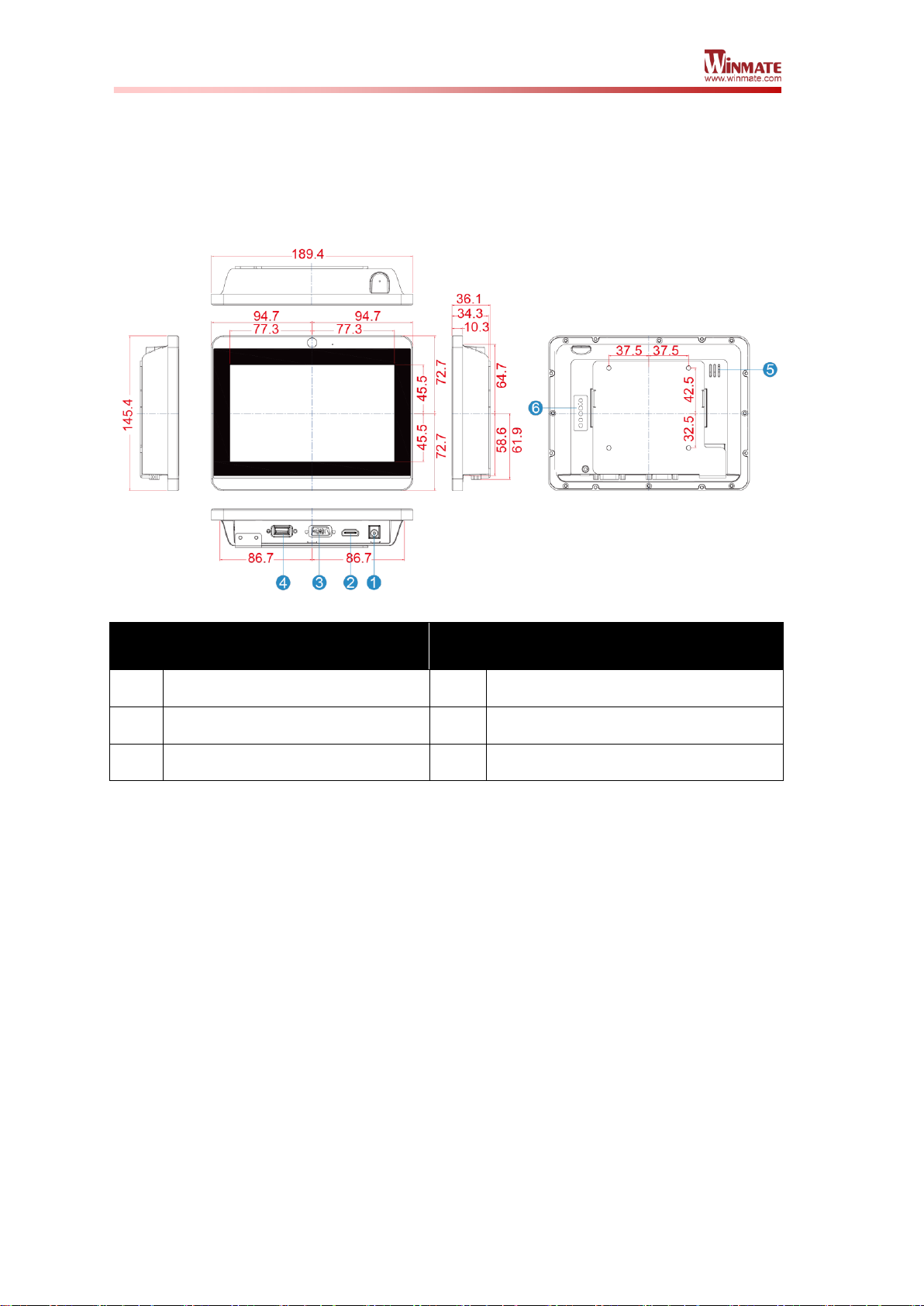

W07L100-GCO1

Unit: mm

№

Description

№

Description

󰪦

12V DC in

󰪩

Touch (USB)

󰪧

HDMI

󰪪

1 Watt Speaker

󰪨

VGA

󰪫

OSD Control Panel
