WILSON PRO 1050 IN-BUILDING SIGNAL BOOSTER WITH IN-LINE AMPLIFICATION

WilsonPro 1050

Two-Part Booster

System

2’ Wilson

400

Lightning Surge

Protector

Pair of 2-Way

Radios

100’ Wilson

400 Cable

Wide Band Directional

Antenna + 75’

Wilson 400 Cable

Dome Antenna +

100’ Wilson 400 Cable

________

Package

Content

Kit 460230

2IN-BUILDING SIGNAL BOOSTER WITH IN-LINE AMPLIFICATION WILSON PRO 1050

FCC Approved

In-Line Ampliﬁcation

Compensates for up to 300’ of indoor

cable losses using in-line ampliﬁcation.

Onboard Software For

Better Control

Automatically controlled with onboard

software, ensuring great connectivity

throughout large spaces and multi-story

buildings.

Auto-Calibration

Main booster & In-Line booster

automatically link, communicate &

calibrate.

Extended Dynamic

Range For Continuous

Connectivity

XDR allows the booster system to never

shutdown due to too strong of a signal. No

matter how strong, the booster system will

never overpower and shutdown.

WilsonPro 1050 System

WILSON PRO 1050 IN-BUILDING SIGNAL BOOSTER WITH IN-LINE AMPLIFICATION

The WilsonPRO 1050 Cellular Signal

Booster System automatically

compensates for signal loss resulting

from a long indoor RF coax cable run.

Simply connect the 1050 In-Line unit at

a cable length between 100’ and 300’

from the 1050 Main unit. When both

units are powered up, they will begin to

communicate with each other, sending signals and calculating the amount of signal

loss in the cable. Once cable losses are calculated, the gain levels are adjusted

between the 1050 Main and 1050 In-Line units so that only enough extra gain is added

to the system to compensate for the signal loss of the indoor cable.

This capability to overcome signiﬁcant cable losses allows the 1050 System to provide

cellular coverage in areas that were previously impossible, such as the lower ﬂoors of

apartment buildings and other multi-dwelling units.

The WilsonPro 1050 system also includes Wilson Electronics’ state-of-the-art XDR

(Extended Dynamic Range) technology that prevents signal overload conditions which

can, in accordance with FCC regulations, force a booster to shut down or

even shut down.

When the WilsonPro 1050 system senses that any incoming cell signal is too strong,

and threatens to overload the system, XDR automatically reduces signal gain to

compensate for this overload condition while maintaining signal coverage throughout

the building. In contrast, competing signal boosters shut down when they reach

a maximum incoming signal strength threshold, causing the indoor cell signal to

drop out. Both antenna ports are located on the top of the 1050 Main unit for easy

installation. Like all WilsonPro cell signal boosters, the WilsonPRO 1050 Cellular Signal

Booster System is universal: it works for all cellular devices, all services including 4G

LTE, and all U.S. and Canada cell phone carriers.

In-Line Ampliﬁcation

4IN-BUILDING SIGNAL BOOSTER WITH IN-LINE AMPLIFICATION WILSON PRO 1050

FCC Approved In-Line Ampliﬁcation: Compensates for up to 300’ of

indoor cable losses using in-line ampliﬁcation, providing cell coverage

to hard-to-reach areas.

Onboard Software for Better Control: Booster is automatically

controlled with automatic onboard software, ensuring great

connectivity throughout large spaces and multi-story buildings.

The booster will adjust its gain level up or down as required by the

conditions of the immediate signal environment.

Extended Dynamic Range (XDR) for continuous connectivity: Gives

the 1050 much greater tolerance for a strong incoming signal from the

tower. XDR lets the 1050 system work with an incoming signal stronger

than any competing booster and never shuts down due to a strong

outside signal.

Automatic Calibration: Main booster and In-Line booster automatically

link, communicate, and calibrate.

____________

Key Features

WILSON PRO 1050 IN-BUILDING SIGNAL BOOSTER WITH IN-LINE AMPLIFICATION

Highest Downlink Power: Up to +15dB more downlink power than

the competition allows for stronger signal in environments where

the incoming signal is weak. The beneﬁt is a stronger signal sent to

the inside antennas, providing larger coverage area from a single

booster.

Highest Uplink Power: This allows for a stronger signal transmitted

to the tower, up to +3dB more than the competition, providing greater

user capacity and increased range from the cell site.

Lower Overload and Shutdown Threshold: No matter how strong

the outside signal, the WilsonPro 1050 system never shuts down.

This is a huge beneﬁt in strong signal environments like cities and

locations close to a carrier tower.

Intelligent Control: WilsonPro cellular boosters automatically adjust

signal gain while still providing even signal coverage throughout the

building.

Sophisticated Software: Cellular signals are constantly ﬂuctuating.

The software is always monitoring signal levels and making

immediate adjustments as needed, allowing the booster to operate at

maximum gain consistently.

___________

Competitive

Advantages

6IN-BUILDING SIGNAL BOOSTER WITH IN-LINE AMPLIFICATION WILSON PRO 1050

Outside

Directional

Antenna

to power

Lightning

Surge Protector

1050 Main

1050 In-Line

Inside Dome

Antenna

BAND SELECT

RESET

CABLE LOSS

2-way radios are included

to help with the installation

process.

Simple wall-mount

installation.

The direction of the

outside antenna should

be adjusted until the

“DL” bar is maximized.

A Wilson Lightning Surge Protector is recommended for all building installations. Make

sure the protector is installed outside the building at point of entry connected to a

suitable ground and in line between the Outside Antenna and the Signal Booster.

__________

Installation

Diagram

WILSON PRO 1050 IN-BUILDING SIGNAL BOOSTER WITH IN-LINE AMPLIFICATION

The WilsonPRO 1050 System is designed

with advanced internal programming,

which allows it to automatically adjust for

a variety of conditions, while still

boosting weak signals.

Once the AC power cable and antenna

cables are connected, turn the unit on

by toggling the power switch located

near the AC power receptacle.

Inside Antenna

Lightning Surge

Protector

Outside Antenna

1050 In-Line

(placed at a cable

length of 100’ to 300’)

1050 Main

__________

Post Install

Setup

8IN-BUILDING SIGNAL BOOSTER WITH IN-LINE AMPLIFICATION WILSON PRO 1050

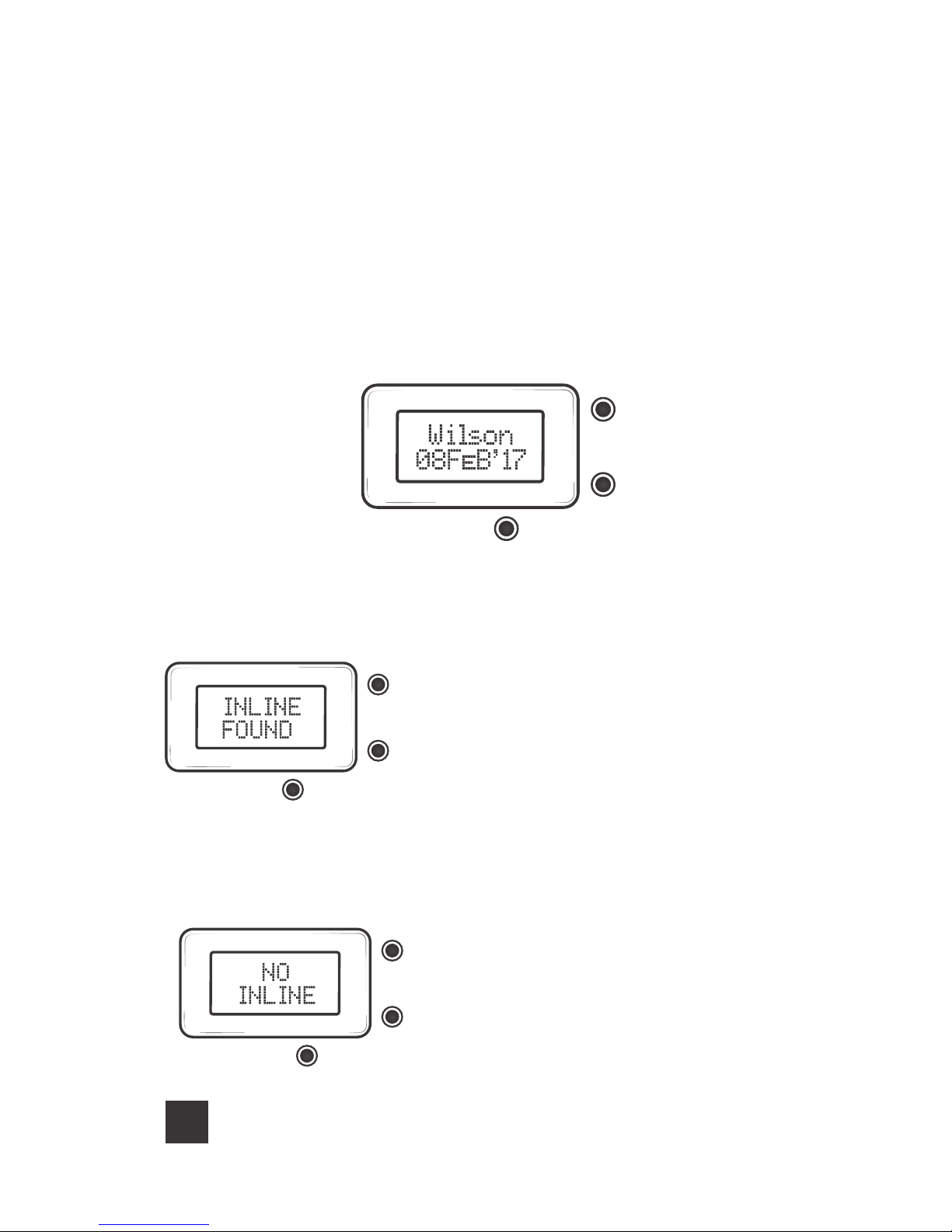

Upon power up, the 1050 MAIN unit will attempt to begin it’s calibration routine, which

lasts approximately 14 seconds during which time one of the following messages will

appear on the screen:

Boot Screen

BAND SELECT

RESET

CABLE LOSS

BAND SELECT

RESET

CABLE LOSS

BAND SELECT

RESET

CABLE LOSS

BAND SELECT

RESET

CABLE LOSS

BAND SELECT

RESET

CABLE LOSS

BAND SELECT

RESET

CABLE LOSS

BAND SELECT

RESET

CABLE LOSS

BAND SELECT

RESET

CABLE LOSS

BAND SELECT

RESET

CABLE LOSS

BAND SELECT

RESET

CABLE LOSS

BAND SELECT

RESET

CABLE LOSS

BAND SELECT

RESET

CABLE LOSS

BAND SELECT

RESET

CABLE LOSS

BAND SELECT

RESET

CABLE LOSS

BAND SELECT

RESET

CABLE LOSS

BAND SELECT

RESET

CABLE LOSS

BAND SELECT

RESET

CABLE LOSS

BAND SELECT

RESET

CABLE LOSS

BAND SELECT

RESET

CABLE LOSS

BAND SELECT

RESET

CABLE LOSS

BAND SELECT

RESET

CABLE LOSS

The 1050 In-Line unit has been found

and is communicating with the 1050

Main. Cable loss calibration is in

progress.

The 1050 In-Line unit has been found

and is communicating with the 1050

Main. Cable loss calibration is in

progress.

____________

1050 Main

Status Screen

In-Line Found Screen

No In-Line Screen
