Wilson Electronics Weboost DRIVE REACH FLEET Manual de usuario

PROFESSIONAL VEHICLE CELL PHONE

SIGNAL BOOSTER KIT

DRIVE REACH FLEET

A WILSON ELECTRONICS BRAND

Use our weBoost App to guide you through the installation.

See inside page for more details.

Installation Guide

NEED HELP? weboost.com 1-866-294-1660

Download the weBoost App

Use our app to guide you through setting up a weBoost cell phone

signal booster in your home, business, or vehicle. Boost every

network, including 5G, right away.

Download the weBoost App

Videos to guide you

through installation

Antenna positioning guide

for optimal performance

Before and after cell

signal readings

______

Index

Package Contents 1

STEP 1: Drill Cable Entry Hole To Your Vehicle 2

STEP 2: Mount NMO Outside Antenna 4

STEP 3: Mount In-Vehicle Antenna 6

STEP 4: Hardwiring To Power 7

STEP 5: Connect Coax Cables To Booster 9

STEP 6: Connect Power Supply To Booster 10

Light Patterns 11

Troubleshooting 12

Safety Guidelines 13

Speciﬁcations 15

Warranty 16

1PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT DRIVE REACH FLEET

________

Package

Contents

Drive Reach

Booster

& Bracket

Outside NMO

Antenna +

Connector

Mounting Cable

In-Vehicle

Antenna

Optional Antenna

Extension Cable

Protective Tape

For Installation

O-Ring Lubricant

Packet

Power Supply,

Hardwire Power

Supply & In-line

Fuse Holder

DRIVE REACH FLEET PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT 2

______

Step 1: Drill Cable Entry Hole

To Your Vehicle

Identify a location for the NMO outside antenna on

the top of your vehicle that is:

 Near the center of the roof

 At least 12 inches away from any other antennas

 At least 12 inches away from any windows

(for best performance install on top of vehicle)

Do a ‘soft install’ before drilling the hole for the

cable entry.

Set up the system by routing the cable through

an open door or window, completing the setup

instructions, verifying the system works as desired,

and then drilling the hole.

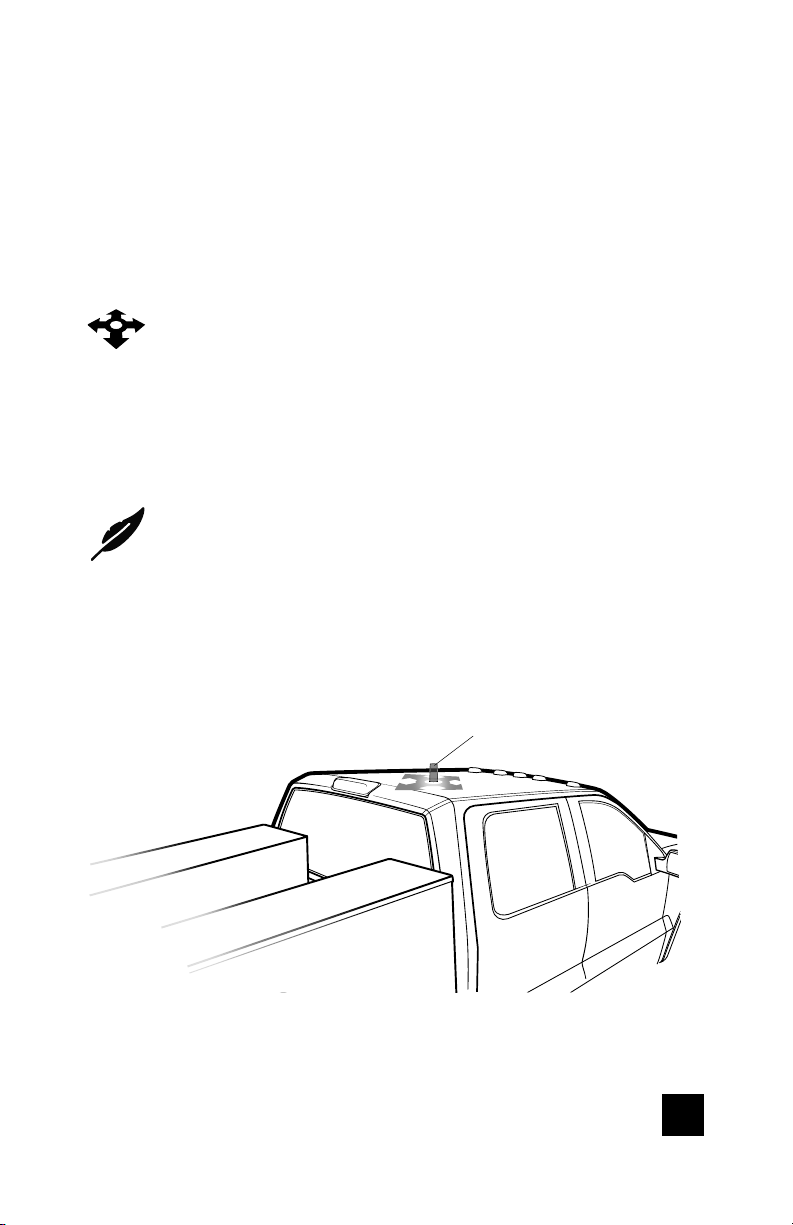

12 inches away from windows

(including sunroofs)

Good NMO Outside

Antenna Placement

3PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT DRIVE REACH FLEET

Place the protective tape on the

vehicle in the desired location.

Using a 3/4” hole saw, drill a hole

in the center of the protective

tape.

______

(STEP 1 cont.)

After completing the ‘soft install’ and identifying NMO

outside antenna location:

protective tape

vehicle surface

protective tape

3/4” bit

DRIVE REACH FLEET PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT 4

apply silicone grease

After hole has been drilled, insert NMO mounting cable

through (connector end ﬁrst) and remove collar.

Position threads of the cable mount above vehicle surface.

Apply included silicone grease to the o-ring on the collar then

screw the collar to the base mount to seal opening. Ensure the

mount is centered in the hole and tighten with wrench.

screw collar

to base mount

For a professional installation, we recommend routing the cable

under the headliner and down through the side trim panel to

the desired booster location on the ﬂoor of the vehicle.

side trim panel

headliner

______

Step 2: Mount NMO

Outside Antenna

remove

collar

insert through hole

5PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT DRIVE REACH FLEET

Before attaching the antenna, apply a thin layer of silicone

grease to the antenna o-ring, and to the threads of the NMO

mount. Screw the antenna onto the NMO mount and hand

tighten into place.

hand tighten and make sure

o-ring is touching vehicle

surface

screw on

NMO Antenna

apply silicone grease

NOTE: DO NOT apply silicone grease to the antenna pin contact surface.

______

(STEP 2 cont.)

DRIVE REACH FLEET PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT 6

The location should be at least 18 inches but no more than 36

inches from where the cellular device will be used. Use the

Velcro® adhesive strip or the 2-sided adhesive strip provided

and attach to the side of the antenna labeled “MOUNTING

SIDE”. Then mount to desired location.

Identify a place to mount the in-vehicle antenna, either on

the side of the seat or on the dash and mount.

______

Step 3: Mount In-Vehicle

Antenna

In-Vehicle Antenna

Dash Mount

Velcro® strip

In-Vehicle Antenna

Seat Mount

7PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT DRIVE REACH FLEET

______

Step 4: Hardwiring To Power

The Drive Reach Fleet kit includes a CLA and Hardwire

power option. The CLA power can be connected to a vehicle

cigarette lighter port. Hardwire instructions are below. Use

the steps below as a general template for wiring the power.

There are multiple options for wiring and steps will vary

depending on the vehicle type.

■ Locate the vehicle fuse box. The fuse box location will vary by

vehicle, refer to the vehicle's owner’s manual.

■ Route the power cable from the booster to the fuse box. If the fuse

box is located under hood of the vehicle the cable will need to be ran

through the ﬁrewall. Most vehicles will have a designated spot to run

cable from the cabin to the engine bay.

■ Determine which fuse to hardwire the power to. Find an open fuse

slot that is ignition-switched, if there are no open fuse slots tied to

the vehicle ignition power can be attached to an existing fuse. Wiring

to an ignition-switched fuse will ensure the booster is not drawing

power when the vehicle is o. Refer to the vehicle owner’s manual for

information about the fuses.

Note: You can use a circuit tester to test if the fuse is constant or

ignition-switched. A constant fuse will stay on when the vehicle is o,

and an ignition-switched fuse will have power when the vehicle is on

but no power when it is o.

■ Connecting the power supply. Once you have determined a fuse slot

to use connect the positive lead on the power cable to the included

in-line fuse then attach to a fuse tap and crimp into place (fuse tap is

not included in the kit and will vary by vehicle type). Connect the fuse

tap to the fuse slot you have chosen.

Note: You will need to determine which type of fuse tap is needed to

complete the power wiring. Variations include ATO, Mini, Low Proﬁle

and Micro2. Consult the vehicle owner’s manual to determine which

fuse is needed for your installation.

■ Grounding the power supply. Most vehicle will have a factory

grounding point. Slip the negative lead “black” on the power supply

under the metal bolt on the grounding point and tighten into place.
