Wilson Electronics 460054 Manual de usuario

Installation Guide

Drive Reach OTR

Cell Signal Booster

BU-GDE000286-DriveReachOTR-001-091820.indd 1BU-GDE000286-DriveReachOTR-001-091820.indd 1 9/18/2020 11:34:55 AM9/18/2020 11:34:55 AM

Index

Package Contents ........................................................... 1

STEP 1 Select Mounting Location & Assemble the Outside Antenna ................ 2

STEP 2 Mounting the Outside Antenna ......................................... 4

STEP 3 Mounting the Inside Antenna .......................................... 6

STEP 4 Connect Coax Cables to Booster ........................................7

STEP 5 Connect Power Supply to Booster ...................................... 8

Booster Light Patterns ....................................................... 9

Troubleshooting ............................................................. 11

Safety Guidelines ............................................................13

Speciﬁcations .............................................................. 16

Warranty................................................................... 17

BU-GDE000286-DriveReachOTR-001-091820.indd 2BU-GDE000286-DriveReachOTR-001-091820.indd 2 9/18/2020 11:34:55 AM9/18/2020 11:34:55 AM

Package Contents

Drive Reach

Signal Booster

& Bracket

Outside

Antenna

Inside

Antenna

Power

Supply

13 in. & 18 in.

Mast Extensions,

Side-Exit Adapter,

Spring, 3-Way

Mount & Thread

Lock Packs

BU-GDE000286-DriveReachOTR-001-091820.indd 1BU-GDE000286-DriveReachOTR-001-091820.indd 1 9/18/2020 11:34:55 AM9/18/2020 11:34:55 AM

Once you have determined the best

location for the antenna, insert cable

through mast(s) then through Side

Exit Adpater.

STEP 1 Select Mounting

Location & Assemble the

Outside Antenna

cable from

antenna

Mast

Extension

13 in.

mast

antenna

13 in.

mast

13 in.

mast

Side Exit

Adapter

run cable

through Mast

Extension(s)

run cable

through Mast

Extension(s)

Antenna Spring

(can be used

optionally)

(Antenna Spring

should not be used)

on this length)

18 in.

mast

BU-GDE000286-DriveReachOTR-001-091820.indd 2BU-GDE000286-DriveReachOTR-001-091820.indd 2 9/18/2020 11:34:55 AM9/18/2020 11:34:55 AM

Use thread locker (provided) to thread

points and screw into place.

NOTE: Be sure the antenna is the correct

height before applying thread locker.

NOTE: When adding the side exit adapter

hold the antenna vertically and screw the

adapter from the bottom up. This reduces

cable twisting.

(STEP 1 cont.)

Side Exit

Adapter

mast

add thread

locker

add thread

locker

Drive OTR

Antenna

BU-GDE000286-DriveReachOTR-001-091820.indd 3BU-GDE000286-DriveReachOTR-001-091820.indd 3 9/18/2020 11:34:56 AM9/18/2020 11:34:56 AM

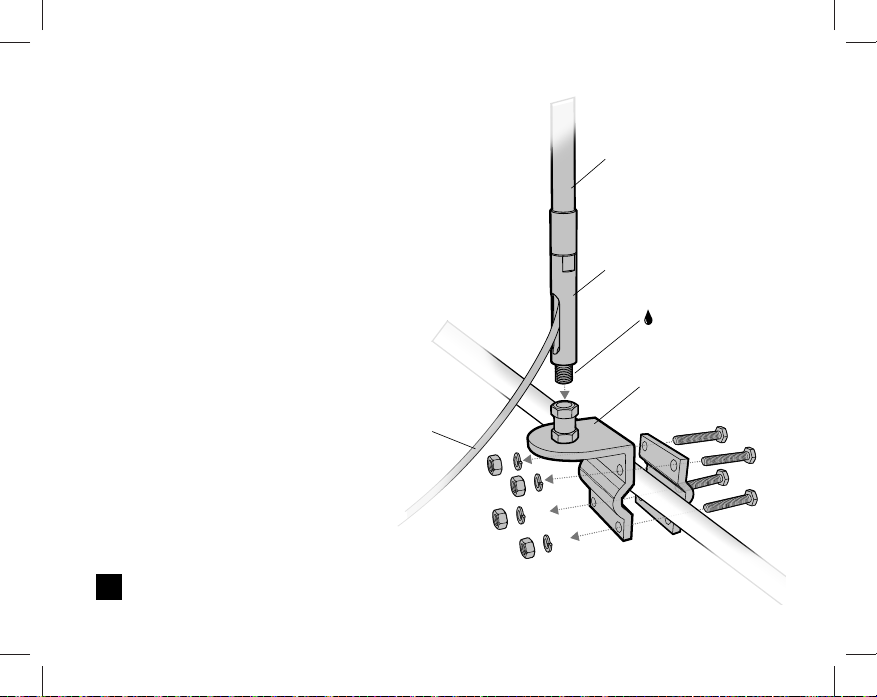

If the vehicle does not have built-in

mounting points, a three-way mount is

included that will work on vehicles with

mirror rails.

NOTE: The cable is strong enough that

it may be shut in most vehicle doors

without damaging the cable.

STEP 2 Mounting the Outside

Antenna

3-Way Antenna

Mount with hardware

connect cable to a

signal booster

Side Exit

Adapter

Mast Extension

add thread

locker

BU-GDE000286-DriveReachOTR-001-091820.indd 4BU-GDE000286-DriveReachOTR-001-091820.indd 4 9/18/2020 11:34:56 AM9/18/2020 11:34:56 AM

(STEP 2 cont.)

3-Way Antenna

Mount with hardware

Side Exit

Adapter

Spring

Mast Extension

If installing with the Spring, disassemble

the 3-Way Mount and use disc washer

and nut (provided) to mount the antenna

with Spring as shown. add thread

locker

add thread

locker

Remove nut & shake

proof washer

Remove bolt &

plastic washer

Mount disc washer with lip

in the DOWN position

Fasten nut with lip in

the UP position

BU-GDE000286-DriveReachOTR-001-091820.indd 5BU-GDE000286-DriveReachOTR-001-091820.indd 5 9/18/2020 11:34:56 AM9/18/2020 11:34:56 AM

Identify a place to mount the In-Vehicle

Antenna, either on the side of the seat or on

the dash and mount. The location should be

at least 18 inches but no more than 36 inches

from where the cellular device will be used.

Use the Velcro® adhesive strip/adhesive strip

provided and attach to desired location.

STEP 3 Mounting the Inside

Antenna

Velcro®strip

mount Inside

Antenna to seat

BU-GDE000286-DriveReachOTR-001-091820.indd 6BU-GDE000286-DriveReachOTR-001-091820.indd 6 9/18/2020 11:34:57 AM9/18/2020 11:34:57 AM

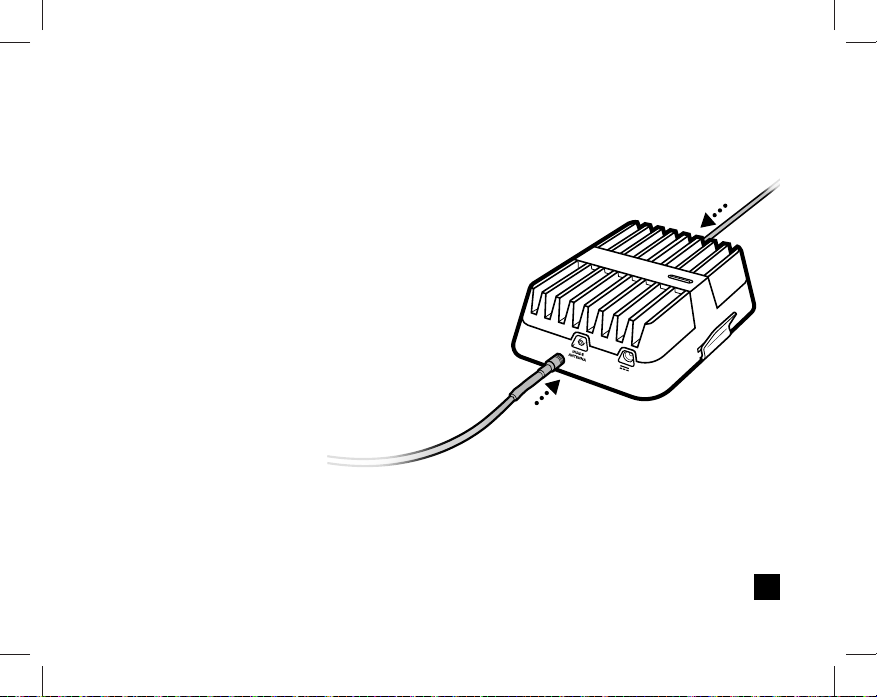

Connect the cable from the Outside Antenna

to the port labeled “Outside Antenna” on

the booster and connect the cable from the

In-Vehicle Antenna to the port labeled “Inside

Antenna” on the booster.

STEP 4 Connect Coax Cables

to Booster

from Inside Antenna

from Outside Antenna

BU-GDE000286-DriveReachOTR-001-091820.indd 7BU-GDE000286-DriveReachOTR-001-091820.indd 7 9/18/2020 11:34:57 AM9/18/2020 11:34:57 AM

Connect the power supply cord to the end of

the booster, labeled “ ”, then plug the

power adapter into vehicle’s 12V DC power

supply. The Drive Reach will automatically

power on when plugged in. If your Drive Reach

is working correctly, the light on the power

adapter will be red, and the light on the booster

will be green. Use only the power supply

provided in this package.

NOTE: If the 12V Cigarette Lighter port on

your car is always on (even when your vehicle

is turned o) and you will be parking for

extended periods of time (more than a day), we

recommend you turn the booster o by pushing

the LED light, which is also a button. This will

prevent the Drive Reach from draining the

battery in your vehicle.

STEP 5 Connect Power Supply

to Booster

connect Power

Supply Cord

plug into vehicle's DC

Power Supply

BU-GDE000286-DriveReachOTR-001-091820.indd 8BU-GDE000286-DriveReachOTR-001-091820.indd 8 9/18/2020 11:34:57 AM9/18/2020 11:34:57 AM
