Wilson Electronics WeBoost DRIVE X Manual de usuario

Vehicle Signal Booster Kit

DRIVE X

A WILSON ELECTRONICS BRAND

Use our weBoost App to guide you through the installation.

See inside page for more details.

Installation Guide

Use our weBoost App to guide you through the installation.

See inside page for more details.

Installation Guide

NEED HELP? support.weboost.com 1-866-294-1660

Download the weBoost App

Use our app to guide you through setting up a weBoost cell phone

signal booster in your home, business, or vehicle. Boost every

network, including 5G, right away.

Download the weBoost App

Videos to guide you

through installation

Antenna positioning guide

for optimal performance

Before and after cell

signal readings

______

Index

Package Contents 1

STEP 1: Mount Outside Magnetic Antenna 2

STEP 2: Mount Inside Antenna 4

STEP 3: Connect Outside Antenna Cable To Booster 5

STEP 4: Connect Inside Antenna Cable To Booster 6

STEP 5: Connect Power Supply To Booster 7

Light Patterns 8

Troubleshooting 9

Safety Guidelines 10

Speciﬁcations 11

Warranty 12

1VEHICLE SIGNAL BOOSTER DRIVE X

________

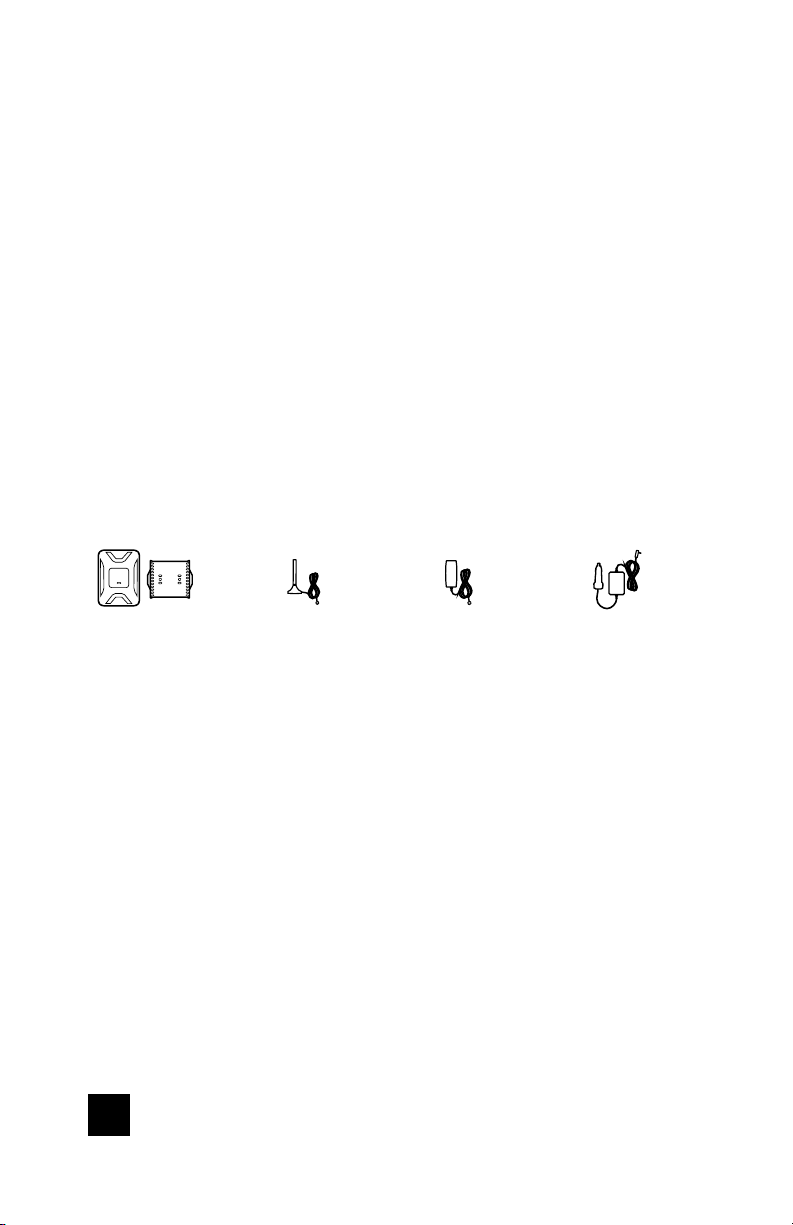

Package

Contents

Booster

& Bracket

Outside

Antenna

Inside

Antenna

Power

Supply

Optional: Adhesive disk for aluminum vehicles

DRIVE X VEHICLE SIGNAL BOOSTER 2

______

Step 1: Mount Outside

Magnetic Antenna

WORKS WITH ALL VEHICLES

Identify a location on the top of your vehicle that is:

 Near the center of the roof

 At least 12 inches away from any other antennas and

from any windows (including sunroofs)

Clean the surface where you will place the outside

antenna.

Mount the outside antenna by placing on top of vehicle.

12 in. away from windows

(including sunroofs)

NOTE: For aluminum roofs, use the included adhesive disk to secure outside

antenna in place.

3VEHICLE SIGNAL BOOSTER DRIVE X

NOTE: When going through car wash,

remember to remove your antenna.

NOTE: The cable is strong enough that it may be shut in most vehicle doors

without damaging the cable.

Car/Sedan: Cable routed

into rear side door.

SUV/Van/Hatchback: Cable

routed into top of hatchback door.

Truck: Cable routed into

side door.

______

(STEP 1 cont.)

See options below on how cable can be routed with

different vehicles.

DRIVE X VEHICLE SIGNAL BOOSTER 4

______

Step 2: Mount Inside Antenna

Identify a place to mount the in-vehicle antenna, either on the

side of the seat or on the dash and mount. The location should

be at least 18 inches but no more than 36 inches from where

the cell phone device will be used. Use the Velcro® adhesive

strip/adhesive strip provided and attach to desired location.

In-Vehicle

Antenna

In-Vehicle Antenna

5VEHICLE SIGNAL BOOSTER DRIVE X

______

Step 3: Connect Outside

Antenna Cable to Booster

Connect the cable from the outside antenna to the outside

antenna port on the booster.

from Outside Antenna

NOTE: Bracket can be used to fasten booster in a speciﬁc location if desired.

DRIVE X VEHICLE SIGNAL BOOSTER 6

______

Step 4: Connect Inside

Antenna Cable to Booster

Connect the cable from the inside antenna to the inside

antenna port on the booster.

from Inside Antenna

7VEHICLE SIGNAL BOOSTER DRIVE X

______

Step 5: Connect Power

Supply To Booster

Connect the power supply cord to the end of the booster,

labeled “Power”.

NOTE: Do NOT connect the power to the signal booster until you have

connected both the inside and outside antennas.

Plug the power adapter into vehicle’s 12V DC power supply.

Power up your Drive X by ﬂipping the switch on the back of

the DC power adapter on. If your Drive X is working correctly,

the light on the power adapter will be red, and the light on the

booster will be green.

DC Power

Adapter

Power Supply
