Wilson Electronics Weboost Office 100 Manual de usuario

Cell Signal Booster

Oce 100

Oce 100

A WILSON ELECTRONICS BRAND

NEED HELP? support.weboost.com

Use our weBoost App to guide you through the installation.

See inside page for more details.

1-866-294-1660

Installation Guide

Download the weBoost App

Use our app to guide you through setting up a weBoost cell phone

signal booster in your home, business, or vehicle. Boost every

network, including 5G, right away.

Download the weBoost App

Videos to guide you

through installation

Antenna positioning guide

for optimal performance

Before and after cell

signal readings

Package Contents 1

Preparation 2

STEP 1: Inside Antenna & Booster Placement 4

STEP 2: Mount & Point Outside Antenna Toward Nearest

Cell Tower 5

STEP 3: Route & Connect Outside Antenna To Booster 6

STEP 4: Route & Connect Inside Antenna To Booster 7

STEP 5: Power Up The Booster 8

Measuring Booster Performance 9

Light Patterns 11

Troubleshooting 12

Safety Guidelines 13

Speciﬁcations 15

Warranty 16

______

Index

1CELL PHONE SIGNAL BOOSTER OFFICE 100

______

Package

Contents

Office 100

Booster

Office 100

Booster

Power

Supply

(850030)

Power

Supply

(850030)

Lightning Surge

Protector

(859902)

Lightning Surge

Protector

(859992)

Cable Mounting

Clips

Cable Mounting

Clips

Inside

Antenna

(304412)

Inside

Antenna

(304419)

Outside

Antenna

(314422)

Outside

Antenna

(314423)

75’ & 60’

Wilson 400 Cables

(952360 & 952375)

75’ & 60’

RG-11 Cables

(951160 & 951175)

2’ Wilson 400

Cable

(952302)

2’ RG-11

Cable

(951127)

Oce 100 50 Ohm Kit

Oce 100 75 Ohm Kit

OFFICE 100 CELL PHONE SIGNAL BOOSTER

______

Preparation

You Will Need (tools not included)

Make sure the following materials are prepared and ready for your installation.

o Ladder

o Drill

o 1” - 2” diameter existing pole for mounting

Outside Antenna (#901117 Pole Mount can be

purchased separately if needed)

o Recommended: Power Strip with surge protection

1 to 2 hours

3CELL PHONE SIGNAL BOOSTER OFFICE 100

______

Installation Diagram

Outside

Antenna

Booster

75’ Coax Cable

Troubleshooting section recommends increasing distance

further if needed.

60’ Coax Cable

to power

Lightning Surge

Protector

Inside

Antenna

60 FEET HORIZONTAL OR 25 FEET VERTICAL DISTANCE

OFFICE 100 CELL PHONE SIGNAL BOOSTER

AT LEAST 24” APART

fastened

nut snug

ceiling

3/4” drilled hole

NOTE: Do not connect booster to power until the system is fully installed.

______

Step 1: Inside Antenna &

Booster Placement

Place the inside antenna in the ceiling over where you need the greatest signal

boost and place booster in your desired location at least 24” away from

inside antenna.

5CELL PHONE SIGNAL BOOSTER OFFICE 100

______

Step 2: Mount Outside Antenna

Toward Nearest Cell Tower

NOTE: Mounting on existing roof exhaust pipe would be a good time-saver option. Watch

out for power lines.

Pole mounting and wall mounting options are included.

Attach the mount to the outside antenna and use the bracket clamp to attach

the antenna to a pole or exhaust pipe.

Outside

Antenna

U-Bolt

existing

pole

Pole

Bracket

OFFICE 100 CELL PHONE SIGNAL BOOSTER

______

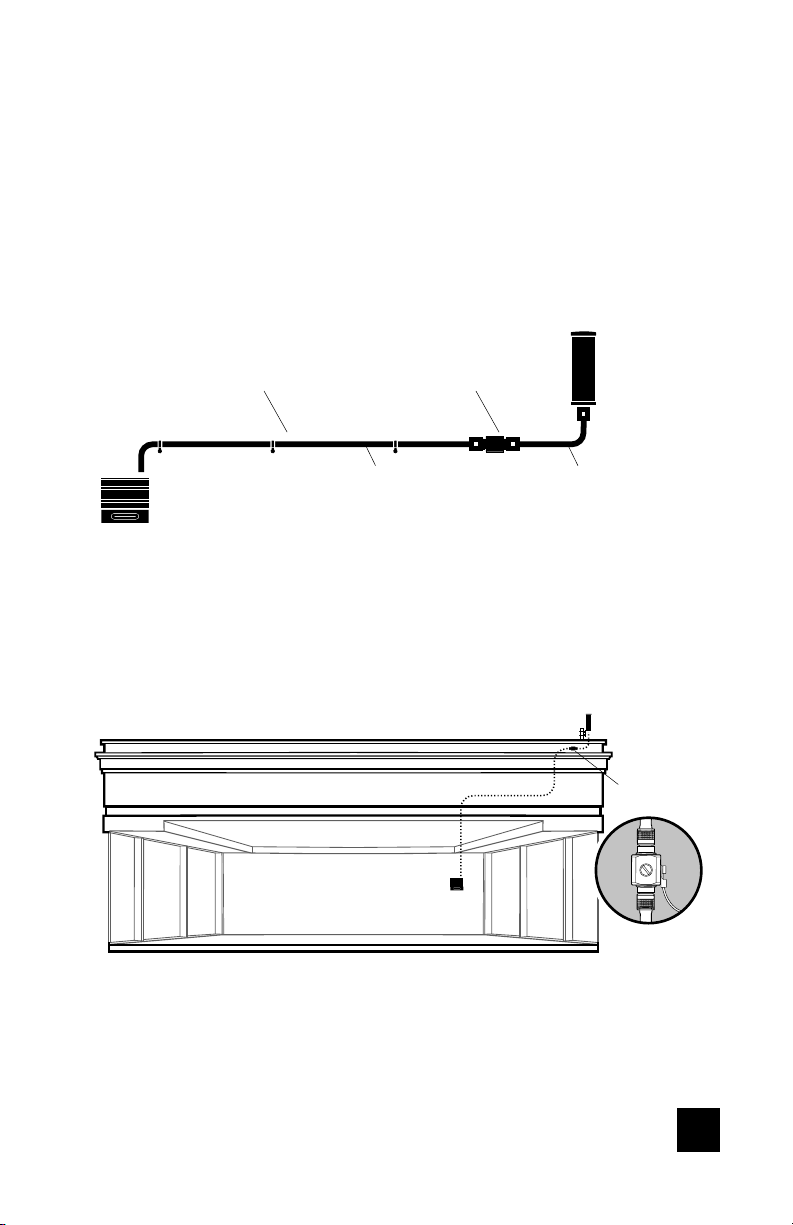

Step 3: Route & Connect

Outside Antenna To Booster

Route cable to the Oce 100 booster and connect to the port labeled

‘OUTSIDE ANTENNA’.

Outside

Antenna

75’ Coax Cable 2’ Coax Cable

Outside

Antenna

Lightning Surge

Protector

Booster

Cable Mounting Clips

provided

Lightning Surge

Protector

Connect 2 ft. coax cable to outside antenna, attach the lightning surge

protector, then connect the black 75 ft. coax cable and route into building.

7CELL PHONE SIGNAL BOOSTER OFFICE 100

______

Step 4: Route & Connect

Inside Antenna To Booster

Inside

Antenna

60’ Coax Cable

Booster

Connect the black 60 ft. coax cable to inside antenna and route to the Oce

100 booster and connect to the port labeled ‘INSIDE ANTENNA’.

Outside

Antenna

Booster

Cable Mounting Clips

provided

Inside

Antenna
