Hand-held pressure indicator, model CPH6300

Hand-Held Druckmessgerät, Typ CPH6300

Hand-held pressure indicator, model CPH6300

14043054.02 08/2017 EN/DE

WIKA operating instructions, model CPH6300

Operating instructions model CPH6300 Page 3 - 46

Betriebsanleitung Typ CPH6300 Seite 47 - 91

Further languages can be found at www.wika.com.

WIKA®is a registered trademark in various countries.

WIKA®ist eine geschützte Marke in verschiedenen Ländern.

Prior to starting any work, read the operating instructions!

Keep for later use!

Vor Beginn aller Arbeiten Betriebsanleitung lesen!

Zum späteren Gebrauch aufbewahren!

WIKA operating instructions, model CPH6300

14043054.02 08/2017 EN/DE

Contents

1. General information 5

2. Short overview 6

2.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . 6

2.2 Description . . . . . . . . . . . . . . . . . . . . . . . 6

2.3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . 7

3. Safety 7

3.1 Explanation of symbols . . . . . . . . . . . . . . . . . . . 7

3.2 Intended use. . . . . . . . . . . . . . . . . . . . . . . 7

3.3 Improper use . . . . . . . . . . . . . . . . . . . . . . 8

3.4 Personnel qualification . . . . . . . . . . . . . . . . . . . 8

3.5 Labelling, safety marks . . . . . . . . . . . . . . . . . . . 9

4. Transport, packaging and storage 10

4.1 Transport . . . . . . . . . . . . . . . . . . . . . . . .10

4.2 Packaging and storage . . . . . . . . . . . . . . . . . . . 10

5. Commissioning, operation 11

5.1 Operation . . . . . . . . . . . . . . . . . . . . . . . . 11

5.1.1 Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

5.1.2 Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

5.2 Commissioning . . . . . . . . . . . . . . . . . . . . . .13

5.3 Configuration of the instrument . . . . . . . . . . . . . . . . 13

5.4 Special functions . . . . . . . . . . . . . . . . . . . . . 20

5.4.1 Different pressure units. . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

5.4.2 Different measuring modes . . . . . . . . . . . . . . . . . . . . . . . . . .20

5.4.3 Sea level correction for absolute pressure sensors . . . . . . . . . . . . .21

5.4.4 Averaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

5.4.5 Rate of change of pressure (only for sensor connection 1) . . . . . . . . .22

5.5 Data logger . . . . . . . . . . . . . . . . . . . . . . . 23

5.5.1 Manual records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

5.5.2 Automatic recording with adjustable cycle . . . . . . . . . . . . . . . . . .26

5.6 Universal output . . . . . . . . . . . . . . . . . . . . . 29

5.6.1 USB interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

5.6.2 Analogue output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

5.7 Adjustment of the instrument . . . . . . . . . . . . . . . . . 30

5.8 Pressure connection at the pressure sensors. . . . . . . . . . . . 30

5.9 Real-time clock . . . . . . . . . . . . . . . . . . . . . .30

5.10 Alarm. . . . . . . . . . . . . . . . . . . . . . . . . 31

WIKA operating instructions, model CPH6300

14043054.02 08/2017 EN/DE

6. Faults 31

7. Maintenance, cleaning and recalibration 33

7.1 Maintenance. . . . . . . . . . . . . . . . . . . . . . . 33

7.2 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . 35

7.3 Recalibration. . . . . . . . . . . . . . . . . . . . . . . 35

8. Dismounting, return and disposal 36

8.1 Dismounting . . . . . . . . . . . . . . . . . . . . . . .36

8.2 Return . . . . . . . . . . . . . . . . . . . . . . . . .37

8.3 Disposal . . . . . . . . . . . . . . . . . . . . . . . . 37

9. Specifications 38

10. Accessories 45

Declarations of conformity can be found online at www.wika.com.

Contents

WIKA operating instructions, model CPH6300

14043054.02 08/2017 EN/DE

1. General information

■The model CPH6300 hand-held pressure indicator described in the operating

instructions has been designed and manufactured using state-of-the-art technology.

All components are subject to stringent quality and environmental criteria during

production. Our management systems are certified to ISO 9001 and ISO 14001.

■These operating instructions contain important information on handling the instrument.

Working safely requires that all safety instructions and work instructions are observed.

■Observe the relevant local accident prevention regulations and general safety

regulations for the instrument's range of use.

■The operating instructions are part of the product and must be kept in the immediate

vicinity of the instrument and readily accessible to skilled personnel at any time. Pass

the operating instructions on to the next operator or owner of the instrument.

■Skilled personnel must have carefully read and understood the operating instructions

prior to beginning any work.

■The general terms and conditions contained in the sales documentation shall apply.

■Subject to technical modifications.

■Factory calibrations / DKD/DAkkS calibrations are carried out in accordance with

international standards.

■Further information:

- Internet address: www.wika.de / www.wika.com

- Relevant data sheet: CT 12.01

- Application consultant: Tel.: +49 9372 132-9986

Fax: +49 9372 132-8767

[email protected]

Abbreviations, definitions

“XXX” Menu XXX will be selected

[XXX] Press XXX button

1. General information

WIKA operating instructions, model CPH6300

14043054.02 08/2017 EN/DE

2. Short overview

2.1 Overview

1Sensor connection cable

2Pressure connection channel 1

3Pressure connection channel 2

4Interface connector

5Display

6Controls

7Reference pressure sensor model CPT6200

2.2 Description

The model CPH6300 hand-held pressure indicator is very-well suited for operation under

the most-adverse conditions due to its robust and waterproof design. Due to the high

accuracy of the sensor technology, the CPH6300 can be used for accurate pressure

measurement and also for calibration.

WIKA operating instructions, model CPH6300

14043054.02 08/2017 EN/DE

3. Safety

3.1 Explanation of symbols

WARNING!

... indicates a potentially dangerous situation that can result in serious injury

or death, if not avoided.

CAUTION!

... indicates a potentially dangerous situation that can result in light injuries

or damage to property or the environment, if not avoided.

Information

... points out useful tips, recommendations and information for efficient and

trouble-free operation.

3.2 Intended use

This CPH6300 hand-held pressure indicator can be used as a calibration instrument and

also for any application which requires high-accuracy pressure measurement.

This instrument is not permitted to be used in hazardous areas!

The instrument has been designed and built solely for the intended use described here,

and may only be used accordingly.

The technical specifications contained in these operating instructions must be observed.

Improper handling or operation of the instrument outside of its technical specifications

requires the instrument to be taken out of service immediately and inspected by an

authorised WIKA service engineer.

2. Short overview / 3. Safety

2.3 Scope of delivery

■Hand-held pressure indicator model CPH6300 incl. 2 AAA batteries

■One sensor connection cable per channel

■3.1 calibration certificate in accordance with DIN EN 10204 for sensors

■Choice of sensors

Cross-check scope of delivery with delivery note.

WIKA operating instructions, model CPH6300

14043054.02 08/2017 EN/DE

Handle electronic precision measuring instruments with the required care (protect from

humidity, impacts, strong magnetic fields, static electricity and extreme temperatures,

do not insert any objects into the instrument or its openings). Plugs and sockets must be

protected from contamination.

The manufacturer shall not be liable for claims of any type based on operation contrary to

the intended use.

3.3 Improper use

WARNING!

Injuries through improper use

Improper use of the instrument can lead to hazardous situations and injuries.

▶Refrain from unauthorised modifications to the instrument.

▶Do not use the instrument within hazardous areas.

▶Do not use the instrument with abrasive or viscous media.

▶Observe the working conditions in accordance with chapter

9 “Specifications”.

▶Always operate the instrument within its overload limits.

Any use beyond or different to the intended use is considered as improper use.

3.4 Personnel qualification

WARNING!

Risk of injury should qualification be insufficient

Improper handling can result in considerable injury and damage to

equipment.

▶The activities described in these operating instructions may only be

carried out by skilled personnel who have the qualifications described

below.

Skilled personnel

Skilled personnel, authorised by the operator, are understood to be personnel who,

based on their technical training, knowledge of measurement and control technology and

on their experience and knowledge of country-specific regulations, current standards and

directives, are capable of carrying out the work described and independently recognising

potential hazards.

3. Safety

WIKA operating instructions, model CPH6300

14043054.02 08/2017 EN/DE

Special operating conditions require further appropriate knowledge, e.g. of aggressive

media.

3.5 Labelling, safety marks

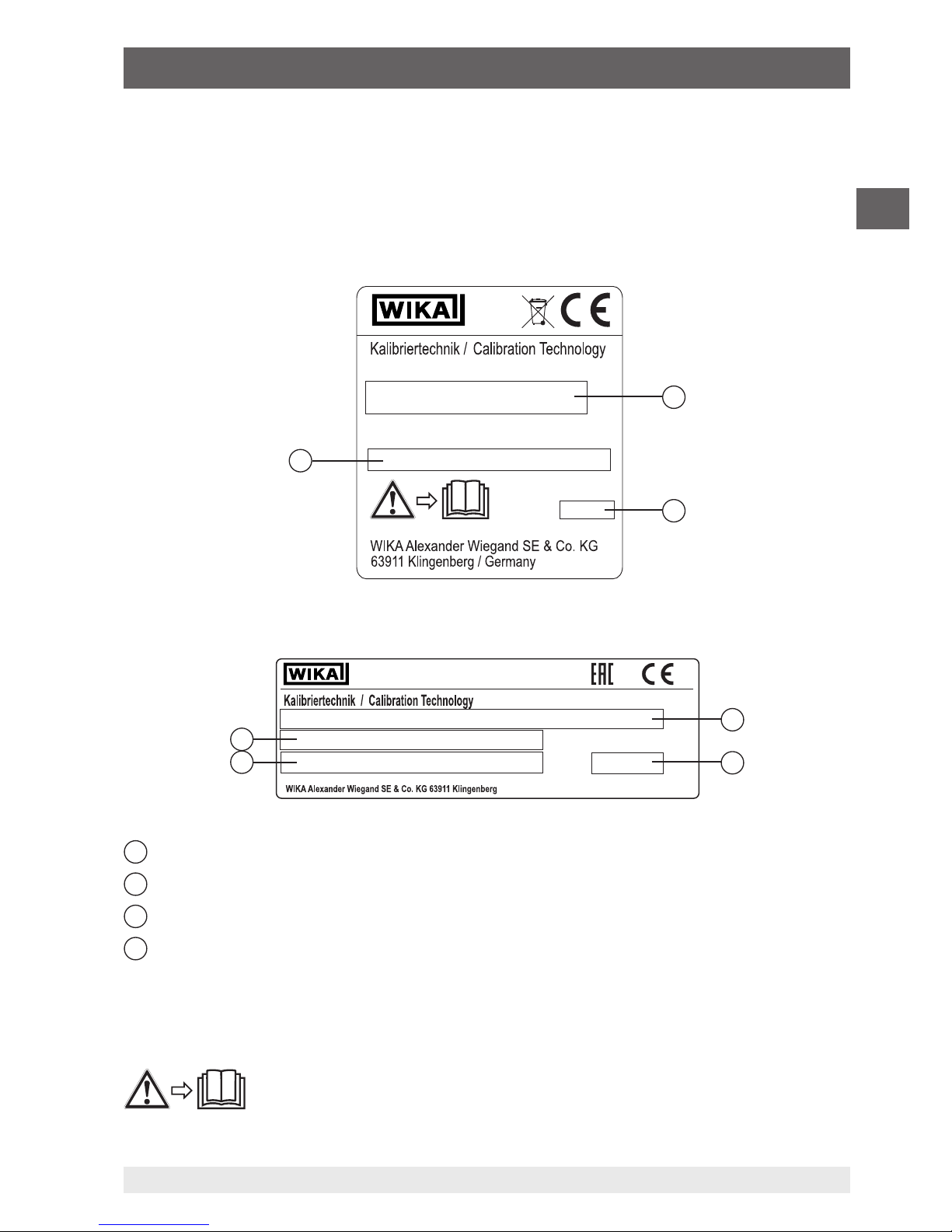

Product label for model CPH6300-S1 or CPH6300-S2 (examble)

Product label for model CPT6200 (examble)

1Product name

2Date of manufacture (month-year)

3Serial number and article number

4Pressure measuring range and accuracy

Symbols

Before mounting and commissioning the instrument, ensure you read

the operating instructions!

04/2016

Transmitter CPT6200 for Hand-Held Instrument

3. Safety

WIKA operating instructions, model CPH6300

14043054.02 08/2017 EN/DE

3. Safety / 4. Transport, packaging and storage

4. Transport, packaging and storage

4.1 Transport

Check the model CPH6300 hand-held pressure indicator and the model CPT6200

reference pressure sensor for any damage that may have been caused by transport.

Obvious damage must be reported immediately.

CAUTION!

Damage through improper transport

With improper transport, a high level of damage to property can occur.

▶When unloading packed goods upon delivery as well as during internal

transport, proceed carefully and observe the symbols on the packaging.

▶With internal transport, observe the instructions in chapter 4.2 “Packaging

and storage”.

If the instrument is transported from a cold into a warm environment, the formation of

condensation may result in instrument malfunction. Before putting it back into operation,

wait for the instrument temperature and the room temperature to equalise.

4.2 Packaging and storage

Do not remove packaging until just before mounting.

Keep the packaging as it will provide optimum protection during transport (e.g. change in

installation site, sending for repair).

Permissible conditions at the place of storage:

■Storage temperature: -25 ... +70 °C (-13 ... +158 °F)

■Humidity: 0 ... 95 % relative humidity (non-condensing)

Avoid exposure to the following factors:

■Direct sunlight or proximity to hot objects

■Mechanical vibration, mechanical shock (putting it down hard)

■Soot, vapour, dust and corrosive gases

■Hazardous environments, flammable atmospheres

This marking on the instruments indicates that they must not be disposed of

in domestic waste.The disposal is carried out by return to the manufacturer

or by the corresponding municipal authorities.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Instrumento de medición de WIKA

WIKA

WIKA TC84 Manual de usuario

WIKA

WIKA SENSeOR AMS01 Manual de usuario

WIKA

WIKA PGU23.100 Manual de usuario

WIKA

WIKA DIH50 Manual de usuario

WIKA

WIKA 821 Manual de usuario

WIKA

WIKA PG81 Manual de usuario

WIKA

WIKA TC82 Instrucciones de funcionamiento

WIKA

WIKA mensor CPG2400 Manual de usuario

WIKA

WIKA 712.15.100 Manual de usuario

WIKA

WIKA 1500 Series Manual de usuario

WIKA

WIKA F73.100 Manual de usuario

WIKA

WIKA 2XX.34 Guía del producto

WIKA

WIKA CTD9100-1100 Manual de usuario

WIKA

WIKA mensor 9476 Manual de usuario

WIKA

WIKA DI10 Manual de usuario

WIKA

WIKA RLT-1000 Manual de usuario

WIKA

WIKA 732.14 Manual de usuario

WIKA

WIKA TR Series Manual de usuario

WIKA

WIKA SERIES CPG 2500 Manual de usuario

WIKA

WIKA DI32-1 Manual de usuario

WIKA

WIKA 73 02.100 Series Manual de usuario

WIKA

WIKA TR12 Series Instrucciones de funcionamiento

WIKA

WIKA DIH10-Ex Manual de usuario

WIKA

WIKA PG23CP Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
