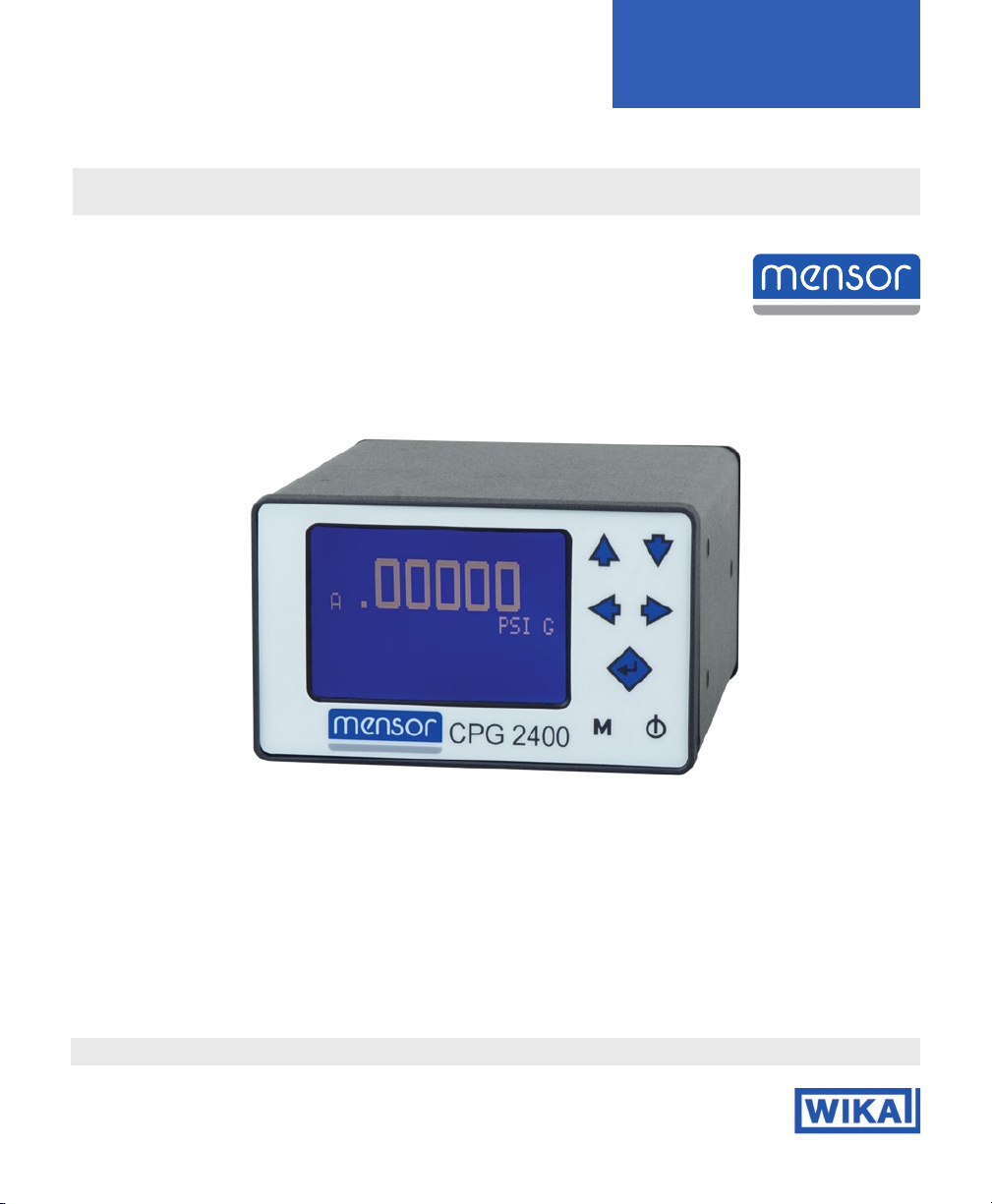

WIKA Mensor CPG2400 Manual de usuario

Operating Instructions

Digital Pressure Gauge

Digital Pressure Gauge CPG2400 Series PN 0017460001V • 03/2017

CPG2400

2 Operating Instructions CPG2400 Series

Digital Pressure Gauge

CPG2400 Series

Warning

This Warning symbol indicates that danger of injury for persons

and the environment and/or considerable damage (mortal danger,

danger of injury) will occur if the respective safety precautions are

not taken.

Caution

This Caution symbol indicates danger for the system and

material if the respective safety precautions are not taken.

This Notice symbol does not indicate safety notices but

information for a better understanding of the facts.

Operating Instructions CPG2400 Series 3

Digital Pressure Gauge

CPG2400 Series

Table of Contents

1. General Information 5

1.1 Warranty 5

1.2 Important Notice 5

1.3 Software License Agreement 6

1.4 Mensor Service Plus 6

1.4.1 After the Warranty 6

1.4.2 Calibration Services 6

1.4.3 Accreditations 6

2. Safety Notices 7

2.1 Warnings and Caution Notices 7

3. Product Description 9

3.1 General Description 9

3.2 Display 9

3.3 Power Supply 9

3.4 Serial In/Out Communications 9

4. Specications 11

5. Installation 13

5.1 Unpacking the Instrument 13

5.2 Dimensions 14

5.3 Pressure Connections 15

5.4 Electrical Connections 16

5.5 Power On 16

6. Local Operation 17

6.1 Keypad 17

6.2 Standard Display 17

6.3 Menu Screens 18

6.3.1 Main Menu Screen 18

6.3.2 Password Entry Screen 20

6.3.3 Sensor Calibration Screen 20

6.3.4 Pressure Units Screens 22

6.4 Menu Tree 23

4 Operating Instructions CPG2400 Series

Digital Pressure Gauge

CPG2400 Series

7. Remote Operation 25

7.1 General 25

7.2 Communication Syntax 25

7.2.1 Password Protection 26

7.2.2 Response String Format 26

7.2.3 CPG2400 Address 26

7.2.4 Wildcard Address Operator(*) 26

7.2.5 Commands and Queries 27

7.2.6 User Programmable Pressure Units 29

7.2.7 Pressure Units Codes and Conversions 30

8. Calibration 31

8.1 Environment 31

8.2 Equipment 31

8.3 Pressure Standard 33

8.4 Calibration Medium 33

8.5 Calibration Process 33

8.5.1 Zero Adjustment 33

8.5.2 Span Adjustment 34

Operating Instructions CPG2400 Series 5

Digital Pressure Gauge

CPG2400 Series

1. General Information

1.1 Warranty

All products manufactured by Mensor are warranted to be free of defects in workman-

ship and materials for a period of one year from the date of shipment. No other express

warranty is given, and no affirmation of Seller, by words or actions, shall constitute a

warranty. SELLER DISCLAIMS ANY IMPLIED WARRANTIES OF MERCHANTABIL-

ITY OR FITNESS FOR ANY PARTICULAR PURPOSES WHATSOEVER. If any defect in

workmanship or material should develop under conditions of normal use and service

within the warranty period, repairs will be made at no charge to the original purchaser,

upon delivery of the product(s) to the factory, shipping charges prepaid. If inspection

by Mensor or its authorized representative reveals that the product was damaged by

accident, alteration, misuse, abuse, faulty installation or other causes beyond the con-

trol of Mensor, this warranty does not apply. The judgment of Mensor will be final as

to all matters concerning condition of the product, the cause and nature of a defect,

and the necessity or manner of repair. Service, repairs or disassembly of the product

in any manner, performed without specific factory permission, voids this warranty.

MENSOR MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS

MANUAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Mensor

shall not be liable for errors contained herein or for incidental or consequential

damages in connection with the furnishing, performance, or use of this material.

1.2 Important Notice

The product specifications and other information contained in this manual are subject to

change without notice.

Mensor has made a concerted effort to provide complete and current information for the

proper use of the equipment. If there are questions regarding this manual or the proper

use of the equipment, contact Mensor at:

Mensor WIKA Alexander Wiegand SE & Co. KG

201 Barnes Drive Alexander-Wiegand-Straße 30

San Marcos, Tx 78666 D-63911 Klingenberg / Germany

Tel: 1.512.396.4200 Tel: (+49) 93 72/132-9986

1.800.984.4200 (USA only) Web Site: www.wika.de

web site: www.mensor.com Fax: (+49) 93 72/132-8767

fax: . 512.396.1820 E-Mail: [email protected]

e-mail: sales@mensor.com

tech.support@mensor.com

6 Operating Instructions CPG2400 Series

Digital Pressure Gauge

CPG2400 Series

1.3 Software License Agreement

This product contains intellectual property, i.e., software programs, that are licensed for

use by the end user/customer (hereinafter “end user”).

This is not a sale of such intellectual property.

The end user shall not copy, disassemble or reverse compile the software program.

The software programs are provided to the end user “as is” without warranty

of any kind, either express or implied, including, but not limited to, warranties

of merchantability and fitness for a particular purpose. The entire risk of the

quality and performance of the software program is with the end user.

Mensor and its suppliers shall not be held to any liability for any damages

suffered or incurred by the end user (including, but not limited to, general, special,

consequential or incidental damages including damages for loss of business profits,

business interruption, loss of business information and the like), arising from or

in connection with the delivery, use or performance of the software program.

1.4 Mensor Service Plus

If you have problems and you don’t find the answer in this manual, contact Mensor at

1.800.984.4200 (USA only) or 1.512.396.4200 for personal assistance, or at any of the

contact addresses listed on the rear cover of this manual. We are ready to help.

1.4.1 After the Warranty

Mensor’s concern with the performance of this instrument is not limited to the warranty

period. We provide complete repair, calibration and certification services after the

warranty for a nominal fee.

1.4.2 Calibration Services

In addition to servicing our own products Mensor can perform a complete pressure

calibration service, up to 20,000 psi, for all of your pressure instruments. This service

includes an accredited calibration.

1.4.3 Accreditations

Mensor is registered to ISO 9001:2008. The calibration program at Mensor is accredited

by A2LA, as complying with both the ISO/IEC 17025:2005 and the ANSI/NCSL Z540-1-

1994 standards.

Operating Instructions CPG2400 Series 7

Digital Pressure Gauge

CPG2400 Series

2. Safety Notices

2.1 Warnings and Caution Notices

Warning

!WARNING: NOT EXPLOSION PROOF!

Installation of this instrument in an area requiring devices rated as

intrinsically safe is not recommended.

Caution

CAUTION: Some ranges require clean, non-corrosive pressure

media. See “Media Compatibility” in Section 4, Specications. This

instrument is not designed for oxygen use.

Caution

CAUTION: Avoid excessive overpressure to the sensor!

Externally mounted relief valves to provide overpressure protection

are available from Mensor as optional devices.

Caution

CAUTION: Use of a power supply other than the one provided by

Mensor will invalidate the warranty.

CAUTION: ESD PROTECTION REQUIRED. The proper use of

grounded work surfaces and personal wrist straps are required

when coming into contact with exposed circuits (printed circuit

boards) to prevent static discharge to sensitive electronic

components.

Additional notices are found throughout this manual.

8 Operating Instructions CPG2400 Series

Digital Pressure Gauge

CPG2400 Series

Notes

Operating Instructions CPG2400 Series 9

Digital Pressure Gauge

CPG2400 Series

3. Product Description

3.1 General Description

The CPG2400 is the lowest accuracy single-range pressure measuring instrument

available in the Mensor CPG family. With an uncertainty of 0.03% FS, and a small

package design, this unit is perfect for desk top monitoring of pressure changes and

for use in Production and Test environments. Temperature compensation from 15 to 45

degree C permits use in this temperature range without degradation of accuracy.

The unique design of the CPG2400 has modest features and simple menu options. It

has a standard RS-232 serial output port that can be used for remote communications.

It can display measured pressure along with peaks or null. Other features are a mono-

chrome LCD display, null capability, a single silicon sensor and it is powered by a wall

transformer.

Optional features include external dual differential relief valves, externally mounted relief

valves, RS-485 communications (100 ft cable length recommended), and a rack mount

kit.

3.2 Display

Several different display screens are presented while operating the CPG2400. Each

screen is arranged into blocks of information, generally organized into columns and

rows. These screens are each described in further detail in Section 6, “Local Opera-

tion”, and in Section 7, “Remote Operation”.

3.3 Power Supply

The power adapter is utilized to provide power to operate the CPG2400. It produces 12

VDC @ 830 mA max.

3.4 Serial In/Out Communications

The serial port can be used to configure and calibrate the CPG2400, or to read the out-

put of its sensor. Depending on how your CPG2400 was ordered, the instrument came

with either RS-232 or RS-485 serial port communications. Both are explained below.

The RS-232 serial port is configured as 9600 baud, 8 data bits, 1 stop bit and no parity.

It is designed as a 9-pin DCE device so that a straight pin to pin cable can be used to

connect it to a standard PC serial port.

10 Operating Instructions CPG2400 Series

Digital Pressure Gauge

CPG2400 Series

The RS-485 serial port is configured for 4-wire plus ground connections. The port

operates at 9600 baud, 8 data bits, 1 stop bit and no parity. The device address can

be changed using a remote command. When connecting several units in a multi-drop

configuration, it is recommended that the cable length be limited to 100 ft.

Wiring requirements are provided in Section 5.4, “Electrical Connections”, and a list of

valid commands and responses is provided in Section 7.2.5, “Commands and Queries”.
