Whispbar K692W Guía de instalación

K692W

Fitting Kit

EN Fitting Instructions for Basic Carrier

DMontageanleitung für Basisträgersystem

ES Instrucciones de montaje para el sistema

de transporte

FInstructions de montage pour Basic Carrier

NO Monteringsanvisning for takstativ

PT Instruções de Montagem para sistema de

transporte.

RU Установочные Инструкции для

Поперечных Балок

x 4 x 2 x 2 x 2

x 2 x 2 x 2

Revision No: 3c 1

Fitting Kit K692W

MAX kgs (lbs)

W/P WHD

Volkswagen

Golf MK7, 5dr Hatch 13-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Golf MK7, 5dr Hatch 13-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Golf MK7, 5dr Hatch 13-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

Golf MK7, 5dr Hatch 13-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Golf MK7, 5dr Hatch 15-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit EN

K692W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

Fitting Kit EN

K692W

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K692W

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●A = Clear

B = Grey

●It is important to put the clamps in the

correct position on the vehicle.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = 997A

B = 998A

Fitting Kit EN

K692W

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

Fitting Kit EN

K692W

●Make sure the pad fits into the holes

underneath the foot.

Fitment

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Please check the rear of this manual for

information relating specifically to your

vehicle.

●Locate vehicle's fixed points for the front

bar.

Fitting Kit EN

K692W

●Remove plastic screws as shown.

●Store items away in a safe place.

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar, and the clamps engage firmly on

the body work of the vehicle.

●Locate vehicle's fixed points.

●Clamps directly to edge of roof under the

doors, pin locates in hole on vehicle on

front clamps

●Tighten adjusting screw to 3 Nm (2.2 ft lb)

hand tight.

Fitting Kit EN

K692W

●Tighten locking screw on both legs evenly.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

Fitting Kit EN

K692W

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.

Otros manuales para K692W

Tabla de contenidos

Idiomas:

Otros manuales de Accesorios para automóviles de Whispbar

Whispbar

Whispbar K631W Manual de usuario

Whispbar

Whispbar K835W Manual de usuario

Whispbar

Whispbar K1013 Manual de usuario

Whispbar

Whispbar K425W Manual de usuario

Whispbar

Whispbar K792W Manual de usuario

Whispbar

Whispbar K069W Manual de usuario

Whispbar

Whispbar K496W Manual de usuario

Whispbar

Whispbar K948W Manual de usuario

Whispbar

Whispbar K343W Manual de usuario

Whispbar

Whispbar K107W Manual de usuario

Whispbar

Whispbar K442W Manual de usuario

Whispbar

Whispbar K877W Manual de usuario

Whispbar

Whispbar K159W Manual de operación e instalación

Whispbar

Whispbar K102W Manual de usuario

Whispbar

Whispbar K822 Manual de usuario

Whispbar

Whispbar K992W Manual de usuario

Whispbar

Whispbar K591W Manual de usuario

Whispbar

Whispbar K371W Manual de usuario

Whispbar

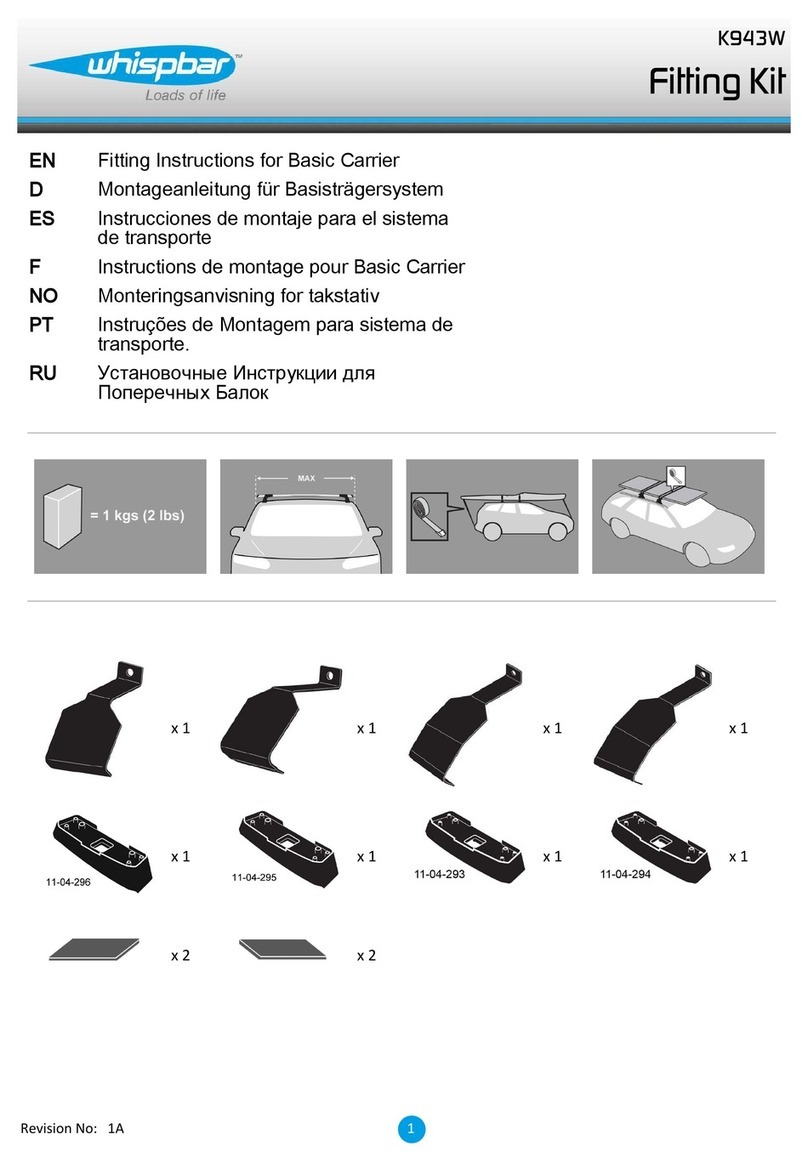

Whispbar K943W Manual de usuario
