K423W

Fitting Kit

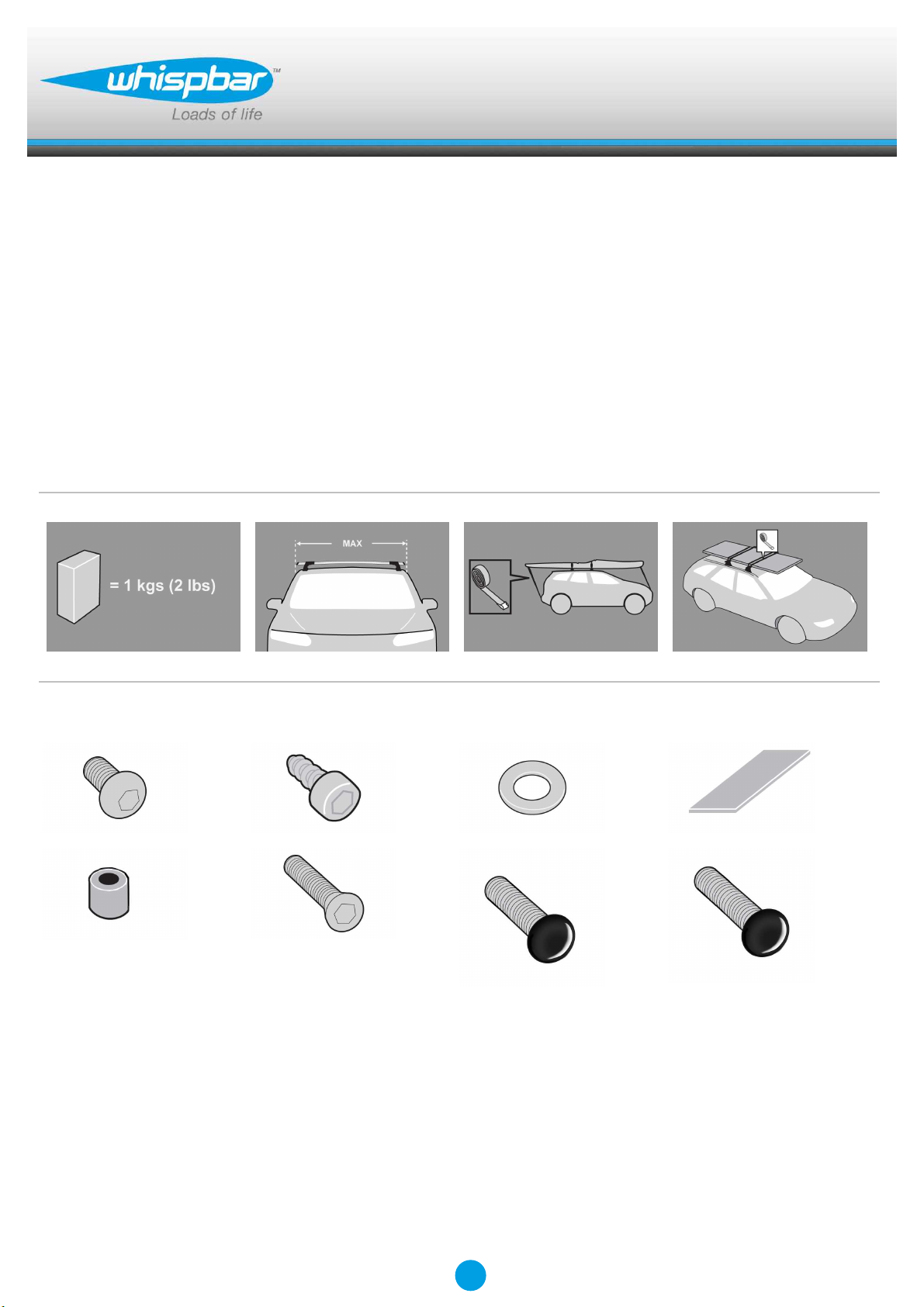

EN Fitting Instructions for Basic Carrier

x 4 x 8 x 12 x 2

x 8 x 8 x 4 x 4

Revision No: 11E 1

Fitting Kit K423W

x 2 x 2 x 2 x 2

x 4 x 4 x 4

2

Fitting Kit K423W

MAX kgs (lbs)

W/P WHD

Nissan

X-Trail Lowline, 5dr SUV 01-07 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

X-Trail, 5dr SUV 01-06 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

X-Trail, 5dr SUV 04-04 CN 75 kgs (165 lbs) 75 kgs (165 lbs)

X-Trail, 5dr SUV 07-10 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

X-Trail, 5dr SUV 07-10 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

X-Trail, 5dr SUV 07-10 CN 75 kgs (165 lbs) 75 kgs (165 lbs)

X-Trail, 5dr SUV 10-14 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

X-Trail, 5dr SUV 10-14 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

X-Trail, 5dr SUV 10-Mar 14 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

X-Trail, 5dr SUV 10-Mar 14 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

X-Trail, 5dr SUV Oct 01-Sep 07 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

X-Trail, 5dr SUV Oct 01-Sep 07 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

X-Trail, 5dr SUV Oct 07-10 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

X-Trail, 5dr SUV Oct 07-10 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

3

Fitting Kit K423W

X

A B C 1 2 3

X-Trail Lowline, 5dr SUV 01-07 (ZA) -140mm 590mm - 875mm 840mm -

-5 -1/2ths" 23 1/4ths" - 34 7/16ths" 33 1/16ths" -

X-Trail, 5dr SUV 01-06 (EU) -140mm 590mm - 875mm 840mm -

-5 -1/2ths" 23 1/4ths" - 34 7/16ths" 33 1/16ths" -

X-Trail, 5dr SUV 04-04 (CN) -140mm 590mm - 875mm 840mm -

-5 -1/2ths" 23 1/4ths" - 34 7/16ths" 33 1/16ths" -

X-Trail, 5dr SUV 07-10 (ZA) -30mm 720mm - 885mm 855mm -

-1 -3/16ths" 28 3/8ths" - 34 13/16ths" 33 11/16ths" -

X-Trail, 5dr SUV 07-10 (EU) -30mm 720mm - 885mm 855mm -

-1 -3/16ths" 28 3/8ths" - 34 13/16ths" 33 11/16ths" -

X-Trail, 5dr SUV 07-10 (CN) -30mm 720mm - 885mm 855mm -

-1 -3/16ths" 28 3/8ths" - 34 13/16ths" 33 11/16ths" -

X-Trail, 5dr SUV 10-14 (EU) -30mm 720mm - 885mm 855mm -

-1 -3/16ths" 28 3/8ths" - 34 13/16ths" 33 11/16ths" -

X-Trail, 5dr SUV 10-14 (ZA) -30mm 720mm - 885mm 855mm -

-1 -3/16ths" 28 3/8ths" - 34 13/16ths" 33 11/16ths" -

X-Trail, 5dr SUV 10-Mar 14 (NZ) -30mm 720mm - 885mm 855mm -

-1 -3/16ths" 28 3/8ths" - 34 13/16ths" 33 11/16ths" -

X-Trail, 5dr SUV 10-Mar 14 (AU) -30mm 720mm - 885mm 855mm -

-1 -3/16ths" 28 3/8ths" - 34 13/16ths" 33 11/16ths" -

X-Trail, 5dr SUV Oct 01-Sep 07 (NZ) -140mm 590mm - 875mm 840mm -

-5 -1/2ths" 23 1/4ths" - 34 7/16ths" 33 1/16ths" -

X-Trail, 5dr SUV Oct 01-Sep 07 (AU) -140mm 590mm - 875mm 840mm -

-5 -1/2ths" 23 1/4ths" - 34 7/16ths" 33 1/16ths" -

X-Trail, 5dr SUV Oct 07-10 (NZ) -30mm 720mm - 885mm 855mm -

-1 -3/16ths" 28 3/8ths" - 34 13/16ths" 33 11/16ths" -

X-Trail, 5dr SUV Oct 07-10 (AU) -30mm 720mm - 885mm 855mm -

-1 -3/16ths" 28 3/8ths" - 34 13/16ths" 33 11/16ths" -

4

Fitting Kit EN

K423W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

5

Fitting Kit EN

K423W

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Clamps onto flush roof rail. Pins locate on

inside of rail.

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Set bars to length (revert to rear of these

instructions).

6

Fitting Kit EN

K423W

●Tighten adjusting screw to 3 Nm (2.2 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Remove both pins from each leg. Use

tapered end of spanner located inside left

hand cover to assist.

7

Fitting Kit EN

K423W

●Detach foot from leg. Store loose parts in a

safe place.

●Repeat for all legs.

●Foot Part Number:

X-Trail 07-10, 10-13

= 11-02-236A left

= 11-02-237A right

X-Trail 01-07

= 11-02-238A left

= 11-02-239A right

●Select four feet assemblies and match the

left and right assemblies to the left and

right roof rack legs.

●Using short capscrew and washer, secure

assembly onto leg (use Hex Screwdriver

supplied with crossbar to assist)

●Do not over tighten.

●Repeat for all legs.

8

Fitting Kit EN

K423W

●Use two M5 x 12 mm self tapping screws to

secure the assembly onto the leg.

●Do not over tighten.

●Open or remove fixed-point covers.

●From the kit select the mounting plates and

fit the M6 x 25mm countersunk bolts

through the spacer and tighten.

9

Fitting Kit EN

K423W

●Ensure edge of rail aligns with edge of slot.

●Apply protective strip as shown.

Trim if required.

●Use fixed-point cover to check spacer

height as shown.
