Vivotek 4X-SD8111 Manual de usuario

Quick Installation Guide

SD8111/SD8121

English 繁中日本語 Español Português

簡中 Français Deutsch Italiano Türkçe Polski Русский Česky Svenska

P/N: 625012000G Ver.1.0

H.264 12x Zoom Day&Night 3D Noise Reduction

EN - 1

English

Power off the Network Camera as

soon as smoke or unusual odors are

detected.

Contact your distributor in the event of

occurrence.

Keep the Network Camera away

from water. If the Network Camera

becomes wet, power off immediately.

Do not place the Network Camera

around heat sources, such as a

television or oven.

Refer to your user's manual for the

operating temperature.

Keep the Network Camera away from

direct sunlight.

Do not place the Network Camera in

high humidity environments.

Contact your distributor in the event of

occurrence.

Warning Before Installation

EN - 2

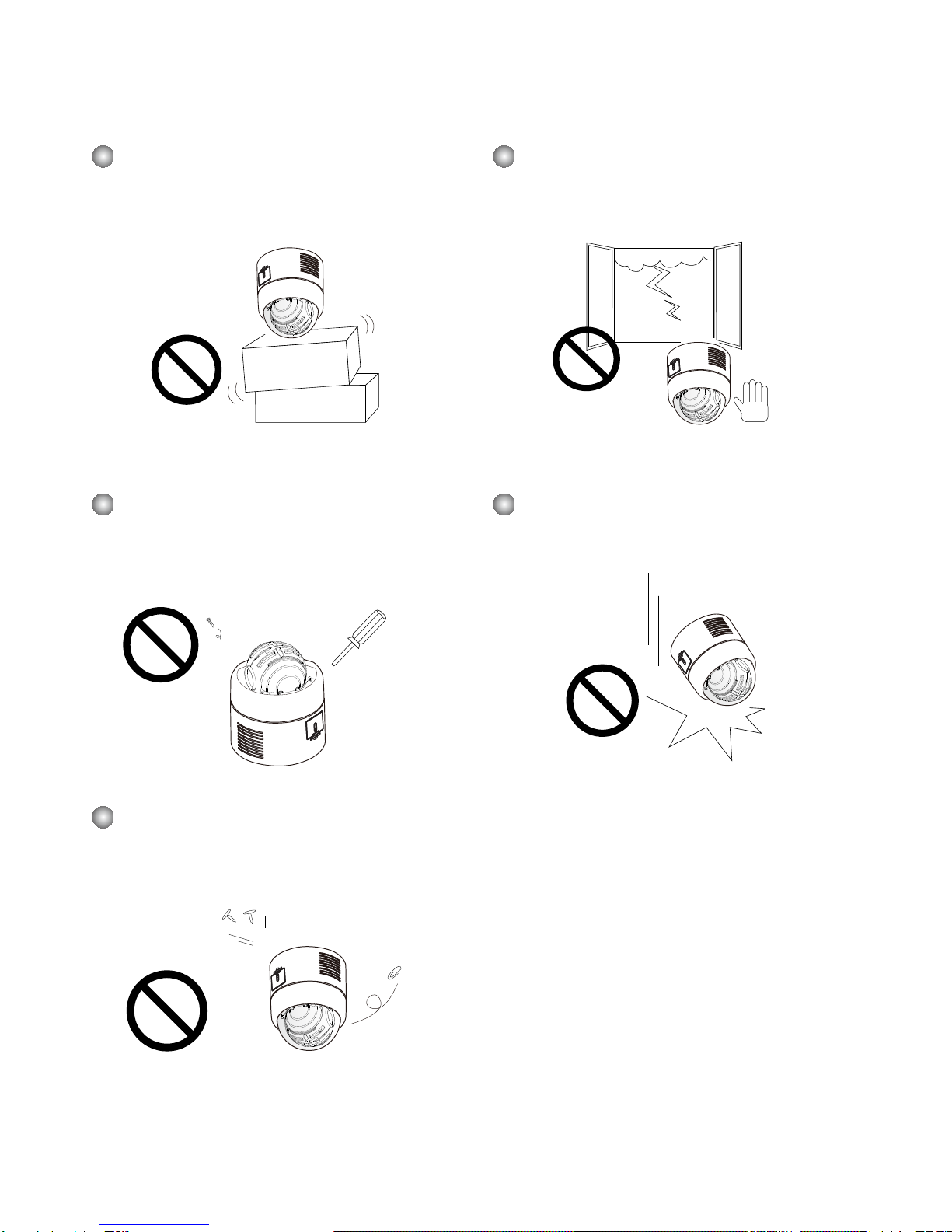

Do not place the Network Camera on

unsteady surfaces.

Do not touch the Network Camera

during a lightning storm.

Do not disassemble the Network

Camera.

Do not drop the Network Camera.

Do not insert sharp or tiny objects

into the Network Camera.

EN - 3

English

Fixing Plate

SD8111 / SD8121

Cable Connector (Power, Video Out,

Mic In, Audio Out, Ground)

Software CD

Hard Ceiling Mount Bracket and

Decoration Ring

Package Contents

Power Adaptor

Quick Installation Guide /

Warranty Card

DI/DO Cable Connector

EN - 4

Record the MAC address before

installing the camera.

Lens

Physical Description

SD/SDHC Card Slot

Dome Cover

0002D107258A

Reset Button

Restore Button

Ethernet 10/100 RJ45 Socket

Cable Connector Socket

EN - 5

English

Follow the steps below to install the Network Camera to the ceiling:

1. Detach the Decoration Ring from the Hard Ceiling Mount Bracket.

2. Align the three holes on the Mount Bracket, mark the screws locations on the ceiling.

3. Drill three pilot holes into the ceilling and hammer the plastic anchors into the holes.

4. Fix the Mount Bracket with three screws.

Hardware Installation

EN - 6

5. Put the decoration ring onto the dome body.

6.Insertthexingplateintothegrooveasshownbelow.

7.Alignthethreeholestoscrewthexingplatetothedomebase.

0002D107258A

EN - 7

English

8. If you have external devices such as sensors and alarms, connect them to the general

I/O terminal block. Then connect the cable connector and Ethernet cable to the dome

base.

9. Align plate A and plate B, use hole a ~ c to hook the Network Camera on the ceiling

mount bracket.

1 3

2 4

0002D107258A

12: DI 0

13: DI 2

14: DI 1

15: DI 3

16: DO

Pin Denitions of Cable Connector

EN - 8

POW ER COLLISION

LINK

RECEIV E

PARTITION

12345

Ethernet Switch

Power Cord Socket

BNC Video Out

Microphone In (pink)

Audio Out (green)

Ethernet 10/100 RJ45 Plug

12. Connect the cables and make the network deployment.

Ground

10.Tightenthescrewonthexingplate.

11. Align the three holes to mount the decoration ring.

EN - 9

English

0002D107258A

1. Install “Installation Wizard 2” from the Software Utility directory on the software CD.

2. The program will conduct an analysis of your network environment. After your network is

analyzed, please click on the “Next” button to continue the program.

3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network

Cameras on the same LAN.

4. After searching, the main installer window will pop up. Click on the MAC that matches the

one labeled on the bottom of your device to connect to the Network Camera via Internet

Explorer.

0002D107258A

00-02-D1-07-25-8A 192.168.5.151 SD8121

Installation

Wizard 2

Assigning an IP Address
