Vivotek IP8330 Manual de usuario
Quick Installation Guide
This guide describes the basic functions of IP8330 / IP8332.
All detailed information is described in the user's manual.
IP Surveillance
English ᖅϛ Рҏᇭ Español Português
ᙏϛ Français Deutsch Italiano Türkçe Polski Русский Česky Svenska
Outdoor H.264 Day/Night Weather-proof
Megapixel
IP8332
Supreme Night Visibility
60 fps @ VGA
IP8330
EN-1
English
Warning Before Installation
Contact your distributor in the
event of occurrence.
Refer to your user's manual for the
operating temperature.
Power off the Network Camera as
soon as smoke or unusual odors are
detected.
Do not touch the Network Camera
during a lightning storm.
Do not place the Network Camera on
unsteady surfaces.
Do not drop the Network Camera.
Do not insert sharp or tiny objects
into the Network Camera.
EN-2
Package Contents
1
5
1
0
0
0
0
2
0
2
G
Software CD
IP8330 / IP8332
RJ45 Female/Female Coupler
Quick Installation Guide
/ Warranty Card
Camera Stand
Power Adapter
Silica Gel
Silica gel
Waterproof Connector (3 holes, for
backup use)
EN-3
English
Physical Description
2
Connectors
Front Panel
Reset Button
IR LED
Lens
Light Sensor
Ethernet 10/100 RJ45 Plug
Power Cord Socket (black)
General I/O Terminal Block
Inner View
MicroSD/SDHC Card Slot
EN-4

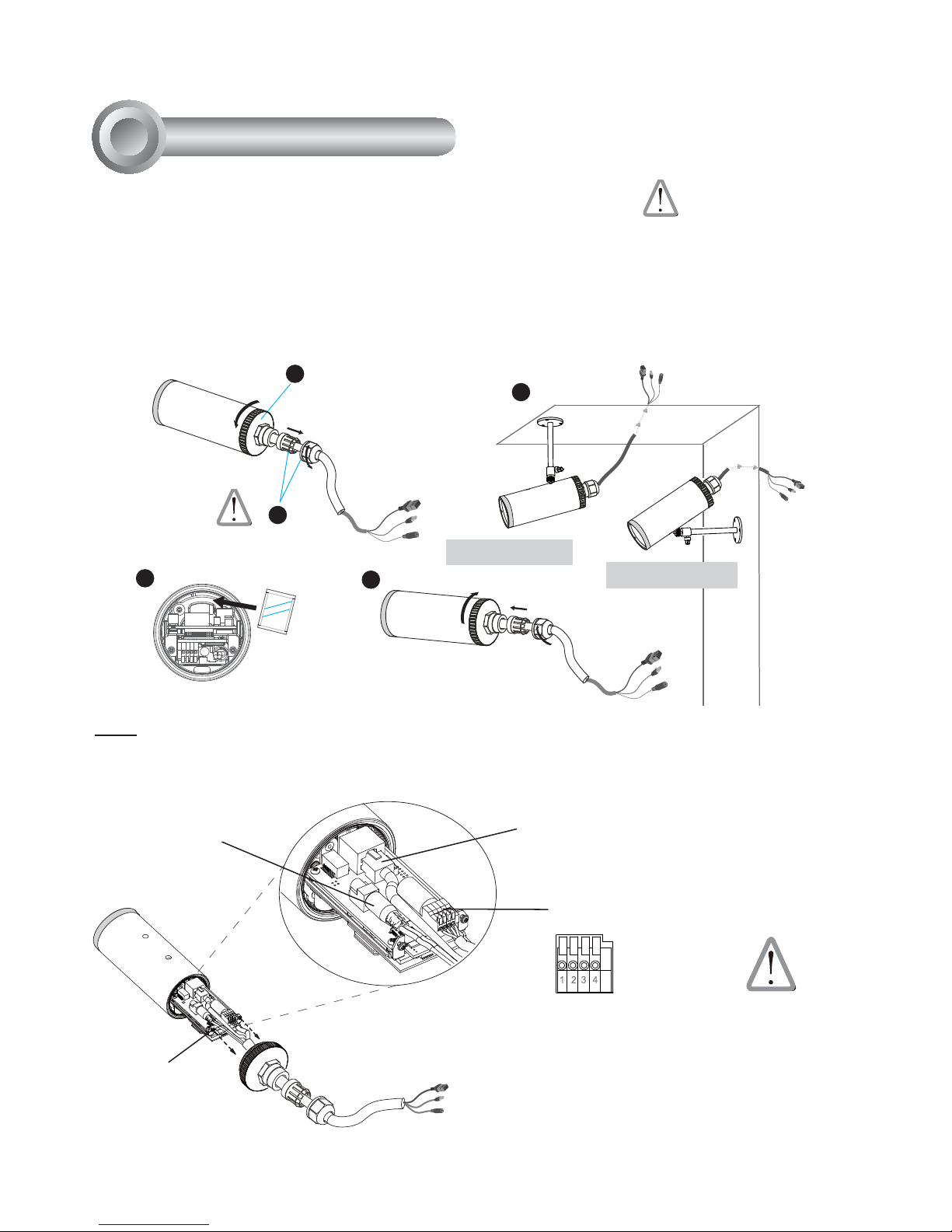

Hardware Installation
3
1. Loose the waterproof connector, then remove the rubber.
2. Loose the back cover.
3. Tear down the aluminum foil vacuum bag and take out the silica gel. Attach the
supplied silica gel to the inner side of the Network Camera. (Please replace the silica
gel with a new one if you open the back cover after installation.)
4. Make sure all cable lines are securely connected.
5. Tighten the back cover, rubber and waterproof connector.
6. Secure the Network Camera to the wall/ceiling by the supplied camera stand.
1
2
3
Silica gel
6
5Ceiling Mount
Wall Mount
Note
If you want to use your own cable lines, please loose two supplied screws and take out
the power board. Then be careful to make connections as the illustration shown below.
Power Cord
Terminal Block (from left to right)
1: AC24V (red)
2: AC24V (red)
3: DI (white)
4: GND (black)
Ethernet Cable
Screws
EN-5
English
Network Deployment
4
POWER C
OLLIS
ION
LINK
R
E
C
E
IVE
PARTITION
12345
1. If you have external devices such as
sensors and alarms, make the connection
from general I/O terminal block.
2. Use the supplied RJ45 female/female
coupler to connect the Network Camera
to a switch.
Use Category 5 Cross Cable when
Network Camera is directly connected to
PC.
3. Connect the power cable from the
Network Camera to a power outlet.
GND : Ground
D I : Digital Input
AC24V: 24V
AC24V: 24V
GND
DI
AC24V
AC24V
General Connection (without PoE)
EN-6
Power over Ethernet (PoE)
When using a non-PoE switch
Use a PoE power injector (optional) to connect between the Network Camera and
a non-PoE switch.
When using a PoE-enabled switch
The Network Camera is PoE-compliant, allowing transmission of power and data
via a single Ethernet cable. Follow the below illustration to connect the Network
Camera to a PoE-enabled switch via Ethernet cable.
POWER COLLISION
LINK
RECEIVE
PARTITION
12345
Non-PoE Switch
PoE Power Injector
(optional)
POWER COLLISION
LINK
RECEIVE
PARTITION
12345
PoE Switch
EN-7
English
1. Install “Installation Wizard 2” from the Software Utility directory on the software CD.
2. The program will conduct an analysis of your network environment. After your network
is analyzed, please click on the “Next” button to continue the program.
3. The program will search for all VIVOTEK Video Receivers, Video Servers, and
Network Cameras on the same LAN.
4. After searching, the main installer window will pop up. Click on the MAC that matches
the one labeled on the bottom of your device to connect to the Network Camera via
Internet Explorer.
Installation
Wizard 2
IW
2
Assigning an IP Address
5
Network Camera
Model No: IP8330
Made in Taiwan
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Pat. 6,930,709
RoHS
MAC:0002D1733012
00-02-D1-73-30-12 192.168.5.109 IP8330
0002D1733012
EN-8
For further setup, please refer to the user’s manual on the software CD.
2010/03/12 14:53:02
Ready to Use
6
1. Access the Network Camera from the LAN.
2. Retrieve live video through web browsers or recording software.
P/N: 625010600G Ver.1.0
Copyright 2010 VIVOTEK INC. All right reserved.
