Vivo MOUNT-TVSG1 Manual de usuario
Wall Mount Designed for
Samsung TV’s
Instruction Manual
SKU: MOUNT-TVSG1
Assembly Video & Product Info
www.vivo-us.com/products/mount-tvsg1
2
If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact
our product support team at 309-278-5303 or [email protected] for further assistance. Check carefully to make sure
there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this
product for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity. We cannot be
liable for damage or injury caused by improper mounting, incorrect assembly or inappropriate use.
LBS
CAUTION!
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
DO NOT EXCEED WEIGHT CAPACITY
FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY.
We’re Here for You
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
Chat Us:
www.vivo-us.com
Give us a Call:
309-278-5303
Email Us:
- 23% within < 15m
- 38% within < 30m
- 61% within < 1hr
- 83% within < 2hr
- 92% within < 3hr
AVG. RESOLUTION TIME (within oice hrs): < 15 M
AVG. RESOLUTION TIME (within oice hrs): 5M 4S
WARNING: DO NOT INSTALL INTO DRYWALL ALONE
VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick
and concrete walls. If unsure, please contact us at vivo-us.com, email at he[email protected], or call
us at 309-278-5303.
3

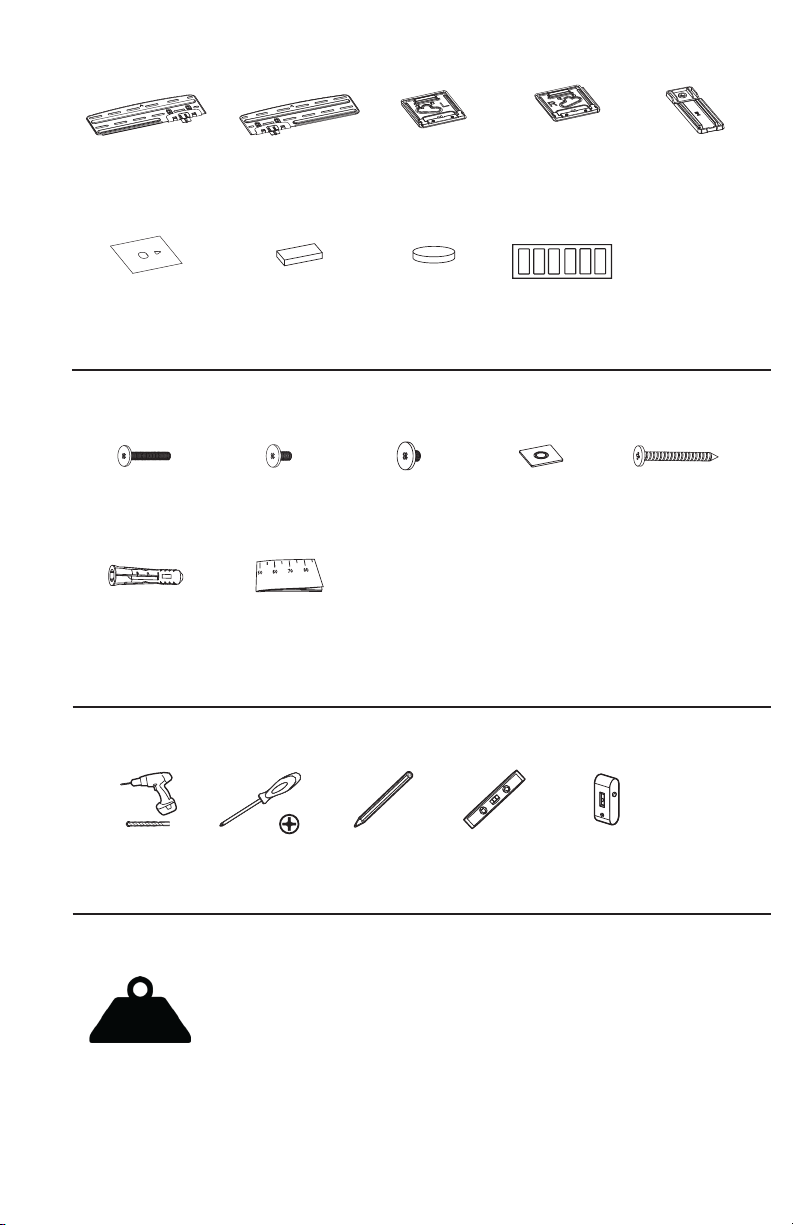

Package Contents
Included Hardware & Tools
Tools Needed:
Weight Capacity:
132lbs
(60kg)
B(x1)
Right Wall Plate
M-A (x2)
M8x55mm Screw
M-C (x2)
M8x10mm Screw
M-B (x3)
M8x18mm Screw
A (x1)
Le Wall Plate
C(x1)
Le TV Plate
D(x1)
Right TV Plate
E(x1)
Kickstand
G(x4)
Square Pad
F (x2)
Protective Film
M-D (x2)
Spacer
H(x2)
Round Pad
I(x1)
Sticker
T-A (x1)
Measuring Tape
W-A (x8)
ST5.5x55mm
Screw
W-B (x8)
Anchor
Phillips
Screwdriver
Drill Pencil Level Studfinder
4
Assembly Options
Preparing Your TV
Option 2Option 1
TV with VESA Holes TV with Recessed
Mounting Pocket
Page 5-6
Page 7-8

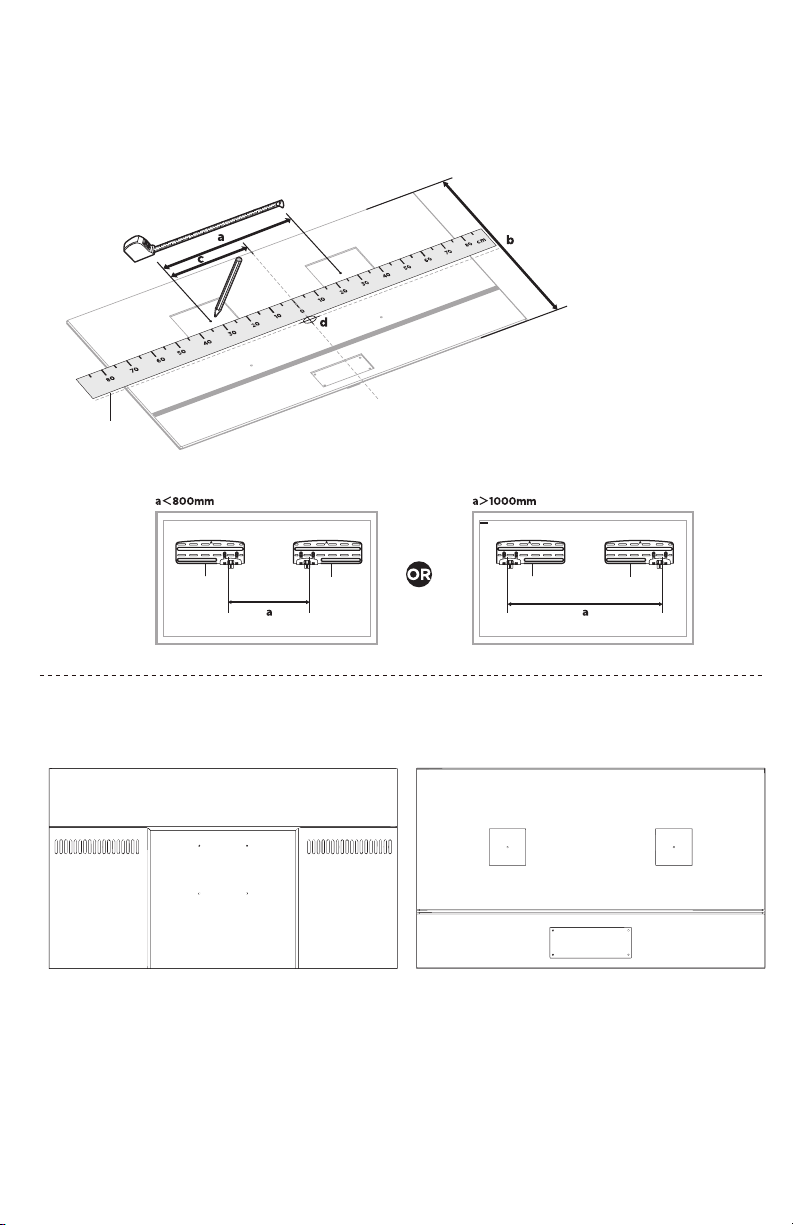

Find the center of your TV using Measuring Tape (T-A). Mark the distance of your TV’s top VESA
mounting holes on Measuring Tape (T-A). If the VESA holes are 1000mm (39.4”) or greater, swap
Le Wall Plate (A) and Right Wall Plate (B), and use the orientation through the remainder of
the manual.
a = Distance between VESA holes
b = Height of TV
c = 1/2 of a
d = Center of TV
B
AB A
T-A
5
- Option 1 - VESA Holes -
STEP 1
Assemble Le TV Plate (C) and Right TV Plate (D) to the TV using Spacers (M-D) and
appropriate Screws (M-A through M-C) and the spacers provided with your TV.
M-A
M-B
M-C
M-D
C
D
Note: Ensure you are using the top VESA holes
6

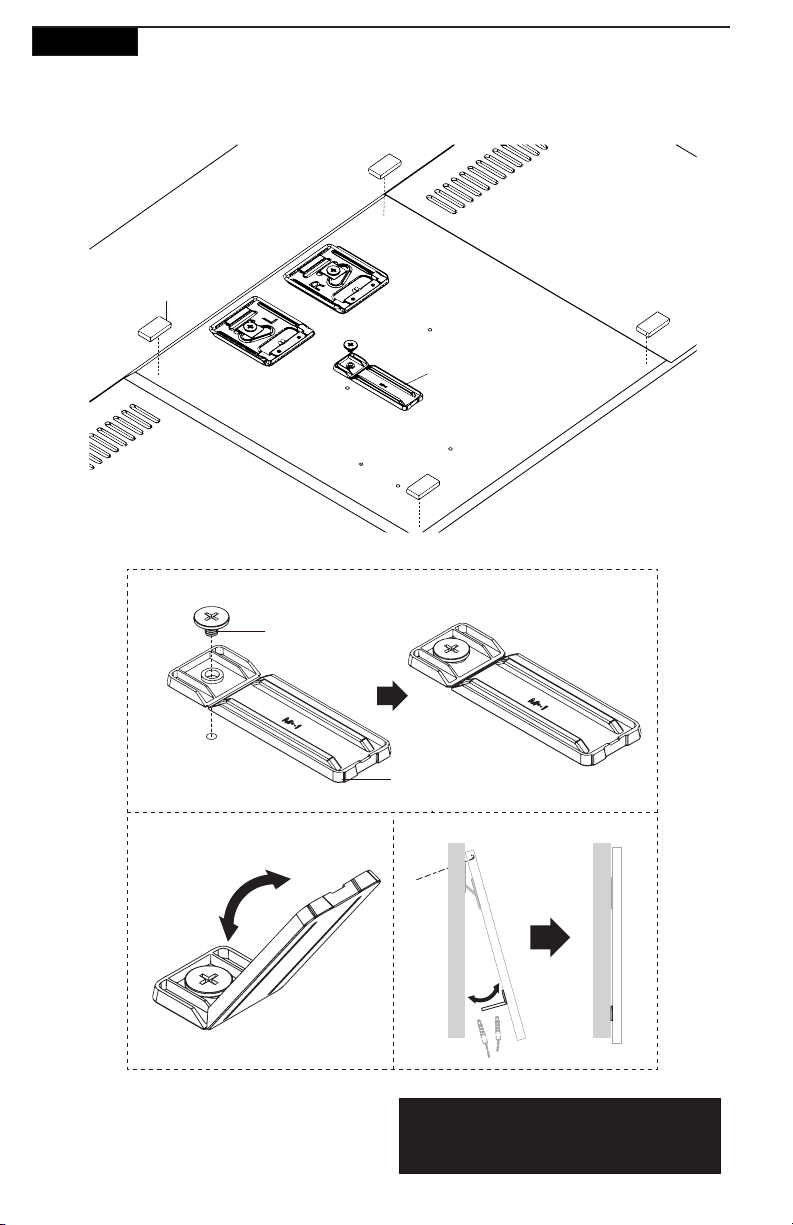

STEP 2
E
M-B
Proceed to Wall Mount
Instructions on pg. 9
Remove adhesive backing from Square Pads (G) and place them on the back of the TV. Mount
Kickstand (E) to one of the lower VESA holes using M8x18mm Screw (M-B) to access the TV
ports.
G
E
7
Assemble Le TV Plate (C) and Right TV Plate (D) to the TV using Spacers (M-D) and
Screws (M-A through M-C). Snap Spacers (M-F) in between the tabs on TV Plates (C,D)
with the raised side facing down.
M-A
M-B
M-C

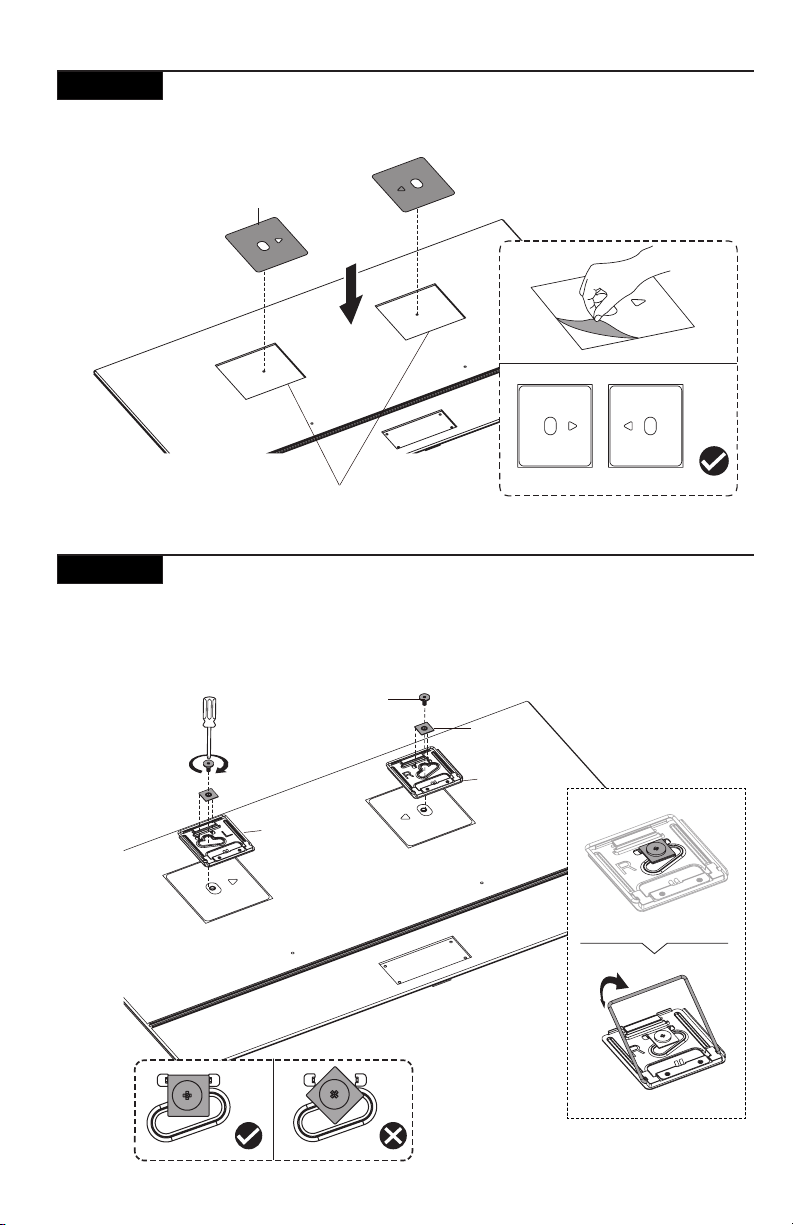

Option 2 - Recessed Pockets
STEP 1
STEP 2
Remove the adhesive backing from Protective Film (F) and place into the Recessed
Pockets holes on the TV, making sure the arrows are facing inward.
F
Recessed
Pockets
M-D
C
D
8
STEP 3
G
E
M-B
E
M-B
Remove adhesive backing from Square Pads (G) and place them on the back of the TV. Mount
Kickstand (E) to one of the lower VESA holes using M8x18mm Screw (M-B) to access the TV
ports.
Proceed to Wall Mount
Instructions on pg. 9
9
Wall Mounting
*Note: If installing One Connect Box to the back side of TV,
please refer to Mounting Instructions on pg. 14

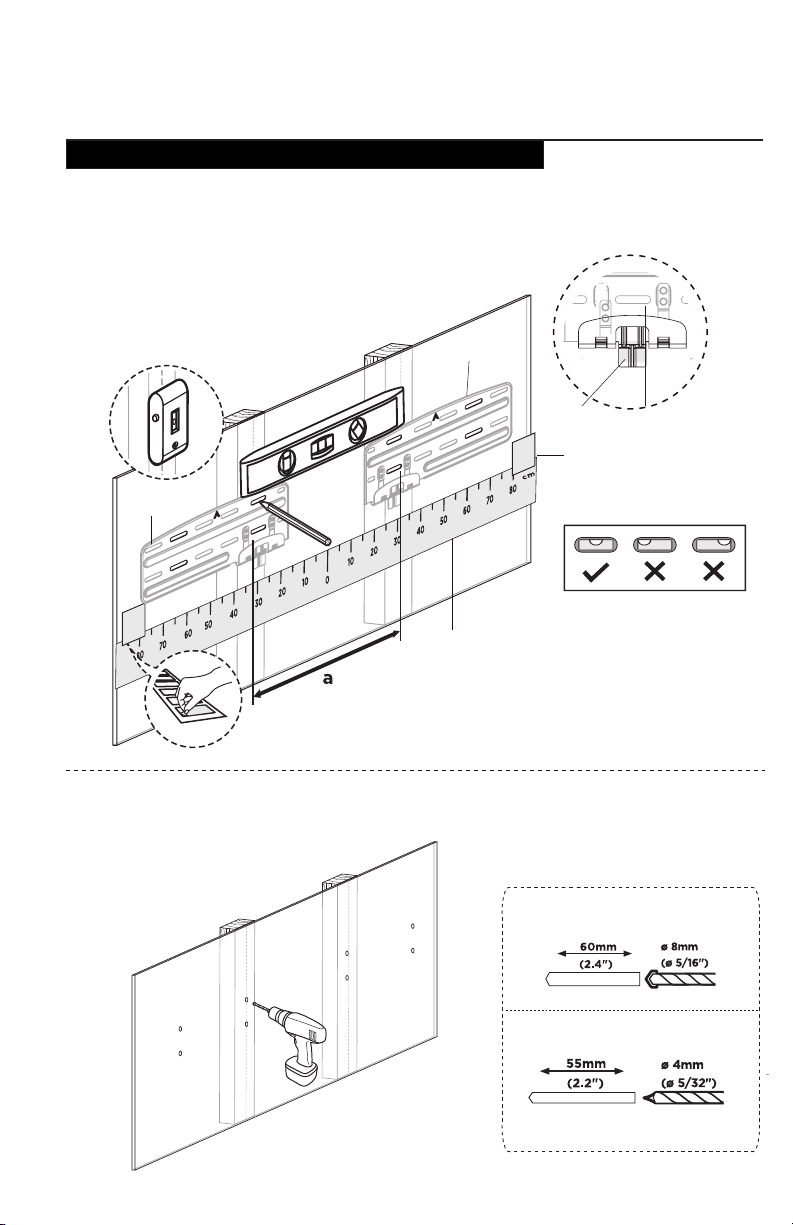

Secure Measuring Tape (T-A) to the wall in the desired location using Stickers (I). Align the
marks on Measuring Tape (T-A) with the outside of the Tabs on Le Wall Plate (A) and Right
Wall Plate (B). Mark drilling locations. Use of a stud finder and level is recommended.
Note: The brackets are showing the setup for a
800mm or less VESA pattern.
Stud/Wood Wall Installation
Tabs
I
B
A
T-A
Pre-drill the marked location. For drywall, use an 8mm (5/16”) drill bit, and drill appoximately 60mm
(2.4”). For studs, use a 4mm (5/32”) drill bit, and drill approximately 55mm (2.2”) deep.
Drywall
Stud
10
Cont’D

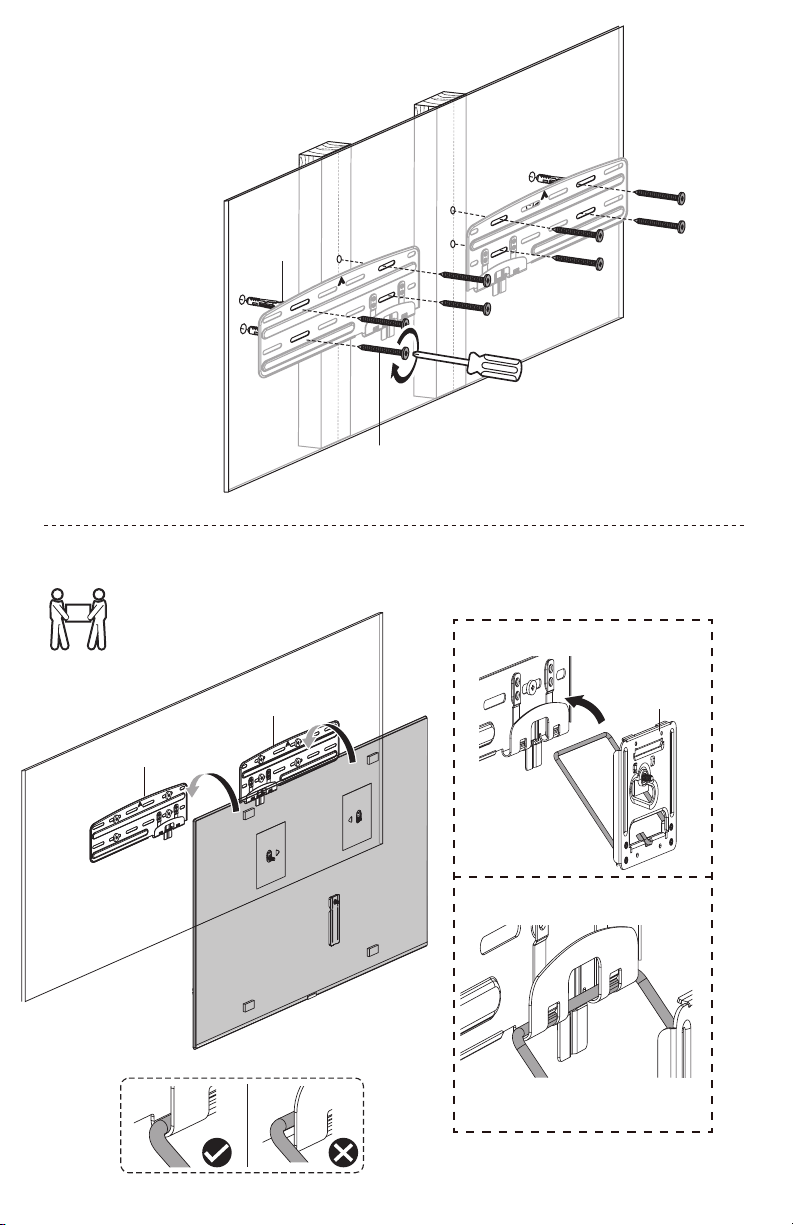

Insert Anchors (W-B) and mount wall plates using
ST5.5x55mm Screws (W-A) and a Phillips screwdriver.
W-B
W-A
Hang Le TV Plate (C) and Right TV Plate (D) over Le Wall Plate (A) and Right Wall Plate (B).
B
A
C/D
