Wall Mount Designed for Sonos Playbar Soundbar

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-sonos1

SKU: MOUNT-SONOS1

[email protected]om www.vivo-us.com 309-278-5303

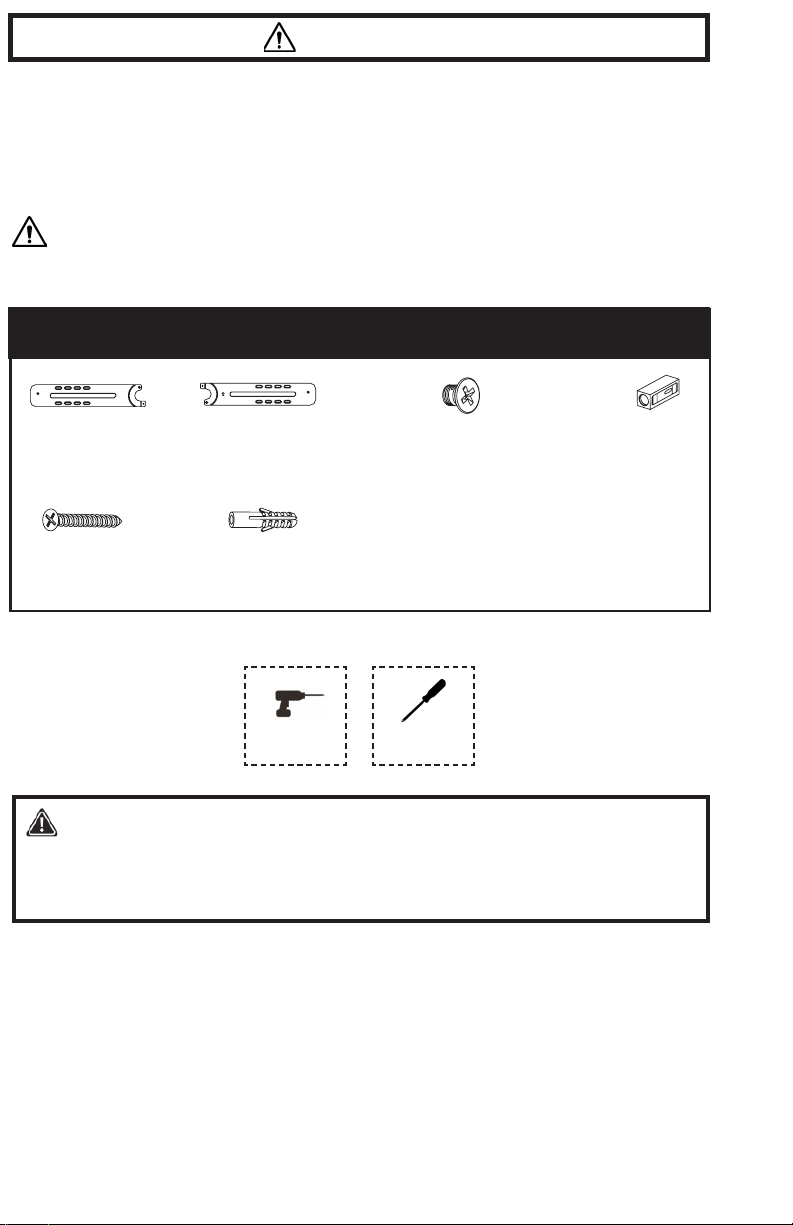

PACKAGE CONTENTS

WARNING!

A (x1)

Mounting

Bracket 1

B(x1)

Mounting Bracket 2

C(x2)

Screw

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

TOOLS NEEDED

Phillips

Screwdriver

Drill

D(x1)

Level

W-A (x6)

Screw

W-B (x6)

Anchor

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

CAUTION!

DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO

MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us.

com, email at [email protected], or call us at 309-278-5303.

ASSEMBLY STEPS

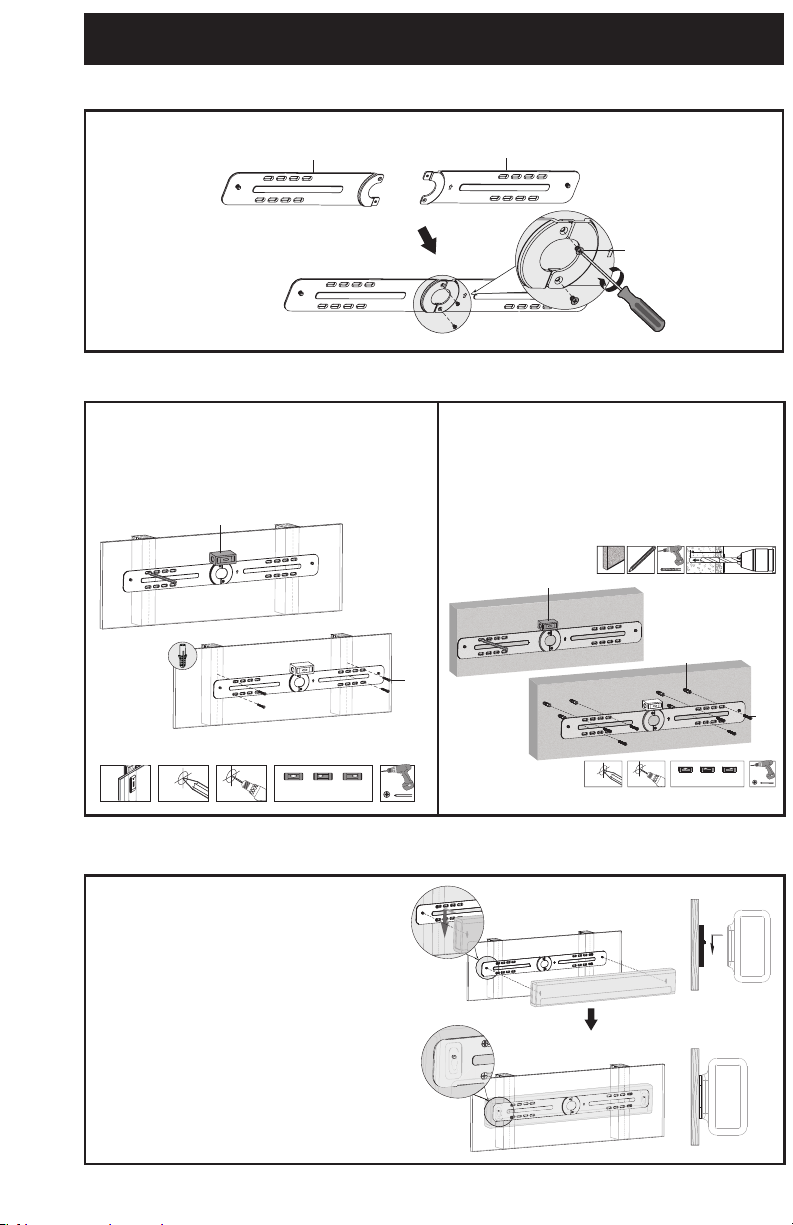

STEP 1

Attach mounting bracket 1 (A) and mounting bracket 2 (B) with screws (C).

STEP 2

OPTION A: Wood Wall Installation

Place mount up to wall and mark holes with pencil

using level (D). Drill 2” (50mm) holes using a 1/8”

(3mm) drill bit. Hold mount up to wall and insert

screws (W-A) into marked holes.

NPO

√

W-A

55mm

(2.2")

√

W-A

W-B

(ø 5/16")

ø 8mm

55mm

(2.2”)

OPTION B: Concrete/Brick Wall Installation

Place mount up to wall and mark holes with

pencil using level (D). Drill 2” (50mm) holes using

a 5/16” (8mm) drill bit. Insert anchors (W-B).

Hold mount up to wall and insert screws (W-A)

into marked holes.

STEP 3

Slide Playbar down onto mounting bracket.

Please make sure Playbar is tightly latched

on VIVO mounting bracket.

LAST UPDATED: 10/14/2019

Open Monday-Friday from 7:00am-7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times.

If any parts are received damaged or defective, please contact us.

We are happy to replace parts to ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

[email protected]

www.vivo-us.com

309-278-5303

AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

AVG. RESOLUTION TIME (within oice hrs): < 15 M
