Vitek VTD-MD2-4 Manual de usuario

VITEK

VTD-MD2-4

2.1 Megapixel 4-in-1 HDA

Angled Mini Dome Cameras

FEATURES:

• 1/2.8” Sony STARVIS CMOS Sensor

• HD-TVI / AHD / CVI / CVBS Video Output

• Advanced Starlight Technology Offers Dramatically Higher

Sensitivity to Light Producing Color Images in Very Dark &

Night Scenes

• 3.0mm Lens Included

• Included tilted surface mount allows for more versatile camera

angle

• Digital Wide Dynamic Range (D-WDR)

• 3D-DNR - Three Dimensional Motion Adaptive Noise Reduction

• External OSD Joystick Controller

• Advanced OSD Functions: BLC/HLC, D-WDR, Motion detection,

Privacy mask, Flip, DeFog

• CoC (Control Over COAX)

• Over 1500’ HD Video Transmission (Depending on cable

characteristics and integrity)

• Can be Semi-Flush or Surface Mounted

• Available in Ivory (VTD-MD2-4I) or Chrome (VTD-MD2-4CH)

• 12VDC Operation

• 3 Year Warranty

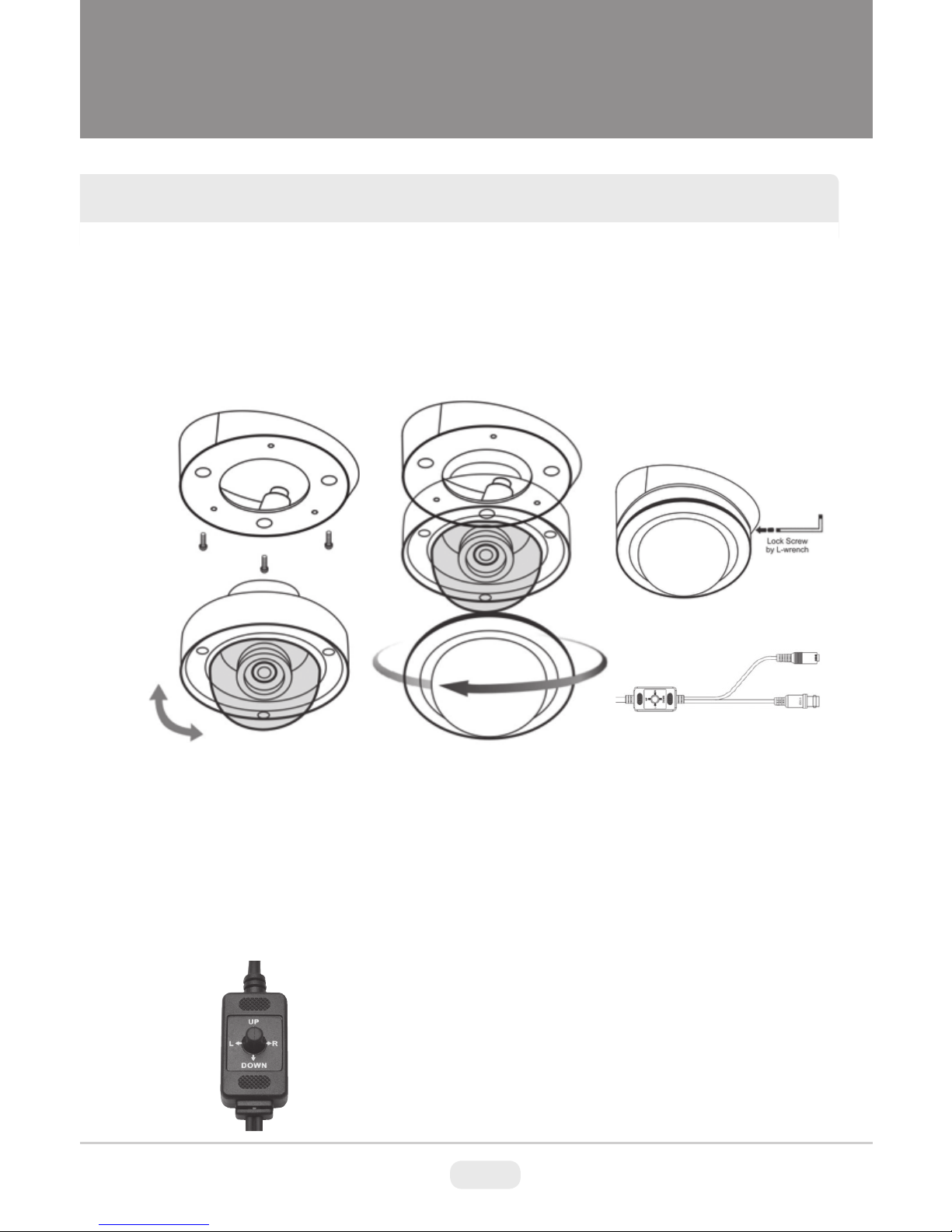

INSTALLATION / SETUP

1) Attach the surface mount bracket to

the wall or ceiling with the included

screws.

2) Attach the camera to the surface

mount bracket with the included

screw.

3) Attach the dome cover to the camera

by turning clockwise.

4) Secure the dome cover to the camera

with the Included L-Wrench.

5) Connect 12VDC Power & Video

Cables.

INSTALLATION:

INCLUDED IN THE BOX:

1) Mini Dome Camera

2) Mounting Base

3) Wall Mount & Camera Mount Screws

4) L-Wrench.

SELECT MODE WITH ON-CABLE OSD JOYSTICK:

CVBS Mode: Push joysick LEFT for 5 seconds

AHD Mode: Push joysick RIGHT for 5 seconds

CVI Mode: Push joysick UP 5 seconds

TVI Mode: Push joysick DOWN for 5 seconds

SPECIFICATIONS

BLACKYELLOWMAGENTACYAN

(888) VITEK-70 | WWW.VITEKCCTV.COM

28492 Constellation Road Valencia, CA 91355

Detailed Specifications

Image Sensor

Active Pixel

Resolution

Lens

Min. Illumination

Scanning System

Video Output

S/N Ratio

AGC

Shutter Speed

SENS-UP

Brightness

Backlight

D-WDR

DNR

Defog

Day & Night

White Balance

Mirror

Sharpness

Privacy Mask

Motion Detection

Communication

Power Source

Power Consumption

Operating Temperature

Operating Humidity

Weight

Dimension (W x H x Dia.)

1/2.8” Sony STARVIS CMOS Sensor

1920(H) x 1080(V)

1080p @ 30fps (AHD / TVI / CVI) / 960H: CVBS

3mm/F=1.6

0.001 Lux (F=1.2)

Progressive

AHD / TVI / CVI / CVBS

More than 50dB (AGC off)

Off/0 - 15

AUTO/MANUAL(1/50(60) ~ 1/50,000 sec)

Off/X2 – X30

0 - 100

Off/BLC/HSBLC

Off/0 ~ 8

3D-DNR

Off/Auto

Auto/Color/B&W/EXTERN

ATW/AWC/INDDOR/OUTDOOR/Manual/AWB

Off/MIRROR/V-FLIP/ROTATE

0 -10 steps

4 Masks

Off/On

COC (Control Over Coax)

DC12V ±10%

180mA (Max)

14~122 / 10%~85% Humidity

10% to 85%

10.58 oz. (300 g.)

Semi-Flush Mount: 2.36” x 2.36” x 2.36” / Surface Mount: 3.38” x 3.04” x 2.36”

VTD-MD2-4I 2.1 Megapixel 4-in-1 HDA Angled Mini Dome Camera

VTD-MD2-4CH

VTD-MD2-4I

2.1 Megapixel 4-in-1 HDA Angled Mini Dome Camera - Chrome

2.1 Megapixel 4-in-1 HDA Angled Mini Dome Camera - Ivory

AVAILABLE CONFIG URATIONS: BREAKDOWN OF MODEL NUMBER: VTD-MD2-4CH

{VTD}

VITEK Dome

{MD2}

Miniature -

Dome - 2.1MP

{4}

4-IN-1

{CH}

Chrome

WWW.VITEKCCTV.COM

LIMITED LIABILITY WARRANTY

VITEK products carry a three (3) year limited warranty. VITEK warrants

to the purchaser that products manufactured by VITEK are free of any

rightful claim of infringement or the like, and when used in the manner

intended, will be free of defects in materials and workmanship for a

period of three (3) years, or as otherwise stated above, from the date of

purchase by the end user. This warranty is nontransferable and extends

only to the original buyer or end user customer of a Vitek Authorized

Reseller.

The product must have been used only for its intended purpose, and

not been subjected to damage by misuse, wilful or accidental damage,

caused by excessive voltage or lightning.

The product must not have been tampered with in any way or the

guarantee will be considered null and void.

This guarantee does not affect your statutory rights.

Contact your local VITEK Reseller should servicing become necessary.

VITEK makes no warranty or guarantee whatsoever with respect to

products sold or purchased through unauthorized sales channels.

Warranty support is available only if product is purchased through a

VITEK Authorized Reseller.

Version 1.0

November 2017
