VITEK

VTD-TND5RFEA-2

Transcendent Series

5 MegaPixel Fixed IP WDR

Vandal Dome Camera

QUICK START GUIDE

FEATURES:

• 1/2.7” 5.0 Megapixel CMOS Image Sensor

• Up to 20fps@5MP (2880 × 1620), Up to 30fps@4MP (2560 × 1440), 3MP

(2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, 480× 240, CIF

• 2.8mm Fixed Iris Lens

• Matrix IR (up to 100’ IR Range)

• True Wide Dynamic Range (120dB)

• True Mechanical Day/Night function by ICR

• XD-DNR (3D & 2D-DNR) Noise Reduction

• Region Intrusion Detection, Object Abandoned / Missing, Scene Change Detection, Line

Crossing, Video Blur, Video Color Cast Detection

• H.265+ / H.265 / H.264+ / H.264 / MJPEG

• MicroSD Card Slot for Local Recording (Up to 256GB)

• 1 Ch. Audio In + Built-in Mic*

• Remote Viewing via CMS, IE (plug-in required)/Google Chrome/Edge/Firefox/Safari,

and iOS & Android Apps

• ONVIF Compliant

• IP67 Weather Resistance + IK10 Impact Rating

• Optional Junction Box (VT-TJB03A), Pendant Mount (VT-TPDM-1, [reqs.

VT-TJB03A]), Wall Mount (VT-TWMT-3) and In-Ceiling Semi Flush Mount

(VT-TFMT-S) Available See Additional Mounting Options on Pg. 9

• 12VDC & PoE (Power over Ethernet) Operation

• 3-Year Warranty

*Please research local, state and federal lawsregarding the implementation of audio surveillance.

PLEASE NOTE:

Complete User Guide, Software, Tools, and Updates are

available online. Scan the QR Code or visit:

http://www.vitekcctv.com/Downloads

2 3

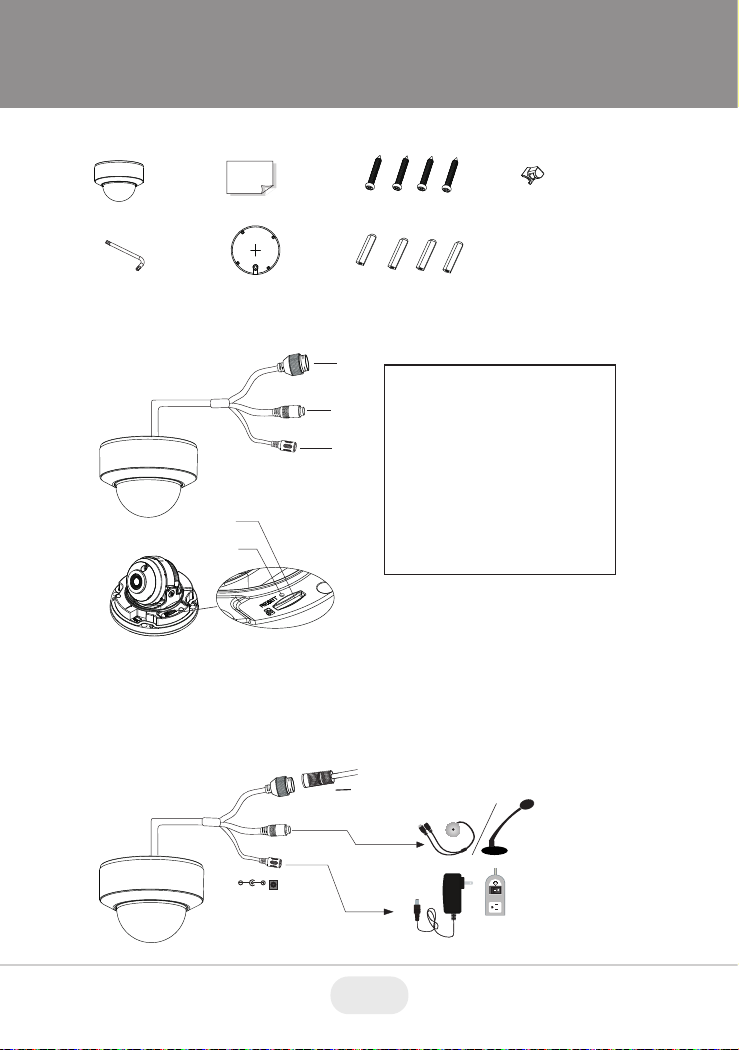

Components and Accessories

Cable Connections

Overview

First connect the weather resistant cap to an ethernet patch cable,

then connect the cameras ethernet adaptor. If not powering the

camera with PoE, also connect the power Cable to an approved

12VDC power supply.

Camera

Pl astic

plug

x 4

Dri ll

template

Rubber Plug

Screwdri ver

DC12V

Weather Resistant Security Cap

Quick Start Guide 4 Tapping Screws PA 4 x 2

1. Network Connector

2. Audio Input

3. Power Connector

4. MicroSD Card Slot

5. Reset

Weather Resistant Network Coupler

1. Loosen the nut from the Weather Resistant Network Coupler.

2. Run ethernet cable through coupler, then attach a RJ-45 connector.

3. Tighten the nut and coupler for a weather resistant seal.

Installation

Before beginning installation, make sure that the wall or ceiling is

strong enough to withstand 3 times the weight of the camera. The

mounting steps are as follows:

2. Loosen the screws to open

the lower dome and then

loosen the lock screw to

remove the mounting base.

1. Attach the drill template to

the place where you want to

install the camera, then drill

the screw holes and 1 cable

hole according to the drill

template.

2.92”

1A. Rotate the trim ring counterclockwise to remove.

Weather Resistant Network Coupler

1. Loosen the nut from the Weather Resistant Network Coupler.

2. Run ethernet cable through coupler, then attach a RJ-45 connector.

3. Tighten the nut and coupler for a weather resistant seal.

Installation

Before beginning installation, make sure that the wall or ceiling is

strong enough to withstand 3 times the weight of the camera. The

mounting steps are as follows:

2. Loosen the screws to open

the lower dome and then

loosen the lock screw to

remove the mounting base.

1. Attach the drill template to

the place where you want to

install the camera, then drill

the screw holes and 1 cable

hole according to the drill

template.

2.92”

1A. Rotate the trim ring counterclockwise to remove.

4 5

5. Install the lower dome on the camera with the included screws,

then put the trim ring back on the lower dome and rotate clockwise

until it locks.

4. Before adjusting the three-axis camera mount, preview the

camera on a monitor, then adjust as necessary achieve the

optimum viewing angle.

Ro ta t io n 0°~355°

Pa n 0 °~355°

Tilt 0°~67°

3. Route the cables and

connect the power & video

cables, use the rubber plug

to fill the gap of the mounting

base, then secure the

mounting base to the ceiling

or wall with screws.

5. Install the lower dome on the camera with the included screws,

then put the trim ring back on the lower dome and rotate clockwise

until it locks.

4. Before adjusting the three-axis camera mount, preview the

camera on a monitor, then adjust as necessary achieve the

optimum viewing angle.

Ro ta t io n 0°~355°

Pa n 0°~355°

Tilt 0°~67°

3. Route the cables and

connect the power & video

cables, use the rubber plug

to fill the gap of the mounting

base, then secure the

mounting base to the ceiling

or wall with screws.

5. Install the lower dome on the camera with the included screws,

then put the trim ring back on the lower dome and rotate clockwise

until it locks.

4. Before adjusting the three-axis camera mount, preview the

camera on a monitor, then adjust as necessary achieve the

optimum viewing angle.

Ro ta t io n 0°~355°

Pa n 0°~355°

Tilt 0°~67°

3. Route the cables and

connect the power & video

cables, use the rubber plug

to fill the gap of the mounting

base, then secure the

mounting base to the ceiling

or wall with screws.

LAN Configuration

The camera can be accessed on the local network either using the

IP-Tool or directly in a web browser.

Accessing the Camera Using the IP-Tool

1. Make sure the camera and PC are connected to the LAN.

2. Locate the IP-Tool installer at www.

vitekcctv.com/Downloads/Soft-

ware/Transcendent-IPTool_v2.0.2.zip

, then install on the PC. Open

the installed application.

3. Modify the IP address. The default IP address is 192.168.226.201.

Click the information of the camera listed in the above table to show

the network information on the right side. Modify the IP address and

gateway of the camera and make sure its network address is in the

same local network segment as the computer’s. Please modify the

IP address of your device according to the practical situation.

For example, the IP address of your computer

is 192.168.13.4. So the IP address of the

camera shall be changed to 192.168.13.X.

After modification, please input the password

of the administrator and click “Modify” button

to modify the setting.

** Default admin password: “123456".

IP Camera

Networ k Cable Networ k Cabl e

Switch

Rout er Comput er

LAN Configuration

The camera can be accessed on the local network either using the

IP-Tool or directly in a web browser.

Accessing the Camera Using the IP-Tool

1. Make sure the camera and PC are connected to the LAN.

2. Locate the IP-Tool installer at www.

vitekcctv.com/Downloads/Soft-

ware/Transcendent-IPTool_v2.0.2.zip

, then install on the PC. Open

the installed application.

3. Modify the IP address. The default IP address is 192.168.226.201.

Click the information of the camera listed in the above table to show

the network information on the right side. Modify the IP address and

gateway of the camera and make sure its network address is in the

same local network segment as the computer’s. Please modify the

IP address of your device according to the practical situation.

For example, the IP address of your computer

is 192.168.13.4. So the IP address of the

camera shall be changed to 192.168.13.X.

After modification, please input the password

of the administrator and click “Modify” button

to modify the setting.

** Default admin password: “123456".

IP Camera

Networ k Cable Networ k Cable

Switch

Rout er Computer

LAN Configuration

The camera can be accessed on the local network either using the

IP-Tool or directly in a web browser.

Accessing the Camera Using the IP-Tool

1. Make sure the camera and PC are connected to the LAN.

2. Locate the IP-Tool installer at www.

vitekcctv.com/Downloads/Soft-

ware/Transcendent-IPTool_v2.0.2.zip

, then install on the PC. Open

the installed application.

3. Modify the IP address. The default IP address is 192.168.226.201.

Click the information of the camera listed in the above table to show

the network information on the right side. Modify the IP address and

gateway of the camera and make sure its network address is in the

same local network segment as the computer’s. Please modify the

IP address of your device according to the practical situation.

For example, the IP address of your computer

is 192.168.13.4. So the IP address of the

camera shall be changed to 192.168.13.X.

After modification, please input the password

of the administrator and click “Modify” button

to modify the setting.

** Default admin password: “123456".

IP Camera

Networ k Cable Networ k Cable

Switch

Rout er Computer

6 7

4. Double-click the IP address and then the system will pop up the web

browser to connect IP-CAM . IE browser will download the Active X

control. After downloading, a login window will pop up as shown

below:

Input the user name and password to log in.

Default user name: admin / Default password: 123456.

Directly Access Through a Web Browser

The default network settings are as shown below:

IP address: 192.168.226.201 HTTP: 80

Subnet Mask: 255.255.255.0 Data Port: 9008

Gateway: 192.168.226.1

You may use the above default settings when you log in the camera for

the first time.

1. Manually set the IP address of the PC. The network segment should

be the same as the default settings of IP-CAM. Open the network

and share center. Click “Local Area Connection” to pop up the

following window.

Select “Properties” and then select Internet protocol according to the

actual situation (for example: IPV4). Next, click “Properties” button to

set the network of the PC.

4. Double-click the IP address and then the system will pop up the web

browser to connect IP-CAM . IE browser will download the Active X

control. After downloading, a login window will pop up as shown

below:

Input the user name and password to log in.

Default user name: admin / Default password: 123456.

Directly Access Through a Web Browser

The default network settings are as shown below:

IP address: 192.168.226.201 HTTP: 80

Subnet Mask: 255.255.255.0 Data Port: 9008

Gateway: 192.168.226.1

You may use the above default settings when you log in the camera for

the first time.

1. Manually set the IP address of the PC. The network segment should

be the same as the default settings of IP-CAM. Open the network

and share center. Click “Local Area Connection” to pop up the

following window.

Select “Properties” and then select Internet protocol according to the

actual situation (for example: IPV4). Next, click “Properties” button to

set the network of the PC.

4. Double-click the IP address and then the system will pop up the web

browser to connect IP-CAM . IE browser will download the Active X

control. After downloading, a login window will pop up as shown

below:

Input the user name and password to log in.

Default user name: admin / Default password: 123456.

Directly Access Through a Web Browser

The default network settings are as shown below:

IP address: 192.168.226.201 HTTP: 80

Subnet Mask: 255.255.255.0 Data Port: 9008

Gateway: 192.168.226.1

You may use the above default settings when you log in the camera for

the first time.

1. Manually set the IP address of the PC. The network segment should

be the same as the default settings of IP-CAM. Open the network

and share center. Click “Local Area Connection” to pop up the

following window.

Select “Properties” and then select Internet protocol according to the

actual situation (for example: IPV4). Next, click “Properties” button to

set the network of the PC.

2. Open the IE Browser and input the default address of IP-CAM and

confirm. The IE browser will download Active X control.

3. After downloading Active X control, the login dialog box will pop up.

4. Input the default username and password and then enter to view.

WAN Configuration

Access the camera by the router or virtual server for example.

1. Make sure the camera is connected to the LAN; Then log into the

camera via LAN and go to System Congfig→Network Config→Port

menu to set up the port number.

2. Enter System Config→Network Config→IP Address menu to modify

the IP address.

4. Open the web browser and input its WAN IP and HTTP port to

access the IP-CAM.

3. Go to the router’s management interface through IE browser to

forward the IP address and port of IP-CAM in the “Virtual Server”.

5. For additional setup, features and functions, please scan

the QR code on the front page of this quick guide and

download the complete manual.

2. Open the IE Browser and input the default address of IP-CAM and

confirm. The IE browser will download Active X control.

3. After downloading Active X control, the login dialog box will pop up.

4. Input the default username and password and then enter to view.

WAN Configuration

Access the camera by the router or virtual server for example.

1. Make sure the camera is connected to the LAN; Then log into the

camera via LAN and go to System Congfig→Network Config→Port

menu to set up the port number.

2. Enter System Config→Network Config→IP Address menu to modify

the IP address.

4. Open the web browser and input its WAN IP and HTTP port to

access the IP-CAM.

3. Go to the router’s management interface through IE browser to

forward the IP address and port of IP-CAM in the “Virtual Server”.

5. For additional setup, features and functions, please scan

the QR code on the front page of this quick guide and

download the complete manual.

2. Open the IE Browser and input the default address of IP-CAM and

confirm. The IE browser will download Active X control.

3. After downloading Active X control, the login dialog box will pop up.

4. Input the default username and password and then enter to view.

WAN Configuration

Access the camera by the router or virtual server for example.

1. Make sure the camera is connected to the LAN; Then log into the

camera via LAN and go to System Congfig→Network Config→Port

menu to set up the port number.

2. Enter System Config→Network Config→IP Address menu to modify

the IP address.

4. Open the web browser and input its WAN IP and HTTP port to

access the IP-CAM.

3. Go to the router’s management interface through IE browser to

forward the IP address and port of IP-CAM in the “Virtual Server”.

5. For additional setup, features and functions, please scan

the QR code on the front page of this quick guide and

download the complete manual.

8 9

Image Sensor

Image Size

Resolution

Min. Illumination

Electronic Shutter

Lens

IR LEDs (Range)

Video Compression

Audio Compression

Main-Stream

Sub, Third Stream

Bit Rate / Type

Wide Dynamic Range

Digital Noise Reduction

Other Features

NDAA Compliant

Image Setting

Analytics

Smart Alarm

General Functions

Region of Interest (ROI)

Hardware Reset

Analog Video Output

Audio

Local Storage

Remote Viewing

Supported Browsers

Connection Protocol

Weather Resistance / Impact Rating

Power Input

Power Consump 12VDC, PoE

Working Environment

Weight Net (Shipping), Dimensions

1/2.7” 5.0 Megapixel CMOS Image Sensor

5 MegaPixel (2880 × 1620)

Up to 20fps@5MP (2880 × 1620), Up to 30fps@4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, 480× 240, CIF

0.007 lux @F1.6, AGC ON; 0 lux with IR

1 s ~ 1 / 100000 s

2.8mm Fixed Iris Lens, FoV H: 110.5°, FoV V: 57°, FoV Diag: 131°

1 Matrix Style IR (up to 100’)

H.265+ / H. 265 / H.264+ / H.264 / MJPEG

G.711A / G.711U

5MP(1~20fps)/4MP/3MP/1080P/720P(1~30fps)

720P/D1/ CIF (1~30fps), 60Hz: D1/480× 240/CIF (1~30fps)

64 Kbps ~ 8 Mbps / VBR + CBR

120dB WDR

3D-DNR

Back Light Compensation, Highlight Compensation

Yes

ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR

Region Intrusion, Abandoned Object, Scene Change, Line Crossing, Video Blur, Video Color Cast Detection

Motion Detection, SD Card Error, SD Card Full

Watermark, IP Filter, Video Mask, Illegal Login Lock

Each ROI to be configured separately

Yes

1 Ch. Audio In + Built-in Mic*

Built-in Micro SD card slot up to 256GB

CMS / Web Browswer / iOS & Android Apps

IE (plug-in required) / Google Chrome / Edge / Firefox / Safari

ONVIF

IP67 / IK10

12VDC / PoE

350mA (LEDs Off) / 600mA (LEDs On), < 6W

-22°~140°F (-30°C ~ 60°C) / < 95% Humidity

22.58oz / 1.41lb / 640g (28.22oz / 1.76lb / 800g), 3.46 × 4.69” [87.8 × 119mm] Dia × H

VTD-TND5RFEA-2 Detailed Specifications

*Please research local, state and federal laws regarding the implementation of audio

surveillance.

OPTIONAL ACCESSORIES

AND RELATED PRODUCTS

FOR VTD-TND5RFEA-2

VT-TJB03A

Optional Junction Box

VT-TFMT-S

Optional Semi-Flush

Mount

VT-TPDM-1

Optional Pendant Mount

- reqs. VT-TJB03A

VT-TWMT-3

Optional Wall Mount

5.10”

6.10”

2.93”

4.64“

VT-TPLMT

Transcendent Universal

Pole Mount - reqs.

VT-TJB03A

VT-TCNMT

Transcendent Universal

Corner Mount - reqs.

VT-TJB03A

8.46”

6.43”

8.46”

8.47”

10 11

OPTIONAL ACCESSORIES AND

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Lumens

Lumens VC-A50PNW Manual de usuario
