Vitek VTD-HOC4F Manual de usuario

VITEK

FEATURES:

• 1/2.9” Sony CMOS

• 2.0 MegaPixel With full 1080p/720p HD-SDI Output (SMPTE 292M)

• 3.7mm Fixed Iris lens Included

• Mechanical IR Cut Filter (True Day/Night)

• 16:9 Video format

• Advanced OSD Functions: WDR, 3D-DNR, Night Watch DSS Low Light

Color Technology, ACE (Adaptive Color Enhancement), Motion Detection,

Privacy, Digital Zoom, HLM, Flip, Mirror

• 100% Pure Digital Transmission of video data

• Up to 700’ HD Transmission Range (Depending on cable characteristics

and integrity)

• 12VDC Operation

• Available in Ivory or Black

VTD-HOC4F/I

2.0MP HD-SDI Indoor WDR

Dome Cameras

1. Depress the joystick to enter the setup menu

•The Setup menu is now displayed on the monitor

OSD controls are located inside the camera.

2

1. Depress the joystick to enter the setup menu

•The Setup menu is now displayed on the monitor

OSD controls are located inside the camera.

3

Select any function you

wish to change by

pushing the joystick Up

or Down

Modes can be changed

by pushing the joystick

Left or Right.

3. When finished programing camera select EXIT to save values.

MENU

MENU

•

When the SETUP menu screen is displayed, select EXPOSURE by pushing the joystick up or

down so that EXPOSURE is highlighted.

•

When the SETUP menu screen is displayed, select EXPOSURE by pushing the joystick up or

down so that EXPOSURE is highlighted.

the type of the lens can be set to either DC or Manual.

(PAL / NTSC)

Decrease Level Increase Level

4

•

When the SETUP menu screen is displayed, select EXPOSURE by pushing the joystick up or

down so that EXPOSURE is highlighted.

•

When the SETUP menu screen is displayed, select EXPOSURE by pushing the joystick up or

down so that EXPOSURE is highlighted.

the type of the lens can be set to either DC or Manual.

(PAL / NTSC)

Decrease Level Increase Level

5

by using the joystick up or down

so that the arrow indicates White Bal.

joystick.

When Halogen or other specialty lighting is used.

Increase or Decrease Level.

Increase or Decrease Level.

Increase or Decrease Level.

Set from 0-10 (set to high and color will fade)

Turns Mirror / Flip On or Off.

Adjustable digital zoom from 0~127x.

32

MENU

6

Set from 0-10 (set to high and color will fade)

Turns Mirror / Flip On or Off.

Adjustable digital zoom from 0~127x.

32

MENU

7

to prevent bright lights from washing out the picture i.e.

headlights

Increase or decrease the level of HLM

8

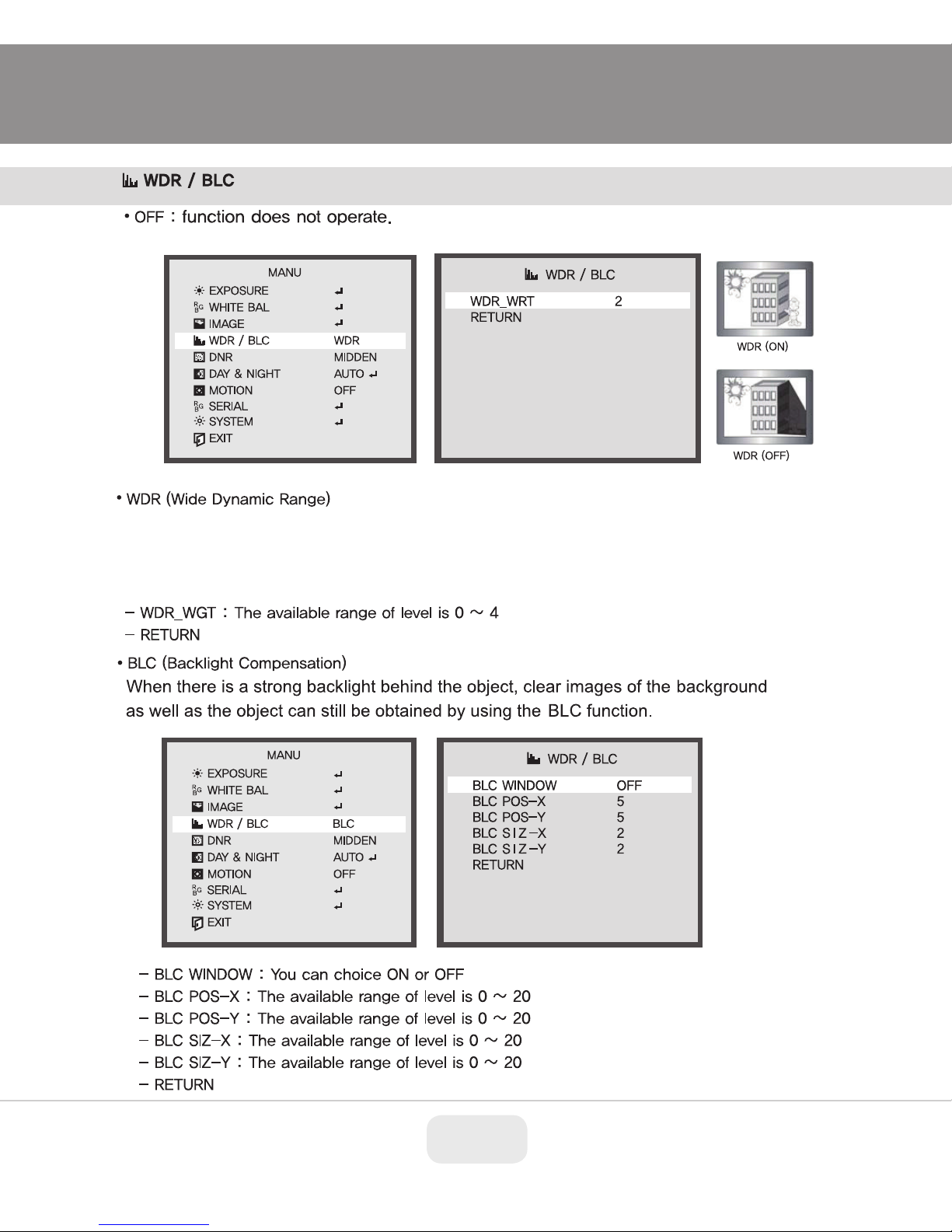

The Wide Dynamic Range feature improves the overall picture balance beyond the

Backlight Compensation feature. It creates an optimal balance of brightness and color by

combining images from a bright area (high shutter speed) and images from a dark area

(low shutter speed).

9

MENU

MENU

•Reduces noise level in low light conditions.

MIDDLE

MENU

MENU

10
