Vitek VTC-THB8R2 Manual de usuario

VITEK

VTC-THB8R2

VTC-THT8R2

Transcendent 8.0 Megapixel Indoor/

Outdoor 4-IN-1 HDA Cameras

FEATURES

• 1/2.5” 8 MegaPixel [4K] Progressive Scan CMOS image

sensor

• High Definition Analog (HDA) / HD-TVI / AHD / HD-CVI /

CVBS

•8MP@15fps, 5MP@20fps, 4MP@30fps High Res, True Color

•Supports OSD Menu

•2.8mm Fixed Iris Lens

•1 Matrix IR with up to 100’ IR Range (VTC-THB8R2, VTC-

THT8R2), 16 SMD IRs with up to 100’ Range (VTD-THD8R2)

•True Mechanical Day/Night function by ICR

•XD-DNR Noise Reduction

•IP67 Weather Resistance

• Supports Up The COAX Control (CoC)

• Over 1500’ HD Video Transmission (Depending on cable

characteristics and integrity)

• VTC-THB8R2: J Boxes - VT-TJB07, TJB08

VTC-THT8R2: J Boxes - VT-TJB01, TJB08, Wall Mount VT-TWMT-3

VTD-THD8R2: J Box - VT-TJB03A, Wall Mount VT-TWMT-3,

In-ceiling Semi Flush Mount VT-TFMT-S

• 12VDC Operation

• 3-year Warranty

VTD-THD8R2

Safety Precaution

CAUTION: TO REDUCE THE RISK OF ELECTICAL

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

To prevent electrical shock and risk of fire hazards, do not expose this unit

to rain or moisture and only use specified power source..

Warning :

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

their own expense.

Caution :

Any changes or modifications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user's authority

to operate the equipment.

Main power quality should be that of atypical commercial environment. If the user

of the model requires continued operation during power interruptions, it is

recommended that the device be powered from an uninterruptible power supply

(UPS).

The symbol is intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the literature

accompanying the unit.

The symbol is intended to alert the user tothe presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude toconstitute a risk of electrical shock.

VTC-THB8R2 Components

Overview

Screws

Drill Template

Camera

User Manual

Video Connection

Connect the BNC video connector to a BNC cable, then to a DVR.

Power

12VDC

Power Connection

Connect the power connector to a regulated 12 VDC power adaptor.

Monitor

Video

Lens

Sun Shield

Mount Lock

Mount Base

BNC Video Output

Output Mode Switch

Power Cable

This series supports AHD/TVI/CVI/CVBS video output.

The video output can be changed by pressing and holding the button in the

video switch cable for 5 seconds (the default video output is TVI video

output). Before switching video outputs, please remove the cover of the

video switch cable.

Video Output Mode Switch:

Installation

Before you begin, please make sure that the wall or ceiling is strong

enough to withstand 3 times the weight of the camera. The mounting

steps are as follows:

2. Route the cables and connect the power & video cables, use the

rubber plug to fill the gap of the mounting base. then secure the

mounting base to the ceiling or wall with screws.

Loosen the mount lock to adjust the Pan and Tilt of the camera, then

tighten the mount lock to secure the viewing angle adjustments.

1. Attach the drill template to

the place where you want to

install the camera, then drill

3 screw holes and 1 cable

hole (if you want to route the

cables through the mounting

base) according to the drill

template

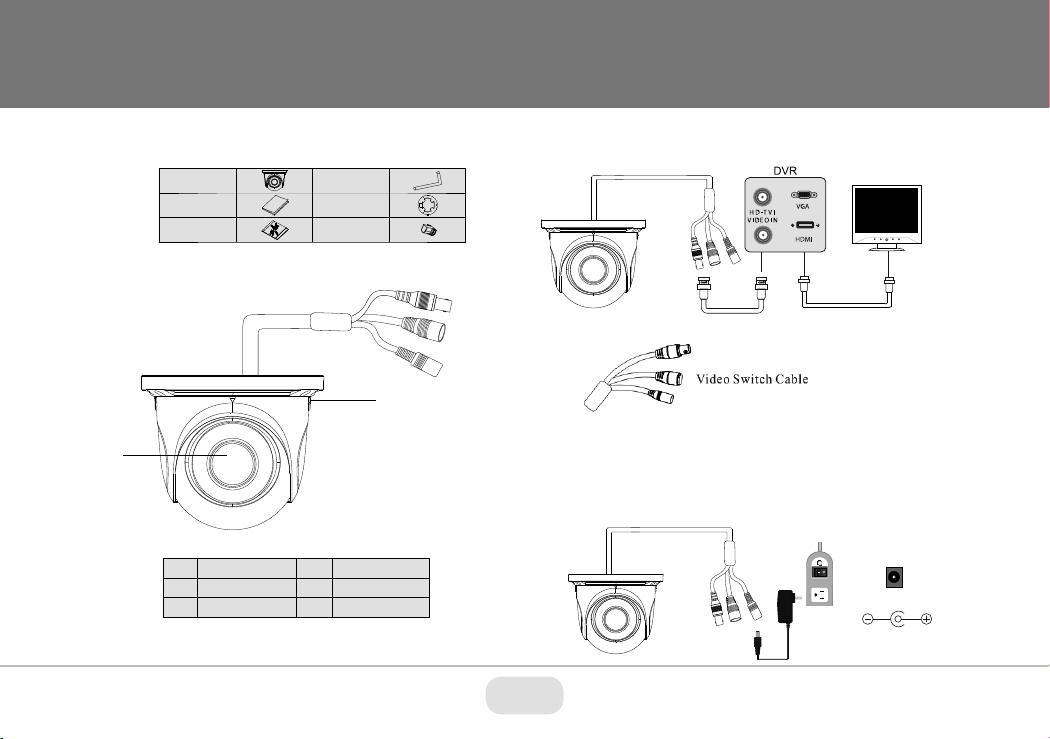

VTC-THT8R2 Components

Overview

Camera

Manual

Screws

Hex Wrench

Mounting Plate

Rubber Plug

Lens

Lock Screws

BNC Video Output

Output Mode Switch

Power Cable

Monitor

Video

Video Connection

Connect the BNC video connector to a BNC cable, then to a DVR.

Power Connection

Connect the power connector to a regulated 12 VDC power adaptor.

Power

12VDC

This series supports AHD/TVI/CVI/CVBS video output.

The video output can be changed by pressing and holding the button in the

video switch cable for 5 seconds (the default video output is TVI video

output). Before switching video outputs, please remove the cover of the

video switch cable.

Video Output Mode Switch:

Installation

Before you begin, please make sure that the wall or ceiling is strong

enough to withstand 3 times the weight of the camera. The mounting

steps are as follows:

1. Attach the drill template to

the place where you want to

install the camera, then drill

3 screw holes and 1 cable

hole (if you want to route the

cables through the mounting

base) according to the drill

template

2. Route the cables and

connect the power & video

cables, then secure the

mounting base to the ceiling

or wall with screws.

3. Loosen the lock screws, then

adjust the camera to obtain

the optimium viewing angle.

Confirm the correct viewing

angle with a monitor. Next

insert the rubber plug.

4. Tighten the lock screws to secure the viewing angle adjustments.

Rubber Plug

VTD-THD8R2 Components

Overview

Camera

Manual

Drill Template

Screws

Hex Wrench

Mounting Base

Dome Cover

BNC Video Output

Output Mode Switch

Power Cable

Monitor

Video

Video Connection

Connect the BNC video connector to a BNC cable, then to a DVR.

Power Connection

Connect the power connector to a regulated 12 VDC power adaptor.

Power

12VDC

This series supports AHD/TVI/CVI/CVBS video output.

The video output can be changed by holding and pressing the button in the

video switch cable for 5 seconds (the default video output is AHD video

output). Before switching video outputs, please remove the cover of the

video switch cable.

Video Output Mode Switch:

4. Adjust the Three-axis camer bracket to obtain the optimium

viewing angle.

5. Install the dome bubble on

the camera with the screws,

then carefully remove the

protective film to complete

the installation.

Installation

Before beginning installation, make sure that the wall or ceiling is

strong enough to withstand 3 times the weight of the camera. The

mounting steps are as follows:

2. Loosen the screws to open

the lower dome and then

loosen the lock screw to

remove the mounting base.

1. Attach the drill template to

the place where you want to

install the camera, then drill

the screw holes and 1 cable

hole according to the drill

template.

3. Route the cables and

connect the power & video

cables, use the rubber plug

to fill the gap of the mounting

base. then secure the

mounting base to the ceiling

or wall with screws.

Rubber Plug

Pan: 0°~240°

Rotation: 0°~220° Tilt: 0°~68°

Camera OSD Menu

The Transcendent 4-in1 camera series must be connected to a DVR

which supports HD-TVI/AHD video signal input and COC protocol to

access the OSD setup menu. Different DVRs manufacturers may have

different modes of menu operation.

You can select the menu by clicking (U) or (D) key on the

direction area. Click (L) or (R) key to select the menu on the

left. The menu with arrow icon which means it has sub-menu. You

can select the menu and click the Enter Button to enter the

sub-menu. to return to previous screen, arrow down to Return and

click Enter Button. To Exit menu arrow down to Exit and click Enter

Button.

You will see the following interface by clicking the PTZ button.

The Following image will pop-up when you left click once on the

image when using Transcendent HDA DVR's.

Click on the OSD tab and then click on the camera menu

button.

Detailed Specifications VTC-THT8R2 VTC-THB8R2

Image Sensor

Signal System

Effective Pixels

Resolution

Video Output

Frame Rate

Lens

Day/Night

Min. IIIumination

IR LEDs

IR Distance

S/N Ratio

Smart IR

TV Lines

Digital Noise Reduction (DNR)

White Balance

BLC

Up the COAX Control (COC)

Transmission Distance

Power Input

Power Consumption (12VDC)

Resistance Rating

Operation Conditions

Weight

Dimensions

1/2.5” 8.0 Megapixel Progressive Scan CMOS Sensor

PAL/NTSC

3840 x 2160

HD-TVI & AHD: 8.0 MegaPixel / CVI: 4.0 MegaPixel / CVBS: 960H

HD-TVI / AHD / CVI / CVBS (Selectable)

8MP@15fps / 5MP@20fps / 4MP@30fps

2.8mm - Fixed

True Day/Night by ICR

Color: 0.001 [email protected], AGC ON / B/W: 0 lux (with IR ON)

Up to 100’

≥52dB (AGC Off)

Up to 1700

XD-DNR (3D-DNR / 2D-DNR)

Auto (AWB)

YES

Up to 1500’ (Depending on cable characteristics & integrity)

12VDC

IR Off: < 2W / IR On: < 5W

IP67

-4°~122° / 10%~90% Humidity

15.52 oz. / 0.97 lbs. / 440g

6.6 x 2.93” (167.5 x 74.5mm)

1 Matrix

16.58 oz. / 1.04 lbs. / 470g

Ф4.25 x 3.75” (Ф108 x 95.7mm)

YES

VTD-THD8R2

Ф4.57 x 3.58” (116×91mm)

+IK10

22.22 oz. / 1.39 lbs. / 630g
