FEATURES
• 1/3” 3.0 Megapixel CMOS Image Sensor
• Up to 30fps live view @ 3 MegaPixel (2048x1536)
• 2.8~12mm Varifocal Lens
• 2 High Power Infrared LED’s with 100’ IR Range
• Digital Wide Dynamic Range (D-WDR)
• True Mechanical Day/Night function by ICR
• 3D-DNR Noise Reduction
• On Board Motion Detection, Privacy Masking, and ROI
• H.264 & MJPEG Compression
• Remote Viewing via CMS, Internet Explorer, and iOS &
Android Apps
• ONVIF Compliant
• IP66 Weather Resistance
• Optional Junction Box Mount (VT-TJB01) & Wall Mount
(VT-TWM03) Available
• Available in Ivory or Charcoal Gray
• 12VDC & PoE (Power over Ethernet) Operation
VTC-TNT3RVE
Transcendent Series 3
Megapixel Indoor/Outdoor WDR
IP Turret Camera with 2 High
Power IR LED Illumination &
Varifocal Lens
QUICK START GUIDE
FEATURES
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
2 3
Overview
Components and Accessories
Camera
Quick Guide
Screws
Hex Wrench
Drill Template
Product Manual CD
Waterproof Cap
Focus
Zoom
Fo cus
Zoom
3
5
6
4
1
2
Lens
Focus
Zoom
Lock Screws
RJ-45 Ethernet
Power Cable
1
2
3
4
5
6
3
Fo cu s
Zo om
Fo c u s
Zo o m
Network Cable & Power Connections
Cable / Network Configuration
First connect the Waterproof Cap to an Ethernet patch cable, then
connect the cameras ethernet adaptor. If not powering the camera with
PoE, also connect the power Cable to an approved 12VDC Power
Supply.
12VDC
Optional 12VDC
Power Connection.
Not needed with PoE
12VDC
Router
Internet
Modem
Computer
Network Cable
Network Cable
Network Cable
Network Cable
Network Cable
4 5
Installation
Before start, please make sure that the wall or ceiling is strong enough
to withstand 3 times the weight of the camera. The mounting steps are
as follows:

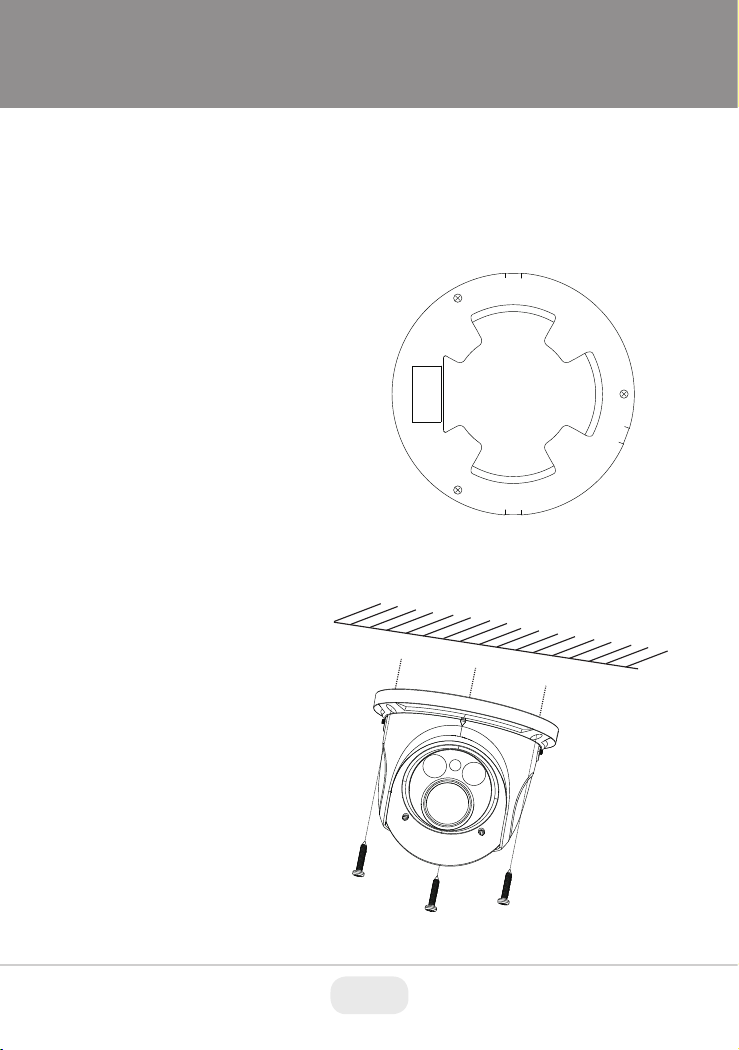

1. Attach the drill template to
the place where you want to
install the camera, then drill
3 screw holes and 1 cable
hole (if you want to route the
cables through the mounting
base) according to the drill
template
.
2. Route the cables and
connect the power & video
cables, then secure the
mounting base to the ceiling
or wall with screws.
3. Loosen the lock screws, then
adjust the camera to obtain
the optimium viewing angle.
Confirm the correct viewing
angle with a monitor. (See
next page for location of lock
screws)
Fo c u s
Zoom
5
Installation
4. Tighten the lock screws to secure the viewing angle adjustments.
5. Adjust the Focus and Zoom screws to achieve a clear image (if
your camera has a fixed lens, please skip this step).
6. Carefully remove the protective film from the lens to complete the
installation.
Focus
Zo om
Focus
Fo c us
Zoom
Foc u s
Zo o m
Zoom
Fo c us
Zoo m
6 7
LAN Configuration
The camera can be accessed on the local network either using the
IP-Tool or directly in a web browser.
1. Attach the drill template to the place where you want to install the
camera, then drill 3 screw holes and 1 cable hole (if you want to
route the cables through the mounting base) according to the drill
template

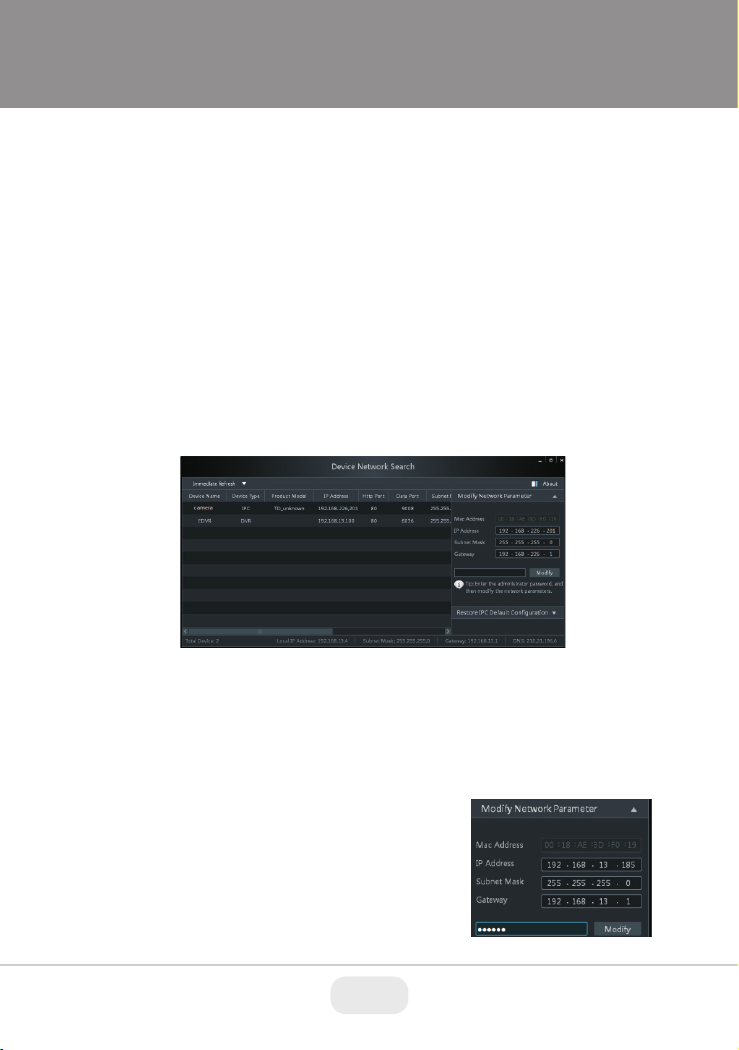

Accessing the Camera Using the IP-Tool
1. Make sure the camera and PC are connected to the LAN.
2. Locate the IP-Tool installer on the included Product Documentation
CD, then install on the PC. Open the installed application.
3. Modify the IP address. The default IP address is 192.168.226.201.
Click the information of the camera listed in the above table to show
the network information on the right side. Modify the IP address and
gateway of the camera and make sure its network address is in the
same local network segment as the computer’s. Please modify the
IP address of your device according to the practical situation.
For example, the IP address of your computer
is 192.168.13.4. So the IP address of the
camera shall be changed to 192.168.13.X.
After modification, please input the password
of the administrator and click “Modify” button
to modify the setting.
** Default admin password: “123456".
7
4. Double-click the IP address and then the system will pop up the web
browser to connect IP-CAM . IE browser will download the Active X
control automatically. After downloading, a login window will pop up
as shown below:
Input the user name and password to log in.
Default user name: admin / Default password: 123456.
Directly Access Through a Web Browser
The default network settings are as shown below:
IP address: 192.168.226.201 HTTP: 80
Subnet Mask: 255.255.255.0 Data Port: 9008
Gateway: 192.168.226.1
You may use the above default settings when you log in the camera for
the first time.
1. Manually set the IP address of the PC and the network segment
should be as the same as the default settings of IP-CAM. Open the
network and share center. Click “Local Area Connection” to pop up
the following window.
Select “Properties” and then select Internet protocol according to the
actual situation (for example: IPV4). Next, click “Properties” button to
set the network of the PC.
8
2. Open the IE Browser and input the default address of IP-CAM and
confirm. The IE browser will download Active X control automatical-
ly.
3. After downloading Active X control, the login dialog box will pop up.
4. Input the default username and password and then enter to view.
WAN Configuration
Access the camera by the router or virtual server for example.
1. Make sure the camera is connected to the LAN; Then log into the
camera via LAN and go to System Congfig→Network Config→Port
menu to set up the port number.
2. Enter System Config→Network Config→IP Address menu to modify
the IP address.
4. Open the web browser and input its WAN IP and HTTP port to
access the IP-CAM.
3. Go to the router’s management interface through IE browser to
forward the IP address and port of IP-CAM in the “Virtual Server”.
