Vitek Transcendent Series Manual de usuario

VITEK

VTC-TNB8RME

Transcendent Series

8 MegaPixel [4K]

Indoor/Outdoor WDR IP

Motorized Bullet Camera

QUICK START GUIDE

FEATURES:

• 1/2.7” 8.0 Megapixel [4K] CMOS Image Sensor

• Up to 20fps @ 8MP (3840 × 2160), 6MP (3072× 2048 ), 5MP

(2592 ×1944 ), 720P (1280 × 720), D1, CIF, 480 × 240

• 2.8~12mm Motorized Varifocal Lens

• 2 Matrix IRs with up to 165’ IR Range

• Digital Wide Dynamic Range (D-WDR)

• True Mechanical Day/Night function by ICR

• XD-DNR (3D & 2D-DNR) Noise Reduction

• Region Intrusion Detection, Scene Change Detection, Line

Crossing

• H.265, H.264 Compression

• MicroSD Card Slot for Local Recording (Up to 128GB)

• 1 Channel Audio In*

• Remote Viewing via CMS, Internet Explorer, and iOS & Android

Apps

• ONVIF Compliant

• IP67 Weather Resistance

• Optional Junction Box Mounts (VT-TJB07, VT-TJB08) Available

• 12VDC & PoE (Power over Ethernet) Operation

*Please research local, state and federal

laws regarding audio surveillance.

PLEASE NOTE:

Complete User Guide, Software, Tools, and Updates are

available online. Scan the QR Code or visit:

http://www.vitekcctv.com/Downloads

2 3

Components and Accessories

First connect the weather resistant Cap to an ethernet patch cable, then

connect the cameras ethernet adaptor. If not powering the camera

with PoE, also connect the power cable to an approved 12VDC

power supply.

Camera Quick

start

guide

Drill

template

Screwdriver

4 tapping screws PA 4×2

DC12V

Weather Resistant Security Cap

1 Fixed Ring

2Mounting Base

Network connector*

Audio Input

5Power connector*

6Micro SD card slot

7Reset

8 Sunshield

Plastic plug × 4

Weather Resistant Network Coupler

Installation

Before beginning installation, make sure that the wall or ceiling is

strong enough to withstand 3 times the weight of the camera. The

mounting steps are as follows:

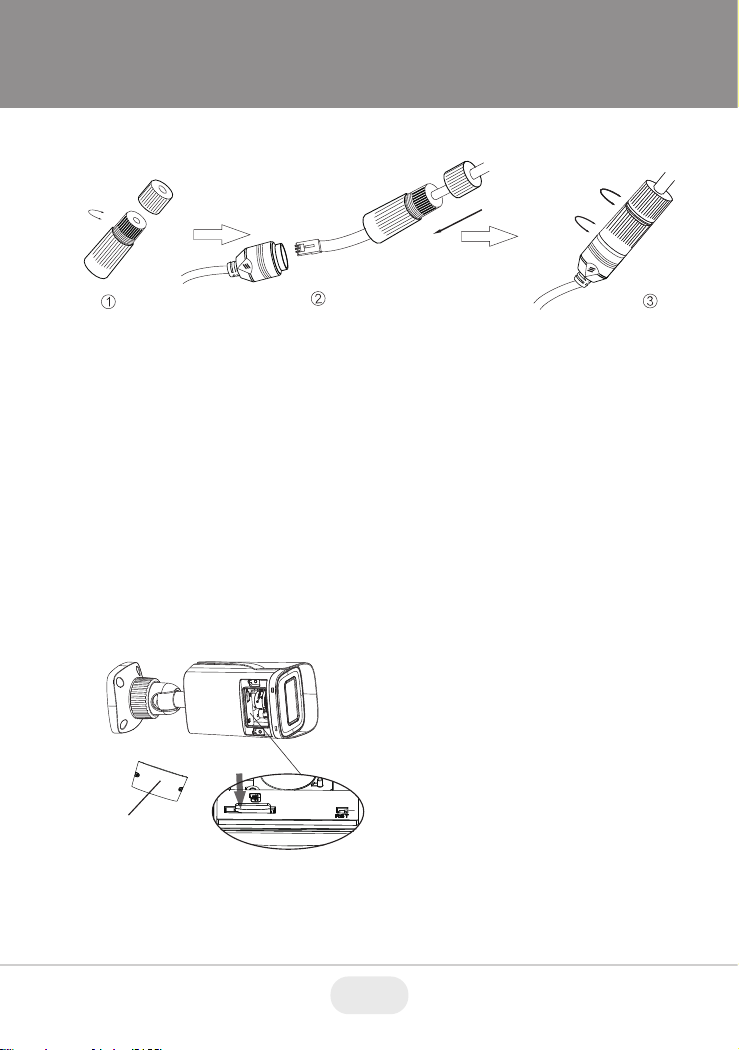

MicroSD Card Installation: Remove the bottom of the cover from the

camera, insert card and replace the cover (be sure it is even).

1. Loosen the nut from the Weather Resistant Network Coupler,

2. Run ethernet cable through coupler, then attach a RJ-45 connector.

3. Tighten the nut and coupler for a weather resistant seal.

Insert a micro

SD card

Cover

4 5

1. Attach the drill template to

the place where you want to

install the camera, then drill

3 screw holes and 1 cable

hole (if routing the cables

through the mounting base)

according to the drill

template

2. Route the cables and connect the power & video cables, use the

rubber plug to fill the gap of the mounting base, then secure the

mounting base to the ceiling or wall with screws.

Rubber plug

3. Loosen the mount lock to adjust the pan and tilt, then tighten the

mount lock to secure the viewing angle adjustments.

4. Carefully remove the protective film from the lens to complete the

installation.

90° Tilt

360° Rotation

360° Pan

Fixed Ring

1. Attach the drill template to

the place where you want to

install the camera, then drill

3 screw holes and 1 cable

hole (if routing the cables

through the mounting base)

according to the drill

template

2. Route the cables and connect the power & video cables, use the

rubber plug to fill the gap of the mounting base, then secure the

mounting base to the ceiling or wall with screws.

Rubber plug

3. Loosen the mount lock to adjust the pan and tilt, then tighten the

mount lock to secure the viewing angle adjustments.

4. Carefully remove the protective film from the lens to complete the

installation.

90° Tilt

360° Rotation

360° Pan

Fixed Ring

LAN Configuration

The camera can be accessed on the local network either using the

IP-Tool or directly in a web browser.

Accessing the Camera Using the IP-Tool

1. Make sure the camera and PC are connected to the LAN.

2. Locate the IP-Tool installer at www.

vitekcctv.com/Downloads/Soft-

ware/Transcendent-IPTool_v2.0.2.zip

, then install on the PC. Open

the installed application.

3. Modify the IP address. The default IP address is 192.168.226.201.

Click the information of the camera listed in the above table to show

the network information on the right side. Modify the IP address and

gateway of the camera and make sure its network address is in the

same local network segment as the computer’s. Please modify the

IP address of your device according to the practical situation.

For example, the IP address of your computer

is 192.168.13.4. So the IP address of the

camera shall be changed to 192.168.13.X.

After modification, please input the password

of the administrator and click “Modify” button

to modify the setting.

** Default admin password: “123456".

IP Camera

Network Cable Network Cable

Switch

Router Computer

LAN Configuration

The camera can be accessed on the local network either using the

IP-Tool or directly in a web browser.

Accessing the Camera Using the IP-Tool

1. Make sure the camera and PC are connected to the LAN.

2. Locate the IP-Tool installer at www.

vitekcctv.com/Downloads/Soft-

ware/Transcendent-IPTool_v2.0.2.zip

, then install on the PC. Open

the installed application.

3. Modify the IP address. The default IP address is 192.168.226.201.

Click the information of the camera listed in the above table to show

the network information on the right side. Modify the IP address and

gateway of the camera and make sure its network address is in the

same local network segment as the computer’s. Please modify the

IP address of your device according to the practical situation.

For example, the IP address of your computer

is 192.168.13.4. So the IP address of the

camera shall be changed to 192.168.13.X.

After modification, please input the password

of the administrator and click “Modify” button

to modify the setting.

** Default admin password: “123456".

IP Camera

Network Cable Network Cable

Switch

Router Computer

6 7

4. Double-click the IP address and then the system will pop up the web

browser to connect IP-CAM . IE browser will download the Active X

control. After downloading, a login window will pop up as shown

below:

Input the user name and password to log in.

Default user name: admin / Default password: 123456.

Directly Access Through a Web Browser

The default network settings are as shown below:

IP address: 192.168.226.201 HTTP: 80

Subnet Mask: 255.255.255.0 Data Port: 9008

Gateway: 192.168.226.1

You may use the above default settings when you log in the camera for

the first time.

1. Manually set the IP address of the PC. The network segment should

be the same as the default settings of IP-CAM. Open the network

and share center. Click “Local Area Connection” to pop up the

following window.

Select “Properties” and then select Internet protocol according to the

actual situation (for example: IPV4). Next, click “Properties” button to

set the network of the PC.

4. Double-click the IP address and then the system will pop up the web

browser to connect IP-CAM . IE browser will download the Active X

control. After downloading, a login window will pop up as shown

below:

Input the user name and password to log in.

Default user name: admin / Default password: 123456.

Directly Access Through a Web Browser

The default network settings are as shown below:

IP address: 192.168.226.201 HTTP: 80

Subnet Mask: 255.255.255.0 Data Port: 9008

Gateway: 192.168.226.1

You may use the above default settings when you log in the camera for

the first time.

1. Manually set the IP address of the PC. The network segment should

be the same as the default settings of IP-CAM. Open the network

and share center. Click “Local Area Connection” to pop up the

following window.

Select “Properties” and then select Internet protocol according to the

actual situation (for example: IPV4). Next, click “Properties” button to

set the network of the PC.

2. Open the IE Browser and input the default address of IP-CAM and

confirm. The IE browser will download Active X control.

3. After downloading Active X control, the login dialog box will pop up.

4. Input the default username and password and then enter to view.

WAN Configuration

Access the camera by the router or virtual server for example.

1. Make sure the camera is connected to the LAN; Then log into the

camera via LAN and go to System Congfig→Network Config→Port

menu to set up the port number.

2. Enter System Config→Network Config→IP Address menu to modify

the IP address.

4. Open the web browser and input its WAN IP and HTTP port to

access the IP-CAM.

3. Go to the router’s management interface through IE browser to

forward the IP address and port of IP-CAM in the “Virtual Server”.

5. For additional setup, features and functions, please scan the

QR code on the front page of this quick guide and download

the complete manual.

2. Open the IE Browser and input the default address of IP-CAM and

confirm. The IE browser will download Active X control.

3. After downloading Active X control, the login dialog box will pop up.

4. Input the default username and password and then enter to view.

WAN Configuration

Access the camera by the router or virtual server for example.

1. Make sure the camera is connected to the LAN; Then log into the

camera via LAN and go to System Congfig→Network Config→Port

menu to set up the port number.

2. Enter System Config→Network Config→IP Address menu to modify

the IP address.

4. Open the web browser and input its WAN IP and HTTP port to

access the IP-CAM.

3. Go to the router’s management interface through IE browser to

forward the IP address and port of IP-CAM in the “Virtual Server”.

5. For additional setup, features and functions, please scan the

QR code on the front page of this quick guide and download

the complete manual.

28492 CONSTELLATION ROAD VALENCIA, CA 91355

WWW.VITEKCCTV.COM

Version 2.0

Dec. 2019

LIMITED PRODUCT WARRANTY

VITEK products carry a three (3) year limited warranty. VITEK warrants

to the purchaser that products manufactured by VITEK are free of any

rightful claim of infringement or the like, and when used in the manner

intended, will be free of defects in materials and workmanship for a

period of three (3) years, or as otherwise stated above, from the date of

purchase by the end user. This warranty is nontransferable and extends

only to the original buyer or end user customer of a VITEK Authorized

Reseller.

The product must have been used only for its intended purpose, and

not been subjected to damage by misuse, willful or accidental damage,

caused by excessive voltage or lightning.

The product must not have been tampered with in any way or the

guarantee will be considered null and void.

This guarantee does not affect your statutory rights.

Contact your local VITEK Reseller should servicing become necessary.

VITEK makes no warranty or guarantee whatsoever with respect to

products sold or purchased through unauthorized sales channels.

Warranty support is available only if product is purchased through a

VITEK Authorized Reseller.

Otros manuales para Transcendent Series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara de seguridad de Vitek

Vitek

Vitek Transcendent VTD-TND4RMA3B Manual de usuario

Vitek

Vitek VT-PTZ36 Manual de usuario

Vitek

Vitek VTC-IRLED24H Manual de usuario

Vitek

Vitek Transcendent VT-TPTZ30HRA-4PNS Manual de usuario

Vitek

Vitek VT-PTZ12WH Manual de usuario

Vitek

Vitek VTC-TNB8RMA4B Manual de usuario

Vitek

Vitek VTC-IRLED24H Manual de usuario

Vitek

Vitek VTC-TTAT2HR2F Manual de usuario

Vitek

Vitek VTC-THB5R3 Manual de usuario

Vitek

Vitek VTC-EL52H Manual de usuario

Vitek

Vitek VTC-TNT5RFS Manual de usuario

Vitek

Vitek VTC-TNT5RMS Manual de usuario

Vitek

Vitek Transcendent VTD-TND8RMA3 Manual de usuario

Vitek

Vitek VTC-IRLED30A Manual de usuario

Vitek

Vitek VTD-MVH2910 Manual de usuario

Vitek

Vitek VTC-TNB5RFEA-2 Manual de usuario

Vitek

Vitek Transcendent Series Manual de usuario

Vitek

Vitek TRANSCENDENT VTD-TND3RVEB Manual de usuario

Vitek

Vitek Premium TVI VTC-IRT30-2812 Manual de usuario

Vitek

Vitek VTD-C75 Manual de usuario

Vitek

Vitek VTC-C680 Manual de usuario

Vitek

Vitek TRANSCENDENT VTC-TNB4LPRN Manual de usuario

Vitek

Vitek Transcendent VTC-TNB4RFA3 Manual de usuario

Vitek

Vitek TRANSCENDENT VTC-TNB8FADW-2 Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Lumens

Lumens VC-A50PNW Manual de usuario
