QUICK START GUIDE

VTC-TNT8FADW-2

Transcendent Knight Guard Active

Deterrence 8MP (4K) Advanced A.I.

Fixed Turret Camera

FEATURES:

• 1/1.8” 8.0 MegaPixel (4K) CMOS Image Sensor

• Full Color at Night Camera with Active Deterrence

• Up to 30fps @ 8MP (3840 × 2160)

• 2.8mm Fixed Iris Lens

• White Light + Matrix IR (130’ Range)

• GEN IV Advanced Analytics including Face Detection

• Integrated Audio + Speaker*

• MicroSD Card Slot (256GB)

• IP66 Weather Resistance

• 12VDC + PoE Operation

• 3-Year Warranty

*Please research local, state and federal laws regarding the implementation of audio surveillance.

PLEASE NOTE:

Complete User Guide, Software, Tools, and Updates are

available online. Scan the QR Code or visit:

http://www.vitekcctv.com/Downloads

TRANSCENDENT NETWORK TURRET CAMERA 8 MEGAPIXEL FIXED LENS WHITE LIG HT +

IR ILLUMINATION

GEN. IV

ANALYTICS

2 3

Components and Accessories

Overview

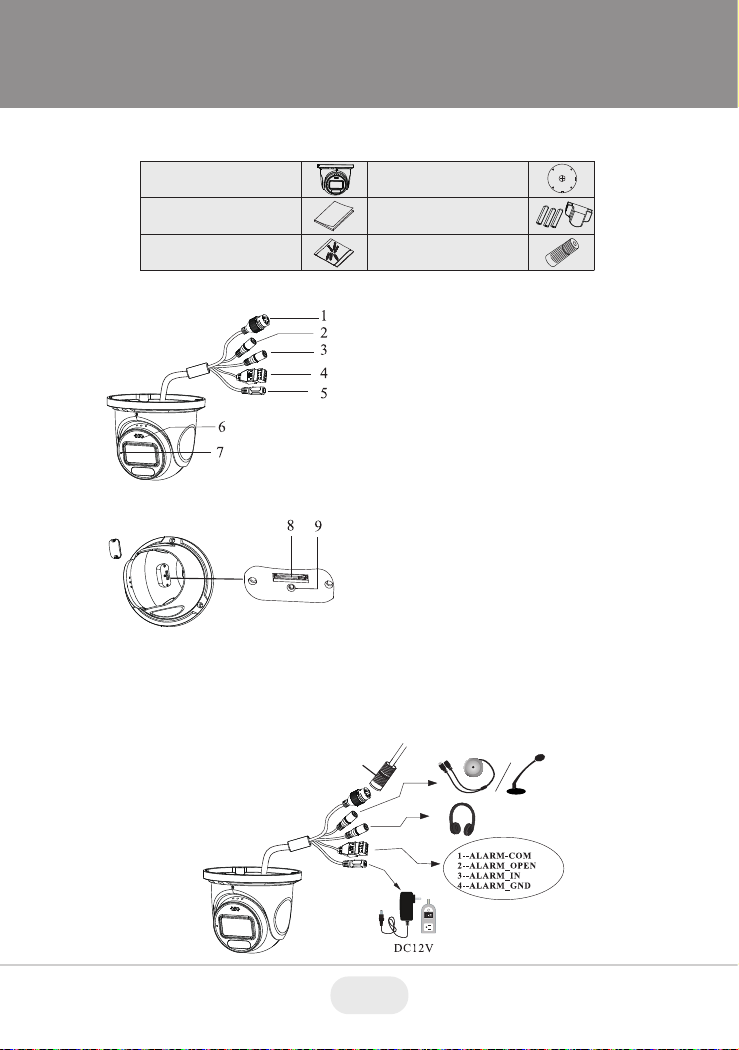

First connect the Weather Resistant Cap to an Ethernet patch cable,

then connect the camera’s ethernet adaptor. If not powering the

camera with PoE, also connect the power Cable to an approved

12VDC Power Supply.

Camera

Quick Guide

Screws

Drill Template

Plastic Plugs + Rubber Plug

Network Coupler

Weather Resistant Security Cap

1. Ethernet Connector

2. Audio Input Connector

3. Audio Output Connector

4. Alarm Input / Output

5. Power Connector

6. Speaker

7. Mic

8. MicroSD Card Slot

9. Reset

Installation

Before beginning installation, make sure that the wall or ceiling is strong

enough to withstand 3 times the weight of the camera. The mounting

steps are as follows:

1. Attach the drill template to the

place where you want to install

the camera, then drill 3 screw

holes and 1 cable hole (if you

want to route the cables through

the mounting base) according to

the drill template (see below).

First Install a MicroSD Card as

Demonstrated in Diagram at Right

Connecting Alarm Input / Output

2.35”

1.17”

4.08”

.18”

5.15”

4.71”

Ground Wire

Connection

Lock Screw

4 5

2. Route and connect

relevant cables.

4. Loosen the fixed ring to adjust

the viewing angle of the camera.

Preview the camera’s image on a

monitor.

5. Tighten the lock screw to finish the installation.

3. Attach the mounting base to the wall with

the provided screws.

Lock Screw

LAN Configuration

IP Camera

Network Cable Network Cable

Switch

Router Computer

The camera can be accessed on the local network either using the

IP-Tool or directly in a web browser.

Accessing the Camera Using the IP-Tool

1. Make sure the camera and PC are connected to the LAN.

2. Locate the IP-Tool installer at www.

vitekcctv.com/Downloads/Soft-

ware/Transcendent-IPTool.zip

, then install on the PC. Open

the installed application.

3. Modify the IP address. The default IP address is 192.168.226.201.

Click the information of the camera listed in the above table to show

the network information on the right side. Modify the IP address and

gateway of the camera and make sure its network address is in the

same local network segment as the computer’s. Please modify the

IP address of your device according to the practical situation.

For example, the IP address of your computer

is 192.168.13.4. So the IP address of the

camera should be changed to 192.168.13.X.

After modifying, please input the password

of the administrator and click “Modify” button

to modify the setting.

** Default admin password: “123456".

6 7

4. Double-click the IP address and then the system will pop up the

web browser to connect IP-CAM. Edge in IE mode / IE browser

will download the Active X. control. After downloading, a login

window will pop up as shown below:

Input the user name and password to log in.

Default user name: admin / Default password: 123456.

Directly Access Through a Web Browser

The default network settings are as shown below:

IP address: 192.168.226.201 HTTP: 80

Subnet Mask: 255.255.255.0 Data Port: 9008

Gateway: 192.168.226.1

You may use the above default settings when you log in the camera for

the first time.

1. Manually set the IP address of the PC. The network segment should

be the same as the default settings of IP-CAM. Open the network

and share center. Click “Local Area Connection” to pop up the

following window.

Select “Properties” and then select Internet protocol according to the

actual situation (for example: IPV4). Next, click “Properties” button to

set the network of the PC.

4. Double-click the IP address and then the system will pop up the

web browser to connect IP-CAM. Edge in IE mode / IE browser

will download the Active X. control. After downloading, a login

window will pop up as shown below:

Input the user name and password to log in.

Default user name: admin / Default password: 123456.

Directly Access Through a Web Browser

The default network settings are as shown below:

IP address: 192.168.226.201 HTTP: 80

Subnet Mask: 255.255.255.0 Data Port: 9008

Gateway: 192.168.226.1

You may use the above default settings when you log in the camera for

the first time.

1. Manually set the IP address of the PC. The network segment should

be the same as the default settings of IP-CAM. Open the network

and share center. Click “Local Area Connection” to pop up the

following window.

Select “Properties” and then select Internet protocol according to the

actual situation (for example: IPV4). Next, click “Properties” button to

set the network of the PC.

2. Open Edge in IE mode / IE browser and input the default address

of IP-CAM and confirm. Edge in IE mode / IE browser will

download an Active X control.

3. After downloading the Active X control, the login dialog box will appear.

4. Input the default username and password and then enter to view.

WAN Configuration

Access the camera by the router or virtual server for example.

1. Make sure the camera is connected to the LAN; Then log into the

menu to set up the port number.

the IP address.

4. Open the web browser and input its WAN IP and HTTP port to

access the IP-CAM.

3. Go to the router’s management interface through IE browser to

forward the IP address and port of IP-CAM in the “Virtual Server”.

8 9

How to Set Up Audio / Light Alert on Event

1. Log into camera. Default username is admin and password is 123456.

2. Click on Cong Tab.

3. Under Event click on event that will trigger audio and / or light. Line crossing as

an example.

4. Enable line crossing. Also enable “Trigger Audio Alarm”, and also “Trigger Light

Alarm”, and then click “Save” at bottom of screen.

5. Click on “Area” at top and then click on “Draw Area”, then left click and hold to

draw the line. After the line is in the image, select which direction trips the event,

A>B, A<B or A><B, then click “Save”.

6. After the line crossing is set, click on “Audio Alarm” under Alarm. Enable audio

alarm and then select language, Voice (prerecorded warnings), Warning Times

(per event), Volume and then click “Save”.

10 11

7. If you want to customize the voice, you can choose “Customize”. Click “Browse”

under Upload Audio to choose the audio le you want to upload and then enter the

audio name. Finally, click “Upload” to upload the audio le. Note that the format of

the audio le must meet the requirement (see Tips), or it will not be uploaded. After

you upload the audio le, you can select the audio name from the audio list and

click “Listen” to listen to it. Click “Delete” to delete the audio.

*You can also record your own voice in the above interface and then upload.
