Vitek Virtuoso Series 8 Manual de usuario

VITEK

VTC-TNB8RFS

Transcendent Series 8

Megapixel H.265 Indoor/

Outdoor WDR IP Bullet Camera

with 36 IR LED Illumination

QUICK START GUIDE

FEATURES

• 1/2.5” 8.0 Megapixel Progressive Scan CMOS image sensor

• Up to 30fps live view @ 8 MegaPixel (3840x2160)

• 4.0mm Fixed Iris Lens

• 36 Infrared LED’s with 120’ IR Range

• 120dB Super Wide Dynamic Range (WDR)

• True Mechanical Day/Night function by ICR

• XD-DNR (2D-DNR & 3D-DNR) Noise Reduction

• Fully Programmable Intelligent Analytics including Object Removal/

Museum Search, Line Crossing, and Area Intrusion Detection

• H.265/H.264/MJPEG Triple Streaming

• Secondary Video Output (CVBS)

• Remote Viewing via CMS, Internet Explorer, and iOS & Android

Apps

• ONVIF Compliant

• IP66 Weather Resistance

• Optional Junction Box Mount Available (VT-TJB01)

• 12VDC & PoE (Power over Ethernet) Operation

PLEASE NOTE:

Complete User Guide, Software, Tools, and Updates are

available online. Scan the QR Code or visit:

http://www.vitekcctv.com/Downloads

2 3

Components and Accessories

Overview

Camera

Quick Guide

Screws

Hex Wrench

Drill Template

Rubber Plug

Waterproof Cap

Service Port Cable

RJ-45 Ethernet

Audio In

Audio Out

CVBS Output

Power Cable

Lens Cover

Reset

Service Port

Cable Connections

Weather Resistant Network Coupler

First connect the Waterproof Cap to an Ethernet patch cable, then

connect the cameras ethernet adaptor. If not powering the camera with

PoE, also connect the power Cable to an approved 12VDC Power

Supply.

1. Loosen the nut from the Weather Resistant Network Coupler,

2. Run ethernet cable through coupler, then attach a RJ-45 connector.

3. Tighten the nut and coupler for a weather resistant seal.

Network Cable

Optional 12VDC

Power Connection.

Not needed with PoE

4 5

Installation

Before beginning installation, make sure that the wall or ceiling is

strong enough to withstand 3 times the weight of the camera. The

mounting steps are as follows:

1. Attach the drill template to

the place where you want to

install the camera, then drill

3 screw holes and 1 cable

hole (if you want to route the

cables through the mounting

base) according to the drill

template

2. Route the cables and connect the power & video cables, use the

rubber plug to fill the gap of the mounting base. then secure the

mounting base to the ceiling or wall with screws.

Ceiling Mounted Wall Mounted

Rubber Plug

Installation

3. Loosen the mount lock to adjust the Pan and Tilt of the camera, then

tighten the mount lock to secure the viewing angle adjustments.

4. Carefully remove the protective film from the lens to complete the

installation.

90° Tilt

360° Pan

6 7

LAN Configuration

The camera can be accessed on the local network either using the

IP-Tool or directly in a web browser.

1. Attach the drill template to the place where you want to install the

camera, then drill 3 screw holes and 1 cable hole (if you want to

route the cables through the mounting base) according to the drill

template

Accessing the Camera Using the IP-Tool

1. Make sure the camera and PC are connected to the LAN.

2. Locate the IP-Tool installer on the included Product Documentation

CD, then install on the PC. Open the installed application.

3. Modify the IP address. The default IP address is 192.168.226.201.

Click the information of the camera listed in the above table to show

the network information on the right side. Modify the IP address and

gateway of the camera and make sure its network address is in the

same local network segment as the computer’s. Please modify the

IP address of your device according to the practical situation.

For example, the IP address of your computer

is 192.168.13.4. So the IP address of the

camera shall be changed to 192.168.13.X.

After modification, please input the password

of the administrator and click “Modify” button

to modify the setting.

** Default admin password: “123456".

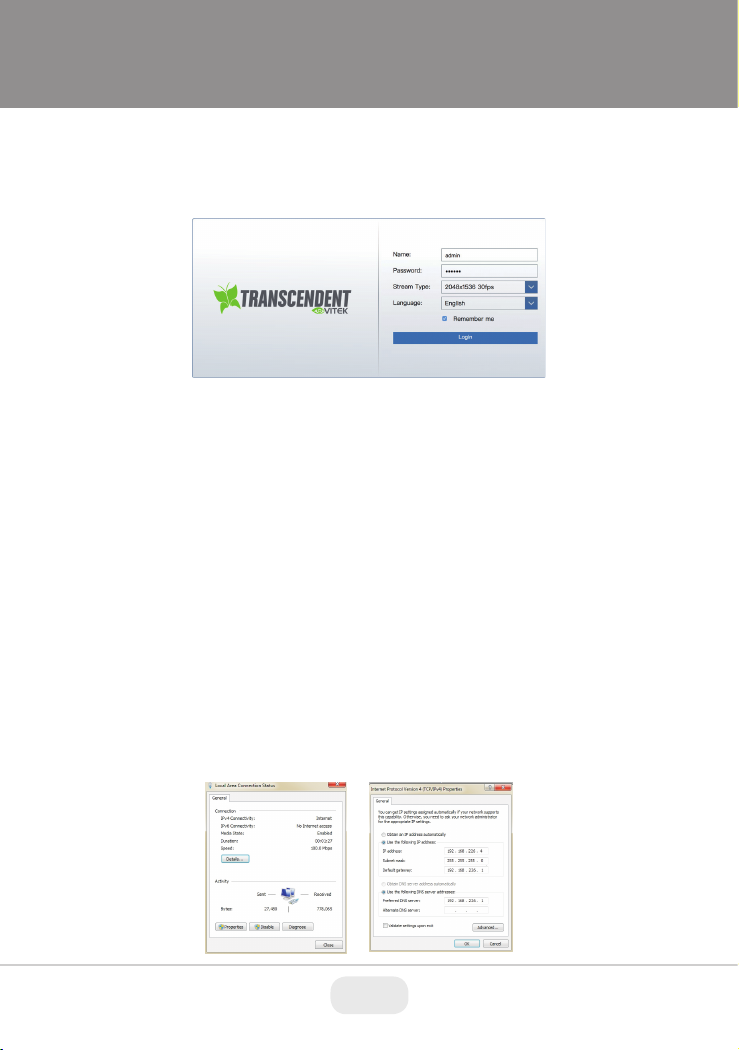

4. Double-click the IP address and then the system will pop up the web

browser to connect IP-CAM . IE browser will download the Active X

control automatically. After downloading, a login window will pop up

as shown below:

Input the user name and password to log in.

Default user name: admin / Default password: 123456.

Directly Access Through a Web Browser

The default network settings are as shown below:

IP address: 192.168.226.201 HTTP: 80

Subnet Mask: 255.255.255.0 Data Port: 9008

Gateway: 192.168.226.1

You may use the above default settings when you log in the camera for

the first time.

1. Manually set the IP address of the PC and the network segment

should be as the same as the default settings of IP-CAM. Open the

network and share center. Click “Local Area Connection” to pop up

the following window.

Select “Properties” and then select Internet protocol according to the

actual situation (for example: IPV4). Next, click “Properties” button to

set the network of the PC.

2. Open the IE Browser and input the default address of IP-CAM and

confirm. The IE browser will download Active X control automatical-

ly.

3. After downloading Active X control, the login dialog box will pop up.

4. Input the default username and password and then enter to view.

WAN Configuration

Access the camera by the router or virtual server for example.

1. Make sure the camera is connected to the LAN; Then log into the

camera via LAN and go to System Congfig→Network Config→Port

menu to set up the port number.

2. Enter System Config→Network Config→IP Address menu to modify

the IP address.

4. Open the web browser and input its WAN IP and HTTP port to

access the IP-CAM.

3. Go to the router’s management interface through IE browser to

forward the IP address and port of IP-CAM in the “Virtual Server”.
