Vitek Transcendent VTC-TNB5RMEA Manual de usuario

VITEK

VTC-TNB5RMEA

Transcendent Series 5 MegaPixel

Motorized IP WDR Bullet Camera

QUICK START GUIDE

PLEASE NOTE:

Complete User Guide, Software, Tools, and Updates are

available online. Scan the QR Code or visit:

http://www.vitekcctv.com/Downloads

FEATURES:

• 1/2.7” 5.0 Megapixel CMOS Image Sensor

• Up to 20fps@5MP (2880 × 1620), Up to 30fps@4MP (2560 × 1440), 3MP

(2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, 480× 240, CIF

• 2.8~12mm Motorized Varifocal Lens

• Matrix IR (up to 165’ IR Range)

• True Wide Dynamic Range (120dB)

• True Mechanical Day/Night function by ICR

• XD-DNR (3D & 2D-DNR) Noise Reduction

• Region Intrusion Detection, Object Abandoned / Missing, Scene Change Detection, Line

Crossing, Video Blur, Video Color Cast Detection

• H.265+ / H.265 / H.264+ / H.264 / MJPEG

• MicroSD Card Slot for Local Recording (Up to 256GB)

• 1 Ch. Audio In + Built-in Mic*

• Remote Viewing via CMS, IE (plug-in required)/Google Chrome/Edge/Firefox/Safari,

and iOS & Android Apps

• ONVIF Compliant

• IP67 Weather Resistance

• Wall Mount Included & Optional Junction Box (VT-TJB08) Available

See Additional Mounting Options on Pg. 9

• 12VDC & PoE (Power over Ethernet) Operation

• 3-Year Warranty

*Please research local, state and federal lawsregarding the implementation

of audio surveillance.

2 3

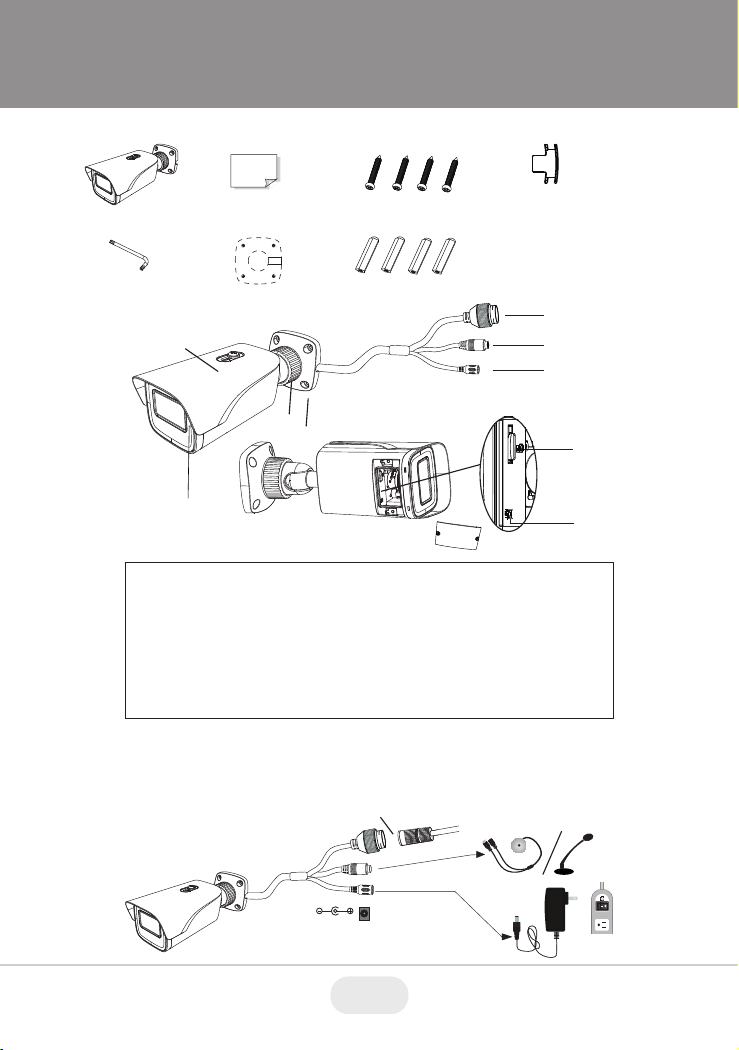

Components and Accessories

Connect the Weather Resistant Cap to an ethernet patch

cable, then connect the cameras ethernet adaptor. If not

powering the camera with PoE, also connect the power cable

to an approved12VDC power supply.

Camera

Dri ll templ ate

DC12V

Weather Resistant Security Cap

1. Locking Ring

2. Mounting Base

3. Network Connector

4. Audio Input

5. Power Connector

6. MicroSD Card Slot

7. Reset

8. Sunshield

4 Tapping Screws PA 4×2 Rubber Plug

Plastic Plugs × 4

Quick Start Guide

Overview

Allen Key

*Mic

Weather Resistant Network Coupler

Installation

Before beginning installation, make sure that the wall or ceiling is

strong enough to withstand 3 times the weight of the camera. The

mounting steps are as follows:

MicroSD Card Installation: Remove the bottom of the cover from the

camera, insert card and replace the cover (be sure it is even).

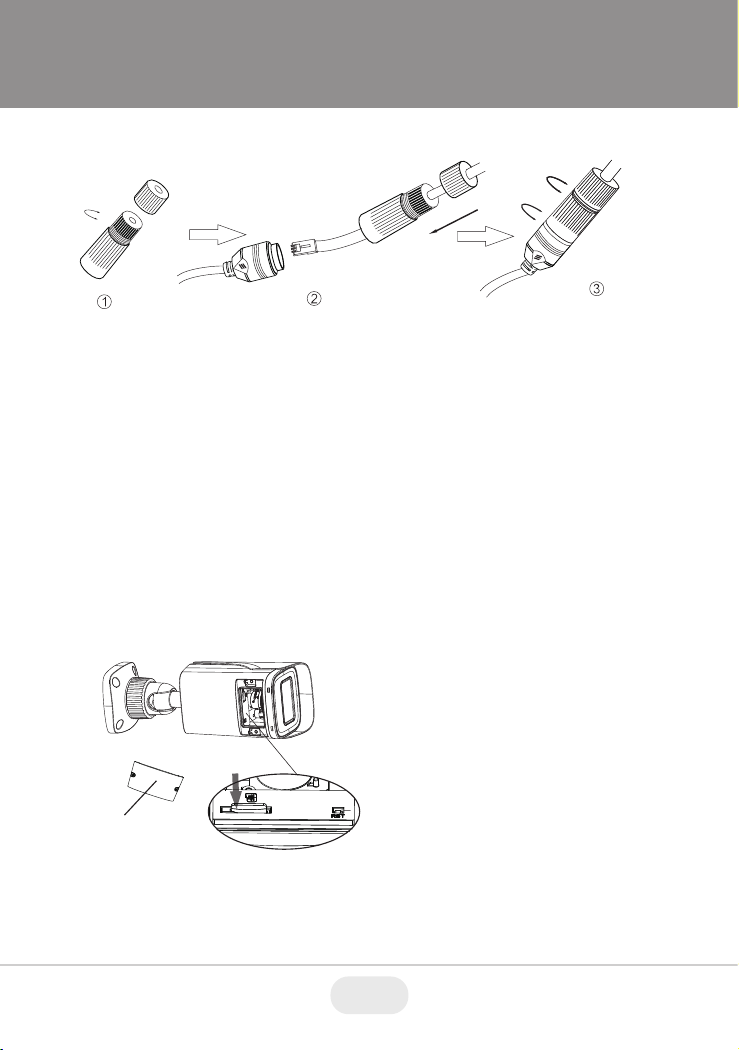

1. Loosen the nut from the Weather Resistant Network Coupler,

2. Run ethernet cable through coupler, then attach a RJ-45 connector.

3. Tighten the nut and coupler for a weather resistant seal.

Insert a MicroSD

Card

Cover

4 5

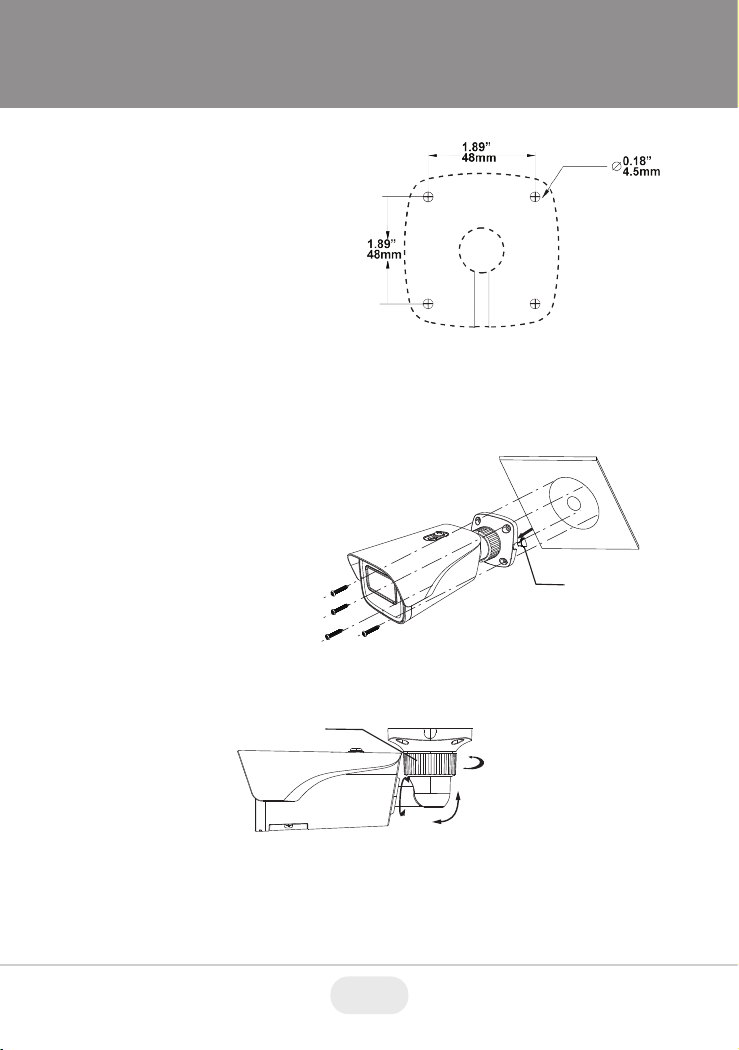

1. Attach the drill template to

the place where you want to

install the camera, then drill

3 screw holes and 1 cable

hole (if routing the cables

through the mounting base)

according to the drill

template

2. Route the cables and connect the power & video cables, use the

rubber plug to fill the gap of the mounting base, then secure the

mounting base to the ceiling or wall with screws.

Rubber plug

3. Loosen the locking ring to adjust the pan and tilt, then tighten the

locking ring to secure the viewing angle adjustments.

4. Carefully remove the protective film from the lens to complete the

installation.

90° Tilt

360° Rotation

360° Pan

Locking Ring

LAN Configuration

The camera can be accessed on the local network either using the

IP-Tool or directly in a web browser.

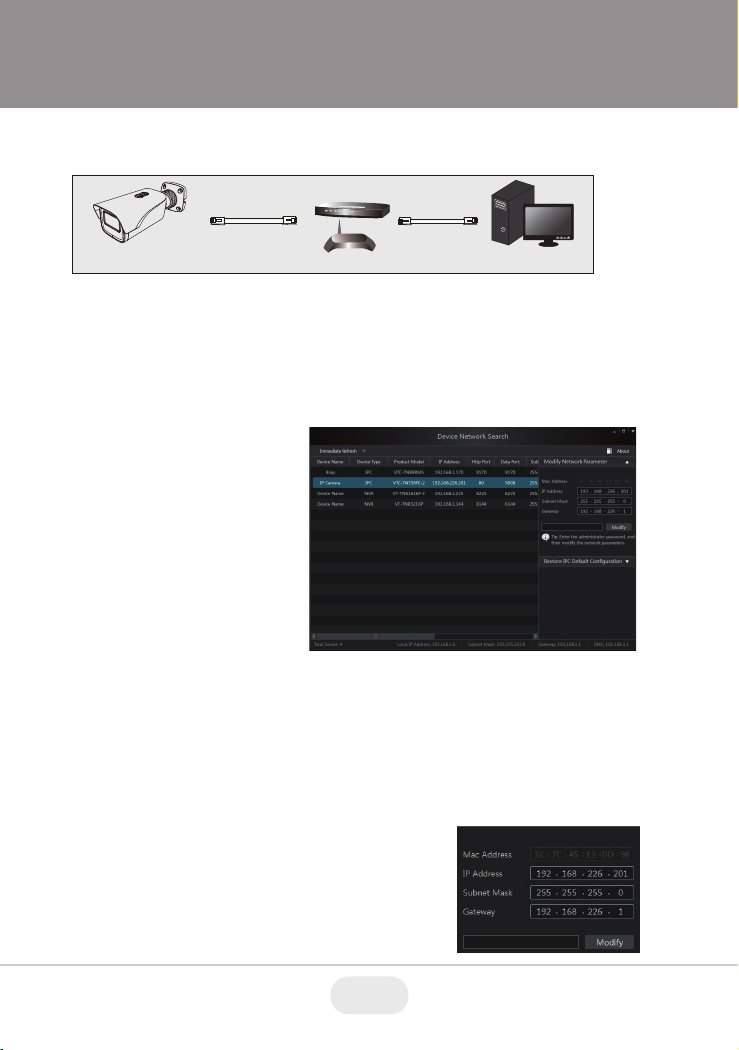

Accessing the Camera Using the IP-Tool

1. Make sure the camera and PC are connected to the LAN.

2. Locate the IP-Tool installer at www.

vitekcctv.com/Downloads/Soft-

ware/Transcendent-IPTool_v2.0.2.zip

, then install on the PC. Open

the installed application.

3. Modify the IP address. The default IP address is 192.168.226.201.

Click the information of the camera listed in the above table to show

the network information on the right side. Modify the IP address and

gateway of the camera and make sure its network address is in the

same local network segment as the computer’s. Please modify the

IP address of your device according to the practical situation.

For example, the IP address of your computer

is 192.168.13.4. So the IP address of the

camera shall be changed to 192.168.13.X.

After modification, please input the password

of the administrator and click “Modify” button

to modify the setting.

** Default admin password: “123456".

IP Camera

Switch

Rout er Computer

Network Cable Network Cable

6 7

4. Double-click the IP address and then the system will pop up the web

browser to connect IP-CAM . IE browser will download the Active X

control. After downloading, a login window will pop up as shown

below:

Input the user name and password to log in.

Default user name: admin / Default password: 123456.

Directly Access Through a Web Browser

The default network settings are as shown below:

IP address: 192.168.226.201 HTTP: 80

Subnet Mask: 255.255.255.0 Data Port: 9008

Gateway: 192.168.226.1

You may use the above default settings when you log in the camera for

the first time.

1. Manually set the IP address of the PC. The network segment should

be the same as the default settings of IP-CAM. Open the network

and share center. Click “Local Area Connection” to pop up the

following window.

Select “Properties” and then select Internet protocol according to the

actual situation (for example: IPV4). Next, click “Properties” button to

set the network of the PC.

2. Open the IE Browser and input the default address of IP-CAM and

confirm. The IE browser will download Active X control.

3. After downloading Active X control, the login dialog box will pop up.

4. Input the default username and password and then enter to view.

WAN Configuration

Access the camera by the router or virtual server for example.

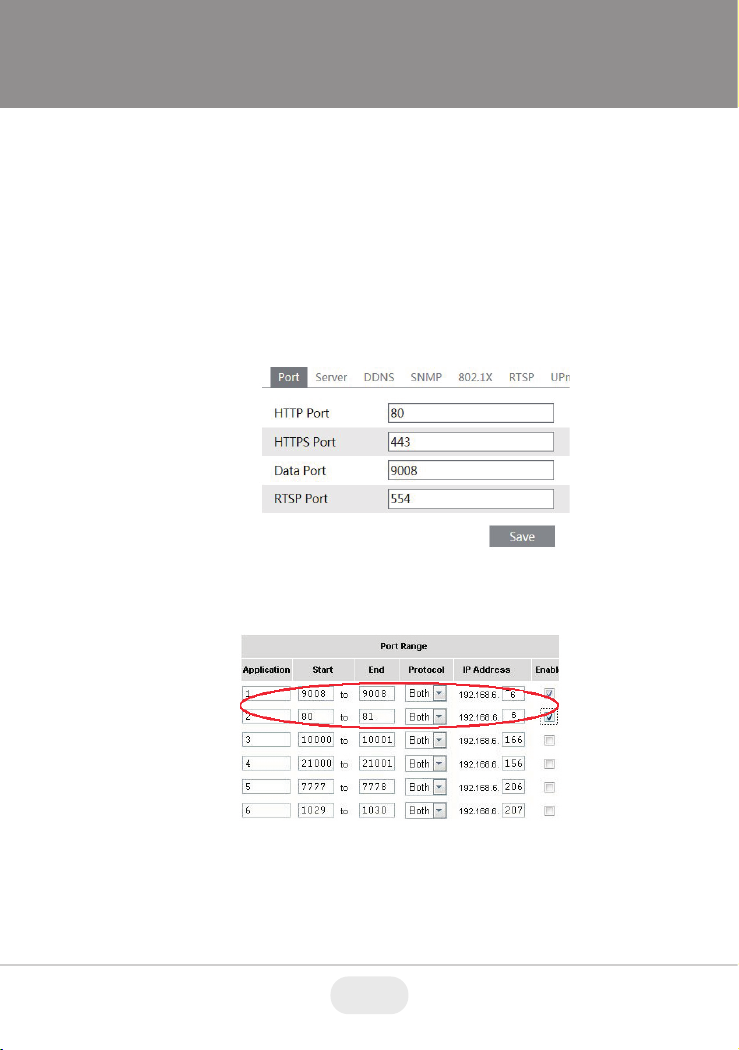

1. Make sure the camera is connected to the LAN; Then log into the

camera via LAN and go to System Congfig→Network Config→Port

menu to set up the port number.

2. Enter System Config→Network Config→IP Address menu to modify

the IP address.

4. Open the web browser and input its WAN IP and HTTP port to

access the IP-CAM.

3. Go to the router’s management interface through IE browser to

forward the IP address and port of IP-CAM in the “Virtual Server”.

5. For additional setup, features and functions, please scan the

QR code on the front page of this quick guide and download

the complete manual.

8 9

Image Sensor

Image Size

Resolution

Min. Illumination

Electronic Shutter

Lens

IR LEDs (Range)

Video Compression

Audio Compression

Main-Stream

Sub, Third Stream

Bit Rate / Type

Wide Dynamic Range

Digital Noise Reduction

Other Features

NDAA Compliant

Image Setting

Analytics

Smart Alarm

General Functions

Region of Interest (ROI)

Hardware Reset

Analog Video Output

Audio

Local Storage

Remote Viewing

Supported Browsers

Connection Protocol

Weather Resistance

Power Input

Power Consump 12VDC, PoE

Working Environment

Weight Net(Shipping), Dimensions(L×W×H)

1/2.7” 5.0 Megapixel CMOS Image Sensor

5 MegaPixel (2880 × 1620)

Up to 20fps@5MP (2880 × 1620), Up to 30fps@4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, 480× 240, CIF

0.007 lux @F1.6, AGC ON; 0 lux with IR

1 s ~ 1 / 100000 s

2.8~12mm Motorized Varifocal @F1.4, FoV H: 100°~36.5°, FoV V: 52°~20.5°, FoV Diag: 116 °~41°

2 Matrix Style IRs (up to 165’)

H.265+ / H. 265 / H.264+ / H.264 / MJPEG

G.711A / G.711U

5MP(1~20fps)/4MP/3MP/1080P/720P(1~30fps)

720P/D1/ CIF (1~30fps), 60Hz: D1/480× 240/CIF (1~30fps)

64 Kbps ~ 8 Mbps / VBR + CBR

120dB WDR

3D-DNR

Back Light Compensation, Highlight Compensation

Yes

ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR

Region Intrusion, Abandoned Object, Scene Change, Line Crossing, Video Blur, Video Color Cast Detection

Motion Detection, SD Card Error, SD Card Full

Watermark, IP Filter, Video Mask, Illegal Login Lock

Each ROI to be configured separately

Yes

1 Ch. Audio In + Built-in Mic*

Built-in Micro SD card slot up to 256GB

CMS / Web Browswer / iOS & Android Apps

IE (plug-in required) / Google Chrome / Edge / Firefox / Safari

ONVIF

IP67

12VDC / PoE

350mA (LEDs Off) / 800mA (LEDs On), <9W

-22°~140°F (-30°C ~ 60°C) / < 95% Humidity

25.75oz / 1.61lb / 730g (31.75oz / 1.98lb / 900g) 8.68×3.15×2.78” [220.5 × 80.1 × 70.5mm]

VTC-TNB5RMEA Detailed Specifications

*Please research local, state and federal laws regarding the implementation of audio

surveillance.

VT-TPLMT

Transcendent Universal

Pole Mount (reqs. VT-TJB08)

VT-TCNMT

Transcendent Universal

Corner Mount (reqs. VT-TJB08)

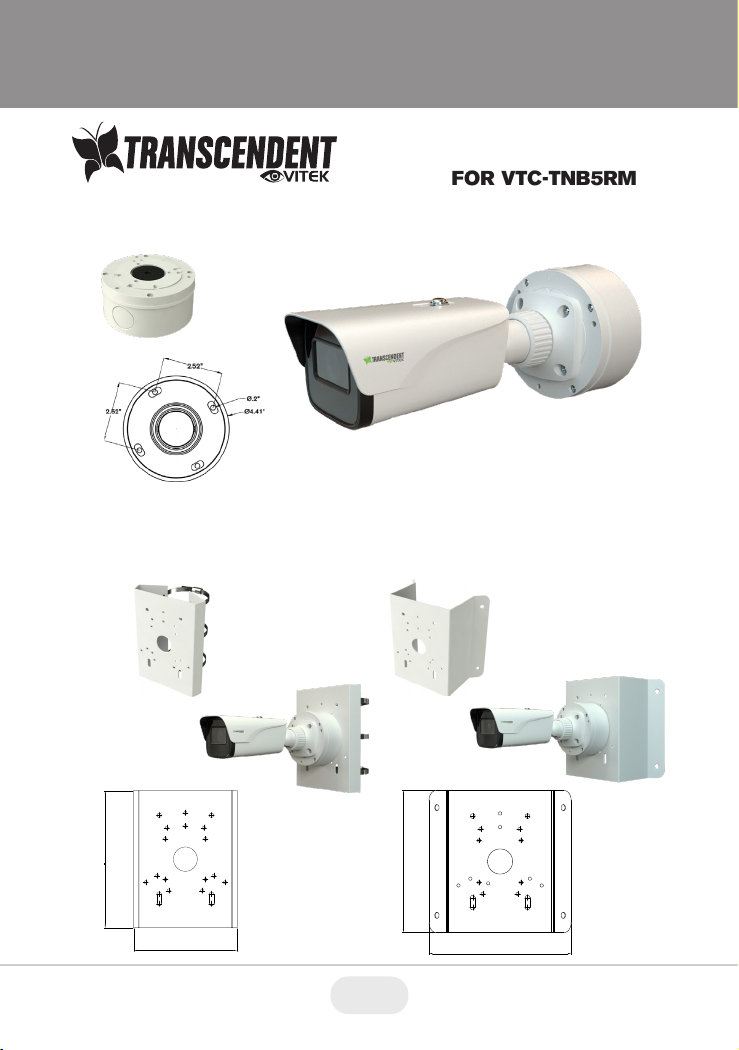

OPTIONAL ACCESSORIES

AND RELATED PRODUCTS

FOR VTC-TNB5RMEA

VT-TJB08

Optional Junction Box

8.46”

6.43”

8.46”

8.47”

10 11

OPTIONAL ACCESSORIES AND
