Vitek Mighty Series Manual de usuario

BLACK

VITEK

Mighty Series

WDR Dome

Cameras

700 TVL Pixim-Powered

WDR Dome Cameras

• Pixim D8800C Seawolf Digital Imaging System CMOS

• 700 TVL High Resolution

• WDR - Wide Dynamic Range

• 3DNR - Three Dimensional Noise Reduction

• Secondary Video Output (Cable Included)

• OSD (On Screen Display) for Camera Function Setup

• Flush or Surface Mount

• Infinity Ball Mount for Any Viewing Angle

• UTP interface and Heater / Blower Options Available

• UTC Control - Serial Control over Coax

• ¾” Conduit Knockouts

• Indoor and Vandal/Water Resistant IP 686 Rated Models

• Optional Extreme Cold (-60°F) Temperature Kit available

• Available in Ivory or Black

• Dual Voltage 12VDC & 24VAC

VITEK

TABLE OF CONTENTS

BOX CONTENTS

MOUNTING ACCESSORIES

AVAILABLE MODELS/ACCESSORIES

MIGHTY DOME LAYOUT

INSTALLATION

JUNCTION BOX INSTALLATION

OPEN GIMBAL COVER

CONNECTIONS

LENS ADJUSTMENT

INFINITE AXIS GIMBAL ADJUSTMENT

WDR MIGHTY DOME FEATURES

OSD MENU FEATURES/SETUP

1. In the menu

2. Entering Menu

3. MAIN

4. EXPOSURE

5. DAY/NIGHT

6. 3D NR

7. DC LENS or MANUAL LENS

8. PICTURE CONTROL

9. SPECIAL

10. MOTION

11. PRIVACY AREA

12. RS 485 CONTROL

13. D-EFFECT

14. EXIT

DIMENSIONS

HEATER/BLOWER SPECIFICATIONS

INDOOR MIGHTY DOME SPECIFICATIONS

VANDAL MIGHTY DOME SPECIFICATIONS

WARRANTY

VITEK

BOX CONTENTS

INCLUDED ACCESSORIES

1) Dome Camera

2) Accessories

3) VT-MD-2VOC (Secondary Video Output Cable)

4) Instruction Manual & Mounting Template

Torx Wrench - (Vandal & IR Versions Only)

Type #: T20

Length: 63mm / Diameter: 4mm

Qty: 1

Phillips head Screws - (Vandal & IR Versions Only)

For attaching the dome cover to the flush housing.

Type #: Phillips head M4x10

Length: 10mm / Diameter: 4mm

Qty: 4

Self Tapping Screws

For attaching the surface mount housing or the the flush mount base

to a solid surface.

Type #: Phillips St4x30

Length: 30mm / Diameter: 4mm

Qty:4

Self Tapping Screws - (Indoor Version Only)

For attaching the dome cover to the flush housing.

Type #: Phillips St4x12

Length: 12mm / Diameter: 4mm

Qty: 4

Dowels

If necessary, use the to help secure the self tapping screws.

Length: 30mm / Diameter: 7mm

Qty: 4

Secondary Video Output Cable for Mighty Domes:

VT-MD-2VOC

For viewing video image during installation.

Qty: 1

Mounting Template

Qty: 1

Mounting Template

Surface Mount

109.0

70.0

black

AVAILABLE MODELS / ACCESSORIES

Indoor MIghty doMe ConfIguratIons:

VTD-MP2810WDR: Indoor Wide Dynamic Range Color Dome Camera with

2.8-10mm Varifocal Lens & 700TVL

VTD-MP922WDR: Indoor Wide Dynamic Range Color Dome Camera with

9-22mm Varifocal Lens & 700TVL

VTD-MP1850WDR: Indoor Wide Dynamic Range Color Dome Camera with

18-50mm Varifocal Lens & 700TVL

Vandal resIstant MIghty doMe ConfIguratIons:

VTD-MVP2810WDR: Vandal Resistant Wide Dynamic Range Color Dome

Camera with 2.8-10mm Varifocal Lens & 700TVL

VTD-MVP922WDR: Vandal Resistant Wide Dynamic Range Color Dome

Camera with 9-22mm Varifocal Lens & 700TVL

VTD-MVP1850WDR: Vandal Resistant Color Dome Camera with 18-50mm

Varifocal Lens & 700TVL

optIonal Mounts & aCCessorIes:

1. Heater/Blower Option 24VAC: (Vandal Resistant Models)

2. UTP Option: Unshielded Twisted Pair Transceiver Built-In

3. VT-MD/FMP: Flush Mount Plate for installation in drop ceilings or can be used

as cover plate when using 4S Junction Box

4. VT-MD/PLMT: Mighty Dome Pole Mount Adapter - Requires VT-MD/WMT

Wall Mount

5. VT-MD/CMT: Mighty Dome Ceiling/Pedestal Mount (Can be extended if

necessary)

6. VT-MD/CNMT: Mighty Dome Corner Mount Adapter - Requires

VT-MD/WMT Wall Mount

7. VT-MD/WMT: Mighty Dome Wall Mount (Available In Ivory or Black)

1. 2. 3. 4. 5. 6. 7.

MIGHTY DOME LAYOUT

1) Lens

2) Power Input Connector(12VDC /

24VAC)

3) Video Output Connector - BNC

4) Camera Holder and 2nd Video

output

5) Ball with the Camera Assembly

6) Safety Wire

7) Bubble

8) Dome Cover Ring

9) Flush Mount Base

10) Surface Mount Plate

11) Assembly Screws - Torx M4x9

(Vandalproof)

12) Assembly Screws - Phillips

ST4x12 (Indoor) / Phillips M4x10

(Vandalproof / IR)

13) Mounting Screws - Phillips ST4x30

BLACK

INSTALLATION

1) Dome Cover

1.1 Vandal Proof Domes - Use the provided Torx wrench to unscrew the vandal

proof screws and remove the dome cover.

1.2 Indoor Domes - Turn the dome cover to the left to remove the dome cover.

2) Flush Mount Installation:

Using four St4x30 screws, attach the flush mount base to a sturdy surface.

Optional flush mount decorator plate. Model: VT-MD-FMP

3) Surface Mount Installation:

Drill pilot holes at the mounting location using the provided mounting template.

Using four St4x30 screws, mount the surface mount housing to a sturdy

surface. Using four ST4x12 (Indoor) screws or M4x10 (Vandal-proof) screws,

attach the flush mount base to the surface mount housing.

JUNCTION BOX INSTALLATION

Mighty Domes can easily be flush or surface mounted to an electrical junction

box (4S J-Box) using the pre-drilled mounting holes on either the surface mount

housing or the the flush mount base.

BLACK

OPEN GIMBAL COVER

To adjust the zoom and the focus, the gimbal needs to be removed temporarily

from its base.

1) Remove the ball gimbal from its socket, and hold the base firmly with one hand.

2) Gently squeeze Point A and B and pull away from the base until the gimbal is

removed from the base.

3) Replace the Gimbal cover by aligning the cover to the base and pressing down

until it snaps back onto the base.

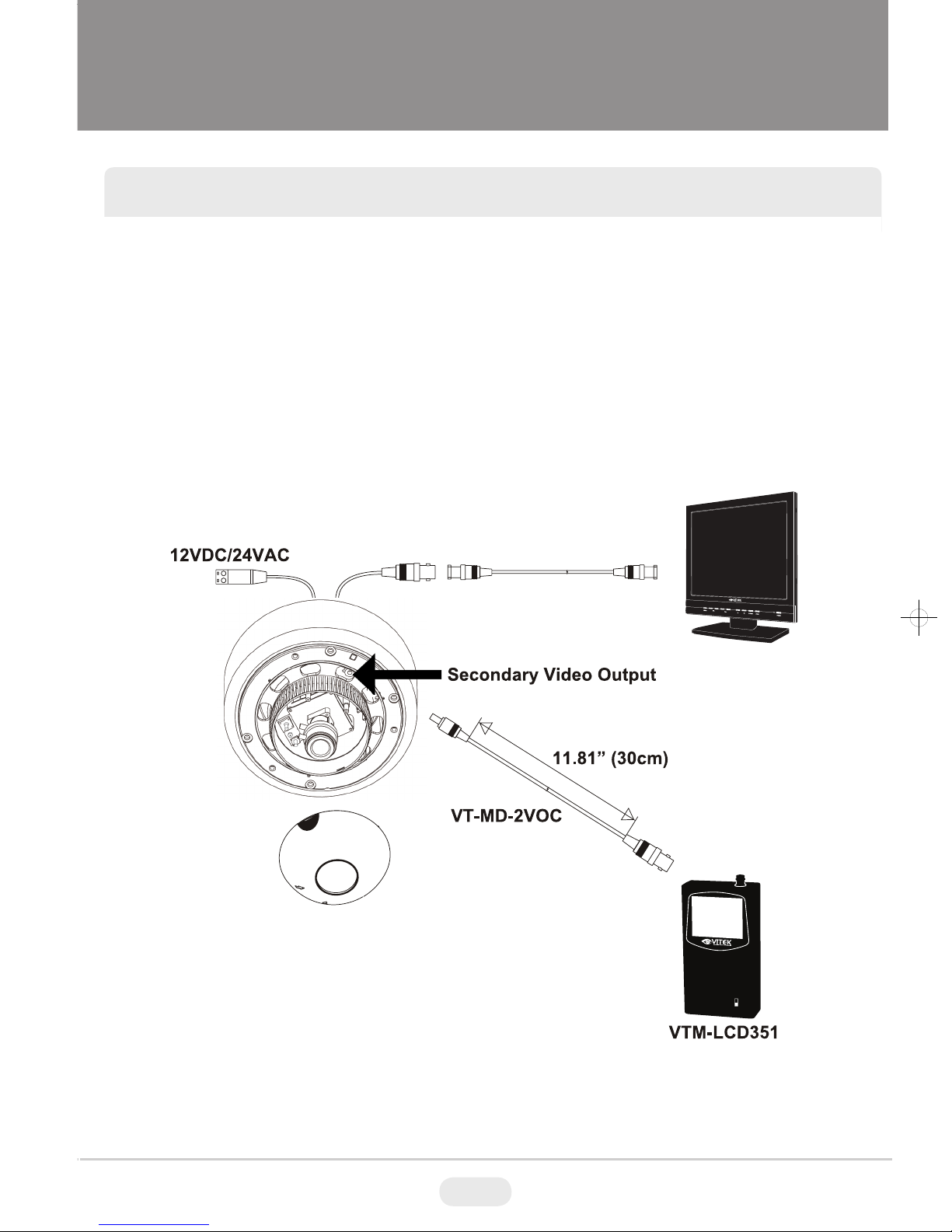

CONNECTIONS

• Power connection: 12VDC or 24VAC dual input.

• All Mighty Dome cameras come standard with a secondary video output. The

secondary video cable (VT-MD-2VOC) is included in the box.

VTM-LCD

BLACKBLACK

LENS ADJUSTMENT

1) Remove the Gimbal cover from the Gimbal base.

2) Loosen Zoom & Focus screws and make necessary adjustments as shown.

Field of view: Telephoto(T) to Wide(W)

Focus: Near(N) to infinity( )

3) OSD Joystick Control

4) Reattach the gimbal cover to the gimbal base.

OSD Joystick

Control
