Vicon V960-N Series Manual de instrucciones

Quick User Guide V960-N Series Network Camera

Warning before installation

-Power off the Network camera if it is found to be smoking or smells unusual.

-Keep the Network camera away from water. If the Network camera gets wet, power

off immediately.

-Do not place the Network camera near heat sources, such as a television or oven.

-Refer to your instruction manual for the operating temperature.

-Keep the Network camera away from direct sunlight.

-Do not place the Network camera in high humidity environments.

-Do not place the Network camera on unsteady surfaces.

-Do not touch the Network camera when there is lightning present.

-Do not disassemble the Network camera.

-Do not drop the Network camera.

-Do not insert any object into the Network camera, such as a screwdriver.

For other safety and regulation information, please refer to User’s manual.

1. Check Contents

No.

Item

Description

Network Camera

V960-N Series (V960-N, V961-N, V962-N)

Software CD

User’s Manual, Utility software

Quick User Guide

This document

Accessories

Mounting bracket

Screws for mounting bracket

C-mount adapter ring

DC jack adapter

Dust protection cap

Terminal block connector

Allen wrench

2. Physical Description

Rear View

1. Alarm In/Out, Audio In/Out (use terminal block connector)

2. Video Out

3. Micro SD card (SDHC supported)

Quick User Guide V960-N Series Network Camera

4. Network (RJ-45 PoE supported)

5. Reset Button

6. Power (DC12V / AC24V)

7. Status LED

8. DC Iris

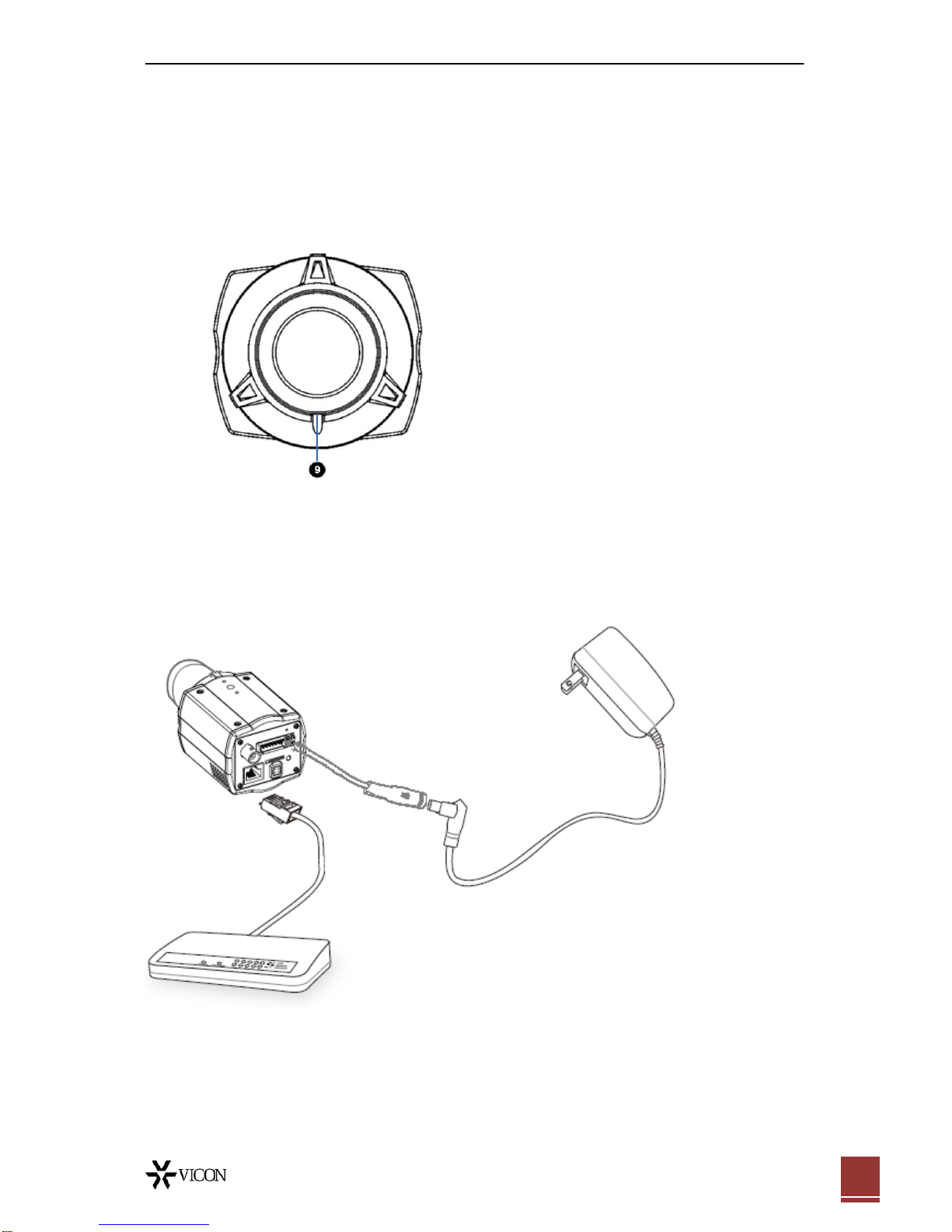

Front View

9. Flange back locking screw

3. Making Connection

1. If you have external devices such

as sensor or alarms, make connection

from terminal block connector.

2. Connect Ethernet cable to make connection

to the network hub.

3. Connect power cable to the camera.

When you use PoE function, you don’t

need to connect power.

Quick User Guide V960-N Series Network Camera

4. Assign IP Address

Default setting is set to “DHCP” and “UPnP” function is set to ON. If your network

has a DHCP server and the UPnP function is enabled on your PC, you can find the

camera in “My Network”. Refer to the Multi Upgrade Tool manual for detailed

instructions.

Execute the Multi Upgrade Tool (from the Installation CD); it will search cameras on

the network automatically.

1) After the list of detected devices appears, select the camera you are trying to

configure.

2) Select the Network type as Static or DHCP. If Static is selected, enter all of the

network information for your camera.

3) Select the “Change IP Address” button. The message “Do you want to change IP

address?” will display; select “Yes” from the pop-up window.

4) Check the Type as Static or DHCP from the list.

Then double click the camera in the list; Internet Explorer® will open

automatically.

Quick User Guide V960-N Series Network Camera

5. Web Browser Connection

Note : The Network camera supports Internet Explorer® 7 or above.

Please check version of your browser and update it if necessary.

When you first access the camera you need to download and install an

Active X control from the camera to display a Live image.

Default User and Password are set to “ADMIN” and “1234”. Please type in

the user ID and password to connect the network camera.

Note: By Default the cameras come with “Installation Mode” set to “ON” to

enable Analog output. Additionally, all installation setup must be done prior to

the camera being used with a VMS, including ViconNet; the VMS forces the

Installation Mode to OFF. You must turn installation mode off to use 720p or

1080p streaming.

For further information for setup, refer to User’s manual on the software CD.
