Vicon V661V-Series Instrucciones de funcionamiento

www.vicon-security.com

Installation and Operation Guide

XX236-00-01

V661V-Series Vandal-Proof

Day/Night Analog Camera Dome

Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the

operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed

to be used in life-critical situations and must not be used for this purpose.

Vicon Industries Inc., 89 Arkay Drive, Hauppauge, New York 11788

Tel: 631-952-2288 Fax: 631-951-2288 Toll Free: 800-645-9116

24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300

Document Number: 8009-8236-00-01

Product specications subject to change without notice.

Issued: 0911

- ii -

WARNING

CAUTION

CAUTIONCAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER(OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

EXPLANATION OF GRAPHICAL SYMBOLS

The lightning flash with arrowhead symbol, within an equilateral triangle, is

intended to alert the user to the presence of uninsulated "dangerous voltage"

within the product's enclosure that may be of sufficient magnitude to constitute a

risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to

the presence of important operating and maintenance (servicing) instructions in the

literature accompanying the product.

Should any liquid or solid object fall into the cabinet,

unplug the unit and have it checked by the qualified

personnel before operating it any further.

Unplug the unit from the wall oulet if it is not going to

be used for several days or more. To disconnect the

cord, pull it out by the plug. Never pull the cord itself.

Allow adequate air circulation to prevent internal heat

build-up. Do not place the unit on surfaces (rugs,

blankets, etc.) or near materials(curtains, draperies)

that may block the ventilation holes.

Height and vertical linearity controls located at the

rear panel are for special adjustments by qualified

personnel only.

Do not install the unit in an extremely hot or

humid place or in a place subject to excessive

dust, mechanical vibration.

Clean the unit with a slightly damp soft cloth.

Use a mild household detergent. Never use

strong solvents such as thinner or benzine as

they might damage the finish of the unit.

Retain the original carton and packing

materials for safe transport of this unit in the

future.

Safety ----------------------------------------- Installation -----------------------------------

Cleaning --------------------------------------

PRECAUTIONS

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR

MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR

OTHER OPENINGS ON THE EQUIPMENT.

- iii -

FCC INFORMATION : THIS EQUIPMENT HAS BEEN TESTED

AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL

DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE

LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION

AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS

OPERATED IN A COMMERCIAL ENVIRONMENT. THIS EQUIPMENT

GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY

ENERGY AND IF NOT INSTALLED AND USED IN ACCORDANCE WITH

THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL INTERFERENCE

TO RADIO COMMUNICATIONS. OPERATION OF THIS EQUIPMENT IN

A RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL

INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO

CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

CAUTION : CHANGES OR MODIFICATIONS NOT EXPRESSLY

APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE

COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

THIS CLASS A DIGITAL APPARATUS COMPLIES WITH CANADIAN

ICES-003.

NORME NMB-003 DU CANADA.

WARNING

THIS IS A CLASS A PRODUCT. IN A DOMESTIC ENVIRONMENT THIS

PRODUCT MAY CAUSE RADIO INTERFERENCE IN WHICH CASE

THE USER MAY BE REQUIRED TO TAKE ADEQUATE MEASURES.

CE COMPLIANCE STATEMENT

FCC COMPLIANCE STATEMENT

- iv -

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4 . Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the

manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type

plug. A polarized plug has two blades with one wider than the other.

A grounding type plug has two blades and a third grounding prong.

The wide blade or the third prong are provided for your safety. If the

provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10.Protect the power cord from being walked on or pinched particularly

at plugs, convenience receptacles, and the point where they exit from

the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

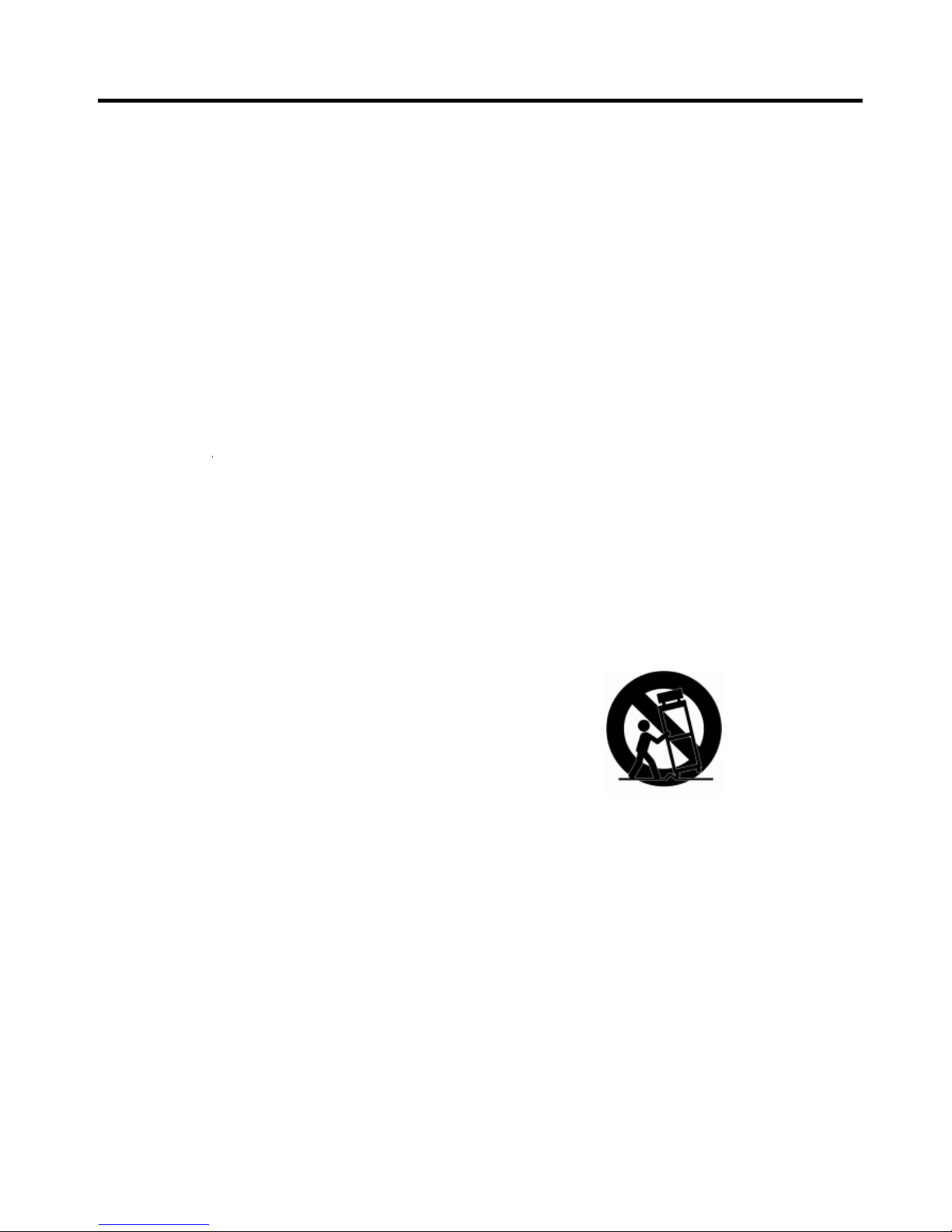

12. Use only with the cart, stand, tripod, bracket,

or table specified by the manufacturer,

or sold with the apparatus.

When a cart is used,use caution when moving

the cart/apparatus combination to avoid injury

from tip-over.

13. Unplug this apparatus during lightning storms or when unused for

long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is

required when the apparatus has been damaged in any way, such as

power-supply cord or plug is damaged, liquid has been moisture, does

not operate normally, or has been dropped.

15. CAUTION THESE SERVICING INSTRUCTIONS ARE FOR USE BY

QUALIFIED SERVICE PERSONNEL ONLY. TO REDUCE THE RISK

OF ELECTRIC SHOCK DO NOT PERFORM ANY SERVICING OTHER

THAN THAT CONTAINED IN THE OPERATING INSTRUCTIONS

UNLESS YOU QRE QUALIFIED TO DO SO.

16. Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed

Class 2 power source only.

IMPORTANT SAFETY INSTRUCTIONS

The camera provides high-quality images using Sony CCD technology especially

applications.

designed for closed-circuit television (CCTV) and security surveillance

Features:

INTRODUCTION

TM Technology

High resolution and high performance Sony Super HAD

Excellent picture quality

600 lines(Color) of resolution

0.1 lux(Color), 0.04lux(B/W) @ F1.2 50IRE Sensitivity

Auto electronic shutter [1/60(1/50) ~ 1/100,000] and manual electronic

shutter modes

OSD (On Screen Display)

Auto and manual white balance modes

DWDR

OSD Font Color ( 16 Color)

BLC (Back Light Compensation)

Day&Night (Auto / DAY / NIGHT / EXT)

Private Mask (8 position, 16 Colors)

AGC (Auto Gain Control)

MIRROR (ON/OFF)

VIDEO OUT BNC

Motion Detection(4 point)

HLC (High Light Compensation)

DPC (Dead Pixel Cancellation)

2.8~12

~22

Operates in AC24V +/- 10% / DC12V +/- 10%

Use Certified / Listed Class 2 power source only

Test monitor Output

mm A/I Varifocal Lens F1.2

9 mm A/I Varifocal Lens F1.4

IMPORTANT : The user of this camera is responsible for

checking and complying with local, state, and federal laws

and statutes concerning the recording and monitoring of

audio signals.

(D&N Lens option)

CAMERA CONNECTIONS

2 3

REMINDER:

Never aim the camera directly into the sun.

1. Lens : 2.8~12mm or 9~22mm A/I Vari-focal lens for wide area monitoring.

2. Power : 24V AC input / 12V DC input

power source from a DC 12V or AC 24V ac +/-10% 60/50Hz +/-1Hz

Use Certified/Listed Class 2 power source only.

*If using DC 12V power adaptor,

use a power supply capable of supplying 5 Watts.

3. Video : BNC connector used to connect the camera to a monitor, switcher, etc.

(D&N with ICR model option)

INSTALLATION

Figure 1

Torx screws

M5x10 (4x)

Figure 2

Seal around

the housing

base tightly using

the silicon rubber

Drilling

Guide Label

1. Loosen the four Torx screws located midway up the front of the housing.

Leave the screws intact.(Fig. 1)

2. Drill the mounting location using the supplied drill guide label. (Fig. 3)

3. Attach the housing to the ceiling using suitable fasteners, M6x35 tapping screws are

supplied. Only use if they are suitable. (Fig. 3)

4. Reattach the housing and tighten the Torx screws. (Fig. 2)

CEILING / WALL

Plastic Anchor(4x)

Rubber Washers(4x)

Mounting Screw

M6X35(4x)

Figure 3

The housing can also

be mounted on a 4 x 4 or 4 x 2

electrical box.

MOUNTING HOUSING TO

AN ELECTRICAL BACK BOX

Electrical box

Rubber

Washers(4x)

- Video out check-

Test Monitor

Joystick Switch Board

SPOT VI EO D

CN2

R GI HT

LEFT

DOWN

0.1 in. (3.0mm thick),

impact-resistant P.C(LEXAN)

3.9in (9.9cm)diameter

Unit: mm (inches)

1.89 Ib (0.86Kg)

2.33 Ib (1.06Kg)

115 (4.3)

59 (2.3)

56.4 (2.2)

146.4 (5.7)

R49.5 (1.9)

17.5 (0.6)

THE DEFINITION OF TERMS

White Balance

Compensates for deviations in the white color caused by changes in the color

temperature of the light source so that the colors are reproduced correctly.

Exposure

Adjusts the images to the optimum brightness.

SHUTTER (Electronic Shutter)

Controls the integration time (exposure) of the photodiode array and reduces blooming,

overexposure, and smear when capturing moving objects.

Flicker (FLC)

Avoids image flicker when there is a discrepancy between current and frequency

AGC (Automatic Gain Control)

Automatically adjusts (boosts) the video signal to the required level to produce a quality

image in low light situations

Back Light Compensation (BLC)

Compensates for the brightness of the subjects with a large amount of background light

that would make it practically impossible to see any details of the subjects. Adjusts the

iris so that a distinctive subject and the background are delivered at the same time.

HLC (High Light Compensation)

When a high-brightness subject is shot, it may not be brought into focus because of the

large surface area over which the high-brightness pixels are spread.

In cases like this, the high-brightness subject can be brought into focus by using this

function.

LENS SHAD. (Lens Shading)

This function is the make brighter image of corner of screen.

Mask

Hides one or more areas that the user does not want to be displayed on screen.

Masks can be set with their own display area, color, darkness and mosaic processing.

Detection

Detects motion within the scene using one of the available methods.

Some methods trigger the Alarm output.

Sharpness

Reducing this parameter adjusts the noise level to smooth out the "noise" caused by

the compression.

Caution should be taken not to reduce it too much, which may result in a blurred image.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara de seguridad de Vicon

Vicon

Vicon V960-N Series Manual de instrucciones

Vicon

Vicon Cruiser SN663V-A Manual de usuario

Vicon

Vicon Roughneck Pro V2000D Series Manual de usuario

Vicon

Vicon V2008-WNL-LPR Manual de usuario

Vicon

Vicon S2000-MSH-HHB Surveyor 2000 Manual de usuario

Vicon

Vicon IX 2000 L Manual de usuario

Vicon

Vicon SN688D-WIR Manual de usuario

Vicon

Vicon SurveyorVFT SVFT-M Manual de usuario

Vicon

Vicon V920B Series Manual de usuario

Vicon

Vicon V3FCD SERIES Manual de usuario

Vicon

Vicon CE202D-N Manual de usuario

Vicon

Vicon XX075-10 Manual de usuario

Vicon

Vicon roughneck V900 Manual de usuario

Vicon

Vicon VC-600W Manual de usuario

Vicon

Vicon V992E Manual de usuario

Vicon

Vicon Surveyor MKII PTZ SV36W Manual de usuario

Vicon

Vicon SurveyorVF SVFT-M Manual de usuario

Vicon

Vicon Roughneck AI V2008B-W310LPR Manual de usuario

Vicon

Vicon VC-600 Series Manual de usuario

Vicon

Vicon VC367DSP Manual de usuario

Vicon

Vicon V960D Series Manual de usuario

Vicon

Vicon VN-755IP Manual de usuario

Vicon

Vicon XX235-01-01 Instrucciones de funcionamiento

Vicon

Vicon V962B-IR922M Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario

Lumens

Lumens VC-A50PNW Manual de usuario
