Vello FreeWave Flash Trigger LR Manual de usuario

FREEWAVE

FLASH TRIGGER LR

USER MANUAL

Multiple triggering modes enable you to ﬁre

all channels simultaneously or separate your

receivers into separate channels. With a 1/250

sec. sync speed, the Vello FreeWave Flash

Trigger LR’s transmitter and receiver are easy

to set up and use. The wireless capabilities

and embedded antenna eliminate clutter,

and the transmitter’s ability to tilt makes it

very compact while being used on-camera.

INTRODUCTION

Thank you for choosing Vello.

The Vello FreeWave Flash Trigger LR is an

8-channel, extended range wireless ﬂash

trigger with digital circuitry. This device

uses a powerful 2.4 GHz radio signal,

maximizing your photographic potential

by extending the signal strength.

With an extended range of up to 600 ft.

(183 meters), you can use the Vello

FreeWave Flash Trigger LR conﬁdently in

nearly all photography settings. The wireless

signal empowers you to trigger your hot

shoe or studio ﬂash units without a line-

of-sight view, making it easier to set up

wireless connections separated by a barrier.

RFW-LR

RFW-LR-R

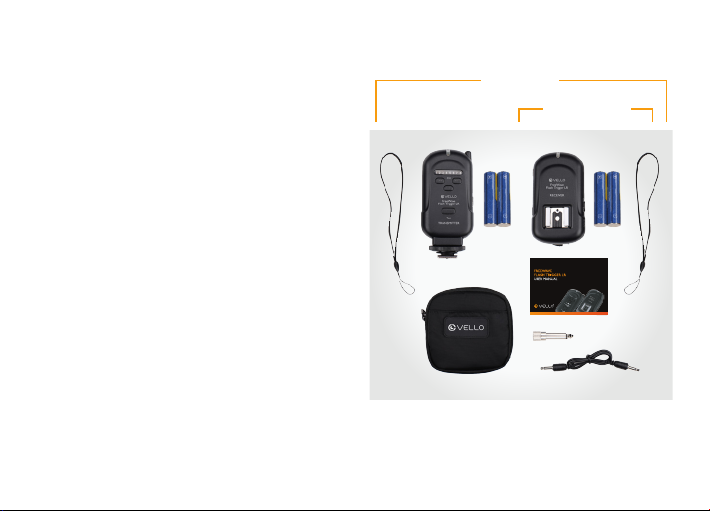

BOX CONTENTS

RFW-LR

• Transmitter

• Receiver

• 4x AA batteries

• 3.5 to 3.5 mm

sync cable

• 3.5 mm to 1/4"

monoplug adapter

• 2x lanyards

• Pouch Case

• User manual

RFW-LR-R

• Receiver

• 2x AA batteries

• 3.5 to 3.5 mm

sync cable

• 3.5 mm to 1/4"

monoplug adapter

• 1x lanyard

• User manual

FEATURES

Extended Range: Up to 600 feet (183 m)

Powerful 2.4 GHz signal: Reduced

interference and improved wireless signal

strength

8 digital channels: Avoids interference

from other wireless remote controls

All trigger mode: Can re all channels

at once

Low-prole construction: Tilting

joint reduces transmitter’s on-camera

presence

Hot shoe and studio ash use:

Compatible with most ashes

Internal antenna: Embedded antenna

reduces unit size

Compatible with the Vello Captain

TTL transmitter Ch. 1-4: Receiver

can be triggered via Vello Captain TTL

Transmitter

COMPATIBLE DEVICES

The Vello FreeWave Flash Trigger LR

transmitter and receiver is compatible with

most hot-shoe and lights, studio lights. The

Vello FreeWave Flash Trigger LR does not

transmit through-the-lens (TTL) settings;

therefore, we recommend using a fully

manually controlled hot-shoe ﬂash with

this device. The power output must always

be set manually. Most ﬂashes that can be

operated manually are compatible, except

Pentax, Sony/Minolta, and Sony Multi-

Interface ﬂashes. The Vello Flash Trigger LR

Receiver is also compatible with the Vello

Captain TTL transmitter channels 1-4.

PRECAUTIONS

• Please read and follow these instructions

and keep this manual in a safe place.

• There are no user-serviceable parts

inside the devices. Do not attempt

to disassemble or perform any

unauthorized modiﬁcation.

• Do not operate the transmitter or receiver

in the presence of ﬂammable gas or vapors.

• Do not handle with wet hands or

immerse in or expose to water or

rain. Failure to observe this precaution

could result in ﬁre or electric shock.

• Keep out of reach of children. This

device contains small parts which

may pose a choking hazard.

• Observe caution when handling batteries.

Batteries may leak or explode if improperly

handled. Use only the batteries listed

in this manual. Make certain to align

the battery with the correct polarity.

• Batteries are prone to leakage when

fully discharged. To avoid damage to

the product, be sure to remove the

batteries when leaving the product

unattended for prolonged periods

or when no charge remains.

• Handle the units with care.

• Do not use or leave the devices

in conditions of extreme heat,

severe cold, or high humidity.

• Turn o the power of the camera

and studio ﬂash before inserting

or removing the remote.

• Dispose of used batteries, packaging, and

old devices in accordance to appropriate

local environmental regulations.

• Clean the unit with a soft, dry cloth.

• Make sure the item is intact and

that there are no missing parts.

• All photos are for illustrative

purposes only.

LED conﬁrmation light

Lanyard loop

Channel indicator panel

Channel down selector button

All-channel selector button

Test button

Low-proﬁle tilt joint

Channel up selector button

Battery compartment

(on back)

On/O switch

Tightening ring

Hot-shoe foot

Internal antenna

OVERVIEW Transmitter

LED conﬁrmation light

Channel down

selector button

Channel

indicator panel

Channel up

selector button

3.5 mm ﬂash

output port

Hot-shoe

mount

Lanyard loop

On/O switch

5V input

Battery compartment

Cold-shoe mount /

1/4"-20 threaded socket 9

Receiver

INSTALLING THE BATTERIES & TURNING ON THE DEVICE

The Vello FreeWave Flash Trigger LR

transmitter and receiver each take two AA

batteries. To install the batteries, simply

remove the battery compartment door

on the back of each unit. With the door

removed, insert the batteries using the

correct polarity as displayed within the

compartment. Once secured, reinstall

the battery compartment doors.

To turn on the Vello FreeWave Flash

Trigger LR transmitter or receiver, simply

slide the on/o switch to the ‘on’ position.

Reverse this step to turn the device o.
