Universal Remote Control WR7 Manual de usuario

Page | 1

Congratulations!

With your new WR7 universal remote, you

now have the power to control your home

entertainment system with just one easy-to-use

control.

Thousands of audio and video

component codes have already been

programmed into the remote for you, making

it a breeze to set up. Be sure to install the

included batteries first. See page 6 for

instructions.

Quick Set-up

Note: Selecting the proper Component

button is a key to your success. If you have a

combination component that includes a DVD

or Blu-Ray player, use the DVD button regardless

of other functions, so that the DVD transport

controls

will work properly.

Select SAT/CABLE for

your cable box so the Menu, Guide, Info and

Exit buttons work correctly.

Set-up one component at a time, and you’ll

move quickly through your system.

STEP 1: Turn on the component you want to

activate. (Other components can be on or

off, it doesn’t matter.)

STEP 2: Point your new WR7 universal

remote toward the component and press the

appropriately labeled Component button (TV

for TV, DVD for DVD, etc.) While holding

this button down,press the numeric assigned to

your brand in the Quick Set-up Code Table(See

Page 2) and release both Component

button and the number key to save the code.

The component light will blink three times to

confirm that the code has been stored.

STEP 3:

Point the remote control at the component.

STEP 4: Press the power button. If it turns

off, it is programmed for your component. If

it does not turn off, use the Pre-Programmed

3-Digit code Method or Auto-Search

Method.

Check your work before you move to the

next component. Press the POWER [ON]

button to turn the component back on.

Next, test the VOLUME and CHANNEL

buttons (or PLAY and STOP buttons for VCR

and DVD). Repeat Steps 1-4 to activate up

to seven components.

Didn’t work for one of your components?

See other set-up options on page 9.

Page | 2

Quick Number Manufacturer/Brand

0 ROTEL

1 DENON

2 PHILIPS

3 MARANTZ

4 LUXMAN

5 INTEGRA

6 HARMAN KARDON

7 PIONEER

8 BOSE

9 LEXICON

Quick Number Manufacturer/Brand

0 SONY

1 SONY

2 SANYO

3 SONY

4 SONY

5 SONY

6 SONY

7 SONY

8 SONY

9 SONY

Quick Number Manufacturer/Brand

0 MITSUBISHI

1 HUGHES,TIVO

2 PHILIPS

3 JVC

4 SAMSUNG

5 PANASONIC

6 PHILIPS

7 TOSHIBA

8 PIONEER

9LG

Quick Number Manufacturer/Brand

0 IPORT

1 HP,SONY

2 MICROSOFT / XBOX

3 HP,SONY

4 HAUPPAUGE

5 HAUPPAUGE

6 KENSINGTON

7 BOSE

8 SONY / PS2

9DLO

Quick Number Manufacturer/Brand

0 SANYO

1 SONY

2 SAMSUNG

3LG

4 TOSHIBA

5 PANASONIC

6 PHILIPS

7 HITACHI

8 SHARP

9 VIZIO

Quick Number Manufacturer/Brand

0 INSIGNIA

1 PHILIPS

2 HITACHI

3 SAMSUNG

4 PHILIPS MAGNAVOX

5 PANASONIC

6LG

7 JVC

8 DENON

9 PIONEER

Quick Number Manufacturer/Brand

0LG

1 SCIENTIFIC ATLANTA

2 SAMSUNG

3 DIRECTV

4 ECHOSTAR

5 TOSHIBA

6 CABLEVISION

7 SAMSUNG

8GE

9 JERROLD

AUD DVD

CD SAT/CABLE

VCR

AUX

Quick Set-up Code Tables

Page | 3

Keypad Layout and

Button Functions

Allows you to turn the selected

component on and off.

Designed to send Power On/Off

commands for up to seven com-

ponents with one button press.

Designed to send

Power On/Off

commands for

up to seven com-

ponents with one

button press.

SYSTEM OFF

FAVORITE

Used to select the com-

ponent you want to

operate and signals

remote control activity.

Selects highlighted

screen options.

Selects the video

source from avail-

able components.

Returns to the previ-

ously tuned channel

through the SAT/Cable

Set Top Box.

INPUT

Raises or lowers the

sound volume.

VOLUME

Displays the Program

Guide Listings provided

by the Cable or Satellite

Service Provider.

GUIDE

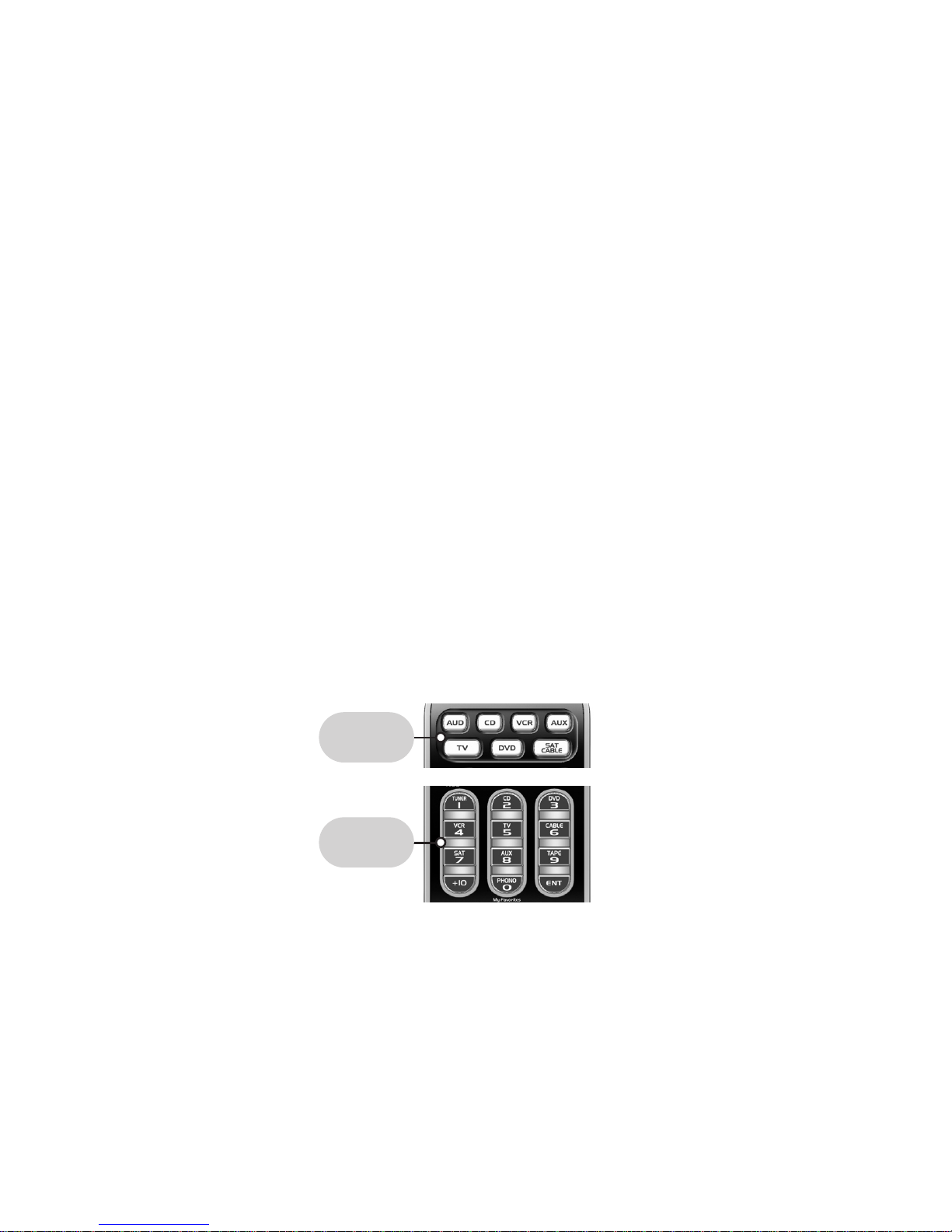

COMPONENT

BUTTONS

CHANNEL

Displays the

Applications Menu

through the Cable

Set Top Box.

Used for program-

ming steps and on-

screen navigation

and highlighting.

CURSOR NAVI-

GATION PAD

Perform standard

VCR and DVD func-

tions when in VCR

and DVD mode, or

VOD (Video-On-

Demand) and DVR

(Digital Video

Recorder) functions

when in Cable mode.

TRANSPORT

CONTROLS

Custom-programmable

Favorite Channel Buttons

FAVORITES

CHANNEL

Silences the Audio.

Press to activate. Press

again to restore sound

to the previous level.

Selects the next

higher or lower

channel.

MUTE

Use to enter code num-

bers for programming

components and to enter

channel numbers to tune

in channels. Also used to

make numeric entries on

on-screen menus. The

alpha labels on the keys refer

to Audio component functions

that can be accessed with the

respective keys.

NUMBER

PAD

Skip forward or

backward a

whole day in the

Program Guide.

SKIP-/+

Displays informa-

tion about the pro-

gram currently play-

ing or highlighted in

the Program Guide

(see GUIDE).

INFO

Exits from current

screen.

EXIT

SELECT

Press to back-light all keypad buttons.

Press again to shut off (or simply wait 10

seconds for automatic shut-off).

LIGHT BUTTON

Page | 4

Table of Contents

Quick Set-up ...................................1

Keypad Layout &

Button Functions ..............................3

Getting Started – Overview

• Battery Installation ........................6

• Activation Overview......................6

• Using Component Buttons ..............7

• Learning Capability.......................7

• Light Button...................................7

• Low Battery Warning ....................7

• Couch Mode ................................7

Get Started with the Basics...................8

• Quick Set-Up................................9

• Three-Digit Set-up..................10-11

• Auto-Search Set-up................12-13

• Set-up Using the

Learning Method ...................14-16

Activating Optional

Advanced Features...................18-19

• MacroPower™ Total System

On/Off......................................20

• “My Favorites” – Favorite

Channels....................................21

• Turning Component buttons into

Macros ......................................22

Activating Punch Throughs

................

• SimpleSound™ Total SystemVolume

Control .................................24-25

• Channel Control

Punch Through ...........................26

• Transport Control

Punch Through ...........................27

• OSD (On-Screen Display)

Control Punch Through ..............28

Page | 5

Erasing Commands -

Overview......................................29

• Erasing a Single Learned

Command ..................................30

• Erasing All Learned Commands from

One Component .........................31

• Erasing MacroPower & Other

Macro Commands......................32

• Erasing SimpleSound & Other

“Punch Through” Commands.......33

• Factory Reset..............................34

Finding a Component’s Set-Up

Code Number ................................35

Pre-Programmed

Code Tables ..................................36

• AUDIO .....................................37

• CD............................................38

• VCR/DVR .................................39

• AUX .........................................40

• TV .......................................41-42

• DVD..........................................43

• CABLE/SAT ...............................44

FAQs ............................................45

Warranty ......................................46

Specifications ................................46

Page | 6

Getting Started - Overview

Battery Installation

Press the tab and remove the cover of the

battery compartment located in the back of

your remote. Insert the two AA Alkaline

batteries (included in the package) making

sure to match the positive (+) and negative

(-) symbols as shown in the diagram. Place

the cover back over the battery compartment.

Activation overviewcontrol up

to seven components

Your WR7 Universal remote control is

designed to operate virtually all brands of

AUDIO, TV, DVD, VCR/DVR, CD, SAT/CABLE

and AUX (Light, Music Server, PS2, etc.)

components.

Component Buttons

Be sure to match your component to the

proper Component button on the top of the

remote.

If your component is a combination device

that includes a DVD option, set up the DVD

or AUX button so that the transport controls

will work properly.

The AUX (Auxiliary) button is designed to

operate a 7th audio/video component that

you may have in your system… such as a

TIVO, a second VCR or DVD, or an additional

audio component.

Component Buttons

INSERT BATTERIES

CORRECTLY

TV BUTTON

Page | 7

Using Component Buttons

Once you have activated the WR7 remote

for all of your components, you can simply

press a Component button at the top of the

remote, and the buttons on the WR7 will

work with that component.

Each time you press a button on the remote,

the Component button light will turn on,

indicating which component you are controlling.

Learning Capability

The WR7 has the ability to learn functions

from the original remote controls of other

manufacturers, even if they are not in our

pre-programmed database. See page 14

for instructions.

Light Button

Your WR7 universal remote features a fully

backlit keypad for low light or darkened

conditions. Press the LIGHT button to turn on

the keypad backlight. Press again to turn off

(or simply wait 10 seconds for automatic

shut-off).

LowBattery Warning

When the batteries are low and need to be

replaced, the component light will quickly

blink three times when you press the POWER

[ON] button.

Couch Mode

We’re watching out for your batteries. Your

WR7 remote is designed to automatically

turn itself off if a button is pressed for more

than 30 seconds. This prevents battery power

from being depleted if the remote accidentally

slips between the couch cushions.

We love to help!

PLEASE CONTACT OUR TECHNICAL

SUPPORT CENTER.

E-MAIL: [email protected]

Phone: 1-800-901-0800 (9:00AM - 6:00PM

EST Monday - Friday)

PLEASE DO NOT RETURN

THIS PRODUCT TO THE STORE

Page | 8

Three ways to get started

There are three ways you can activate your

new WR7 universal remote control using its

pre-programmed codes.

1. Quick Set-Up (page 9)

2. Three-Digit Code Set-up (page 10)

3. Auto—Search Set-up (page 12)

Component Buttons

Selecting the proper Component button is a

key to your success. If you have a combination

component that includes a DVD or Blu-Ray player,

use the DVD button regardless of other functions,

so that the DVD transport controls will work properly.

Select SAT/CABLE for your cable box so the Menu,

Guide, Info and Exit buttons work correctly. In

addition to activating the preprogrammed codes,

the WR7 universal remote has the capacity to

learn from your component remote. See instructions

on page 14.

AUX Component Button

While most component buttons are selfexplanatory,

the AUX Component button is designed for

components such as Xbox , PS2 or PC media

centers. Simply set up the [AUX] button in the

same manner as any other component using

Quick Set-Up, the 3- Digit Set-up or Auto-Search

Set-up.

The AUX button can also be used for other

components such as a second TV, DVD, or any

other audio/video component that you may

have in your system. You may need to activate

the key as a Macro if you are connecting a second

DVD or VCR. See page 17 for more information

on automated activity macros.

Page | 9

1. Quick Set-up

Set-up one component at a time, and you’ll

move quickly through your system.

Step 1: Turn on the component you want to

activate. (Other components can be on or

off, it doesn’t matter.)

STEP 2: Point your new WR7 universal

remote toward the component and press the

appropriately labeled Component button (TV

for TV, DVD for DVD, etc.) While holding

this button down,press the numeric assigned to

your brand in the Quick Set-up Code Table(See

Page 2) and release both Component

button and the number key to save the code.

The component light will blink three times to

confirm that the code has been stored.

STEP 3:

Point the remote control at the component.

STEP 4: Press the power button. If it turns

off, it is programmed for your component. If

it does not turn off, use the Pre-Programmed

3-Digit code Method or Auto-Search

Method.

Check your work Press the POWER [ON]

button to turn the component back on.

Next, test the VOLUME and CHANNEL

buttons (or PLAY and STOP buttons for VCR

and DVD) to make sure they all work. Repeat

steps one through four until all your

components are set up properly.

COMPONENT

BUTTONS

NUMBER

PAD

Tabla de contenidos

Otros manuales de Control remoto universal de Universal Remote Control

Universal Remote Control

Universal Remote Control MRF-260i Manual de usuario

Universal Remote Control

Universal Remote Control total control TRC-780 Manual de usuario

Universal Remote Control

Universal Remote Control COMPLETE CONTROL MX-450 Manual de usuario

Universal Remote Control

Universal Remote Control UR-S86TVE Manual de usuario

Universal Remote Control

Universal Remote Control CABLEVISION OCE-0027A Manual de usuario

Universal Remote Control

Universal Remote Control Osiris MX-3500 Manual de usuario

Universal Remote Control

Universal Remote Control MRF-300/RFX150 Manual de usuario

Universal Remote Control

Universal Remote Control Complete Control MX-880 Manual de usuario

Universal Remote Control

Universal Remote Control MX-900 Manual del propietario

Universal Remote Control

Universal Remote Control MX-890 Manual de usuario

Universal Remote Control

Universal Remote Control Complete Control MX-810 Manual de usuario

Universal Remote Control

Universal Remote Control CLIKR-5 UR5L-8700L Manual de usuario

Universal Remote Control

Universal Remote Control 4 Function DTV Remote Control Manual de usuario

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8700 Manual de usuario

Universal Remote Control

Universal Remote Control COMPLETE CONTROL MX-880Z Manual de usuario

Universal Remote Control

Universal Remote Control Easy Clicker OCE-0009D Manual de usuario

Universal Remote Control

Universal Remote Control UR2-DTA Manual de usuario

Universal Remote Control

Universal Remote Control Complete Control MX-780 Manual de usuario

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8700L-IP Manual de usuario

Universal Remote Control

Universal Remote Control MX-350 Manual de usuario

Universal Remote Control

Universal Remote Control Universl Remote Manual de usuario

Universal Remote Control

Universal Remote Control OCE-0085A Manual de usuario

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8700L Manual de usuario

Universal Remote Control

Universal Remote Control PHAZR -5 UR5U-9000L Manual de usuario

Manuales populares de Control remoto universal de otras marcas

Pronto

Pronto Peel Manual de usuario

GE 24929 Manual de usuario

Radio Shack

Radio Shack Wireless Remote Control System Manual de usuario

AUVIO

AUVIO Universal Home Theater Remote Manual de usuario

Philips

Philips Icon SRU4106 Manual de usuario

THOMSON

THOMSON ROC4309 Manual de usuario

Philips

Philips pm625S Manual de usuario

GE RM94931 Manual de usuario

RCA

RCA RCU600WMS - Universal Remote Control Manual de usuario

Blackweb

Blackweb BWB17AV002 Manual de usuario

Marmitek

Marmitek DoorGuard 300 Manual de usuario

Chunghop

Chunghop RM-L618 Manual de usuario

GE RM24965 Manual de usuario

Anderic

Anderic KTN828 Manual de usuario

Sunwave Tech.

Sunwave Tech. Touch Screen Remote Control Manual de usuario

Medion

Medion E74023 Manual de usuario

intensity

intensity RM02A Manual de usuario

GE RM24950 Manual de usuario
