Programming Manual

for the MX-950, MX-900 and TX-1000

Unleashing the MX-950 Core Engine

COMPLETE

CONTROL

™

Universal Remote Control

BY ®

The information in this manual is copyright protected. No part of this manual may be copied, reproduced or dis-

tributed in any form without prior written consent from Universal Remote Control, Inc. unless you are an

AUTHORIZED seller by prior written consent from Universal Remote Control, Inc. UNAUTHORIZED sellers dis-

tributing this manual via EMAIL or the INTERNET are LIABLE for copyright violation!

UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPERATIONAL, TECHNICAL OR EDITORI-

AL ERRORS/OMISSIONS MADE IN THIS MANUAL.

The information in this manual may be subject to change without prior notice.

Complete Control is a registered trademark of Universal Remote Control, Inc. Entertainment Made Simple is a

trademark of Universal Remote Control, Inc. All other brand or product names are trademarks or registered

trademarks of their respective companies or organizations.

500 Mamaroneck Avenue

Harrison, NY 10528

Phone: (914) 835-4484

Fax: (914) 835-4532

www.universalremote.com

THE MX-950 “CORE ENGINE” 1
WHAT’SCOMMON? SPEED!!! 1
New Programming Features: 1
Key Differences: 1
THE TX-1000 EDITOR WINDOW 2
THE MX-900 EDITOR WINDOW 2
THE MX-950 EDITOR WINDOW 3
PROGRAMMING OVERVIEW 4
A. New File, Existing File on PC or in Remote 4
B. Use SAVE AS 4
C. Use the Program Menu 4
D. Save and Reuse Customer Files 4
E. Download to both Remote Controls 4
CREATING, NAMING AND ARRANGING DEVICES 5
Open the Create and Name Devices Window 5
Creating Devices 5
Setting the Backlight Color of Each Device (MX-950 and TX-1000 Only) 6
USING THE IR DATABASE 8
Applying a “Set” of IR Commands to each Device 8
FINDING DISCRETE COMMANDS FOR RELIABLE MACROS 11
Discrete Commands versus Toggle Commands 11
Use the IR Database Navigator to Find Discrete Commands 11
Use the Universal Browser to find Discrete IR Commands 13
TEST ALL COMMANDS AND RELABEL FOR EASY OPERATION 15
Using the LCD Button Editor to Relabel and Re-arrange Buttons 15
Hiding Pages in LCD Button Editor 17
Using Page View to Relabel and Re-arrange Buttons 17
i
Table of Contents
M
X
9
5
0
T
X
1
0
0
0
M
X
9
0
0
L
C
D
R
E
M
O
T
E
S

Hiding Pages in Page View 19
LEARNING 20
Tips for Learning from Unusual Devices 20
Learning IR Codes One at a Time 20
Learning a Batch of Buttons Quickly 22
Standalone Learning 23
MACRO PROGRAMMING 24
Bullet Proof Macros or Point N Pray? 24
Finding Workarounds When There Are NO Discrete Codes 24
Using the Macro Window 25
Programming a System Power On Macro 26
Programming a Power Off Macro 29
Copying or Importing Macros for Activity Macros 29
Push and Hold Macros 30
Variable Macros (MX-950 Only) 31
USING SOUNDS (MX-950 ONLY)34
Setting the Default Sound 34
Using the Sound Gallery 34
USING THE IMAGE GALLERY (MX-950 ONLY) 34
PROGRAMMING PUNCH THROUGH 35
PROGRAMMING RF CONTROL OPTIONS 36
The RF Setup Window 36
Adjusting Signal and IR Output Options 36
Adding RF Base Stations, Conguring ID#’s and Front Blasters 37
ENABLE OR DISABLE STANDALONE EDITING 38
DOWNLOADING 39
USING THE SETUP MENU 39
ii Table of Contents
U
S
I
N
G
M
X
9
5
0
C
O
R
E
E
N
G
I
N
E
T
O
E
D
I
T

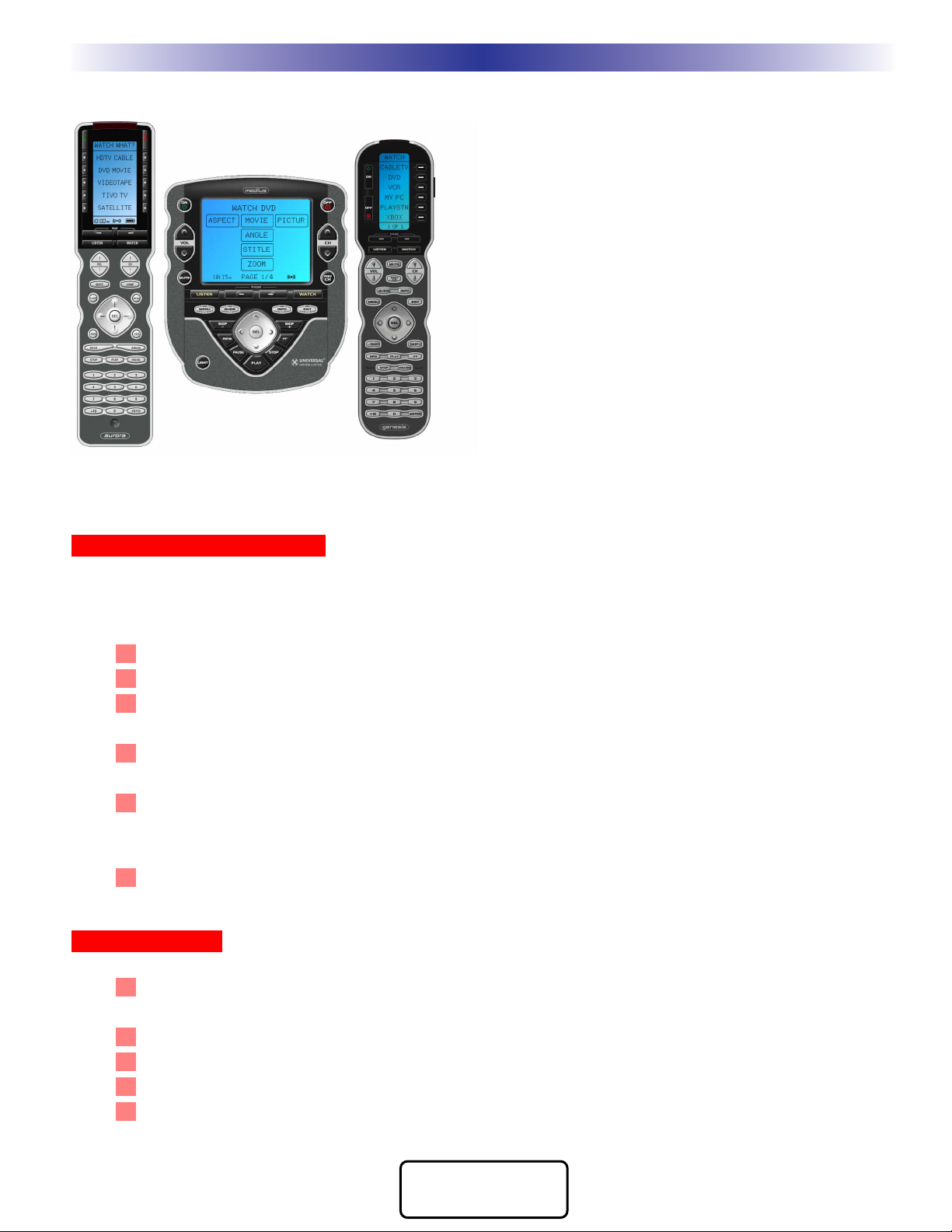

The MX-950 “Core Engine”

What’s Common? SPEED!!!

New Programming Features:

All three applications, MX-950, MX-900 and TX-1000 share all the convenience and speed of MX-3000 Editor

combined with the simple, straightforward interface of the MX-850. You’ll find that many things that were diffi-

cult or impossible to do with MX-850 are now very easy to do with the MX-950 Core Engine:

Drag and Drop single IR Commands without creating a new device

Multiple page jumps during macros for easy programming of Status Messages

Better Text display. TX-1000 allows six characters per label, MX-900 allows seven and MX-950

allows up to eleven!

Nesting - All three remotes enable you to modularzie your code with one macro “nested” as a single

step inside another macro.

No need for Shortcuts - If you need a ROUTED command from one device on another device,

record a macro of a single step. This will respond exactly the way the original button does, including

repeating while the button is held, but is routed via the original commands routing.

All three remotes can now be programmed with a Navigate - Page jump, which allows you to pro-

gram buttons with a BACK button that takes them back to the last device they were on.

Key Differences:

Only MX-950 and TX-1000 can change the color of the backlighting per device. MX-900 has blue

backlighting only.

Only MX-950 can change the TEXT label of a button during a macro.

Only MX-950 can use GRAPHICS on the LCD screen.

Only MX-950 can use SOUNDS in macros.

Only MX-950 can use VARIABLES in macros.

The MX-950 “Core Engine”

COMPLETE

CONTROL

™

The TX-1000 Editor Window

The MX-900 Editor Window

2TX-1000 and MX-900 Editor Window

Tree View Simulate

View

Macro

Window

Edit Buttons

Window

Tree

View

Simulate

View

Macro

Window

Edit Buttons

Window

The MX-950 Editor Window

Menus and Shortcut buttons for common tasks. The Program Menu activates each task in the correct order.

Tree View of your configuration. Double clicking on any page enables you to quickly display that page on

the simulator view. Right clicking on a device or page activates a context menu.

The Simulate View is used to navigate and to select a button to program, edit or record a macro.

Edit and Label Buttons window is used to control a buttons graphics, text and activation.

The Macro window is used to view and edit macros.

The information bar displays whether your keyboard is cap locked or num locked.

The important thing to remember as you program is that most Windows conventions hold true in all

URC Editors. Explore the program menus. Hover your mouse over most of the buttons and controls

and a balloon will appear with a hint as to purpose. Navigate around the program window and

explore a little before you begin programming.

Introducing MX-950 Editor

Tree View

Simulate View

Macro Window

Edit Buttons

Window

MX-950 Editor Window

COMPLETE

CONTROL

™

4Type in Section Title

Programming Overview

A. New File, Existing File on PC or in Remote

NEW - Starting from scratch on a new job, go to the File Menu, choose New from the File Menu and

pick either the default file or a blank file. The default template is pre-programmed with IR commands

and is useful for quick testing, but everything will have to be reprogrammed for your system. A blank

file is completely empty. It is really personal preference which way you start.

OPEN - Open a configuration that you have worked on before and saved onto the PC hard drive.

UPLOAD - Get a file from a client’s remote control that another installer created. Now, you can save

the file on your laptop, make any edits or changes as the client requests or the jobsite requires.

B. Use SAVE AS

The templates files are simply configuration files that have been preprogrammed for you. They will keep any

changes you make. Utilize Save As to make a new file with a new file name. All configuration files are saved

with the file extension .mxa.

TIP — Always use File | Save As to rename the file before doing any programming!

Use the customer’s name and a rev # (i.e. SmithTheaterRev1.mxa)

C. Use the Program Menu

The Program Menu is your lifeline to a fast, easy programming experience.

Follow the steps in the order shown in the Menu for best results. Typically, you

will download to the remote control several times throughout this process and

test what you have done so far. You’ll need to download after finishing all pro-

gramming. For macro playback to work, you need to have downloaded. These

downloads are not listed in the steps here in the Program Menu and are not

automatically done for you.

It is important that you do all of the tasks for each step before moving on to the

next step. Keep this manual handy so that you can verify that you have com-

pleted all of your tasks.

D. Save and Reuse Customer Files

Archive and save your customer files. Programming systems with similar components gets even faster when

you don’t have to redo your work over and over. You have your own ideas about what buttons should be

labeled and how they should be arranged. You’ll save all of your work and reuse it on the next job with simi-

lar components and devices.

E. Download to both Remote Controls

Test the file before training your client.

Programming Overview

Type in Section Title

COMPLETE

CONTROL

™

Creating, Naming and Arranging Devices

A device is the basic grouping of a set of hard buttons and up to 255 soft button pages. You will need one

device group for each remote control that the MX-950 is replacing. You can have a maximum of 255 devices

in your configuration. When you create devices in the Create and Name Devices window, every device is

automatically linked with a jump-link to the device via either the WATCH or the LISTEN menu. If you create

devices manually you have to create a jump link from either the WATCH or the LISTEN menu button to each

device manually.

Open the Create and Name Devices Window

You can open the Create and Name Devices window by clicking on the first item of the Program Menu or by

clicking on the Toolbar icon as shown here:

Creating Devices

1After the Create and Name devices window appears, select the WATCH or the LISTEN menu from

the Device list box:

2 MX-950 Only: Select the button position you’d like to create a new device name in by clicking on it.

Now, decide if you need a double column or a single column label. A single column label can have

up to 5 characters, a double column label up to 11 characters. When you combine a button, IR

command or Macro programming will be duplicated automatically on both the left and the right

button.

Combine both left and right buttons

into one double column button.

Separate a double column button

into two separate buttons.

TIP - Use combined row LCD buttons to type user friendly labels for important activities.

3Now, select the LISTEN menu from the Device List box and create all the devices for listening.

Creating, Naming and Arranging Devices

6Type in Section Title

3You must hit the SAVE button to create all the new devices.

4Tree View reveals the new devices you’ve created and the simulator shows the new WATCH page,

with all the new device buttons displayed.

5Select SAVE from the File menu or click on the SAVE icon on the toolbar.

Setting the Backlight Color of Each Device (MX-950 and TX-1000 Only)

1Right click on any device in Tree View (including the WATCH or the LISTEN device). Select Backlight

Color from the context menu that appears.

Creating, Naming and Arranging Devices

Otros manuales para MX-900

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Control remoto universal de Universal Remote Control

Universal Remote Control

Universal Remote Control total control TRC-780 Manual de usuario

Universal Remote Control

Universal Remote Control UR3-J22TWM Guía del administrador

Universal Remote Control

Universal Remote Control URC-L-1870 Manual de usuario

Universal Remote Control

Universal Remote Control Easy Clicker UR2-211 Manual de usuario

Universal Remote Control

Universal Remote Control Total Control TRC-1280 Manual de usuario

Universal Remote Control

Universal Remote Control Atlas M1055 Manual de usuario

Universal Remote Control

Universal Remote Control AVEX R6 - SPECS SHEET Manual de usuario

Universal Remote Control

Universal Remote Control Complete Control MRF-260 Manual de usuario

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-6200L Manual de usuario

Universal Remote Control

Universal Remote Control OCE-0085A Manual de usuario

Universal Remote Control

Universal Remote Control PHAZR -5 UR5U-9000L Manual de usuario

Universal Remote Control

Universal Remote Control UR17E - CODE BOOK Manual de usuario

Universal Remote Control

Universal Remote Control Complete Control MX-880 Manual de usuario

Universal Remote Control

Universal Remote Control UR5-8400A Manual de usuario

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8500 Manual de usuario

Universal Remote Control

Universal Remote Control 4 Function DTV Remote Control Manual de usuario

Universal Remote Control

Universal Remote Control BW-1220US Manual de usuario

Universal Remote Control

Universal Remote Control Easy Clicker UR3-SR3 Manual de usuario

Universal Remote Control

Universal Remote Control CABLEVISION OCE-0027A Manual de usuario

Universal Remote Control

Universal Remote Control Easy Clicker OCE-0009D Manual de usuario

Universal Remote Control

Universal Remote Control ORION MX-850 Manual de usuario

Universal Remote Control

Universal Remote Control MRF-300/RFX150 Manual de usuario

Universal Remote Control

Universal Remote Control COMPLETE CONTROL MX-450 Manual de usuario

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8700L-IP Manual de usuario

Manuales populares de Control remoto universal de otras marcas

Pronto

Pronto Peel Manual de usuario

GE 24929 Manual de usuario

Radio Shack

Radio Shack Wireless Remote Control System Manual de usuario

AUVIO

AUVIO Universal Home Theater Remote Manual de usuario

Philips

Philips Icon SRU4106 Manual de usuario

THOMSON

THOMSON ROC4309 Manual de usuario

Philips

Philips pm625S Manual de usuario

GE RM94931 Manual de usuario

RCA

RCA RCU600WMS - Universal Remote Control Manual de usuario

Blackweb

Blackweb BWB17AV002 Manual de usuario

Marmitek

Marmitek DoorGuard 300 Manual de usuario

Chunghop

Chunghop RM-L618 Manual de usuario

GE RM24965 Manual de usuario

Anderic

Anderic KTN828 Manual de usuario

Sunwave Tech.

Sunwave Tech. Touch Screen Remote Control Manual de usuario

Medion

Medion E74023 Manual de usuario

intensity

intensity RM02A Manual de usuario

GE RM24950 Manual de usuario
