Universal Remote Control Complete Control MX-810 Manual de usuario
Operating Your System
With the MX-810
COMPLETE
™
Universal Remote Control®
CONTROL
COMPLETE
This remote control was
Custom Programmed for you by:
For questions about your Custom Programming call:
Custom Programming of a complex home theater and/or a multi-room
system is one of the most challenging tasks within an audio/video instal-
lation. It involves an intimate knowledge of how the components interact
and exact details on the proper sequences of control.
Only a Complete Control dealer has the requisite experience and training
to quickly and effectively customize a remote control for true automated
operation.
Congratulations on your choice!
MX-810 Owners Manual © 2007 Universal Remote Control, Inc.
Front Cover Photo courtesy of Robert Ridenour of Connected Technologies,
www.connected-technologies.com
The information in this manual is copyright protected. No part of this manual may
be copied or reproduced in any form without prior written consent from Universal
Remote Control, Inc.
UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPERATIONAL,
TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN THIS MANUAL.
The information in this manual may be subject to change without prior notice.
Complete Control is a registered trademark of Universal Remote Control, Inc.
Entertainment Made Simple is a trademark of Universal Remote Control, Inc.
All other brand or product names are trademarks or registered trademarks of their
respective companies or organizations.
Printed in Korea
Universal Remote Control, Inc.
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
TABLE OFCONTENTS
Introduction to the MX-810 1
Optional RF “No Rules” Operation 2
Installing and Charging the Battery 3
Programming the MX-810 4
Using the MX-810 to Manually Control a “Device” 5
Using the MX-810 to Automate an “Activity” 6
Using the Help System for Automated Activities 7
Accessing the MX-810’s Setup Menus 7
Selecting from the Setup Menus 8
Setting the Color Screen 8
Setting the Button Lighting 9
System Menu 10
Setting the Button Beep Volume 11
Date and Time Menus 12
Erasing and Resetting 13
USA Limited Warranty Statement 13
Specifications 14
Contact Us 14
Your Programming Notes - Devices 15
Your Programming Notes - Activities 16
Page 1
MX-810 OWNERS MANUAL
Congratulations!
You’ve purchased a unique synthesis of hardware and software engineering,
the Complete Control MX-810. The MX-810 achieves a magnificent combina-
tion of power and flexibility, simplifying and automating operation of even the
most complex system.
User Configurable Screen and Button Lighting
A built in pick up sensor can be set to light the screen and/or the buttons
automatically. Additionally, a dedicated LIGHT button enables the user to
backlight the buttons if the pick up sensor is turned off.
Integrated Sound Signaling
The MX-810 incorporates a small speaker for beeps. Anytime you press a
button, the MX-810 signals that it has understood your command with a
beep sound.
Custom Labeled Buttons
When you pick up the MX-810, it automatically lights up the color LCD
screen which labels the six buttons to either side of the screeen. These
button labels change based on what you are watching or listening to.
Thus, if you have selected Watch TV, you will see a list of buttons that
are useful to that activity, while if you select Watch DVD, the buttons
will control the DVD.
LIGHT Button
Press the Light button on the
side of the MX-810 to back-
light all of the buttons. Of
course, you could opt to set
the buttons to light automati-
cally via the pick up sensor.
Page 2
MX-810 OWNERS MANUAL
Optional RF “No Rules” Operation
In combination with a Complete Control RF Base Station, the MX-810 can
control your system without being in line-of-sight of the equipment.
Either the MRF-350 or the MRF-40 RF base station is compatible with the
MX-810. Both incorporate RF Addressing. RF Addressing gives you the ability
to control equipment locations throughout your home, even if they are con-
cealed in other rooms or are behind closed doors.
4. Self-adhesive “Flashers” affix to the
Infrared sensors on the front panels of your
components. The Flashers relay commands
to components out of sight of the MRF-350’s
Front Blaster. The flashers plug in to the
MRF-350’s rear flasher line outputs via their
10 foot cables. Uniquely, the MRF-350 can
also connect to components with rear panel
IR Inputs via its adjustable IR Line Outputs.
3.The MRF-350’s built-in Front Blaster sends commands to
components in the same cabinet space as the MRF-350.
1.The MX-810 sends radio waves
in every direction, so you don’t
have to point the remote any-
more!
2.The RFX-250 RF Sensor can be freely
positioned for optimal reception.
Page 3
MX-810 OWNERS MANUAL

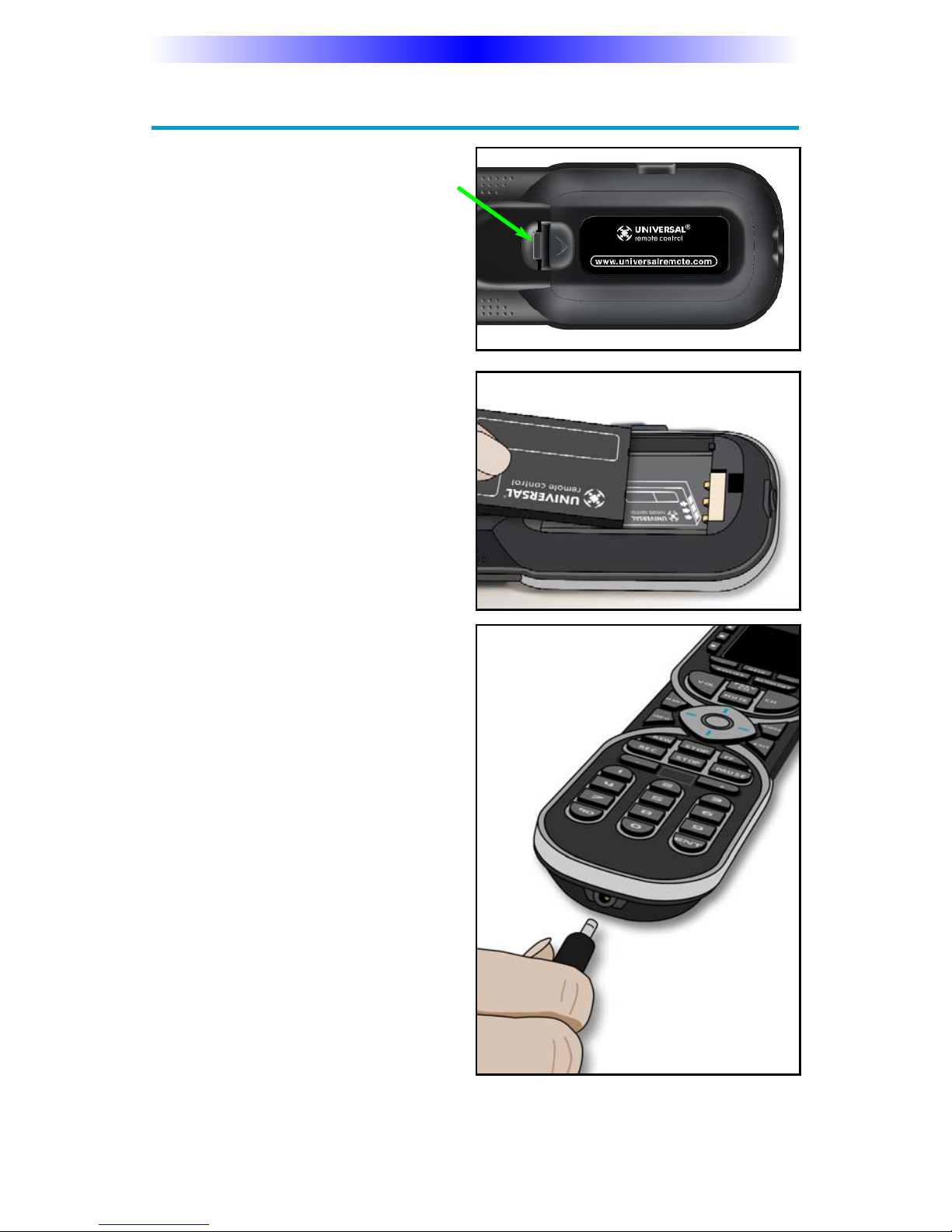

Installing and Charging the Battery
Open the battery cover by pressing
on the release clip and removing
the cover.
Note that the three contacts on the
battery must connect to the three
spring-loaded contacts in the MX-
810. Angle the battery into the bat-
tery compartment, contacts first,
then gently fit the rear of the battery
into the compartment as well.
Replace the battery cover by insert-
ing the hinged end in first, then
snapping the cover back into place.
You can charge the Lithium Ion bat-
tery by simply plugging the includ-
ed charger into the base of the
remote as shown here.
The MX-810 can be used while
charging.
Page 4
MX-810 OWNERS MANUAL
Programming the MX-810
The MX-810 is programmed via a Windows PC equipped with a USB port
(programming cable included), using our proprietary software, MX-810
Setup. You can download this software from our website:
www.universalremote.com
Basic setup takes only a few minutes with this software. However, to fully
automate an audio/video system the programmer must have a detailed
knowledge of each component and how the system is connected and
operated. We highly recommend that you use a professional audio/video
installer to program your MX-810 so you will be able to enjoy all the ben-
efits of the MX-810 as well as one touch operation via Activities.
If you do opt to do some programming on your own, fill out the NOTES at
the end of this manual before beginning. This will greatly speed the
process of programming.
Using the MX-810 to Manually Control a “Device”
Press the MX-810’s DEVICES
button to display all the devices
you can control with your MX-
810.
Your MX-810 can control up to
24 devices. If you have more
than six devices, press either of
the page buttons to display the
other devices in your system.
When you find the device you
want to control, press the corre-
sponding button beside the
screen.
For example, if you press the
Sony VCR button on the screen
shown here, the MX-810 will
become a Sony VCR remote
control.
The MX-810 now displays the device you select-
ed at the top of the screen. Below the title, the
LCD displays the customized names of any
special features you need for the device.
All the hard buttons of the MX-810
have now changed their func-
tions to operate your device.
Page 5
MX-810 OWNERS MANUAL
Page 6
MX-810 OWNERS MANUAL
Using the MX-810 to Automate an “Activity”
You select Activities in the same way that you select Devices. Simply press
the MX-810’s ACTIVITIES button to display all the Activities you can auto-
mate with your MX-810.
However, when
you select an activi-
ty, the MX-810 is
going to automati-
cally reconfigure
your entire Audio
Video system.
For example, if you press Watch
DVD, a whole sequence of events
happens:
While the MX-810 is reconfiguring your
AV system, a status message on the MX-810 lets you
know that it is busy. This reconfiguration of your sys-
tem can take ten to twenty
seconds on some systems.
When the Status message disappears, all of the
MX-810’s buttons and screens are optimized for
the activity you selected.
The Volume and Mute buttons control the
sound you hear.
The rest of the buttons on the remote have new
functions, so that the functions you need most
frequently are immediately available.
1. The TV turns ON.
2. The Audio system turns ON.
3. The DVD player turns ON.
4. The TV changes to the DVD
input.
5. The AUDIO system changes to the
DVD input.
6. The DVD player begins to PLAY.
Status Message
Using the Help System for Automated Activities
After selecting an activity, if any of the devices or components don’t seem to
be on or are set incorrectly, use the Help button. There may be several help
screens to help you with your activity as shown here:
Accessing the MX-810’s Setup Menus
The MX-810 has internal setup menus that enable you to change the settings
that control your color screen, the button lighting, battery warnings and the
clock. To access these settings, you must press and hold two
buttons at the same time as shown here:
At the same time, press and
hold both the ACTIVITIES
button and the ENTER but-
ton. When the SETUP screen
appears, you can release the
two buttons.
MX-810 OWNERS MANUAL
Once the help screens appear, look at your system. If anything is off, use the buttons on the first screen to
power them on, then press NEXT (the PAGE button). The second and third screens enable you to correct an
input. Additional screens may appear if your system is custom. Exit help by pressing the HELP button again.
Page 7
Tabla de contenidos
Otros manuales de Control remoto universal de Universal Remote Control
Universal Remote Control
Universal Remote Control MRF-300/RFX150 Manual de usuario
Universal Remote Control
Universal Remote Control Atlas M1055 Manual de usuario
Universal Remote Control
Universal Remote Control CLIKR-5 UR5U-8700L Manual de usuario
Universal Remote Control
Universal Remote Control BW-1220US Manual de usuario
Universal Remote Control
Universal Remote Control PHAZR -5 UR5U-9000L Manual de usuario
Universal Remote Control
Universal Remote Control Easy Clicker UR3L-SR4 Manual de usuario
Universal Remote Control
Universal Remote Control MRF-260i Manual de usuario
Universal Remote Control
Universal Remote Control WR7 Manual de usuario
Universal Remote Control
Universal Remote Control COMPLETE CONTROL MX-880Z Manual de usuario
Universal Remote Control
Universal Remote Control Customizer URC-300 Manual de usuario
Universal Remote Control
Universal Remote Control total control TRC-780 Manual de usuario
Universal Remote Control
Universal Remote Control Complete Control MRF-260 Manual de usuario
Universal Remote Control
Universal Remote Control UR17E - CODE BOOK Manual de usuario
Universal Remote Control
Universal Remote Control CLIKR-5 UR5L-6200L Manual de usuario
Universal Remote Control
Universal Remote Control CLIKR-5 UR5U-8700L-IP Manual de usuario
Universal Remote Control
Universal Remote Control UR2-DTA Manual de usuario
Universal Remote Control
Universal Remote Control UR4U-MDVR2 Manual de usuario
Universal Remote Control
Universal Remote Control CLIKR-5 UR5U-8500 Manual de usuario
Universal Remote Control
Universal Remote Control 4 Function DTV Remote Control Manual de usuario
Universal Remote Control
Universal Remote Control CLIKR-5 UR5U-8700 Manual de usuario
Universal Remote Control
Universal Remote Control URC-L-1870 Manual de usuario
Universal Remote Control
Universal Remote Control UR5-8400A Manual de usuario
Universal Remote Control
Universal Remote Control Unifier URC-100 Manual de usuario
Universal Remote Control
Universal Remote Control ORION MX-850 Manual de usuario
