Congratulations!

Congratulations on purchasing Universal Remote

Control’s WR7 7-Component Pre--Programmed

and Learning remote control. You now have the

power to control your entire home entertainment

system with one easy--to--use remote. The WR7can

be used with thousands of audio/video compo-

nents because of the extensive library of codes that

have already been programmed into the remote.

So... get ready to sit back, relax, and simplify your

home entertainment experience.

This Owner’s Manual is designed to assist you in

programming your WR7 remote to work with your

components by guiding you through an easy step-

by-step process. Everything you need to know

about programming the WR7 is contained in this

Manual.

Control, Inc.

This document is protected by the copyright laws

of the United States and internationally by the

Berne Convention. No part of this manual may be

reproduced in any form without the express written

consent of Universal Remote Control, Inc. Although

reasonable care has been taken to assure the

accuracy of the information herein contained,

Universal Remote Control, Inc. is not responsible

for operational, technical or editorial errors or

omissions. The specifications and information in

this manual may be subject to change without

notice. MacroPower™ and SimpleSound™ are

trademarks of Universal Remote Control, Inc.

Entertainment Made Simple®is a registered trade-

mark of Universal Remote Control, Inc. All other

brand or product names are trademarks or regis-

tered trademarks of their respective owners.

500 Mamaroneck Avenue, Harrison, NY 10528

Phone: (914) 835-4484 Fax: (914) 835-4532

The Pioneer in Control Technology

Page 3

Table of Contents

Getting Started - Overview

• Control up to 7 Components ......5

• Activating Component Buttons ....5

• Learning Capability...................5

• AUX Function............................6

• Light Button...............................6

• Battery Installation.....................6

• Low Battery Warning.................6

• Couch Mode ............................6

Special Advanced Features

• MacroPower™ & Other

Macros ....................................7

• “My Favorites”- Favorite

Channels..................................7

• SimpleSound™ & Other

“Punch Throughs”......................7

Keypad Layout & Button

Functions ........................8

Programming WR7 Using

Pre-Programmed Codes.....9

• Quick Set-Up Method............9-10

• Three-Digit Code Entry

Method .............................11-13

• Auto-Search Method ...........14-15

Programming WR7 Using

the Learning Method ..16-18

AUX Function: Programming

a 7th Component............19

Finding a Component’s

Set-Up Code Number ..19-20

Page 4

Programming Special

Advanced Features

• MacroPower™Total System

On/Off ..............................21-22

•“My Favorites”– Favorite

Channels............................23-24

• SimpleSound™Total System

Volume Control....................25-26

• Channel Control

“Punch Through”.......................27

• Transport Control

“Punch Through”.......................28

• OSD (On-Screen Display)

Control “Punch Through”............29

Erasing Commands -

Overview......................30

• Erasing a Single Learned

Command ...............................30

• Erasing All Learned Commands

from One Component...............31

• Erasing MacroPower & Other

Macro Commands ...................32

• Erasing SimpleSound & Other

“Punch Through”Commands......33

• Factory Reset ...........................34

Pre-Programmed Code

Tables ..........................35

• AUDIO ..................................36

• CD ........................................37

• VCR/DVR...............................38

• AUX ......................................39

• TV ....................................40-41

• DVD ......................................42

• CABLE/SAT ............................43

FAQs ............................44

Warranty ......................45

Specifications ................45

Page 5

Getting Started -

Overview

Control up to 7 Components

The WR7 remote control is designed to

control up to seven different Audio/Video

components and operate virtually all

brands of AUDIO, TV, DVD, VCR/DVR,

CD, SAT/CABLE and AUX (Light, Music

Server, etc.) components.

Activating Component Buttons

Once you have programmed the WR7

for all of your components, all you need

to do is press a component button and

all the buttons on the WR7 will work with

that component. For example, when you

press the TV component button, all the

buttons on your WR7 will operate your

TV. If you press the DVD component but-

ton, all the buttons on the WR7 will oper-

ate your DVD.

Each time you press any of the buttons

on the remote, the LED light in the com-

ponent button will light up to indicate

which component you are controlling.

Learning Capability

The WR7 has the ability to “learn”functions

from the original remote controls of other

manufacturers, even if they are not in the

Pre-programmed database.

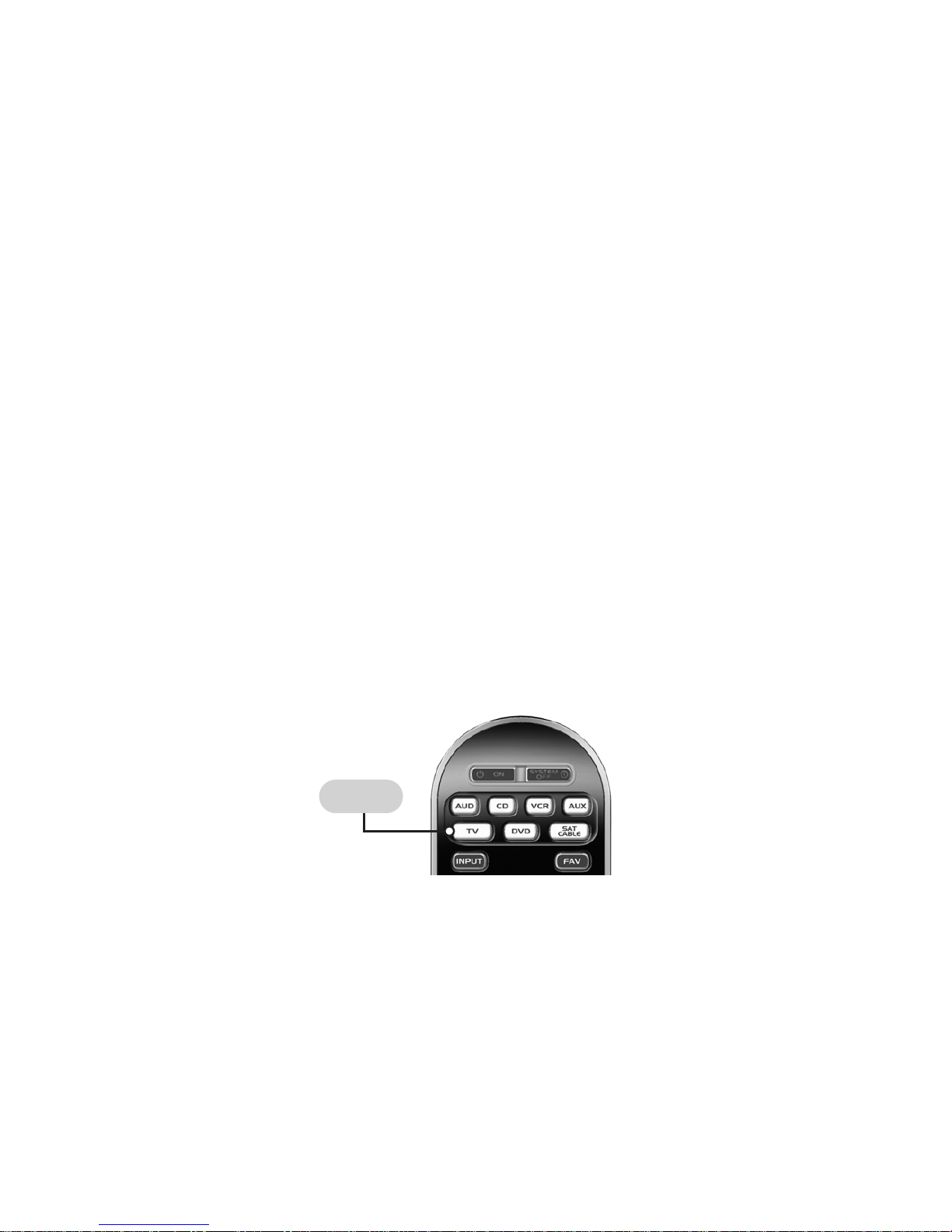

TV BUTTON

Page 6

AUX Function

The AUX (Auxillary) button is designed to

operate a 7th audio/video component that

you may have in your system… such as a

TIVO, a second VCR or DVD, or an addi-

tional audio component.

Light Button

The WR7 features a fully backlit keypad for

ease of use in low light or darkened viewing

conditions. Press the LIGHT button to back-

light all the keypad buttons. Press again to

turn off (or simply wait 10 seconds for auto-

matic shut-off).

Battery Installation

Press the tab and remove the cover of the

battery compartment located in the back of

your remote. Insert the two AA Alkaline bat-

teries (included in the package) making sure

to match the positive (+) and negative (- )

symbols as shown in the diagram. Place the

cover back over the battery compartment.

Low Battery Warning

When the batteries are low and need to be

replaced the component LED will quickly

blink three times when you press the

POWER [ON] button.

Couch Mode

The WR7 is designed to automatically turn

itself off if a button is pressed for more than

30 seconds. This prevents battery power

from being depleted should the remote acci-

dentally slip between the couch cushions.

INSERT BATTERIES

CORRECTLY

Page 7

Special Advanced

Features

The WR7 also offers the following special

advanced features that can offer you many

time-saving conveniences:

MacroPower™& Other Macro

Buttons

MacroPower is a unique feature that enables

you to turn all your components ON or OFF, all

at the same time, simply with the press of one

button. The WR7 has 13 Macro buttons that

are designed to store up to 20 commands in

each button. Pressing any one of the Macro

buttons will send out the series of commands

that are stored in that button.

“My Favorites”

(Favorite Channels)

This is one of the most desirable features of the

WR7 remote control. Once it’s set up, you can

select one of four favorite channels with the

press of one button – without the need to type

in a channel number. So, whether it’s CNN or

the Food Network, your favorite viewing spot is

just one click away.

SimpleSound™& Other “Punch

Throughs”

SimpleSound Volume Control is a dynamic fea-

ture that gives you total volume control over all

the components in your system, even those that

do not have their own built--in volume control,

such as TIVO, DVD and VCR... saving you the

hassle and inconvenience of constantly needing

to switch between component modes on the

remote. As an example, in order to increase the

volume while watching a DVD, you would typi-

cally have to pick up the TV remote control to

increase the volume. With the WR7, you do

not even have to press the TV component but-

ton. Once you program SimpleSound in your

DVD mode, you will automatically have TV vol-

ume control in DVD mode.

SimpleSound is what is called a “Punch

Through”feature and is not limited to volume

control. It can also be applied to Channel

Control, Transport Control, and OSD Control.

Page 8

Keypad Layout &

Button Functions

Allows you to turn the selected

component on and off.

Designed to send Power On/Off

commands for up to seven com-

ponents with one button press.

Designed to send

Power On/Off

commands for

up to seven com-

ponents with one

button press.

SYSTEM OFF

FAVORITE

Used to select the com-

ponent you want to

operate and signals

remote control activity.

Selects highlighted

screen options.

Selects the video

source from avail-

able components.

Returns to the previous-

ly tuned channel

through the SAT/Cable

Set Top Box.

INPUT

Raises or lowers the

sound volume.

VOLUME

Displays the Program

Guide Listings provided

by the Cable or Satellite

Service Provider.

GUIDE

AUD, CD, VCR, AUX,

TV, DVD,SAT/CABLE

CHANNEL

Displays the

Applications Menu

through the Cable

Set Top Box.

Used for program-

ming steps and on-

screen navigation

and highlighting.

CURSOR NAVI-

GATION PAD

Perform standard

VCR and DVD func-

tions when in VCR

and DVD mode, or

VOD (Video-On-

Demand) and DVR

(Digital Video

Recorder) functions

when in Cable mode.

TRANSPORT

CONTROLS

Custom-programmable

Favorite Channel Buttons

FAVORITES

CHANNEL

Silences the Audio.

Press to activate. Press

again to restore sound

to the previous level.

Selects the next

higher or lower

channel.

MUTE

Use to enter code num-

bers for programming

components and to enter

channel numbers to tune

in channels. Also used to

make numeric entries

on on-screen menus. The

alpha labels on the keys refer

to Audio component functions

that can be accessed with the

respective keys.

NUMBER

PAD

Skip forward or

backward a

whole day in the

Program Guide.

SKIP-/+

Displays information

about the program

currently playing or

highlighted in the

Program Guide (see

GUIDE).

INFO

Exits from current

screen.

EXIT

SELECT

Press to back-light all keypad buttons.

Press again to shut off (or simply wait 10

seconds for automatic shut-off).

LIGHT BUTTON

Page 9

Programming WR7 using

Pre-Programmed Codes

There are three ways you can program your

WR7 using the component brand codes that

are pre-programmed into the remote.

• Quick Set-Up Method

• Three-Digit Code Entry Method

• Auto--Search Method

The Quick Set-Up Method is a unique new fea-

ture that enables the fastest and easiest set-up

by using one-digit codes for up to 10 major

brands for each component. The Three-digit

Code Entry Method allows you to set-up the

WR7 using 3-digit codes for component brand

names. It is also a fast and easy way to pro-

gram the remote. The Auto-Search Method

scans through all the brands in the remote con-

trol, one at a time. It should be used when

either the Quick Set-Up or Three-Digit Code

Entry Methods do not work.

* * *

Quick Set-Up Method

STEP 1: Manually or using your old

remote, turn on the component you want to

program—for example, to program your TV,

turn on your TV set.

STEP 2: Point the WR7 toward the compo-

nent that you want to program (in this case

the TV set) and press and hold the compo-

nent button (in this case the TV button).

While holding down the compo-

nent button, begin to press numeric

keys, one number at a time, starting from 1,

continuing to 2, 3…0 until the component

(in this case the TV) turns off.

Page 10

STEP 3: Release the component button to

save the code. The component LED light will

blink three times to confirm that the code has

been stored.

Repeat the above steps for other components.

COMPONENT

BUTTONS

NUMBER

PAD

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Control remoto universal de Universal Remote Control

Universal Remote Control

Universal Remote Control UR-S86TVE Manual de usuario

Universal Remote Control

Universal Remote Control Easy Clicker UR3-SR3 Manual de usuario

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8700 Manual de usuario

Universal Remote Control

Universal Remote Control COMPLETE CONTROL MX-880Z Manual de usuario

Universal Remote Control

Universal Remote Control Easy Clicker OCE-0009D Manual de usuario

Universal Remote Control

Universal Remote Control MX-350 Manual de usuario

Universal Remote Control

Universal Remote Control Atlas M1055 Manual de usuario

Universal Remote Control

Universal Remote Control Complete Control MRF-260 Manual de usuario

Universal Remote Control

Universal Remote Control BW-1220US Manual de usuario

Universal Remote Control

Universal Remote Control Osiris MX-3500 Manual de usuario

Universal Remote Control

Universal Remote Control WR7 Manual de usuario

Universal Remote Control

Universal Remote Control UR17E - CODE BOOK Manual de usuario

Universal Remote Control

Universal Remote Control CLIKR-5 UR5L-8700L Manual de usuario

Universal Remote Control

Universal Remote Control AVEX R6 - SPECS SHEET Manual de usuario

Universal Remote Control

Universal Remote Control Complete Control MX-880 Manual de usuario

Universal Remote Control

Universal Remote Control Total Control TRC-1280 Manual de usuario

Universal Remote Control

Universal Remote Control Customizer URC-300 Manual de usuario

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8700L-IP Manual de usuario

Universal Remote Control

Universal Remote Control PHAZR -5 UR5U-9000L Manual de usuario

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8700L Manual de usuario

Universal Remote Control

Universal Remote Control Easy Clicker UR2-211 Manual de usuario

Universal Remote Control

Universal Remote Control MRF-260i Manual de usuario

Universal Remote Control

Universal Remote Control 4 Function DTV Remote Control Manual de usuario

Universal Remote Control

Universal Remote Control MX-890 Manual de usuario

Manuales populares de Control remoto universal de otras marcas

Pronto

Pronto Peel Manual de usuario

GE 24929 Manual de usuario

Radio Shack

Radio Shack Wireless Remote Control System Manual de usuario

AUVIO

AUVIO Universal Home Theater Remote Manual de usuario

Philips

Philips Icon SRU4106 Manual de usuario

THOMSON

THOMSON ROC4309 Manual de usuario

Philips

Philips pm625S Manual de usuario

GE RM94931 Manual de usuario

RCA

RCA RCU600WMS - Universal Remote Control Manual de usuario

Blackweb

Blackweb BWB17AV002 Manual de usuario

Marmitek

Marmitek DoorGuard 300 Manual de usuario

Chunghop

Chunghop RM-L618 Manual de usuario

GE RM24965 Manual de usuario

Anderic

Anderic KTN828 Manual de usuario

Sunwave Tech.

Sunwave Tech. Touch Screen Remote Control Manual de usuario

Medion

Medion E74023 Manual de usuario

intensity

intensity RM02A Manual de usuario

GE RM24950 Manual de usuario
