Unitronics

UniStream®

PLC

Installation Guide

USC-B5-RA28, USC-B10-RA28,

USC-C5-RA28, USC-C10-RA28,

USC-B5-TA30, USC-B10-TA30,

USC-C5-TA30, USC-C10-TA30

This guide provides basic installation information for specific UniStream®PLC models with

built-in I/O. Technical specifications may be downloaded from the Unitronics website.

General Features

Unitronics’ UniStream®PLCs are DIN-rail mounted Programmable Logic Controllers (PLCs)

with a built-in I/O configuration.

The series is available in three versions: Pro, Standard, and Basic.

Note that a model number that includes:

•B10/C10 refers to Pro version (e.g. USC-B10-T24)

•B5/C5refers to Standard version (e.g. USC-B5-RA28)

•B3/C3 refers to Basic version (e.g. only for USC-B3-T20)

Page 2 contains a comparison table detailing the features offered by the different models.

Exact features are detailed in the product specification sheets.

Power

Features

▪Built-in Trends and Gauges, auto-tuned PID, data tables, data

sampling, and Recipes

▪UniApps™: Access & edit data, monitor, troubleshoot & debug and

▪Security: Multi-level password protection

▪Alarms: Built-in system, ANSI/ISA standards

COM

Options

▪Built-in ports: 2 Ethernet, 1 USB host, 1 USB device port

▪Add-on ports (UAC-CB), available by separate order:

➢1 CANbus port may be added to all models

➢RS232/485 ports: according to model technical specifications

COM

Protocols

▪Fieldbus: CANopen, CAN Layer2, MODBUS, EtherNetIP and more.

Implement any serial RS232/485, TCP/IP, or CANbus third-party

protocols via Message Composer

▪Advanced: SNMP Agent/Trap, e-mail, SMS, modems, GPRS/GSM,

FTP Server/Client, Web Server, SQL, and MQTT.

▪Remote Access via any device that supports VNC.

Programming

Software

All-in-One UniLogic software for hardware configuration,

communications, PLC and HMI applications; free download.

HMI

All UniStream® PLCs can display HMI screens on the following devices:

•UniStream Display (USL)

•UniStream Modular HMI panel (USP)

•UniStream Built-in (on the panels integral to the device)

•Any device screen that supports VNC

UniStream® PLC

Unitronics

HMI

HMI screens are designed in UniLogic. In addition to the HMI screens,

UniStream® PLCs offer built-in HMI features, including:

•UniApps™: Access & edit data, monitor, troubleshoot, debug,

and more

•Security: Multi-level password protection

•Alarms: Built-in system, ANSI/ISA standards

USB Action

files

Programmers can create files in UniLogic and save them to a USB mass

storage device, such as a flash drive. This enables the end user to

implement certain actions such as to update firmware, update network

settings, download applications, extract log files and more.

Comparison

table

Feature

B10/C10

Pro

B5/C5

Standard

B3/C3

Basic

I/O Expansion via Uni-I/O

Yes

Remote I/O Expansion via

Ethernet I/O Adapter

(URB)

Up to 8

VFD

MicroSD

Yes

No*

Add-on COM modules

System Memory

6GB

3GB

MODBUS Slaves

Unlimited

Up to 8

Ethernet/IP Scanners

Ethernet/IP Adapters

Web Server

Yes

SQL Client

Yes

MQTT

Yes

PID Loops

Data Sampler/Trends

Yes

CSV files: creating/

reading

Yes

FTP, server/client

Yes

Saving Data Tables to SD

Yes

No*

Screenshots

Yes

Sending email

attachments

Yes

USB device (programming

port)

Yes

No**

* Note that B3/C3 models do not support features requiring SD cards. In addition, Alarm

History is not retained after PLC reset.

** Note that B3/C3 models may be programmed only via Ethernet cable.

UniStream® PLC

Unitronics

Before You Begin

Before installing the device, the user must:

▪Read and understand this document.

▪Verify the Kit Contents.

Alert Symbols and General Restrictions

When any of the following symbols appear, read the associated information carefully.

Symbol

Meaning

Description

Danger

The identified danger causes physical and property damage.

Warning

The identified danger could cause physical and property damage.

Caution

Use caution.

▪All examples and diagrams are intended to aid understanding, and do not guarantee

operation. Unitronics accepts no responsibility for actual use of this product based on

these examples.

▪Please dispose of this product according to local and national standards and regulations.

▪This product should be installed only by qualified personnel.

▪Failure to comply with appropriate safety guidelines can cause severe injury or

property damage.

▪Do not attempt to use this device with parameters that exceed permissible levels.

▪Do not connect/disconnect the device when power is on.

Environmental Considerations

▪Ventilation: 10mm space is required between the device top/bottom edges and the

enclosure’s walls

▪Do not install in areas with: excessive or conductive dust, corrosive or flammable

gas, moisture or rain, excessive heat, regular impact shocks or excessive vibration,

in accordance with the standards and limitations given in the product’s technical

specification sheet.

▪Do not place in water or let water leak onto the unit.

▪Do not allow debris to fall inside the unit during installation.

▪Install at maximum distance from high-voltage cables and power equipment.

UniStream® PLC

Unitronics

Kit Contents

▪1 UniStream PLC

▪1 power terminal block

▪3 I/O terminal blocks (provided only with

models comprising built-in I/Os)

▪1 Battery

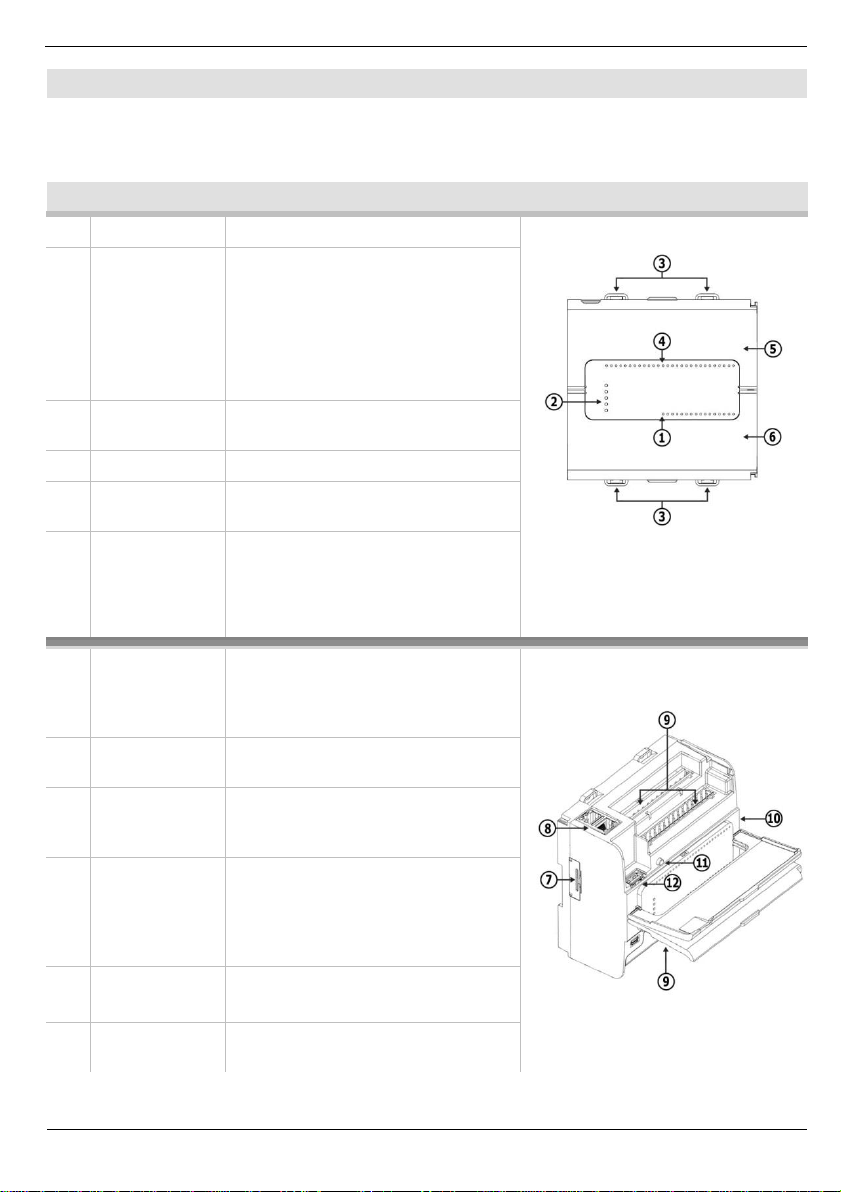

Product Diagram

Output LEDs

Green / Red LEDs

Front View

Status LEDs

Tricolor LEDs, Green/Red/Orange

From top to bottom: RUN,

ERROR, USB, BATT. LOW, and

FORCE.

Note that LED indications are

listed in the product's technical

specifications.

DIN-rail clips

Clips at top and bottom

physically support the device

Input LEDs

Green / Red LEDs

Top Door,

Closed

Covers the Confirm button and

the USB Host port

Bottom Door,

Closed

Covers the internal door

protecting the battery and

microSD slot.

Uni-COM™

Jack

Connection port for Uni-COM CB

modules*. Shipped covered;

leave cover in place when not in

use.

Top View

Ethernet

ports

Two ports for Ethernet

communications.

Input/Output

connection

points

Model-dependent. Present in

models with built-in I/O

configurations.

I/O Bus

connector

(Not shown) Connection point for

Uni-I/O™ modules and I/O

expansion adapters, shipped

covered. Leave covered when not

in use.

CONFIRM

Button

Used to implement and confirm

USB Actions.

USB Host

port

Provides the interface for

external USB devices.

UniStream® PLC

Unitronics

Internal

Door, open

Open this to access the battery

+ microSD slot.

Bottom View

Power

Supply Input

Connection point for the

controller power source.

Connect the Terminal Block

supplied with the kit to the

power cable.

USB Device

port

Use for application download

and direct PC-UniStream

communication.

microSD Slot

Supports standard microSD

cards.

Battery

Holder

The battery is supplied installed;

the user must remove the pull

tab during installation.

* These are available by separate order.

Installation Space Considerations

Allocate space for:

▪The controller

▪I/O wiring

▪Access to ports, jacks, and the microSD card slot

▪Any modules that will be installed; ensure you allow space to install/uninstall modules

Module dimensions and installation instructions are in the modules’ specifications.

For exact dimensions, please refer to the Mechanical Dimensions shown below.

Mechanical Dimensions

Front View

Bottom View

UniStream® PLC

Unitronics

Mounting

Note

▪Mount on a standard DIN-rail.

▪Ensure that there is sufficient room on the sides of the device to allow for any I/O

or COM modules.

1. Push the device onto the DIN-rail

until the clips located at the top and

bottom of the unit have snapped

onto the DIN-rail.

2. When properly mounted, the device is

squarely situated on the DIN-rail as

shown below.

Battery: Back-up, First Use, Installation, and Replacement

Back-up

In order to preserve back-up values for RTC

and system data in the event of power off, the

battery must be connected.

First Use

The battery is protected by the PLC’s bottom

and inner door.

The battery is supplied installed inside the

unit, with a plastic tab preventing contact.

Pull out this tab before using the device.

Battery Installation and Replacement

▪Use proper precautions to prevent Electro-Static Discharge (ESD) while servicing

the battery.

Caution

▪To preserve back-up values for RTC and system data during battery

replacement, the controller must be powered.

▪Note that disconnecting the battery halts the preservation of back-up values and

causes them to be deleted.

1. Open the bottom and inner doors.

2 If there is a battery present, remove it.

3. Slide the battery into place.

UniStream® PLC

Unitronics

microSD Card Installation and Removal

▪Use proper precautions to prevent Electro-Static Discharge (ESD) while servicing

the microSD card.

1. To install the microSD card slide it

into the slot as shown in the

accompanying figure, until the card

clicks into place.

2. To remove the card, press it into its

slot lightly, the spring ejects it.

Wiring

▪This equipment is designed to operate only at SELV/PELV/Class 2/Limited Power

environments.

▪All power supplies in the system must include double insulation. Power supply

outputs must be rated as SELV/PELV/Class 2/Limited Power.

▪Do not connect either the ‘Neutral’ or ‘Line’ signal of the 110/220VAC to device’s 0V

point.

▪Do not touch live wires.

▪All wiring activities should be performed while power is OFF.

▪Use over-current protection, such as a fuse or circuit breaker, to avoid excessive

currents into the power supply connection point.

▪Unused points should not be connected (unless otherwise specified). Ignoring this

directive may damage the device.

▪Double-check all wiring before turning on the power supply.

Caution

▪To avoid damaging the wire, use a maximum torque of 0.5 N·m (4.4 in-lb).

▪Do not use tin, solder, or any substance on stripped wire that might cause the

wire strand to break.

▪Install at maximum distance from high-voltage cables and power equipment.

Wiring Procedure

Use crimp terminals for wiring; use 26-12 AWG wire (0.13 mm2–3.31 mm2 )

1. Strip the wire to a length of 7±0.5mm (0.250–0.300 inches).

2. Unscrew the terminal to its widest position before inserting a wire.

3. Insert the wire completely into the terminal to ensure a proper connection.

4. Tighten enough to keep the wire from pulling free.

UniStream® PLC

Unitronics

Wiring Guidelines

In order to ensure that the device will operate properly and to avoid electromagnetic

interference:

▪Use a metal cabinet. Make sure the cabinet and its doors are properly earthed.

▪Use wires that are properly sized for the load.

▪Use shielded twisted pair cables for wiring High Speed and Analog I/O signals.

Use shielded cables for wiring thermocouple and RTD signals.

In either case, do not use the cable shield as a signal common / return path.

▪Route each I/O signal with its own dedicated common wire. Connect common wires

at their respective common (CM) points at the controller.

▪Individually connect each 0V point and each common (CM) point in the system to the

power supply 0V terminal, unless otherwise specified.

▪Individually connect each functional ground point ( ) to the earth of the system

(preferably to the metal cabinet chassis).

Use the shortest and thickest wires possible: less than 1m (3.3’) in length, minimum

thickness 14 AWG (2 mm2).

▪Connect the power supply 0V to the earth of the system.

▪Earthing the cables' shield:

➢Connect the cable shield to the earth of the system (preferably to the metal cabinet

chassis). Note that the shield must be connected only at one end of the cable; it is

recommended to earth the shield at the PLC-side.

➢Keep shield connections as short as possible.

➢Ensure shield continuity when extending shielded cables.

NOTE

For detailed information, refer to the document System Wiring Guidelines,

located in the Technical Library in the Unitronics’ website.

Wiring the Power Supply

The controller requires an external power supply.

▪In the event of voltage fluctuations or non-conformity to voltage power supply

specifications, connect the device to a regulated power supply.

Connect the +V and 0V terminals as

shown in the accompanying figure.

Connecting Ports

▪Ethernet

CAT-5e shielded cable with RJ45 connector

▪USB Device

Use a standard USB cable, Type mini-B

▪USB Host

Standard USB Type-A plug

UniStream® PLC

Unitronics

Note that below, the letters “xx” that is used in the model numbers means that the section

refers both to B5/C5 and B10/C10 models.

I/O Connection Points

The IOs for these models are arranged in

three groups of fifteen points each, as

shown in the figures to the right.

Top groups

Input connection points

Bottom group

Output connection points

The function of certain I/Os may be

adapted via wiring and software settings.

USC-xx-RA28

USC-xx-TA30

Wiring the Digital Inputs

The digital inputs are arranged in two isolated groups:

▪I0-I9 share common CM0

▪I10-I13 share common CM1

Each group may be wired together as sink or source.

Inputs I10, I11, I12 and I13 can be configured as either normal digital inputs or as high

speed inputs that can receive high speed pulse signals from sensors or shaft encoders.

High Speed Input Modes

Following are the different pin assignments for the high speed channels:

Channel 1

Channel 2

I10

I11

I12

I13

Quadrature

Phase A

Phase B

Phase A

Phase B

Pulse+Direction

Pulse

Direction

Pulse

Direction

Pulse

Normal digital

Pulse

Normal digital

NOTE

▪Input modes are set both by wiring and software.

Input wiring, sink

Input wiring, source

UniStream® PLC

Unitronics

High Speed Input wiring, sink

High Speed Input wiring, source

NOTE

Use sink input wiring to connect a sourcing (pnp) device.

Use source input wiring to connect a sinking (npn) device.

Wiring the Analog Inputs

Both inputs share the common point CM2.

NOTE

▪Each input offers two modes: voltage or current. You can set each input

independently. The mode is determined both by wiring and by the hardware

configuration within the software application.

▪Voltage and current modes use distinct points. Connect only the point

associated with the selected mode; leave the other point unconnected.

Voltage

Differential

Single-ended

Current

2-wire

3-wire

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Controladores de Unitronics

Unitronics

Unitronics UniStream Manual de usuario

Unitronics

Unitronics VisionV120-22-UN2 Manual de usuario

Unitronics

Unitronics Vision OPLC V350-35-TR20 Manual de usuario

Unitronics

Unitronics UniStream US5-B5-B1 Manual de usuario

Unitronics

Unitronics Vision V350-35-T2 Manual de usuario

Unitronics

Unitronics UniStream PLC Series Manual de usuario

Unitronics

Unitronics Vision V130-33-T2 Manual de usuario

Unitronics

Unitronics Vision120 Manual de usuario

Unitronics

Unitronics Vision OPLC V130-J-TR20 Manual de usuario

Unitronics

Unitronics Vision OPLC V1040-T20B Manual de usuario

Unitronics

Unitronics Samba OPLC SM43-J-R20 Manual de usuario

Unitronics

Unitronics M90 OPLC Manual de usuario

Unitronics

Unitronics Jazz OPLC JZ20-R10 Manual de usuario

Unitronics

Unitronics Vision V130-33-R34 Manual de usuario

Unitronics

Unitronics Samba OPLC SM43-J-R20 Manual de usuario

Unitronics

Unitronics UniStream 5 inch Manual de usuario

Unitronics

Unitronics Vision V130-T2 Manual de usuario

Unitronics

Unitronics UniStream USC-B3-R20 Manual de usuario

Unitronics

Unitronics UniStream USC-B5-R38 Manual de usuario

Unitronics

Unitronics Jazz JZ20-UA24 Manual de usuario

Unitronics

Unitronics Vision OPLC V130-33-TA24 Manual de usuario

Unitronics

Unitronics UniStream USC-C3-R20 Manual de usuario

Unitronics

Unitronics Vision OPLC V1040-T20B Manual de usuario

Unitronics

Unitronics MJ20-MEM1 Manual de usuario

Manuales populares de Controladores de otras marcas

Digiplex

Digiplex DGP-848 Instrucciones de funcionamiento

YASKAWA

YASKAWA SGM series Manual de usuario

Sinope

Sinope Calypso RM3500ZB Manual de usuario

Isimet

Isimet DLA Series Style 2 Manual de instalación

LSIS

LSIS sv-ip5a Manual de usuario

Rockwell Automation

Rockwell Automation 1769-L31 Manual de usuario

Airflow

Airflow Uno hab Manual de usuario

ABB

ABB ACS580-01 drives Manual de usuario

Panasonic

Panasonic GM1 Series Manual de usuario

Emerson

Emerson SW93 Manual de usuario

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manual de usuario

Panasonic

Panasonic FP? Positioning Unit RTEX Manual de usuario

Samson

Samson Type 5824 Manual de servicio

Alpha IP

Alpha IP MIOB 21001 Manual de usuario

Siemens

Siemens OpenAir GMA 1 Series Manual de usuario

Surecom

Surecom SR-629 Manual de usuario

Fishman

Fishman TriplePlay Manual de usuario

Regulus

Regulus SRS1 T Manual de usuario
