Unicol VERTISLIDE VTS1 Manual de usuario

WARNING

Please carefully inspect the product before assembling. If you notice any apparent damage, call your

carrier claims agent and do not continue the installation until it has been reviewed. Please watch for

pinch points. Do not put your ﬁngers between moveable parts. Do not tamper with or disassemble any

spring loaded parts. Before installing, make sure that the supporting surface will support ﬁve times the

combined load of the solution and the hardware. Never exceed the maximum load capacity. Please also

layout all components to ensure that you have all of the required parts before proceeding (see BOM list

on following page). Use of this product for anything other than its speciﬁed use may result in failure or

personal injury. This product is intended for indoor use only. We recommend using a qualiﬁed trades

person for installation. Use an assistant or lifting equipment to lift and position products.

For support, please call: +44 (0)1865 767676 or email: [email protected]

Revised 15/12/20

01865 767676

[email protected]

www.unicol.com

*Please check model speciﬁc details before installing*

Screen Size: 40-110”

VTS1 / VTS2

Guide Max. Weight: 60-110kg

01865 767676

[email protected]

www.unicol.com

2Revised 15/12/20

COMPONENTS

INSTALLERS REQUIRED

1-2

# DESCRIPTION QTY

1VTS Body 1

2VTS Removeable Cassette 1

3VTS Arms 1

4Security Keys 2

5Drawer Handle (pre-attached) 1

#TOOLS REQUIRED

1 Pozi Head Screwdriver

2 17mm Socket Wrench

1 2

01865 767676

[email protected]

www.unicol.com

Revised 15/12/20

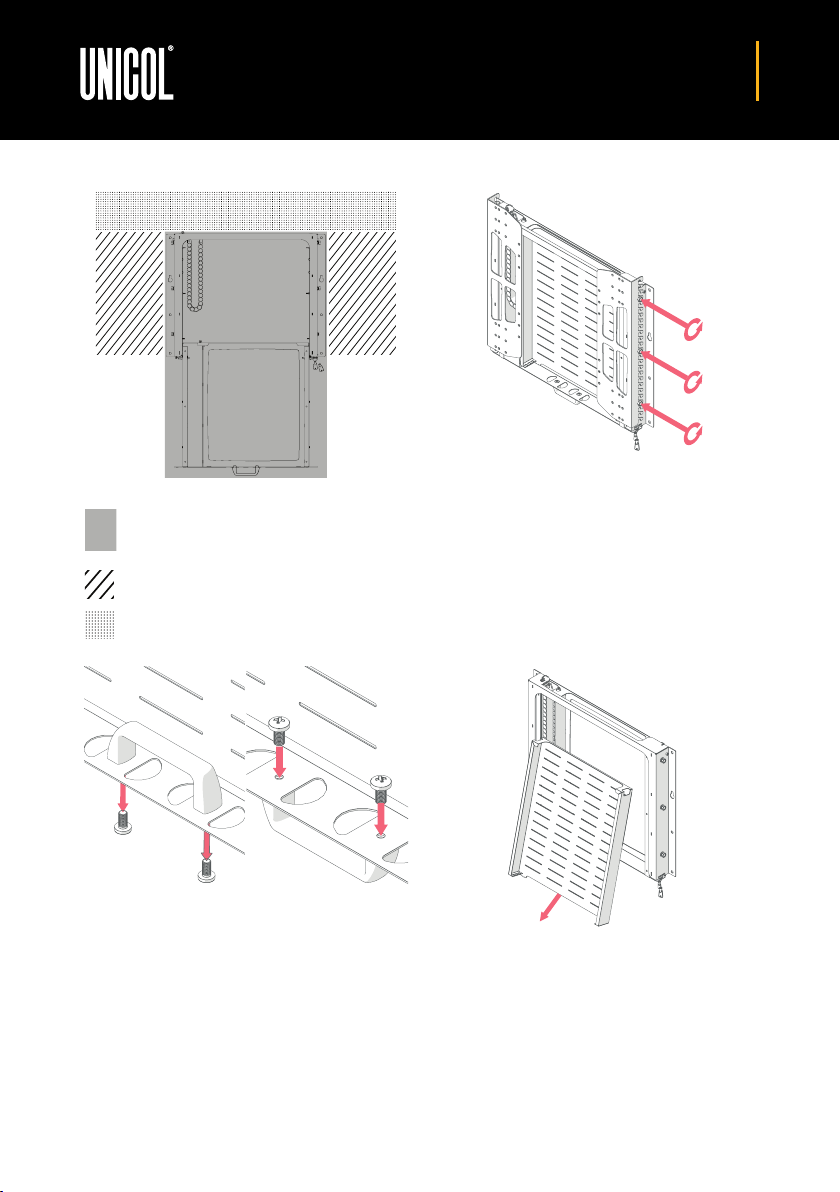

POSITIONING OF SERVICES

STEP 1

Partially unwind hex head screws to release arms.

Lift off arms and place aside.

STEP 2

Remove x2 M6x12 pozi pan head screws from

handle in transport position (left image).

Screw handle in operational position using same

screws (right image)

STEP 3

Take out removeable cassette and populate with

your media equipment.

Recommended position - either side of the

VTS and behind the screen (size dependant).

Do NOT position services within body of VTS

or within cassette path.

HTS1: 1185x785mm | HTS2: 906x635mm

Additional space for VTS1 only - dependant on

the size of screen (check before installing).

01865 767676

[email protected]

www.unicol.com

Revised 15/12/20

STEP 4

Position your mount by ensuring that the handle of

the mount will sit just above the edge of the screen

(see below). Once positioned, mark and drill 4x

ﬁxing holes each side. Fix in place using 8x suitable

ﬁxings (not supplied).

STEP 5

Return equipment tray to cassette and cable

up your media equipment using the cable

management system on the side of the mount.

STEP 5

Fix arms to screen. There are two ways of doing

this as shown above. This is dependent on your

screens VESA pattern.

STEP 6

Hook arms onto the mount. Hook on at correct

height so as the handle is always covered by the

screen (as shown above).

edge of screen

Small VESA PatternsLarge VESA Patterns
