Unicol KP Kit Manual de usuario
WARNING
Please carefully inspect the product before assembling. If you notice any apparent damage, call your
carrier claims agent and do not continue the installation until it has been reviewed. Please watch for
pinch points. Do not put your fingers between moveable parts. Do not tamper with or disassemble any
spring loaded parts. Before installing, make sure that the supporting surface will support five times the
combined load of the solution and the hardware. Never exceed the maximum load capacity. Please also
layout all components to ensure that you have all of the required parts before proceeding (see BOM list
on following page). Use of this product for anything other than its specified use may result in failure or
personal injury. This product is intended for indoor use only. We recommend using a qualified trades
person for installation. Use an assistant or lifting equipment to lift and position products.
Revised 15/12/20
01865 767676
www.unicol.com
*Please check model specific details before installing*
KP KITS
Screen Size: 33-70” Guide Max. Weight: 45-60kg
01865 767676
www.unicol.com
2Revised 15/12/20
COMPONENTS
INSTALLERS REQUIRED
1-2
# DESCRIPTION QTY
1Length of Column (1m, 2m or 3m) 1
2CP1 Standard Ceiling Plate 1
3Single Sided Suspension Mount 1
4Universal Tilting Mount Arms 2
5 Alternative Suspension Mount -
6 Alternative Ceiling Plate -
#TOOLS REQUIRED
1 Pozi Head Screwdriver
2 3/16th Allen Key
3 13mm Spanner
1
2
3
4
5
6
01865 767676
www.unicol.com
3
Revised 15/12/20
STEP 4
Utilising the tag locks and fixing pack provided with
your mount, attach the arms to the back of your
screen.
Ensure the arms are the correct way up before
tightening - the ‘hook’ part of the arm should be at
the top.
STEP 1
Using the 4 ceiling mounting slots, as shown
above, determine where you want to install your
mount, mark it and fix into position.
Please consider cabling and ceiling fixings prior to
installation. Please check surface is capable of
supporting 5x the combined solutions weight.
STEP 2
Slide all cabling through the column and through
the gap in the ceiling plate socket. Being mindful
of the cables, slide the column into the socket,
ensuring that the two holes either side align with
those on the mount. Using the through bolt, secure
the column into place and tighten the two grub
screws at the rear.
STEP 3
Slot cabling through the suspension mount socket
and slide the mount over the column, ensuring
that the two holes either side align with those on
the column. Like in Step 2, slide the through bolt
through the holes and secure. Tighten the two grub
screws at the rear.
4
01865 767676
www.unicol.com
Revised 15/12/20

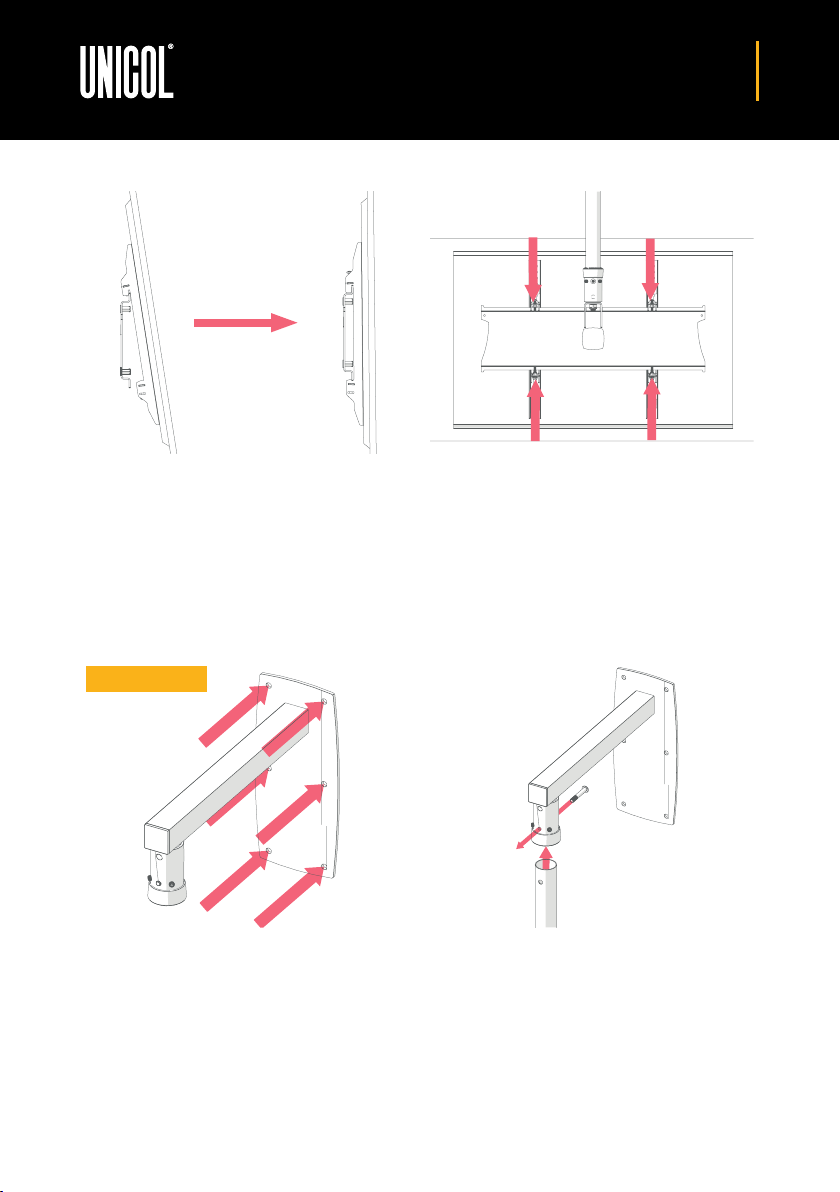

STEP 1
Using the wall mounting holes in the back plate,
determine where you want to install your mount,
mark it and fix into position.
Please consider cabling and wall fixings prior to
installation. Please check surface is capable of
supporting 5x the combined solutions weight.
STEP 2
Slide all cabling through the column and through
the gap in the wall plate socket. Being mindful
of the cables, slide the column into the socket,
ensuring that the two holes either side align with
those on the mount. Using the through bolt, secure
the column into place and tighten the grub screws
at the front of the socket. Continue from Step 3.
STEP 3
Using another team member, lift the screen up and
gradually offer it up to the back plate. Gently tilting
the screen forward, hook the arms over the lip of
the back plate and lower once in position.
Centre the screen horizontally by sliding from side
to side until you are happy with the position. If
double sided, repeat this step on the reverse side.
STEP 4
Once centered, ensure the bottom screws are not
screwed tight and screw down the top screws to
level the screen. Once level tighten bottom screws
to secure the mount. This is when you can adjust
the tilitng arms to suit.
Note that you won’t be able to adjust the screens
position after the screws have been tightened.
WALL ARM
