Ubiquiti TS-5-POE ToughSwitchPoE Manual de usuario

5-Port Power over Ethernet Managed Switch

8-Port Power over Ethernet Managed Switch PRO

Rackmount Power over Ethernet Managed Switches

Models: TS-5-POE, TS-8-PRO, TS-16-CARRIER

Table of ContentsTOUGHSwitch™PoE User Guide

Ubiquiti Networks, Inc.

Table of Contents

Chapter 1: Overview................................................1

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Package Contents ................................................................1

Configuration Interface System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Hardware Overview ..............................................................1

Chapter 2: Installation ..............................................6

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Configuration ....................................................................6

Installation of the TOUGHSwitch PoE..............................................6

Installation of the TOUGHSwitchPoEPRO .........................................8

Installation of the TOUGHSwitchPoECARRIER.....................................9

Chapter 3: Navigation .............................................11

Accessing the Configuration Interface ...........................................11

Configuring the TOUGHSwitch PoE CARRIER .....................................12

Product Verification .............................................................12

Interface Tabs ...................................................................12

Chapter 4: Status Tab ..............................................13

Status ...........................................................................14

Port Status ......................................................................14

Port Statistics....................................................................14

Total Throughput................................................................15

Data Distribution ................................................................15

Details for Port ..................................................................15

Chapter 5: Device Tab .............................................17

Management Network Settings ..................................................18

Basic Settings ...................................................................19

Management Connection Settings...............................................19

Services .........................................................................20

Spanning Tree Protocol..........................................................21

Jumbo Frames. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Device Discovery ................................................................21

System Accounts ................................................................21

Maintenance ....................................................................22

Table of ContentsTOUGHSwitch™PoE User Guide

Ubiquiti Networks, Inc.

Chapter 6: Ports Tab ..............................................23

Basic Settings for Port ...........................................................24

Ping Watchdog for Port..........................................................24

Spanning Tree Settings for Port ..................................................25

Configure Alerts for Port .........................................................25

Chapter 7: VLANs Tab .............................................26

VLANs...........................................................................26

Chapter 8: Alerts Tab ..............................................28

Alert Log ........................................................................28

System Log......................................................................29

Chapter 9: Tools ...................................................30

Ping.............................................................................30

Traceroute ......................................................................31

Discovery .......................................................................31

Appendix A: Specifications ........................................32

Appendix B: Safety Notices ........................................34

Electrical Safety Information .....................................................34

Appendix C: Warranty .............................................35

General Warranty................................................................35

Appendix D: Compliance Information .............................36

FCC .............................................................................36

Industry Canada.................................................................36

Australia and New Zealand ......................................................36

Japan VCCI-A....................................................................36

CE Marking......................................................................36

RoHS/WEEE Compliance Statement ..............................................36

Appendix E: Declaration of Conformity ............................38

Appendix F: Contact Information ..................................39

Ubiquiti Networks Support ......................................................39

Chapter 1: OverviewTOUGHSwitch™PoE User Guide

Ubiquiti Networks, Inc.

TOUGHSwitch PoE PRO

Carrier Class

8-Port Power over Ethernet

Managed Switch PRO

Model: TS-8-PRO

TOUGHSwitch PoE PRO Quick Start Guide Power Cord

TOUGHSwitch PoE CARRIER

Carrier Class

Rackmount

Power over Ethernet

Managed Switches

Model: TS-16-CARRIER

TOUGHSwitch PoE CARRIER Quick Start Guide

10-32 x 5/8 Phillips

Screws

(Qty. 4)

10-32 x 5/8

Cage Nuts

(Qty. 4)

M3x8 Flathead

Screws

(Qty. 2)

Power Cords

(Qty. 2)

Configuration Interface System

Requirements

• Microsoft Windows XP, Windows Vista, Windows 7,

Linux, or Mac OS X

• Java Runtime Environment 1.6 (or above)

• Web Browser: Mozilla Firefox, Apple Safari, Google

Chrome, or Microsoft Internet Explorer 8 (or above)

Hardware Overview

Proceed to the description for your TOUGHSwitch model:

• “TOUGHSwitch PoE” on page 2

• “TOUGHSwitch PoE PRO” on page 3

• “TOUGHSwitch PoE CARRIER” on page 4

Chapter 1: Overview

Introduction

Thank you for purchasing the Ubiquiti TOUGHSwitch™PoE,

which is part of the TOUGHSwitch series:

Name Model Description

TOUGHSwitch PoE TS-5-POE 5-port managed

switch featuring

24V PoE

TOUGHSwitch PoE PRO TS-8-PRO 8-port managed

switch featuring 24V

or48VPoE

TOUGHSwitch PoE CARRIER TS-16-CARRIER Two TOUGHSwitch

PoE PROs mounted

inarack

The TOUGHSwitch is a managed switch designed

to deliver Power over Ethernet (PoE) on the

10/100/1000portsyouhaveconfiguredforPoE.Italso

features a variety of features, including port monitoring,

system connection and management services, Virtual

Local Area Network (VLAN) configuration, Spanning Tree

Protocol (STP), Ping Watchdog, and alerts setup.

This User Guide is designed to provide instructions about

installation of the TOUGHSwitch and to provide details

about how to set up and use the Configuration Interface.

This intuitive interface allows you to conveniently manage

your TOUGHSwitch using your web browser.

Package Contents

TOUGHSwitch PoE

TOUGHSwitch PoE M2.9x20 Screws

(Qty. 2)

M2.9 Anchors

(Qty. 2)

Carrier Class

5-Port TOUGHSwitch PoE

Model: TOUGHSwitch-5-POE

Quick Start Guide Power Adapter

(24V, 2.5A)

Power Cord

Chapter 1: OverviewTOUGHSwitch™PoE User Guide

Ubiquiti Networks, Inc.

TOUGHSwitch PoE

Back Panel

Power

Grounding

Slot

Grounding

Slot

Ventilation Holes

Front Panel Ports

Management

USB Reset

1-5

Interface Description

Management

10/100 Mbps port for management. Traffic between

the Management port and numbered ports will

be limited to 10/100 Mbps and, under heavy

load, may cause performance degradation of the

TOUGHSwitch.

USB Reserved for future use.

1-5 10/100/1000 Mbps ports for switching and PoE (also

available for management by default).

Reset

To reset to factory defaults, press and hold the Reset

button for more than 10 seconds while the unit is

already powered on.

Front Panel LEDs

Power/Link

PoE

Speed/Link/Act

LED State Status

Management

Power/

Link

Off No Link

Amber

After bootup, the LED indicates

power. After an initial link is

established, the LED indicates a

10/100 Mbps connection. If the

link terminates, the LED turns

off until a link is re-established.

If the unit reboots, the LED will

again indicate power until a link is

established.

Amber Flashing

After the Reset button is held for

more than 10 seconds, the unit is

reset to factory defaults.

1-5

PoE

Off No Power over Ethernet

Green 24V Power over Ethernet

Speed/

Link/Act

Off No Link

Amber Link Established at 10/100 Mbps

Amber Flashing Link Activity at 10/100 Mbps

Green Link Established at 1000 Mbps

Green Flashing Link Activity at 1000 Mbps

Chapter 1: OverviewTOUGHSwitch™PoE User Guide

Ubiquiti Networks, Inc.

TOUGHSwitch PoE PRO

Back Panel

Power

Ventilation Holes

Note: There are additional ventilation holes on the

top and sides of the TOUGHSwitch.

Front Panel Ports

Management

USB Reset

1-8

Interface Description

Management

10/100 Mbps port for management. Traffic between

the Management port and numbered ports will

be limited to 10/100 Mbps and, under heavy

load, may cause performance degradation of the

TOUGHSwitch.

USB Reserved for future use.

1-8 10/100/1000 Mbps ports for switching and PoE (also

available for management by default).

Reset

To reset to factory defaults, press and hold the Reset

button for more than 10 seconds while the unit is

already powered on.

Front Panel LEDs

Power/Link

PoE

Speed/Link/Act

LED State Status

Management

Power/

Link

Off No power

Amber

After bootup, the LED indicates

power. After an initial link is

established, the LED indicates a

10/100 Mbps connection. If the

link terminates, the LED turns

off until a link is re-established.

If the unit reboots, the LED will

again indicate power until a link is

established.

Amber Flashing

After the Reset button is held for

more than 10 seconds, the unit is

reset to factory defaults.

1-8

PoE

Off No Power over Ethernet

Green 24V Power over Ethernet

Amber 48V Power over Ethernet

Speed/

Link/Act

Off No link

Amber Link established at 10/100 Mbps

Amber Flashing Link activity at 10/100 Mbps

Green Link established at 1000 Mbps

Green Flashing Link activity at 1000 Mbps

Chapter 1: OverviewTOUGHSwitch™PoE User Guide

Ubiquiti Networks, Inc.

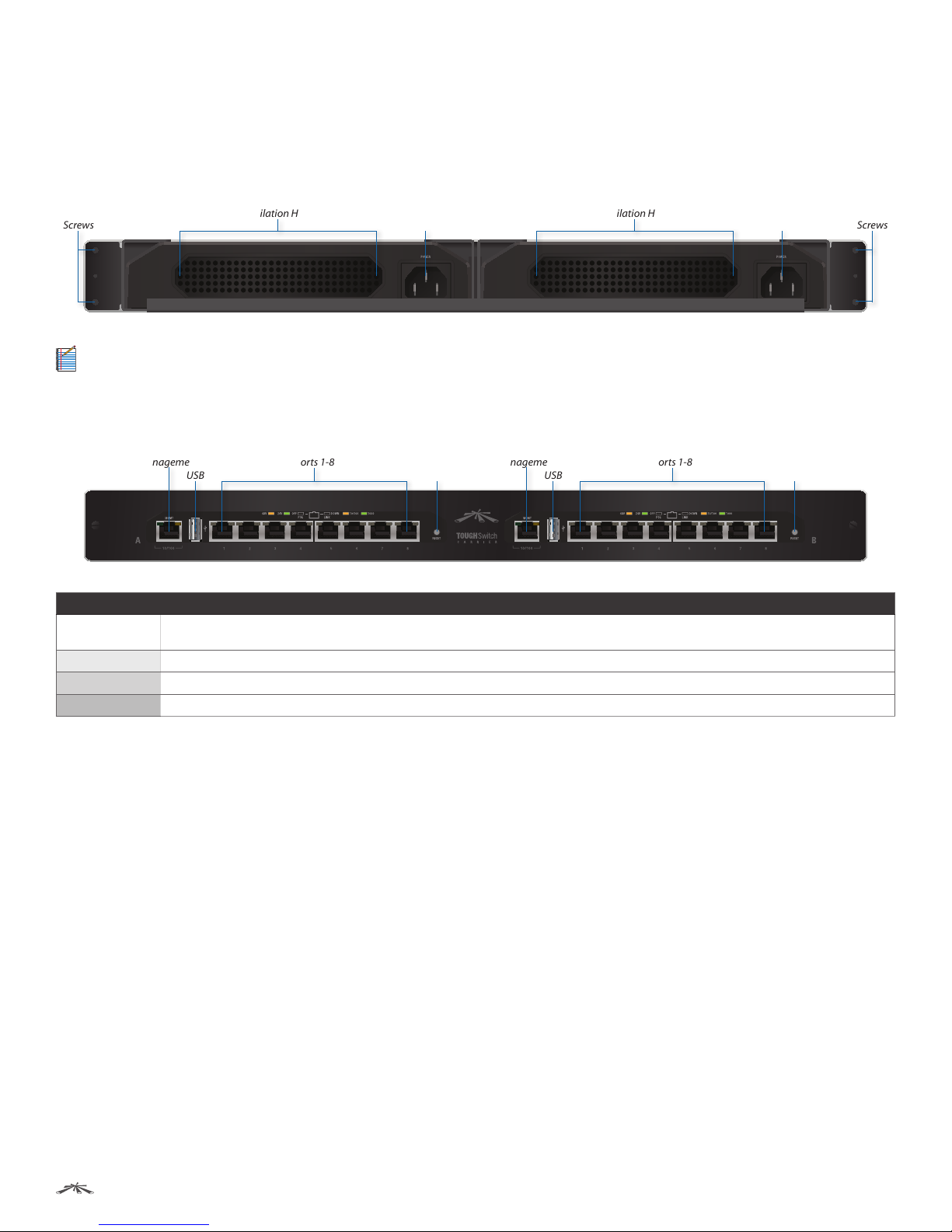

TOUGHSwitch PoE CARRIER

A and B designate the two 8-Port TOUGHSwitch PoE PROs housed in the rack. This may be useful for the Location setting on

the Device tab in the Configuration Interface.

Back Panel

TOUGHSwitch B TOUGHSwitch A

Power

Ventilation Holes

Mounting

Screws

Mounting

Screws

Ventilation Holes

Power

Note: There are additional ventilation holes on the top and sides of each TOUGHSwitch.

Front Panel Ports

TOUGHSwitch A TOUGHSwitch B

Management Ports 1-8

ResetUSB

Management Ports 1-8

ResetUSB

Interface Description

Management 10/100 Mbps port for management. Traffic between the Management port and numbered ports will be limited to 10/100 Mbps and,

under heavy load, may cause performance degradation of the TOUGHSwitch.

USB Reserved for future use.

1-8 10/100/1000 Mbps ports for switching and PoE (also available for management by default).

Reset To reset to factory defaults, press and hold the Reset button for more than five seconds while the unit is already powered on.

Chapter 1: OverviewTOUGHSwitch™PoE User Guide

Ubiquiti Networks, Inc.

Front Panel LEDs

Power/Link/Act

PoE

Speed/Link/Act

LED State Status

Management

Power/

Link/Act

Off No power

Amber

After bootup, the LED indicates

power. After an initial link is

established, the LED indicates a

10/100 Mbps connection. If the

link terminates, the LED turns

off until a link is re-established.

If the unit reboots, the LED will

again indicate power until a link

is established.

Amber Flashing Link activity at 10/100 Mbps

1-8

PoE

Off No Power over Ethernet

Green 24V Power over Ethernet

Amber 48V Power over Ethernet

Speed/

Link/Act

Off No link

Amber Link established at 10/100 Mbps

Amber Flashing Link activity at 10/100 Mbps

Green Link established at 1000 Mbps

Green Flashing Link activity at 1000 Mbps

Chapter 2: InstallationTOUGHSwitch™PoE User Guide

Ubiquiti Networks, Inc.

Chapter 2: Installation

Introduction

Proceed to the instructions for your TOUGHSwitch model:

• TOUGHSwitch PoE The instructions are below.

• TOUGHSwitch PoE PRO Go to “Installation of the

TOUGHSwitchPoEPRO” on page 8for instructions.

• TOUGHSwitch PoE CARRIER Go to “Installation of

the TOUGHSwitchPoECARRIER” on page 9for

instructions.

Configuration

After you install the TOUGHSwitch, refer to the

instructions in “Navigation” on page 11, which explain

how to access the Configuration Interface.

Installation of the TOUGHSwitch PoE

Mount the TOUGHSwitch on a wall, or place it on a

benchtop.

Note: Keep 20 mm of clearance next to the

ventilation holes for adequate airflow.

Installation Requirements

• Drill, 6 mm drill bit, and Phillips screwdriver

(wall‑mounting)

• For indoor applications, use Category 5 (or above) UTP

cabling approved for indoor use.

• For outdoor applications, shielded Category 5 (or

above) cabling should be used for all wired Ethernet

connections and should be grounded through the

AC ground of the power supply. We recommend that

you protect your outdoor networks from the most

brutal environments and devastating ESD attacks with

industrial‑grade shielded Ethernet cable from Ubiquiti

Networks™. For more details, visit:

www.ubnt.com/toughcable

Note: Although the cabling can be located

outdoors, the TOUGHSwitch itself should be

housed inside a protective enclosure.

Wall-Mounting (Optional)

To mount the TOUGHSwitch on a wall:

1. Use a 6 mm drill bit to drill two holes 60 mm apart.

2. Insert the M2.9 Anchors into the holes.

3. Use a Phillips screwdriver to secure a M2.9x20 Screw to

each anchor. Leave a clearance of approximately 3 mm

between each screw head and its anchor.

60 mm

3 mm

Note: You can also mount the TOUGHSwitch in a

horizontal orientation.

4. Position the Wall-Mount Slots of the TOUGHSwitch

over the screw heads on the wall. Then slide the

TOUGHSwitch to the left to lock it into place.

Chapter 2: InstallationTOUGHSwitch™PoE User Guide

Ubiquiti Networks, Inc.

Grounding the TOUGHSwitch (Optional)

The TOUGHSwitch is grounded through the Power

Adapter; however, you can add optional ESD grounding for

enhanced ESD protection.

1. Insert a ground wire (not included) through a corner

slot.

2. Twist tie to secure the ground wire to the

TOUGHSwitch.

3. Secure the other end of the ground wire to a

grounding block.

Connecting Power

1. Connect the power connector of the Power Adapter to

the Power port of the TOUGHSwitch.

2. Connect the Power Cord to the power port on the

Power Adapter. Connect the other end of the Power

Cord to a power outlet.

Connecting Ethernet

1. Connect an Ethernet cable from the Ethernet port

of your computer to the Management port of the

TOUGHSwitch.

2. Connect Ethernet cables from the Ethernet ports

of your devices to the numbered ports of the

TOUGHSwitch.

Note: PoE is disabled by default on all numbered

ports and is not available on the Management port.

To enable PoE on the appropriate ports, use the Ports

tab in the Configuration Interface (see “PoE” on

page 24).

Otros manuales para TS-5-POE ToughSwitchPoE

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cambiar de Ubiquiti

Ubiquiti

Ubiquiti UniFi US-48-750W Manual de usuario

Ubiquiti

Ubiquiti USW-Flex Manual de usuario

Ubiquiti

Ubiquiti EdgeSwitch Manual de usuario

Ubiquiti

Ubiquiti UniFi US-24-250W Manual de usuario

Ubiquiti

Ubiquiti UniFi Manual de usuario

Ubiquiti

Ubiquiti UniFi Switch Flex Mini Manual de usuario

Ubiquiti

Ubiquiti UniFi USW-Pro-24-POE Manual de usuario

Ubiquiti

Ubiquiti EdgeSwitch 12 Fiber Manual de usuario

Ubiquiti

Ubiquiti TS-16-CARRIER Manual de usuario

Ubiquiti

Ubiquiti UniFi US-8-60W Manual de usuario

Ubiquiti

Ubiquiti EdgeSwitch Lite ES-24-Lite Manual de usuario

Ubiquiti

Ubiquiti EdgeSwitch 16 XG Manual de usuario

Ubiquiti

Ubiquiti ES-24-250W Manual de instalación

Ubiquiti

Ubiquiti ES-24-250W Manual de usuario

Ubiquiti

Ubiquiti unifi switch 8 Manual de usuario

Ubiquiti

Ubiquiti EdgeSwitch 8 Manual de usuario

Ubiquiti

Ubiquiti US-XG-6POE Manual de usuario

Ubiquiti

Ubiquiti EdgeSwitch 5XP Manual de usuario

Ubiquiti

Ubiquiti EdgeSwitch ES-16-150W Manual de usuario

Ubiquiti

Ubiquiti ES-24-250W Manual de usuario

Ubiquiti

Ubiquiti UniFi USW-Pro-48-POE Manual de usuario

Ubiquiti

Ubiquiti UniFi USW-24-POE Manual de usuario

Ubiquiti

Ubiquiti EdgeRouter PoE ERPoe-5 Manual de usuario

Ubiquiti

Ubiquiti TS-16-CARRIER Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
