Ubiquiti EdgeSwitch 5XP Manual de usuario

ES-5XP Quick Start Guide

Package Contents

EdgeSwitch 5XP

Screws (Qty. 2)

Anchors (Qty. 2)

Power Adapter (24V, 2.5A)

Power Cord

Installation Requirements

Drill, 6 mm drill bit, and Phillips screwdriver (wall-mounting)

For outdoor applications, shielded Category 5 (or above) cabling should be used for all

wired Ethernet connections and should be grounded through the AC ground of the power

supply.

We recommend that you protect your networks from harmful outdoor environments and

destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti.

IMPORTANT: Although the cabling can be located outdoors, the EdgeSwitch

itself should be housed inside a protective enclosure.

WARNING: To reduce the risk of fire or electric shock, do not expose this

EdgeSwitch to rain or moisture.

Hardware Overview

Management Power/Link LED

Off

No Power/No Link

Amber

After bootup, the LED indicates power. After an initial link is

established, the LED indicates a 10/100 Mbps connection. If

the link terminates, the LED turns off until a link is re-

established. If the unit reboots, the LED will again indicate

power until a link is established.

RJ45 PoE LED (Ports 1 - 5)

Off

No Power over Ethernet

Green

24V Power over Ethernet

RJ45 Speed/Link/Act LED (Ports 1 - 5)

Off

No link

Amber

Link established at 10/100 Mbps

Amber Flashing

Link activity at 10/100 Mbps

Green

Link established at 1000 Mbps

Green Flashing

Link activity at 1000 Mbps

Management Port

10/100 Mbps port used to access the EdgeSwitch Configuration Interface.

USB Port

Reserved for future use.

RJ45 (Ports 1 - 5)

10/100/1000 Mbps ports for switching and PoE (also available for management by default).

Reset Button

To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the

unit is powered on.

Power

Connect the included Power Adapter to the Power port.

Hardware Installation

Place the EdgeSwitch on a bench top or other flat surface.

WARNING: FAILURE TO PROVIDE PROPER VENTILATION MAY CAUSE FIRE

HAZARD. KEEP AT LEAST 20 MM OF CLEARANCE NEXT TO THE

VENTILATION HOLES FOR ADEQUATE AIRFLOW.

Wall-Mounting

1.

2.

3.

4.

Grounding the EdgeSwitch (Optional)

The EdgeSwitch is grounded through the Power Adapter; however, you can add optional ESD

grounding for enhanced ESD protection.

1.

2.

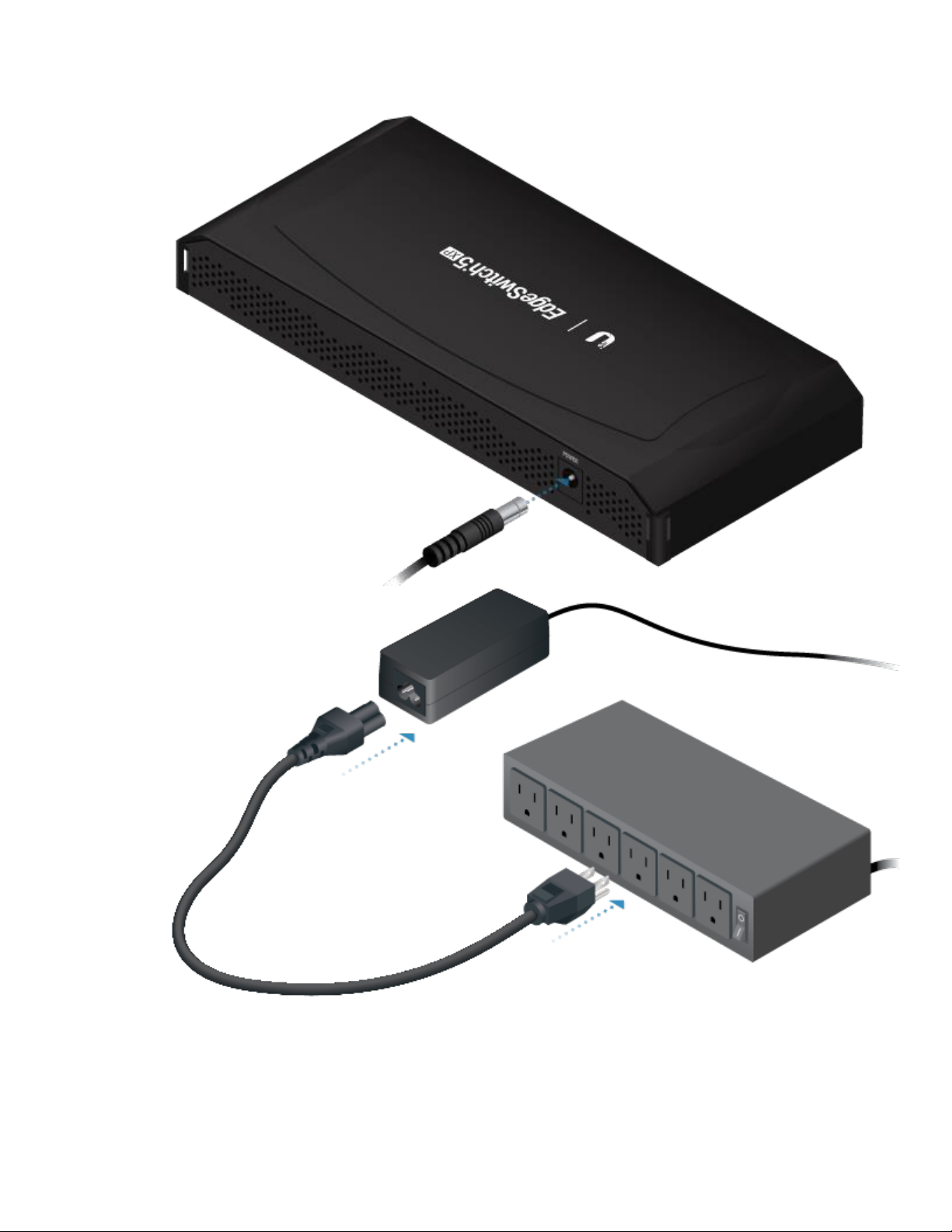

Connecting Power

1.

2.

Connecting Ethernet
