Ubiquiti EdgeSwitch 48 LITE Manual de usuario

EdgeSwitch Lite Rack-Mount Brackets (Qty. 2) Bracket Screws (Qty. 8)

Mounting Screws (Qty. 4) Cage Nuts (Qty. 4) Power Cord

Package Contents

Installation Requirements

Phillips screwdriver (for rack- or wall-mounting)

Standard-sized, 19" wide rack with a minimum of 1U height available (for rack-mounting)

For indoor applications, use Category 5 (or above) UTP cabling approved for indoor use.

For outdoor applications, shielded Category 5 (or above) cabling should be used for all

wired Ethernet connections and should be grounded through the AC ground of the power

supply.

We recommend that you protect your networks from harmful outdoor environments and

destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For

more details, visit:

ui.com/toughcable

Note:

Although the cabling can be located outdoors, the EdgeSwitch itself should

be housed inside a protective enclosure.

Hardware Overview

ES-48-Lite Quick Start Guide

System LED

RJ45 Speed/Link/Activity LED (Ports 1 - 48)

SFP+ Speed/Link/Activity LED (Ports 1 - 2)

Note:

The System LED functionality has been updated with rmware v1.8.0. We

recommend that you update the EdgeSwitch to the latest rmware.

Flashing White Bootup in progress.

White Ready for use, not connected to Ubiquiti® Network

Management System (UNMS™). See

“UNMS

Management”

Blue Ready for use, connected to UNMS.

Steady Blue with Occasional

Flashing Ready for use, unable to connect to UNMS, check

connection to UNMS server.

Quickly Flashing Blue Used to locate a device in UNMS.

Alternating

Blue/White Firmware upgrade in progress.

Oﬀ No Link

Amber Link Established at 10/100 Mbps

Flashing Indicates Activity

Green Link Established at 1000 Mbps (1 Gbps)

Flashing Indicates Activity

Oﬀ No Link

ES-48-Lite Quick Start Guide

SFP Speed/Link/Activity LED (Ports 1 - 2)

RJ45 (Ports 1 - 48)

SFP+ (Ports 1 - 2)

SFP (Ports 1 - 2)

Reset Button

Console Port

DC Input

Power Port

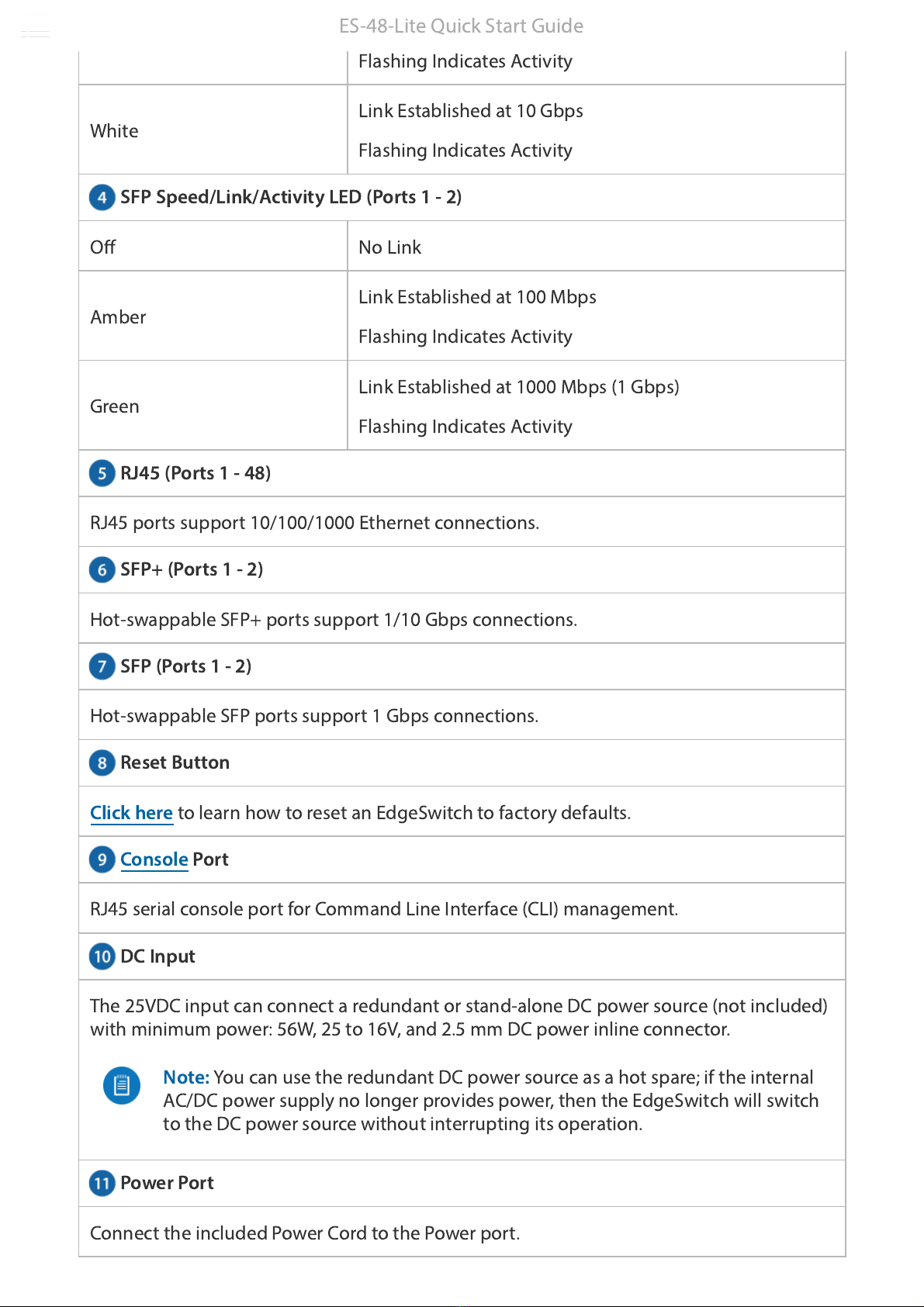

Green Link Established at 1 Gbps

Flashing Indicates Activity

White Link Established at 10 Gbps

Flashing Indicates Activity

Oﬀ No Link

Amber Link Established at 100 Mbps

Flashing Indicates Activity

Green Link Established at 1000 Mbps (1 Gbps)

Flashing Indicates Activity

RJ45 ports support 10/100/1000 Ethernet connections.

Hot-swappable SFP+ ports support 1/10 Gbps connections.

Hot-swappable SFP ports support 1 Gbps connections.

Click here

to learn how to reset an EdgeSwitch to factory defaults.

RJ45 serial console port for Command Line Interface (CLI) management.

The 25VDC input can connect a redundant or stand-alone DC power source (not included)

with minimum power: 56W, 25 to 16V, and 2.5 mm DC power inline connector.

Note:

You can use the redundant DC power source as a hot spare; if the internal

AC/DC power supply no longer provides power, then the EdgeSwitch will switch

to the DC power source without interrupting its operation.

Connect the included Power Cord to the Power port.

ES-48-Lite Quick Start Guide

Hardware Installation



ES-48-Lite Quick Start Guide

Connecting Power

ES-48-Lite Quick Start Guide

Connecting Ethernet

ES-48-Lite Quick Start Guide

Connecting SFP+/SFP

The specied module types are supported at these speeds:

Ports SFP+ Module Type SFP Module Type

SFP+ 1-2 10 Gbps 1 Gbps

SFP 1-2 (Not supported) 1 Gbps

ES-48-Lite Quick Start Guide

For information about compatible ber SFP modules, visit:

ubnt.link/SFP_DAC_Compatibility

Accessing the Conguration Interface

The EdgeSwitch is set to DHCP by default, so it will try to automatically obtain an IP address. If

that fails, then it will use the default fallback IP address, 192.168.1.2. Proceed to the

appropriate section, DHCP or

“Fallback IP Address”

DHCP

Use one of the following methods:

Set up the DHCP server to provide a specic IP address to the EdgeSwitch based on its

MAC address (on the label).

Let the EdgeSwitch obtain an IP address and then check the DHCP server to see which IP

address was assigned.

To log in, follow these steps:

1. Launch your web browser. Type the appropriate IP address in the address eld. Press enter

(PC) or return (Mac).

2. Enter ubnt in the Username and Password elds. Click Sign In.

ES-48-Lite Quick Start Guide

The EdgeSwitch Conguration Interface will appear. Customize additional settings as needed.

For more information, refer to the EdgeSwitch documentation, which is available at

ui.com/download/edgemax

Fallback IP Address

1. Ensure that your computer (or other host system) is connected to the EdgeSwitch.

2. Congure the Ethernet adapter on your host system with a static IP address on the

192.168.1.x subnet.

3. Launch your web browser. Type the appropriate IP address in the address eld (192.168.1.2

is the default fallback IP address). Press enter (PC) or return (Mac).

4. Enter ubnt in the Username and Password elds. Click Sign In.

5. The EdgeSwitch Conguration Interface will appear. Click Settings .

ES-48-Lite Quick Start Guide

6. Change the IP Address to a unique IP address. Click Apply.

Note:

If you change the IP settings, then the session will be cut oﬀ, and you will need

to reconnect to the EdgeSwitch using the new IP address.

Customize additional settings as needed. For more information, refer to the EdgeSwitch

documentation, which is available at

ui.com/download/edgemax

UNMS Management

You can also manage your device using the Ubiquiti Network Management System. UNMS

lets you congure, monitor, upgrade, and back up your devices using a single application. Get

started at

www.unms.com

Specications

ES-48-Lite

ES-48-Lite Quick Start Guide
